Mitsubishi Outlander XL. Manual - part 1321

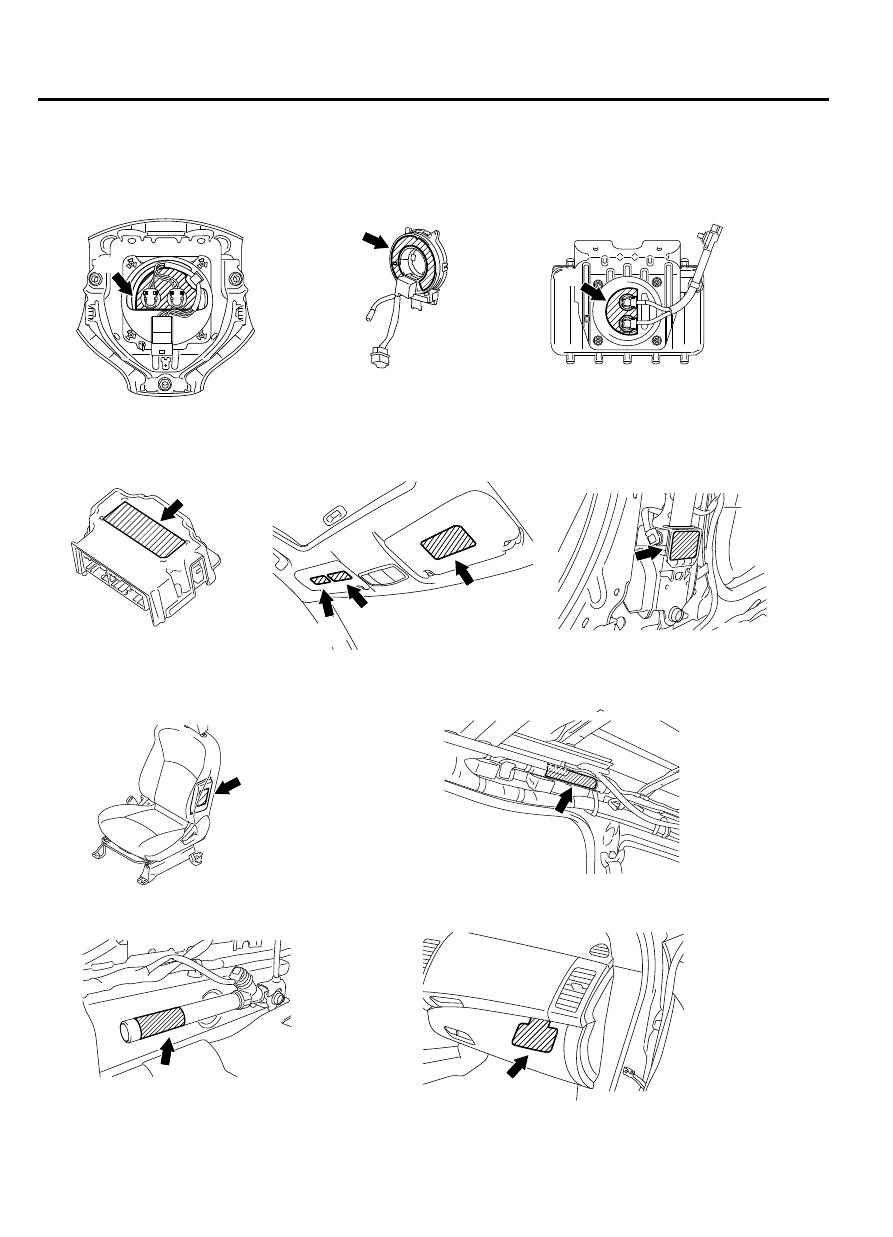

CAUTION LABELS

The labels indicating the precautions for handling and
maintenance of SRS air bags and seat belt with pre-

tensioner are adhered to the locations shown in the
above figures.

ZC501894

AC506231

AC506232

AC506239

ZC601274

ZC601275

Driver's air bag module

Clock spring

Sunvisor

Seat belt with pre-tensioner
(driver's and passenger's seat)

SRS-ECU

Passenger's (front)
air bag module

0000

B

D

F

E

G

A

C

E

AC506241

AC506233

AC506710

ZC601276

Curtain air bag module
(right and left)

Lap pre-tensioner (LH)

H

I

J

K

Glove box

Side-airbag module
(driver's and passenger's seat)

52B-6

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION

Label contents
A

DANGER
FLAMMABLE EXPLOSIVE
DO NOT
DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY;
OR STORE AT HIGH TEMPERATURE (93°C or HIGHER).
REFER TO WORKSHOP MANUAL FOR DETAILS.

B

CAUTION: SRS CLOCK SPRING
PLEASE DO NOT TURN EXCEPT WHEN REQUIRED.
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, PLEASE REPLACE ENTIRE UNIT
ACCORDING  TO  THE  SERVICE  MANUAL  INSTRUCTIONS.  ALIGNMENT  OF
MODULES IS NECESSARILY WHEN THEY ARE ADJUSTED AND/OR INSTALLED FOR
THE ALIGNMENT PROCEDURES, FOLLOW THE SERVICE MANUAL INSTRUCTIONS.

C

WARNING FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

DO NOT REPAIR. DISASSEMBLE OR TAMPER.

AVOID CONTACT WITH FLAME OR ELECTRICITY.

DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.

STORE BELOW 200°F (93°C).

BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR
IMPORTANT FURTHER DATA.

D

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECTIVE, REFER TO SERVICE MANUAL.

E

 <EXCEPT

CANADA>

ZC5019150000

WARNING
EVEN WITH ADVANCED AIR BAGS

Children can be killed or seriously injured by the air bag

The back seat is the safest place for children

Never put a rear-facing child seat in the front

Always use seat belts and child restraints

See owner’s manual for more information about air bags

E <CANADA>

ZC5019180000

WARNING
DEATH or SERIOUS INJURY can occur

Children 12 and under can be killed by the air bag.

The BACK SEAT is the SAFEST place for children.

NEVER put a rear-facing child seat in the front.

Sit as far back as possible from the air bag.

ALWAYS use SEAT BELTS and CHILD RESTRAINTS.

F

ZC6008530000

WARNING: HIGHER ROLLOVER RISK
Avoid Abrupt Maneuvers and Excessive Speed.
Always Buckle up.
See Owner’s Manual For Further Information.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

GENERAL INFORMATION

Label contents

ZC6008540000

G, J

DANGER: BELT PRETENSIONER

DO NOT DISASSEMBLE OR IMPACT

REFER TO SERVICE MANUAL FOR INSTRUCTIONS, HANDLING, STORAGE AND
DISPOSAL PROCEDURES

H

WARNING
SRS AIR BAG MODULE FLAMMABLE/EXPLOSIVE
TO AVOID SERIOUS INJURY:

DO NOT REPAIR, DISASSEMBLE OR TAMPER.

AVOID CONTACT WITH FLAME OR ELECTRICITY.

DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.

STORE BELOW 200°F (93°C).

BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR
IMPORTANT FURTHER DATA.

I

DANGER
FLAMMABLE EXPLOSIVE
SRS AIR BAG MODULE

Do not disassemble or shock.

Do not heat or incinerate.

Do not contact with electricity or tester probes.

Do not test or diagnose.

Do not store in more than 200°F (93°C).

Store the air bag cover is top.

For  information  on  handing,  replacement,  and  disposal  methods,  refer  to  the  service
manual.

K

 <EXCEPT

CANADA>

This Vehicle is Equipped with Advanced Air Bags
Even with Advanced Air Bags
Children can be killed or seriously injured by the air bag.
The back seat is the safest place for children.
Never put a rear-facing child seat in the front.
Always use seat belts and child restraints.
See owner’s manual for more information about air bags.
Not to be removed except by owner.

K <CANADA>

WARNING
MISE EN GARDE
Children Can Be KILLED or INJURED by Passenger Air Bag
The back seat is the safest place for children 12 and under.
Make sure all children use seat belts or child seats.
Not to be removed except by owner.

52B-8

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION

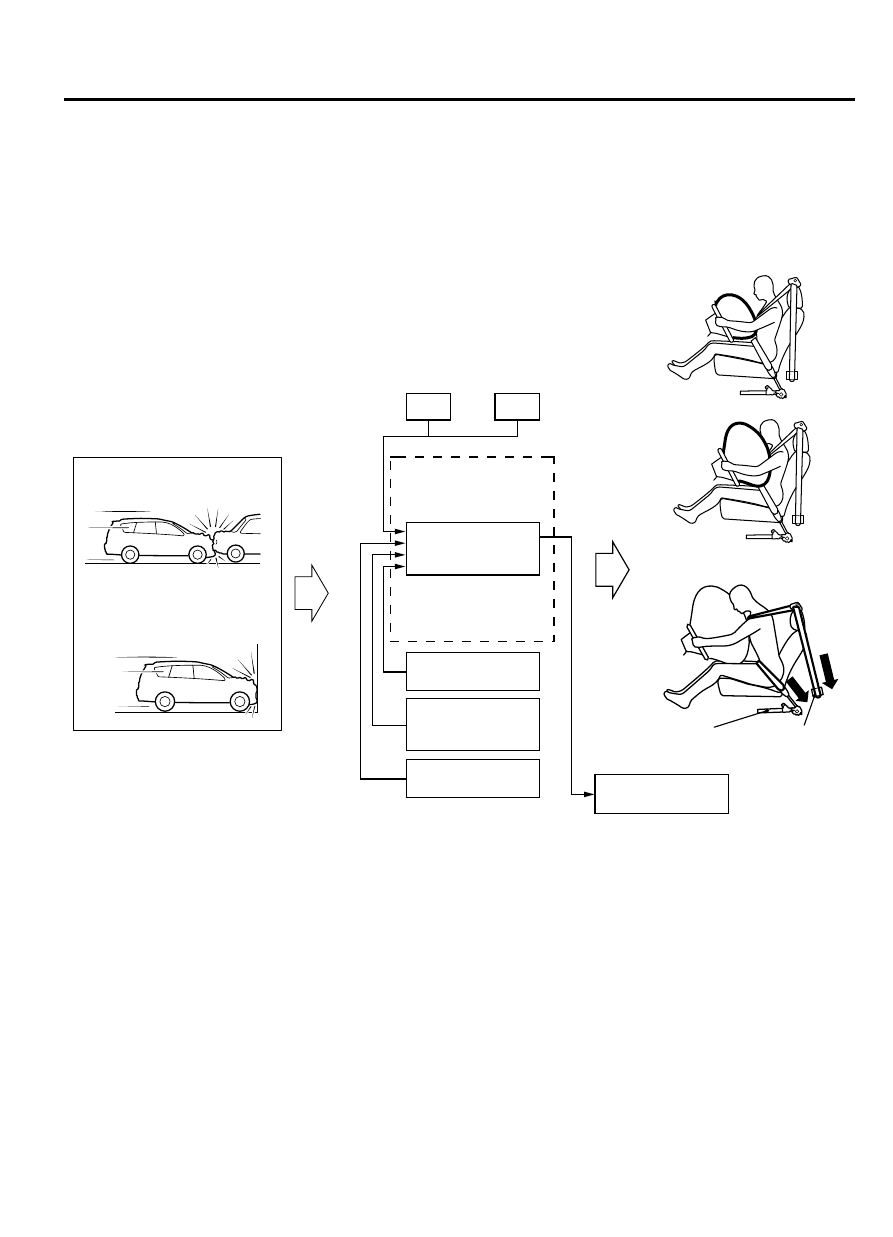

SYSTEM OPERATION

ADVANCED AIRBAG AND SEAT BELT PRE-TENSIONER

M25201000103USA0000010000

Lap pre-tensioner
(LH)

Advanced airbag <driver’s seat>

Shock
above a
certain
level

Ignition signal

Frontal collision against
another vehicle

or
Frontal collision against
a solid surface

Front impact
sensor (LH)

Front impact
sensor (RH)

Ignition judgment

Seat belt pre-tensioner

Seat belt
pre-tensioner

ZC501919

SRS-ECU

Seat slide sensor

Occupant
classification -ECU

Seat belt switch

<1st and 2nd stage>

<Only 1st stage>

Air bag OFF
indicator light

0000

In case of a frontal collision, when the front impact
sensor  inside  the  engine  room  and  the  G-sensor
inside SRS-ECU simultaneously detect an impact
that exceeds a certain threshold (turned ON), SRS-
ECU energizes the driver's and passenger's (front)
air bag modules (squibs), driver's and passenger's
seat  belt  pre-tensioners  (squibs),  and  driver's  lap
pre-tensioner (squib), thus deploying the air bags
and triggering the seat belt pre-tensioners. Also, the
advanced air bag has been adopted to optimize the

air bag deployment control by adjusting the inflation
pressure.

The  seat  slide  sensor  to  detect  the  driver's  seat
position judges the deployment in two stages, and
deploys the driver's air bag.

The occupant classification-ECU has been added
to recognize the passenger's seat occupant, and it
controls  deployment/non-deployment  of  the
passenger's  (front)  air  bag  module  based  on  the
detected weight of the passenger's seat.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

SYSTEM OPERATION
