DESCRIPTION OF CONSTRUCTION AND

OPERATION

SAFETY MECHANISM

If any obstacle such as a hand or a head is detected
to  be  pinched  during  a  sunroof  lid  glass  closing
operation,  the  sunroof  lid  glass  is  opened  by
approximately 200 mm (7.9 inches) or more.

During  the  sunroof  lid  glass  closing  operation,  by
continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating the
safety  mechanism  even  when  the  obstacle  is
detected to be pinched.

During the safety mechanism activation, when the
sunroof  close  switch  is  operated,  the  sunroof  lid
glass  stops.  By  continuing  the  close  switch
operation,  the  sunroof  lid  glass  can  be  forcibly
closed  without  activating  the  safety  mechanism
even when the obstacle is detected to be pinched.

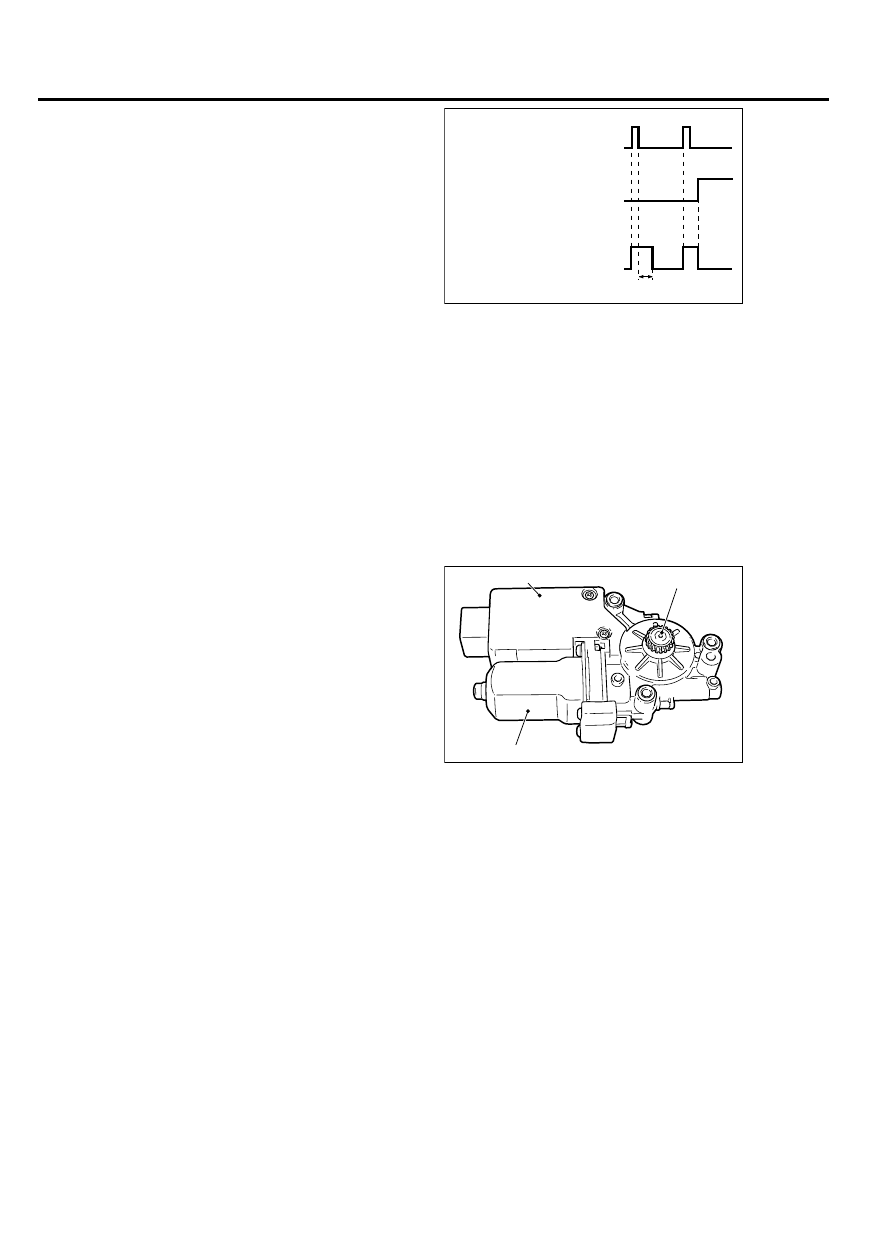

SUNROOF TIMER FUNCTION

ZC6002580002

t

Driver's door switch or

passenger’s door switch

OFF

ON

OFF

(Close)

ON

(Open)

Ignition switch (IG1)

Sunroof operation

(Disabled) OFF

(Enabled) ON

t: 30 Seconds

(Sunroof timer operation time)

The sunroof ECU (integrated into the sunroof motor
assembly)  receives  the  ignition  switch  (IG1)  signal
transmitted  by  ETACS-ECU.  If  the  ignition  switch
(IG1) signal turns OFF, the sunroof ECU allows the
sunroof  switch  to  open/close  (timer  activation)  the
sunroof  for  approximately  30  seconds.  During  the
timer  operation,  if  the  driver's  or  passenger’s  door
open  is  detected  from  the  door  switch  signal
transmitted  by  ETACS-ECU,  the  sunroof  timer
function stops at this time.

SUNROOF MOTOR ASSEMBLY

ZC6001520000

Sunroof ECU

Drive gear

Sunroof motor

The  sunroof  motor  assembly,  which  consists  of  the
motor  main  body,  drive  gear,  and  sunroof  ECU,  is
installed in front of the housing.

42A-22

BODY

SUNROOF

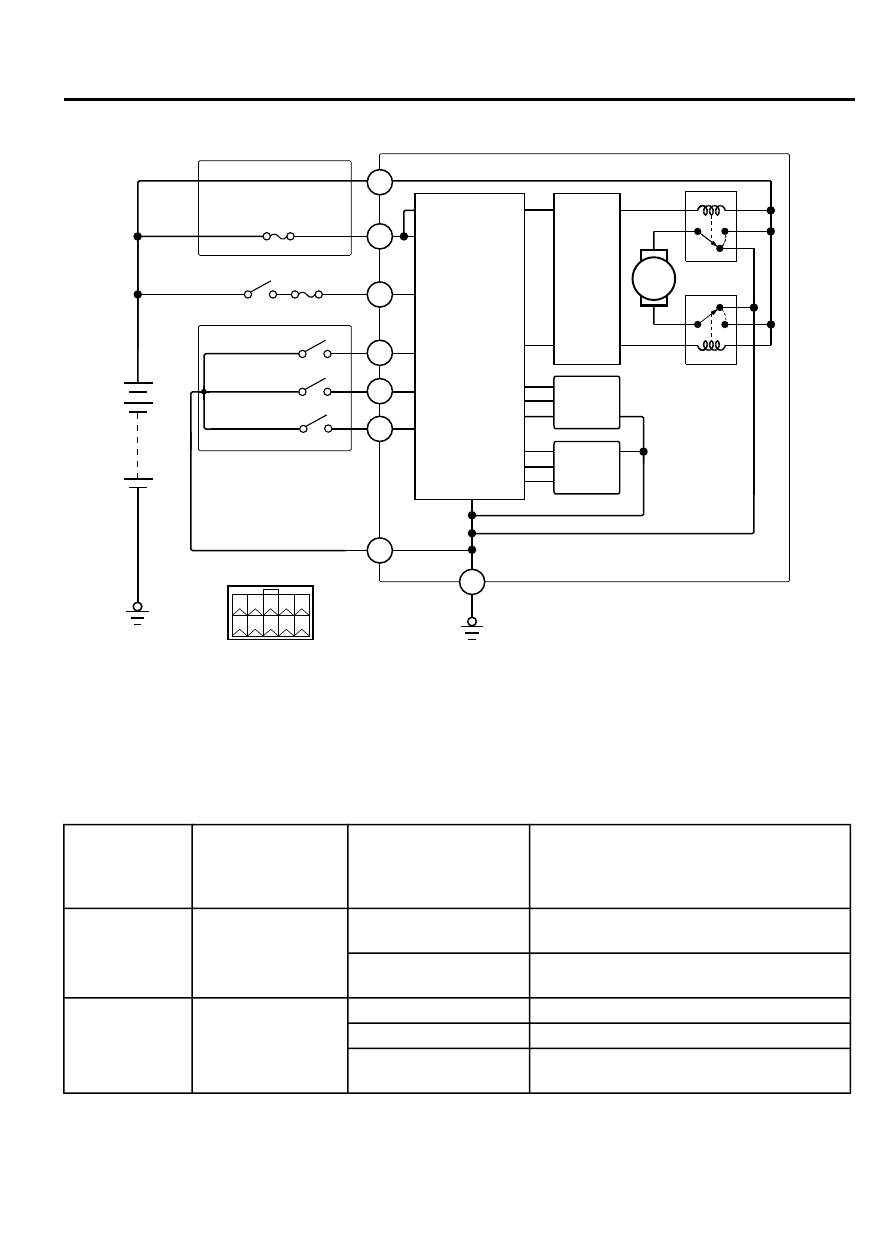

SUNROOF ECU

ZC604430

M

0000

ETACS-ECU

EEPROM

5

4

3

2

1

10

9

8

7

6

10

3

7

6

1

5

4

2

Open switch

Tilt-up switch

Close/Tilt-down
switch

Sunroof switch

Ignition switch

Sunroof-ECU

Sunroof motor assembly

Motor

Sensor

Driver

circuit

The sunroof ECU incorporates a microcomputer and
controls  motor  operations  with  the  sunroof  switch
signals, depending on various conditions.

CUSTOMIZATION FUNCTION

M24200000241USA0000010000

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information is kept in memory even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Door

 unlock

mode

Door lock system

All doors unlock

All the doors are unlocked when the driver's
side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked when
the driver's side door is unlocked. (default)

Auto

 door

unlock  by  P
position

Auto door unlock by
P position function

Disable

Without function (default)

Always enabled

Always able to function

P/W unlocked

With  function  (with  power  window
unlocked)

BODY

42A-23

CUSTOMIZATION FUNCTION

MEMO

42A-24

BODY

GROUP 42B

KEYLESS OPERATION SYSTEM

(KOS)

CONTENTS

GENERAL INFORMATION............

42B-2

SYSTEM OPERATION...............

42B-8

DOOR ENTRY FUNCTION............

42B-8

KEYLESS ENTRY FUNCTION........

42B-15

ENGINE STARTING FUNCTION......

42B-20

TIRE PRESSURE MONITORING SYSTEM
(TPMS) FUNCTION...............

42B-23

WARNINGS/ALARMS...............

42B-25

CONFIGURATION FUNCTION........

42B-29
