Mitsubishi Outlander XL. Manual - part 1300





DESCRIPTION OF CONSTRUCTION AND

OPERATION

POWER WINDOW SYSTEM
The  power  window  switch  has  a  waterproofing
structure which prevents water (such as rain drops)
from  entering  from  above.  Should  water  enter,  it  is
drained through the hole located on the lower area of
the switch, and no water may be accumulated.

POWER WINDOW SWITCH
The power window switch has a push-pull operation
method to enhance safety. To close a door window
glass, press in the switch knob; and to open, pull it up.
The  one-touch  opening/closing  mechanism  in  the
driver's power window switch will fully open or close
driver’s door window glass in a single operation.

SAFETY MECHANISM <Driver's door only>

The power window with the safety mechanism has
been  adopted  to  enhance  safety.  If  any  obstacle
such as a hand or a head is detected to be pinched
during a door window glass closing operation, the
door window glass is opened by approximately 150
mm (6.0 inches). The safety mechanism is activated
when the power window switch is operated by one-
touch closing operation (the status when the hand
is  released  from  the  switch  knob  after  one-touch
closing operation).

To prevent anyone from intruding into the vehicle,
by performing the manual-closing operation of the
power  window  switch,  or  by  continuing  the  one-
touch closing operation (keep pulling up the switch
knob), the door window glass can be forcibly closed
without safety mechanism activation even when the
obstacle is detected to be pinched.

When the power window switch manual-closing or
one-touch  closing  operation  is  performed
accidentally, and an obstacle is detected, the power
window  switch  manual-closing  and  one-touch
closing operations are prohibited for 3 seconds after
the obstacle has been detected to be pinched, and
activates the safety mechanism.

POWER WINDOW TIMER FUNCTION

ZC600258

ON

OFF

ON

OFF

ON

(Open)

OFF

(Closed)

Ignition switch (IG1)

Power window relay

Driver's or
passenger's
door switch

t

t: 30 Seconds

0000

Even  after  the  ignition  is  switched  off,  the  ETACS-
ECU  keeps  the  power  window  relay  activated  for
approximately  30  seconds,  enabling  raising  or
lowering  of  the  power  windows  by  using  the  power
window  switches.  After  approximately  30  seconds,
the power window relay is deactivated.
During  this  timed  operation,  if  the  driver’s  or
passenger’s  doors  are  opened,  the  power  window
relay is deactivated from that moment.

POWER WINDOW LOCK SWITCH
The driver’s power window switch is equipped with the
lock switch. This switch disables the opening/closing
operation  of  the  door  window  glass  using  each
passenger's  power  window  switch  and  rear  power
window switch.

42A-18

BODY

DOOR AND LIFTGATE

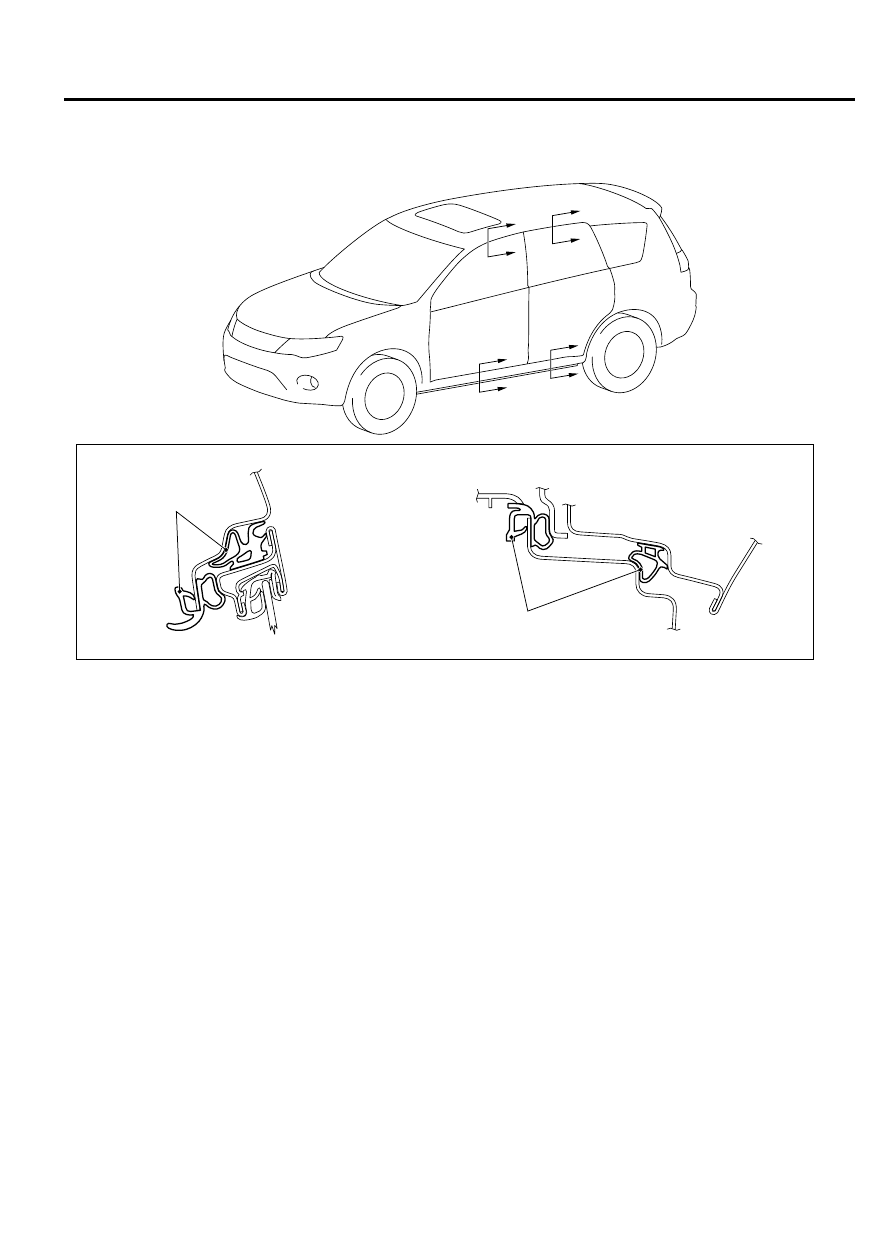

WEATHERSTRIP

M24200000200USA0000010001

ZC6001450000

A

A

A

A

B

B

B

B

Section A – A

Section B – B

Door opening
weatherstrip

Door opening weatherstrip

The double weather strips have been installed along
the  perimeter  of  the  door  window  to  improve  the
sound-proof and water-proof performances.

BODY

42A-19

WINDOW GLASS

WINDOW GLASS

M24200000150USA0000010000

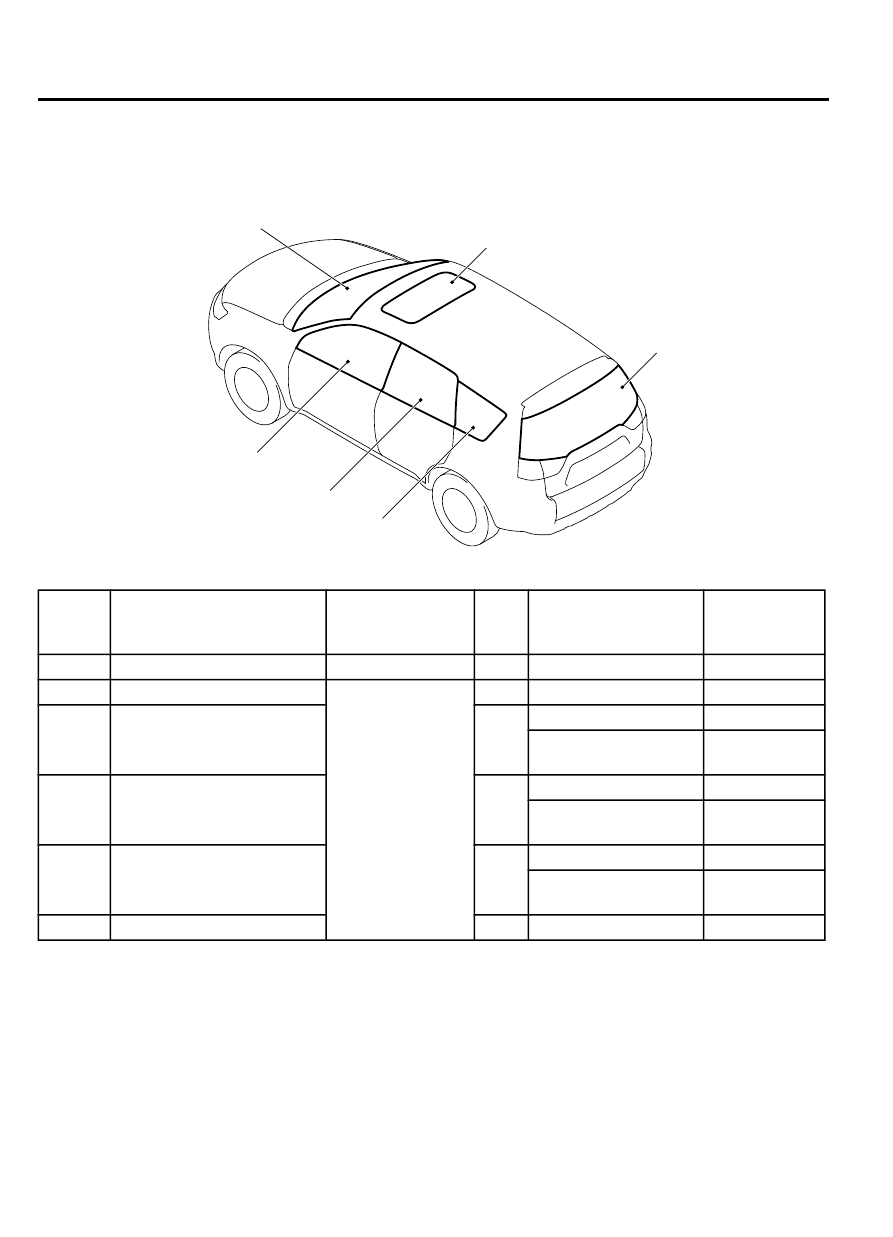

VISIBLE RAY TRANSMISSIVITY RATE FOR WINDOW GLASS

ZC600146

1

2

3

4

5

6

0000

No.

Name

Type

Thick
ness
(mm)

Color

Visible

 ray

transmissivity
rate (%)

1

Windshield

Laminated glass

4.3

Green

80.5

2

Front door window glass

Reinforced glass

3.5

Green

81

3

Rear window glass

3.1

Green

82.3

Dark  gray  (privacy
glass)

25

4

Quarter window glass

3.1

Green

82.3

Dark  gray  (privacy
glass)

25

5

Liftgate window glass

3.1

Green

82.3

Dark  gray  (privacy
glass)

25

6

Sunroof lid glass

3.5

Dark gray

18

NOTE:

The visible ray transmissivity rate (%) is

a reference value.
The  laminated  glass  has  been  adopted  for  the
windshield,  and  the  reinforced  glass  has  been

adopted for other windows. The window glass has the
following features.

The privacy glasses for the rear door window glass,
quarter  window  glass,  and  liftgate  window  glass
have been adopted as an option.(Optional for "LS"
grade, standard for "XLS" grade)

42A-20

BODY

SUNROOF

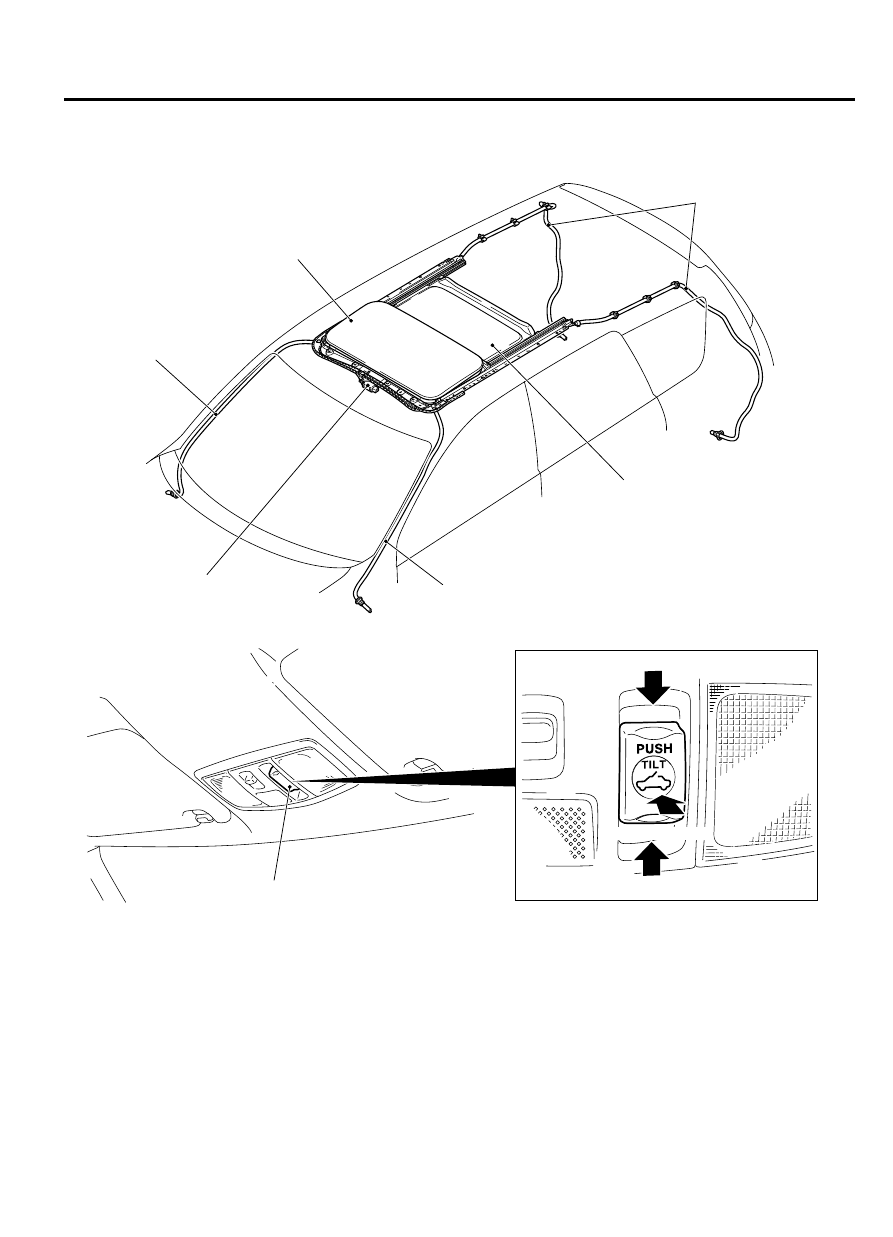

SUNROOF

M24200000160USA0000010000

ZC6001490000

Sunroof lid glass

Sunshade

Sunroof motor assembly
(integrated into sunroof ECU)

Drain pipe

Drain pipe

Drain pipe

ZC6001500000

Sunroof switch

Open switch

Close/tilt-down switch

Tilt-up switch

The  electric  sliding  glass  sunroof  with  tilt-up
mechanism  has  been  adopted  as  an  option.  This
sunroof has the following characteristics:

A lightweight sunroof has been adopted.

The  sunroof  tilts  up  for  approximately  30  mm  to
improve ventilation.

The integrated switch allows for all slide opening/
closing,  tilt  up/down,  and  stop  operations.  All
operations are available at one touch.

If external force is applied during slide closing or tilt
down  operations  that  obstructs  operations,  the
sunroof lid glass will move in the reverse direction.

BODY

42A-21

SUNROOF
