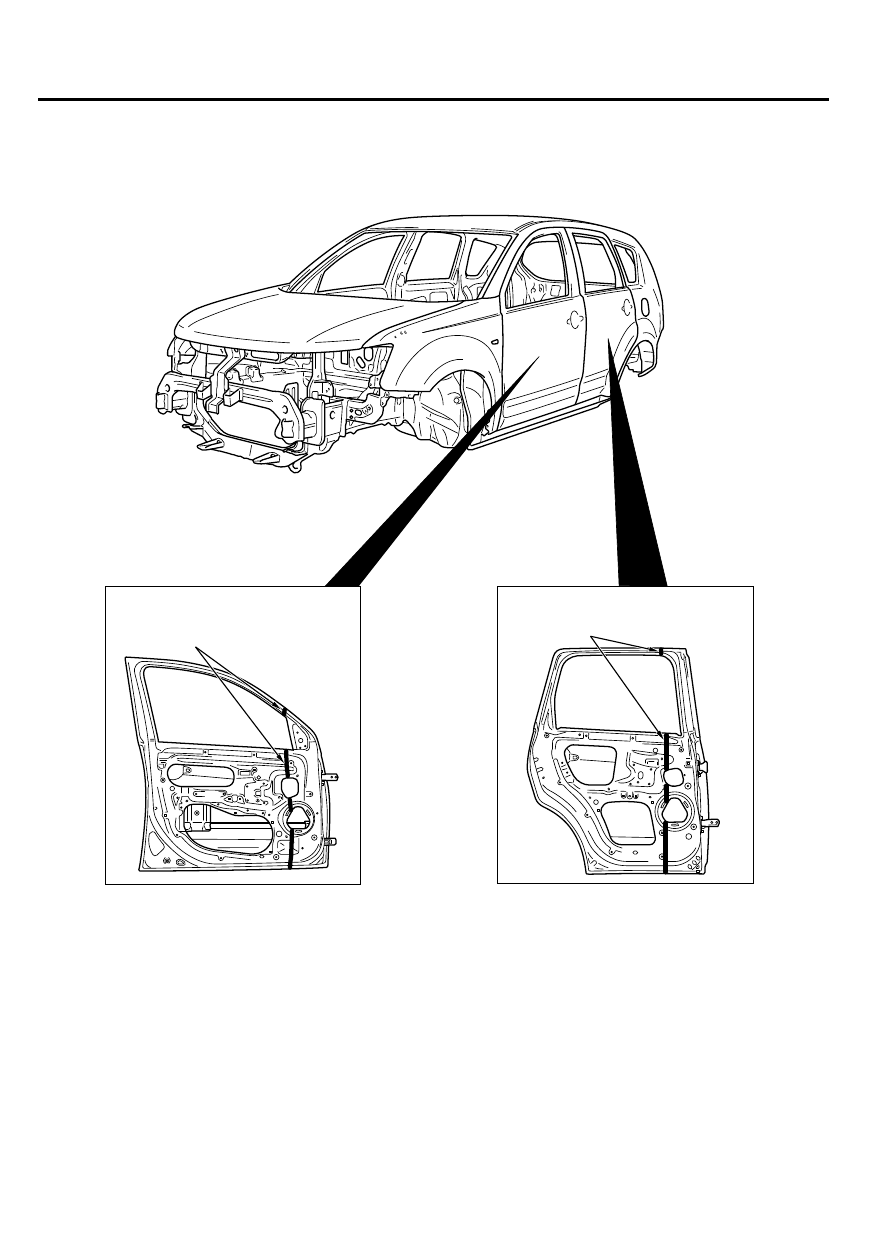

STEEL PLATE WITH UNEVEN THICKNESS

ZB6003980000

Rear door inner panel

Front door inner panel

Thickness is thicker on the forward
part of the vehicle from this line.

Thickness is thicker on the forward
part of the vehicle from this line.

The  uneven  thickness  steel  panels*  (in  uneven
thickness integrated structure) have been adopted for

the parts shown in the figure to improve safety upon
impact and reduce weight.

NOTE:

*: A steel sheet of varying thickness that

is welded into one steel sheet.

42A-6

BODY

MAIN BODY

STEERING ABILITY

ZB600399

1

0000

2

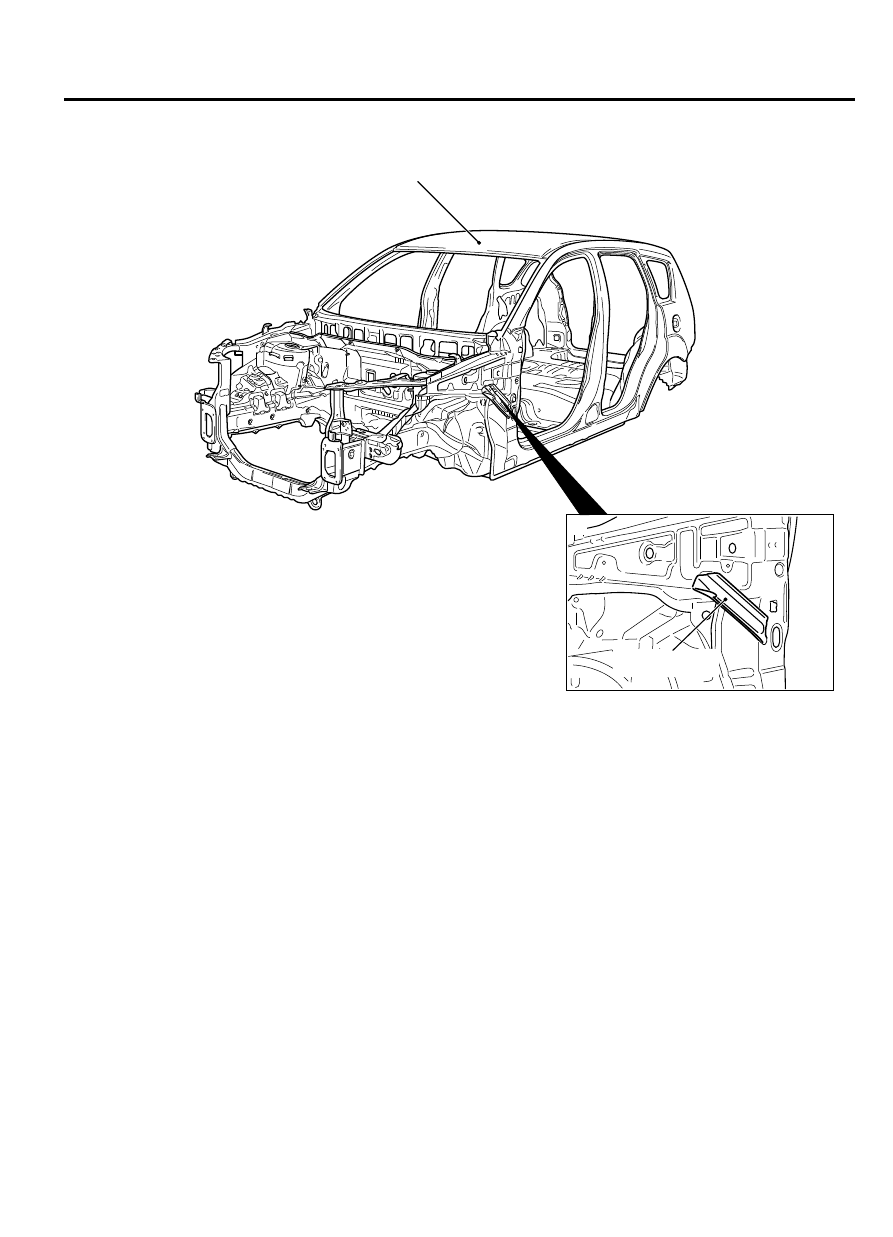

Upper frame to
front pillar brace

1.

The  aluminum  roof  panel  has  been  adopted  to
reduce weight and improve the steering ability.

2.

The front upper frame outer and front pillar have
been  joined  with  the  upper  frame  to  front  pillar
brace in order to improve the steering ability.

BODY

42A-7

MAIN BODY

QUIETNESS

M24200000040USA0000010000

ZB6010200000

1

1

1

2

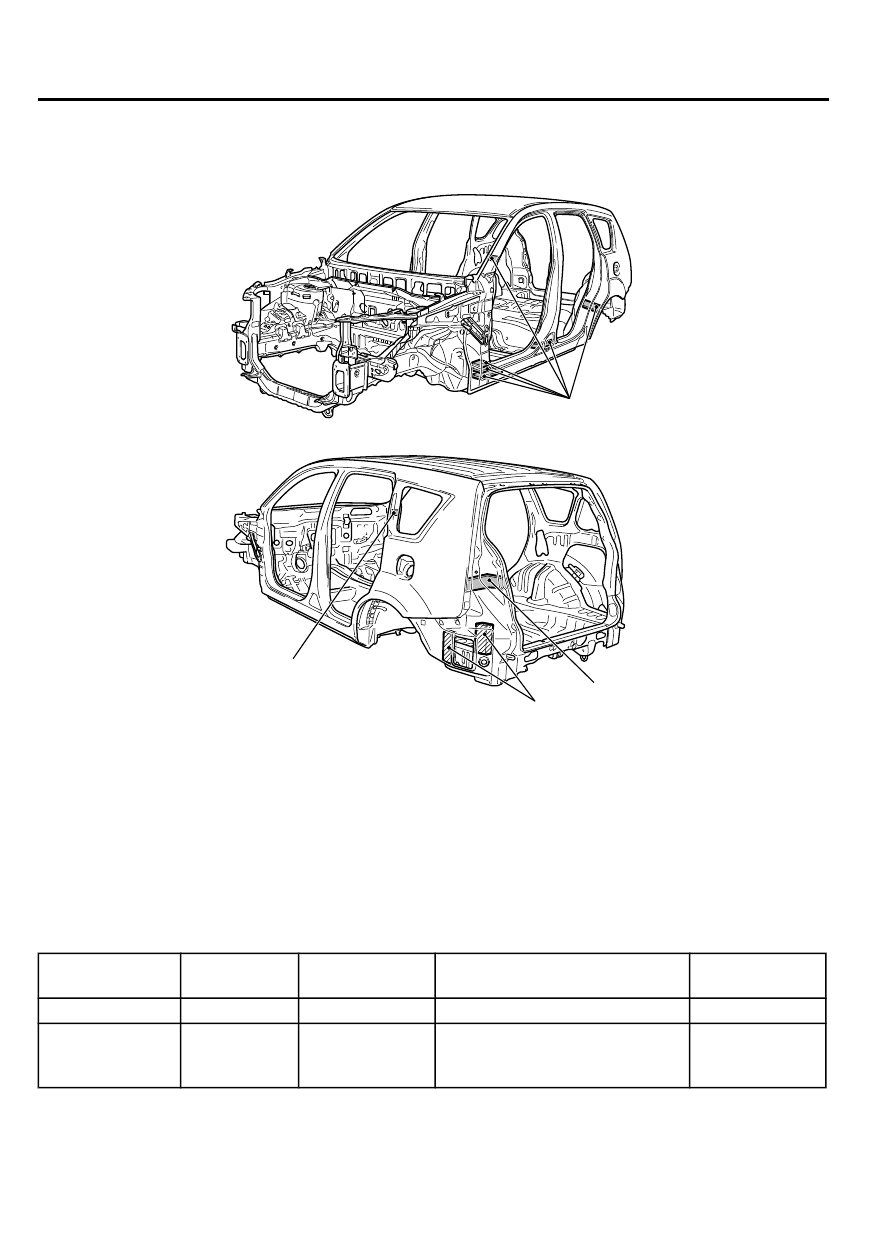

1.

Foams have been filled in the front pillar upper and
lower,  the  center  pillar  lower,  the  rear  pillar,  the

rear wheelhouse front and the gate pillar in order
to reduce noise.

2.

The quarter inner inside have been filled with the
urethane foam to reduce noise.

BODY COLOR CHARTS

M24200000050USA0000010000

Two types of color variation have been introduced; the
color  suggesting  the  great  nature  or  the  color

providing  the  sporty  and  tough  impression.  Color
names have been modified for easy recognition. The
color recipe is the same as the conventional one.

BODY COLOR TABLE

Color

Color code

Color number

Color name (Previous name)

Composition  of
film

SILVER

A31

CMA10031

Cool Silver Metallic

Metallic

MEDIUM
PURPLISH GRAY

A39

CMA10039

Medium Purplish Gray Mica

Metallic

 +

Interferenced
Pearl

42A-8

BODY

MAIN BODY

Color

Color code

Color number

Color name (Previous name)

Composition  of
film

GREENISH
SILVER

A86

CMA10086

Aqua Metallic

Metallic

 +

Interferenced
Pearl

DEEP BLUE

T65

CMT10065

Deep Blue Mica

Interferenced
Pearl

BEIGE

S18

CMS10018

Beige Metallic (Fraser Beige)

Metallic

 +

Interferenced
Pearl

BLACK

X42

AC11342

Black Mica (Amethyst Black)

Interferenced
Pearl

WHITE

W13

CMW10013

White Pearl

Pearl

RED

P23

CMP10023

Red Solid

Solid

NOTE:

For painting, inner panel colors should be

similar to the outer panel colors.

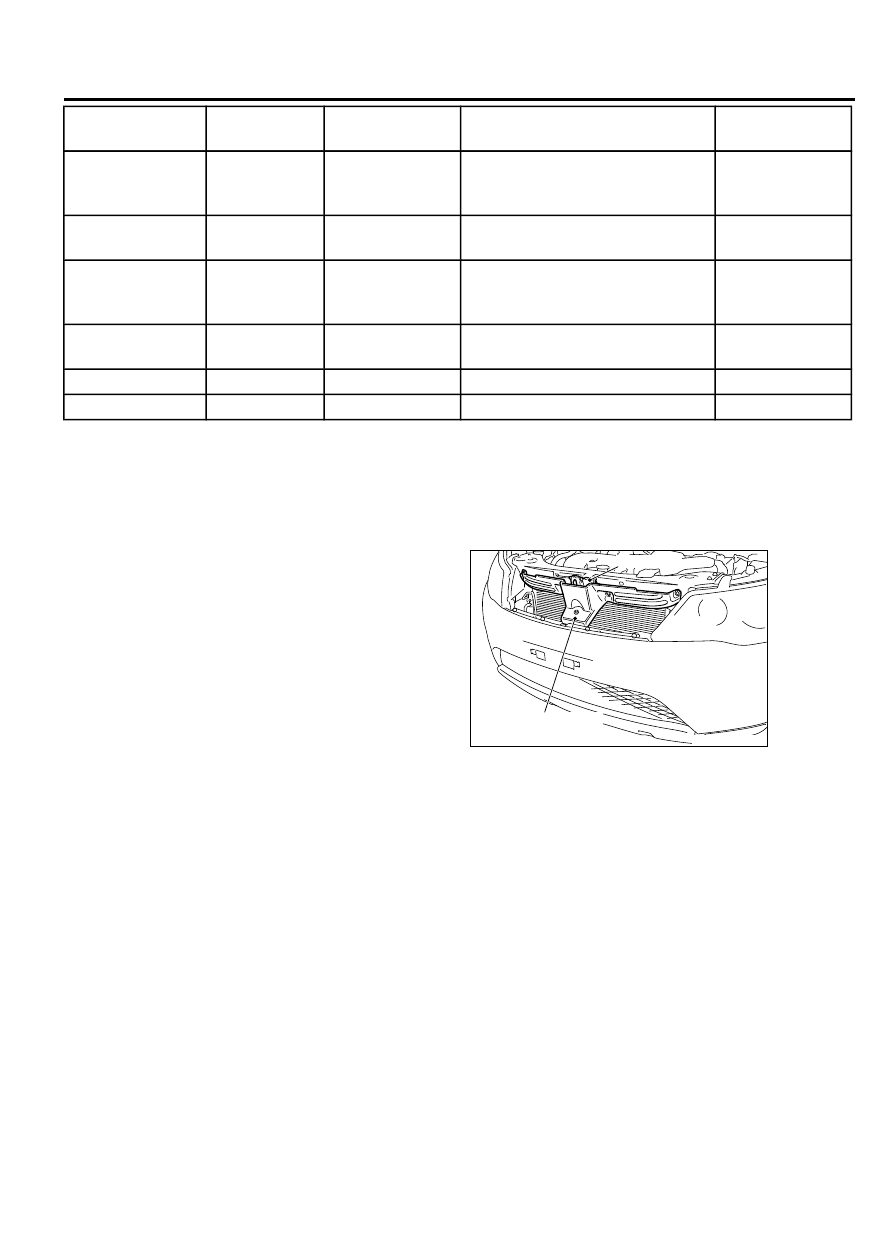

HOOD

M24200000230USA0000010000

HOOD LATCH

ZC6001300000

Hood latch

Headlight support
upper panel cover

A  headlight  support  upper  panel  cover  has  been
installed to the front of the hood latch to deter thieves.
