Mitsubishi Outlander XL. Manual - part 1295

ZC5017740000

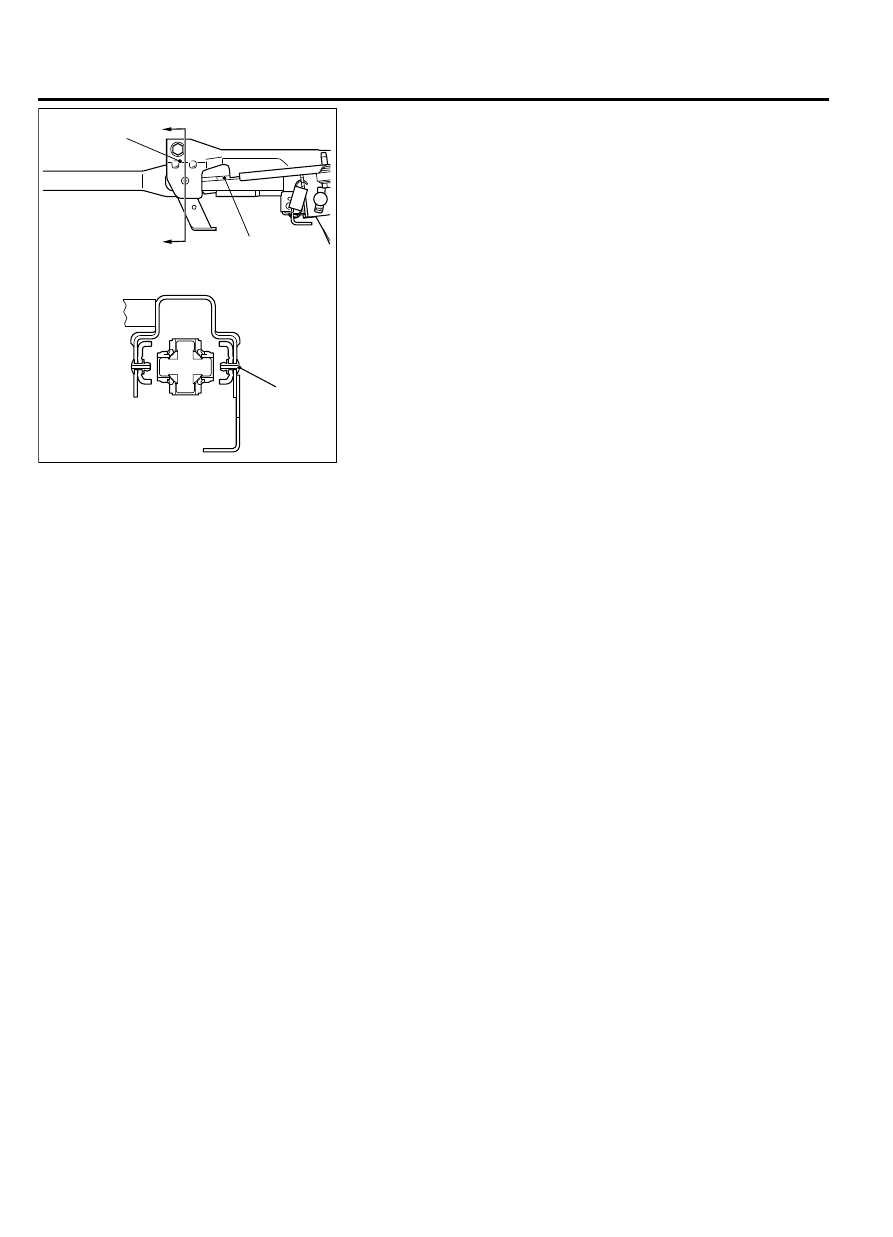

Column
bracket

Column pipe

Section A - A

OIL PUMP

M23700000040USA0000010000

The oil pump is a vane type with a fluid flow control
system in which the steering wheel turning effort will

be reduced at low engine speeds and is increased at
higher speeds.
The oil pump is essentially the same as the
conventional one in construction.

37-6

POWER STEERING

OIL PUMP

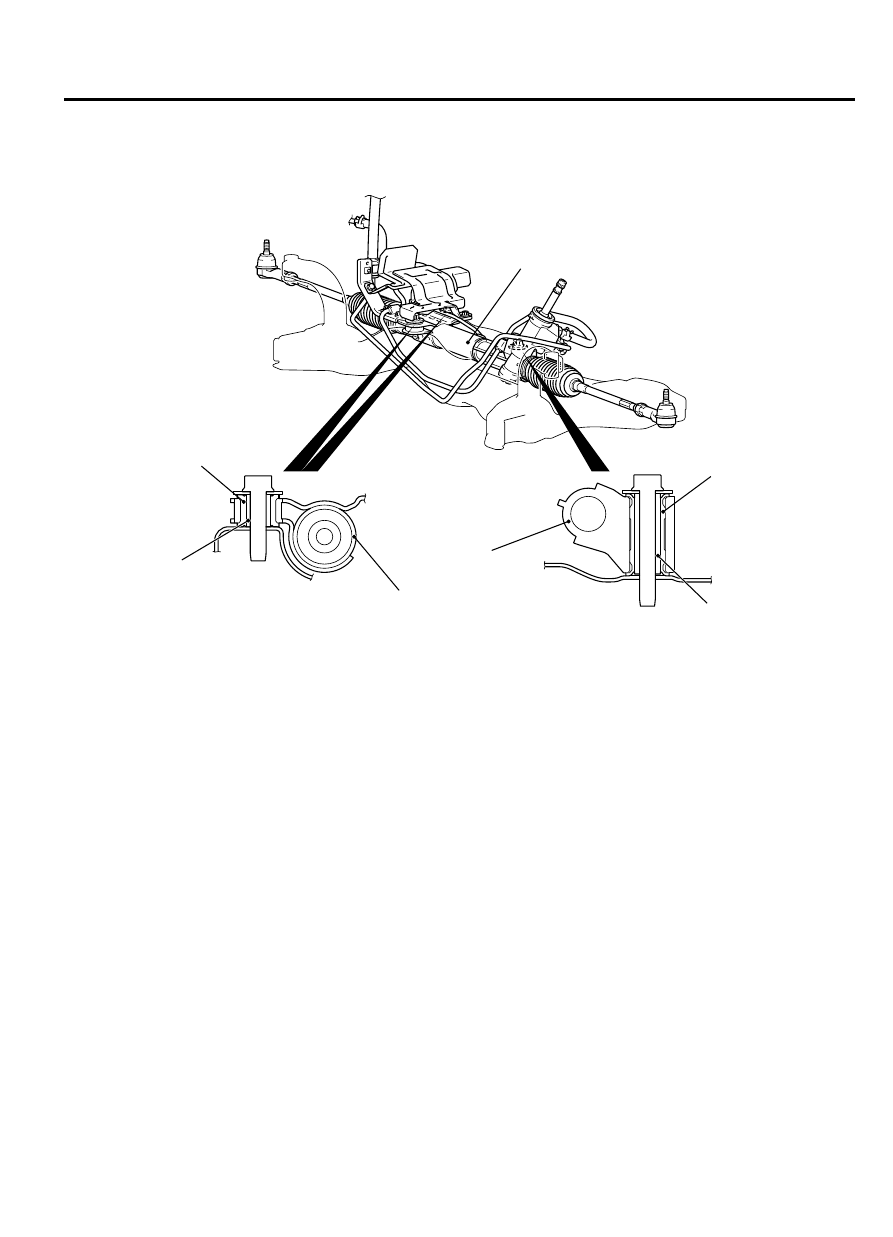

STEERING GEAR

M23700000030USA0000010000

ZC5019730000

Bushing

Steering gear

Inner cylinder

Steering gear

｠

The steering gear and linkage is mounted on the
suspension crossmember via three bushings with
inner cylinders.
The inner bushing with inner cylinder supports the
steering gear and linkage in the vertical and fore-
and-aft direction with high rigidity, and improves the
steering feel.

｠

The  oil  pressure  sensor  allows  the  system  to
perform idle-up control linearly and without delay as
the  power  steering  fluid  pressure  deviates.  The
hydraulic  sensor  detects  the  power  steering  fluid

pressure and sends the signal to the engine control
module. The engine control module uses this signal
to perform idle-up control according to the power
steering load. The method offers the following
features:

｠

Improvement of fuel efficiency: Minimal drop in
engine idle speed when the steering wheel is
turned to lock.

｠

Improvement of driveability: Excessive engine
revving is inhibited when the steering wheel is
turned at low speeds.

POWER STEERING

37-7

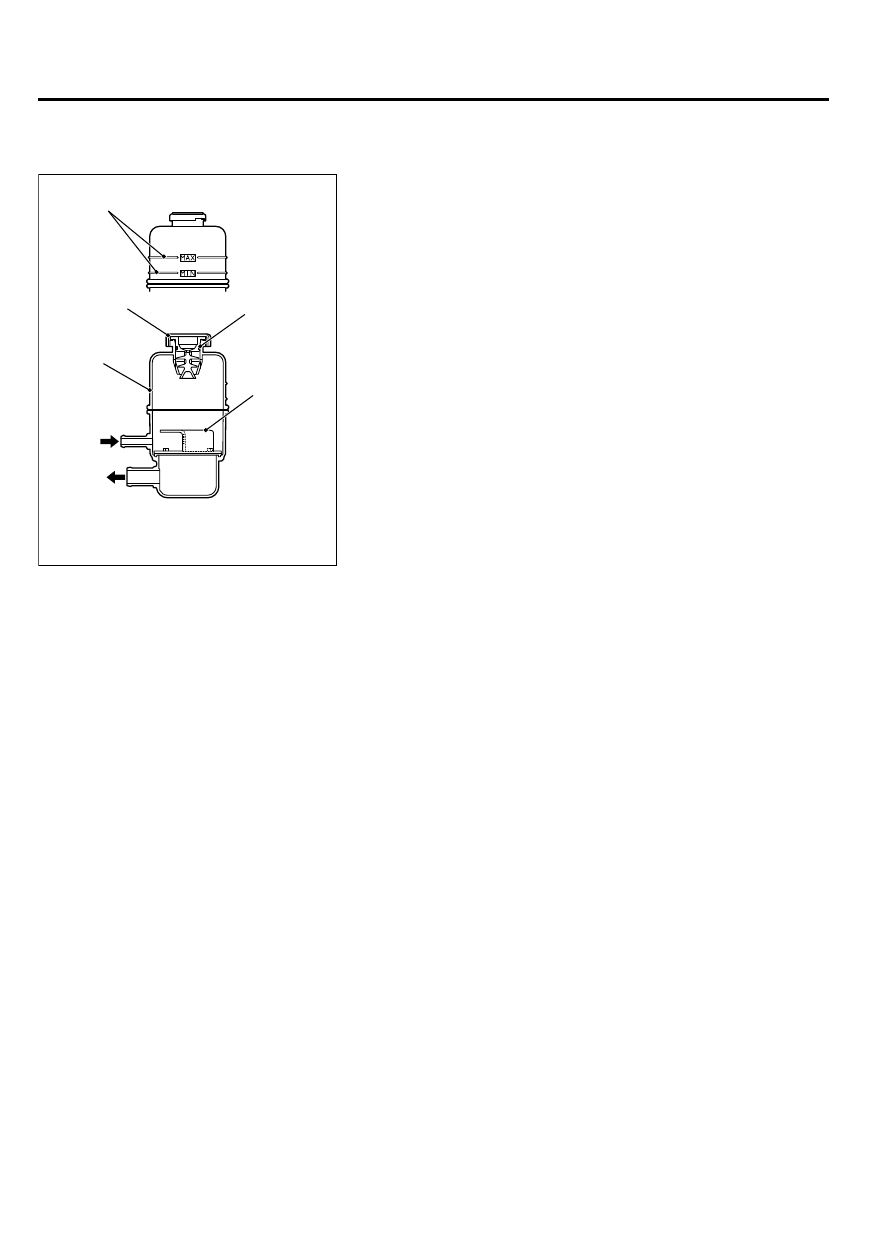

OIL RESERVOIR

OIL RESERVOIR

M23700000050USA0000010000

AC407444

ZC5017750000

Scale

Cap

O-ring

Filter

Oil reservoir

Return

Suction

The resin oil reservoir is adopted to reduce weight. The oil
reservoir is translucent and has fluid level marks (MAX and MIN
lines), for ease of inspection.

37-8

POWER STEERING

OIL RESERVOIR
