driving  wheel  is  slipping,  it  suppresses  the  wheel
slippage.  At  this  time,  ASC-ECU  controls  the  brake
fluid pressure of the driving wheel determined to be
slipping  so  that  the  torque  is  transferred  to  another
driving  wheel.  Basically,  the  operations  of  ABS
solenoid  valve  and  ASC  valve  are  the  same.  ASC-
ECU,  the  engine  ECU,  and  A/T-ECU  communicate
with  each  other  via  the  CAN  bus  line.  When  the
accelerator  pedal  is  depressed  too  far,  the  signal
requesting the engine speed reduction is sent to the
engine  ECU.  The  ASC-ECU  performs  joint  control
with A/T and secures the TCL controllability.

35C-26

ACTIVE STABILITY CONTROL SYSTEM (ASC)

DESCRIPTION OF CONSTRUCTION AND OPERATION

GROUP 36

PARKING BRAKES

CONTENTS

GENERAL INFORMATION.............

36-2

36-1

GENERAL INFORMATION

M23600000001USA0000010000

The mechanical rear-wheel acting type parking brake
is adopted, and a parking brake lever is used for that
operation.

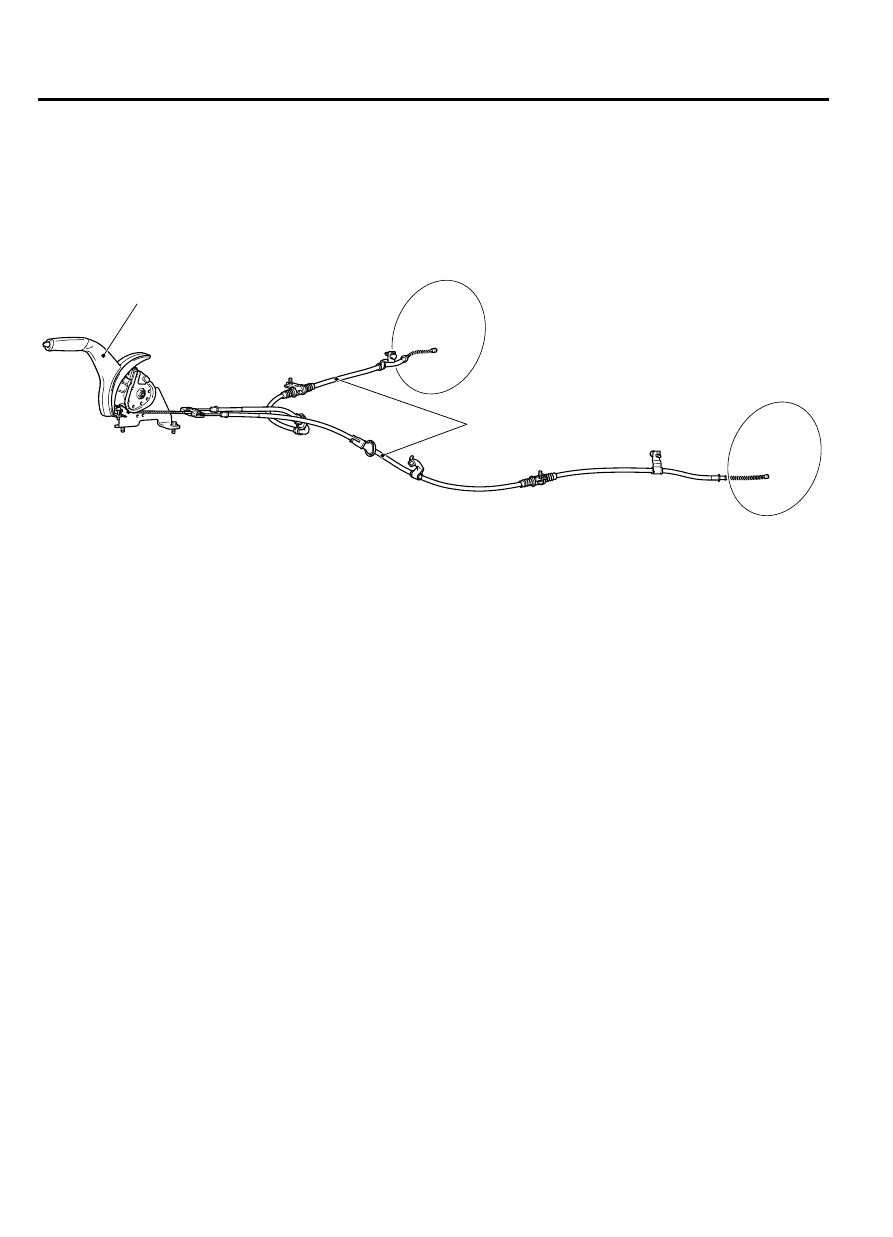

CONSTRUCTION DIAGRAM

ZC6017510000

Parking brake lever

Parking brake rear cable

36-2

PARKING BRAKES

GENERAL INFORMATION

GROUP 37

POWER STEERING

CONTENTS

GENERAL INFORMATION.............

37-2

STEERING WHEEL..................

37-3

STEERING SHAFT AND COLUMN.......

37-4

OIL PUMP........................

37-6

STEERING GEAR...................

37-7

OIL RESERVOIR...................

37-8

37-1
