GENERAL INFORMATION

M23100000001USA0000010000

DESIGN CONCEPT OUTLINE

Tire Pressure Monitoring System (TPMS)

FEATURE

｠

Warns driver of low tire pressure by illuminating the
TPMS warning light on the combination meter

｠

Warns  driver  of  TPMS  problems  by  flashing  the
TPMS warning light on the combination meter

SPECIFICATIONS

Item

Specification

TPMS

 warning

pressure kPa (psi)

Warning ON

174 (25) or less

Warning OFF

189 (27) or more

Wheel

Type

Steel type

Aluminum type

Aluminum type

Size

16 × 6 1/2JJ

18 × 7JJ

Amount  of  wheel  offset
mm (in)

38 (1.5)

38 (1.5)

Pitch

 circle

 diameter

(PCD) mm (in)

114.3 (4.50)

114.3 (4.50)

Tire

Size

P215/70 R16 99H

P225/55 R18 97H

Spare wheel

Type

Steel type

Size

16 × 4T

Amount  of  wheel  offset
mm (in)

40 (1.6)

Pitch

 circle

 diameter

(PCD) mm (in)

114.3 (4.50)

Spare tire

Size

T155/90 D16

NOTE:

PCD (Pitch Circle Diameter) indicates the

pitch circle diameter of the wheel installation
holes.

TIRE PRESSURE MONITORING SYSTEM (TPMS)

M23100000002USA0000010000

Refer  to  GROUP  42B  -  Keyless  Operation  System
(KOS) P.42B-23or  GROUP  42C  -  Wireless
Control Module (WCM) P.42C-2.

31-2

WHEEL AND TIRE

GENERAL INFORMATION

GROUP 32

POWER PLANT MOUNT

CONTENTS

GENERAL INFORMATION.............

32-2

32-1

GENERAL INFORMATION

M23200000001USA0000010000

For the power plant support, the inertial axis four-point
mounting system is adopted, and the system has the
following features.

｠

For  the  engine  and  transaxle  mountings,  the
cylindrical liquid seal mountings are adopted. This
reduces idling vibration and acceleration noise, and
improves riding comfort.

｠

For  the  engine  mounting  bracket,  lightweight  and
high  rigidity  aluminum  is  used  to  reduce
acceleration noise.

｠

For the transaxle mounting bracket, light weight and
high  rigidity  sheet  metal  is  used  to  reduce  gear
noise.

｠

For the front and rear roll stoppers, insulators are
used  for  6A/T.  This  reduces  idling  vibration  and
acceleration/deceleration shock.

｠

A flat crossmember improves steering ability.

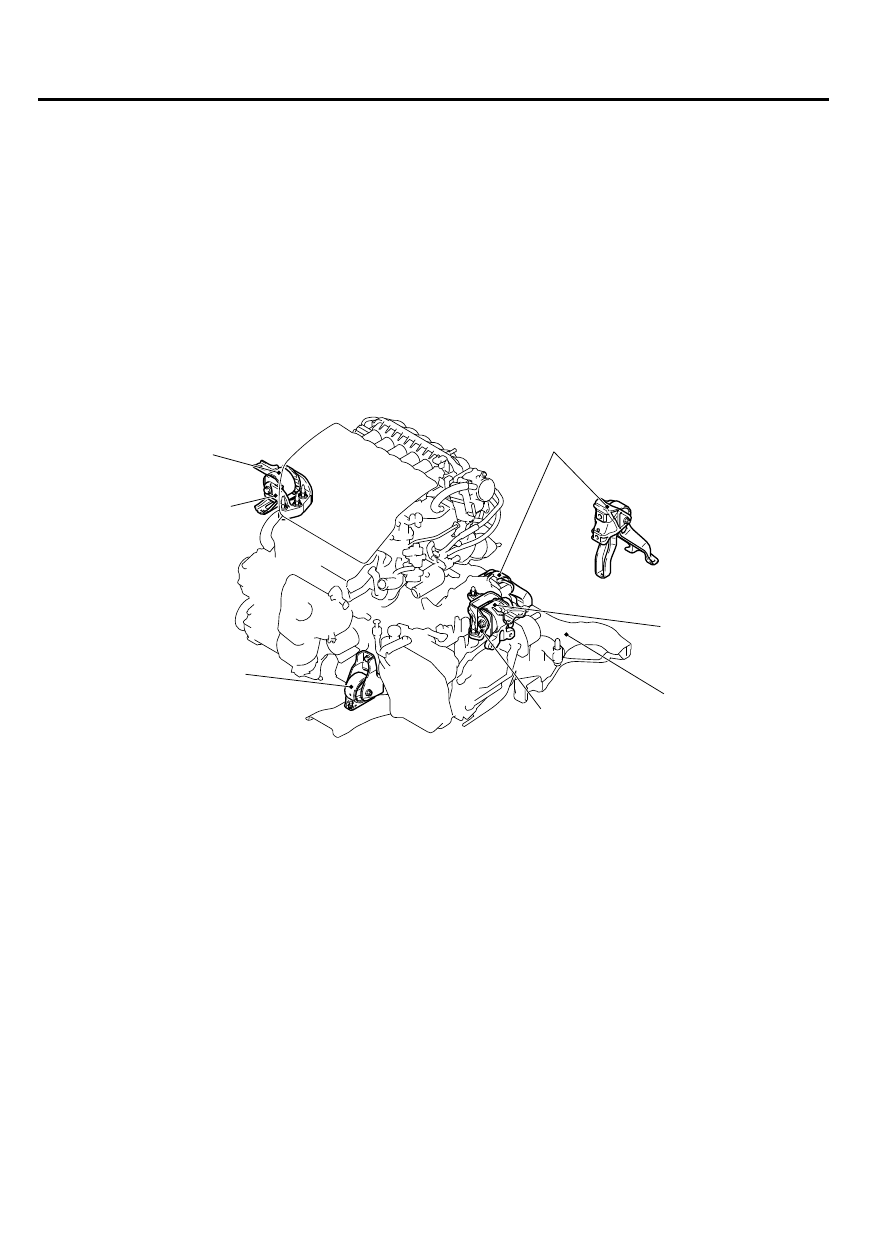

CONSTRUCTION DIAGRAM

ZC6005360001

Engine mounting
insulator

Engine mounting
bracket

Front roll stopper

Flat crossmember

Rear roll stopper

Transaxle mounting
insulator

Transaxle mounting
bracket

<AWD>

<FWD>

32-2
