GENERAL INFORMATION
M22600000001USA0000010001

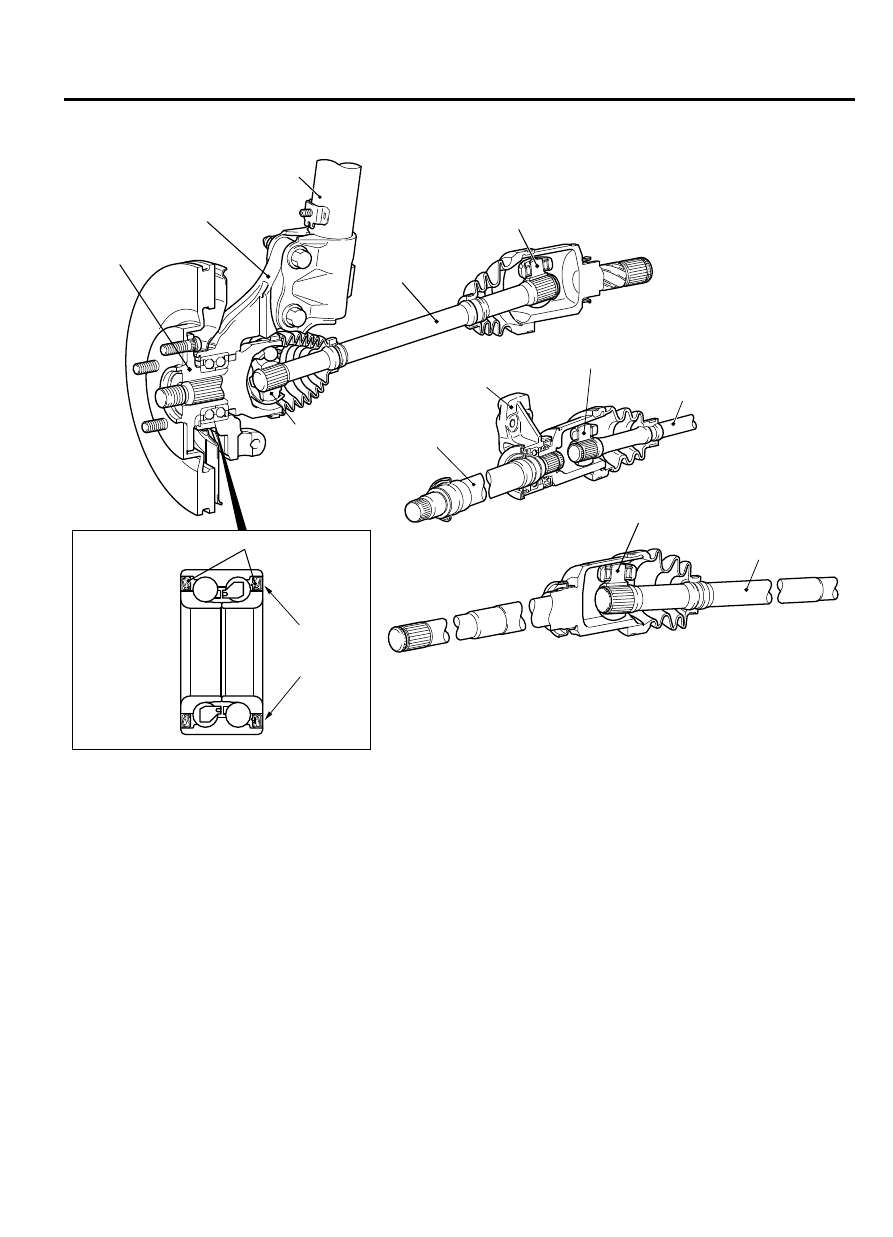

For the front axle, the double-row angular contact ball
bearing with an integral oil seal is adopted as a wheel
bearing, and EBJ-PTJ type constant velocity joint as
a driveshaft.
It has the following features:
｠
The driveshaft incorporates EBJ-PTJ type constant
velocity joints with high transmission efficiency for
low vibration and noise.
｠
Due to the use of the inner shaft and bracket
assembly, the right and left driveshafts are
approximately the same in length. This reduces
noise, vibration and torque steer.<FWD-RH>
｠
The long stem integrated with the differential side
constant velocity joint is adopted to streamline the
structure.<AWD-RH>
｠
Lead-free grease for the constant velocity joint is
adopted.
｠
Hexavalent chromium is eliminated from the dust
cover material.
｠
The number of parts is reduced by integrating the
magnetic encoder for ABS wheel speed detection
into the wheel bearing.
NOTE:
EBJ (High Efficiency Compact Birfield Joint): the
lighter and smaller constant velocity joint compared
with the conventional BJ has been achieved by
adopting the eight small balls.
PTJ (Pillow Tripod Joint)
SPECIFICATIONS
Item
Specification
Wheel bearing
Bearing type
Unit bearing (double-row angular contact ball
bearing)
Bearing (Outer diameter x inside
diameter) mm (in)
80 × 43 (3.15 × 1.69)
Driveshaft
Joint type
Outside
EBJ
Inside
PTJ
Shaft length* x shaft
diameter mm (in)
LH
371.0 × 26.5 (14.6 × 1.0)
FWD-RH 412.5 × 29 (16.2 × 1.1)
AWD-
RH
499.5 × 33 (19.7 × 1.4)
NOTE:
*: Indicates the distance between each
joint center.
