GENERAL INFORMATION

M21304000001USA0000010000

The fuel system consists of the following components:

｠

Fuel injector

｠

Fuel rail

｠

Fuel pipe

｠

Fuel tank

｠

Fuel pump module

｠

Fuel level sensor (sub) <AWD>

｠

Evaporative emission canister

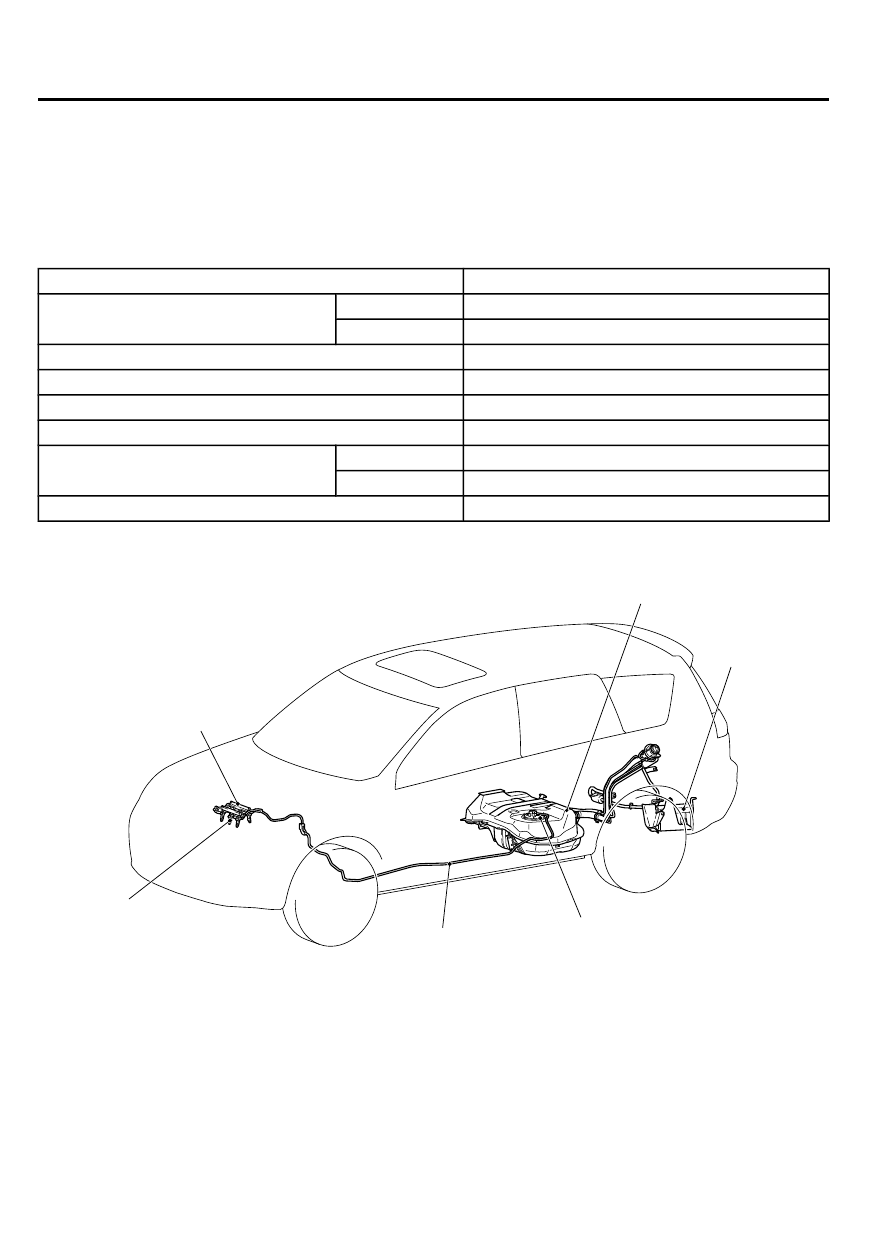

SPECIFICATIONS

Item

Specification

Fuel tank capacity dm3(gal)

FWD

63 (16.6)

AWD

60 (15.8)

Fuel pump type

Electric

Fuel filter type

Cartridge (incorporates fuel pump module)

Fuel return system

Returnless

Fuel pump pressure regulator pressure kPa (psi)

324 (47)

Fuel injector

Type

Elector-magnetic

Quantity

6

Evaporative emission control system

Canister

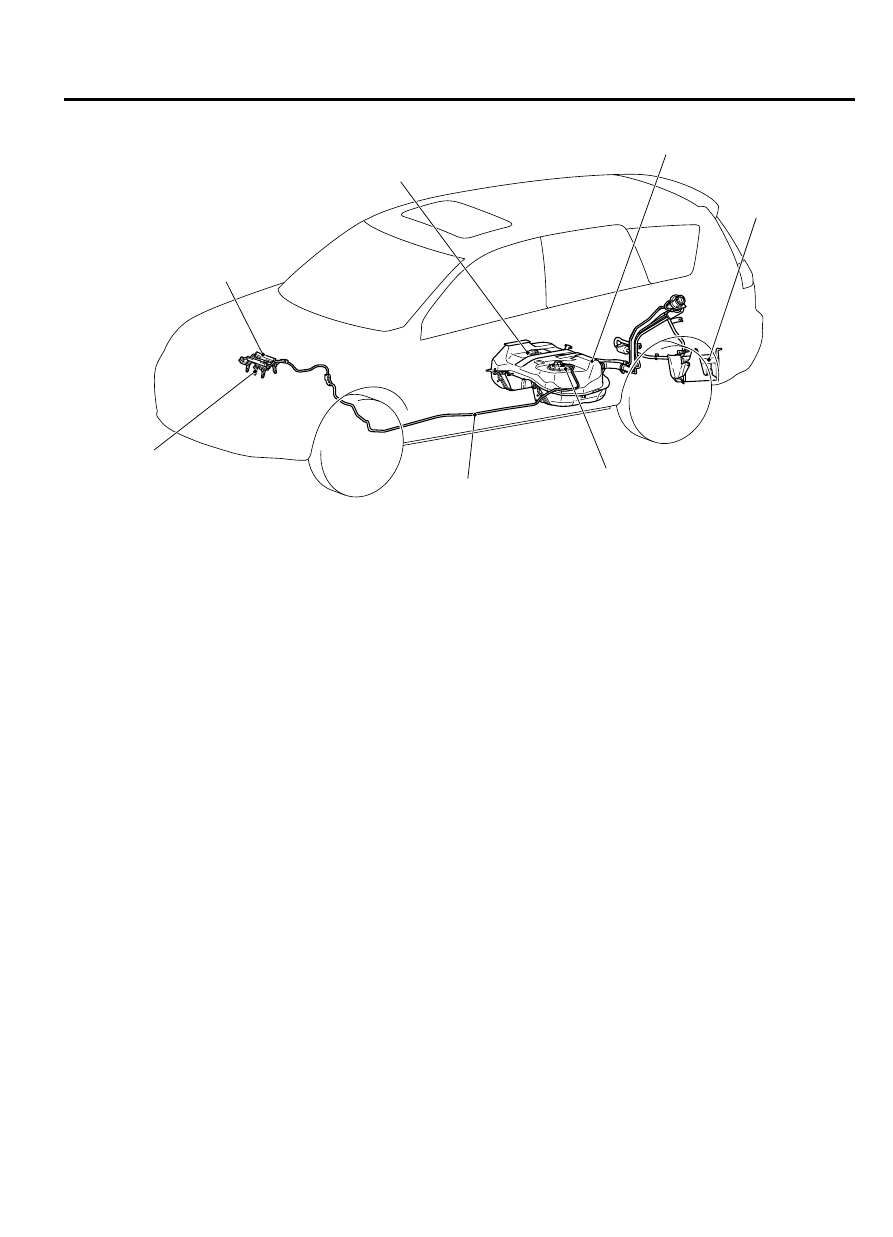

CONSTRUCTION DIAGRAM

ZC600632

Fuel injector

Fuel rail

Fuel pipe

Fuel pump module

Evaporative
emission
canister

0000

Fuel tank

<FWD>

13B-2

FUEL SUPPLY

GENERAL INFORMATION

ZC600633

Fuel injector

Fuel rail

Fuel pipe

Fuel pump module

Evaporative
emission
canister

0000

Fuel tank

Fuel level sensor (sub)

<AWD>

This  fuel  system  is  designed  with  consideration  for
global  environment  protection  to  ensure  safety  at  a
collision,  reduce  weight,  and  improve  reliability  and
quality. This system has the following features:

｠

A quick-joint connector of a plastic tube is used for
the  fuel  high-pressure  hoses  in  the  engine
compartment  to  reduce  the  permeation  of  fuel
evaporative emission.

｠

The surface of underfloor fuel pipes is coated with
1-mm  thickness  of  resin  to  improve  resistance  to
corrosion and chipping.

｠

A  returnless  fuel  system  eliminates  returned  fuel
from the engine. The heat that fuel receives from
the engine is reduced, minimizing fuel temperature
in  the  fuel  tank  and  controlling  the  amount  of
evaporated gas.

FUEL TANK

M21304000010USA0000010000

The  fuel  tank  assembly  consists  of  the  fuel  pump
module, the fuel level sensor (sub) <AWD>, the fuel
tank,  and  so  on,  and  features  the  following
characteristics:

｠

The  fuel  tank  is  mounted  underneath  the  second
seat to improve safety at a collision.

｠

The fuel tank itself is made of a pre-coat zinc alloy
galvanized steel sheet that contains no lead.

｠

The  capacity  of  the  fuel  tank  is  63  dm3(16.6  gal)
<FWD> or 60 dm3(15.8 gal) <AWD> to meet long-
distance drives.

｠

The  fuel  cut-off  valve,  fuel  tank  2  way  valve,  fuel
tank leveling valve and fuel tube have been installed

using in-tank construction to reduce the amount of
evaporated fuel from hoses.

｠

A  in-tank  fuel  filter  and  fuel  suction  hose  are
adopted to meet the saddleback shaped fuel tank.
<AWD>

The  fuel  pump  module  consists  of  the  following
components:

｠

Fuel pump

｠

Fuel level sensor

｠

Fuel filter

｠

Fuel pump pressure regulator

｠

Fuel tank differential pressure sensor

｠

Fuel tank temperature sensor

FUEL SUPPLY

13B-3

FUEL TANK

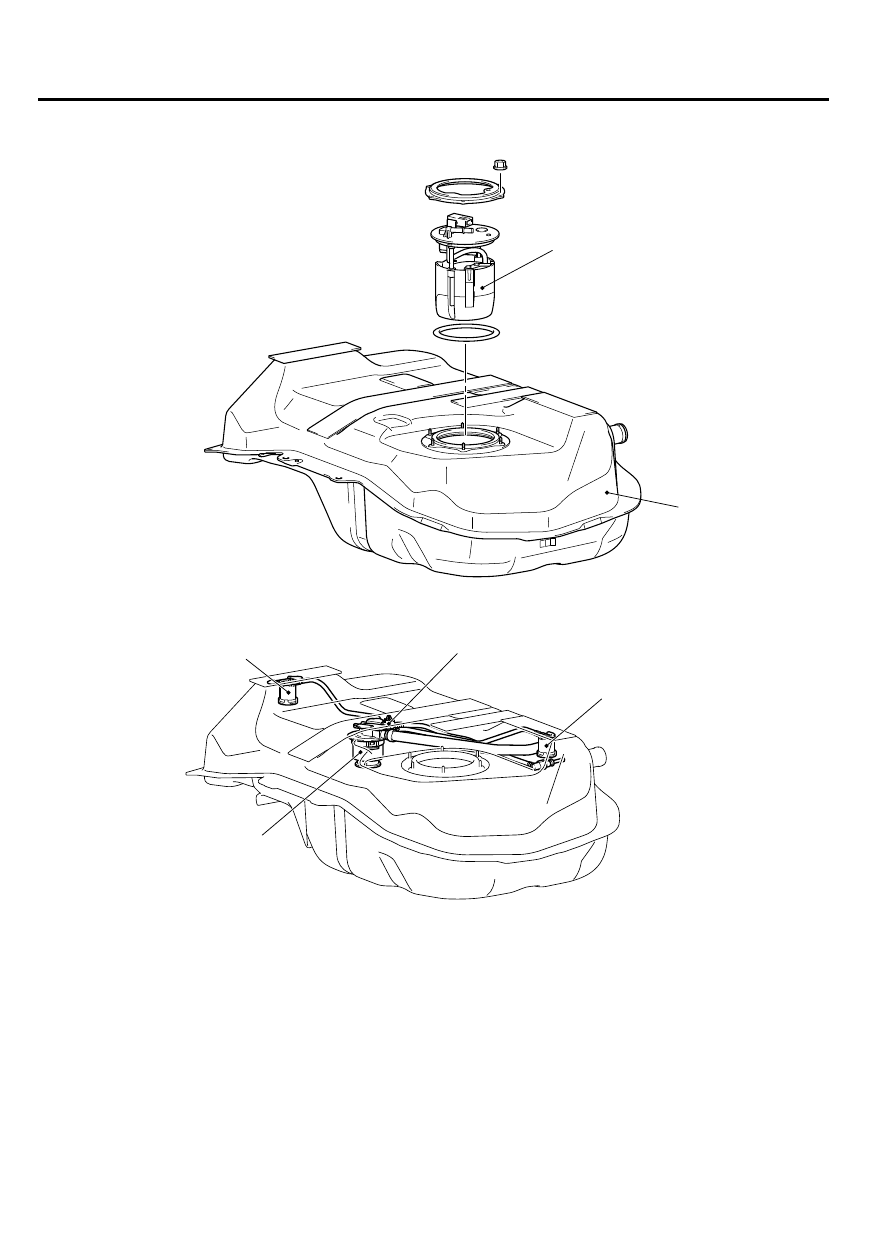

CONSTRUCTION DIAGRAM

ZC6020810000

Fuel tank

Fuel pump module

<FWD>

ZC601844

Fuel cut-off valve

Fuel cut-off valve

Fuel tank 2 way valve

Fuel tank leveling valve

0000

13B-4

FUEL SUPPLY

FUEL TANK

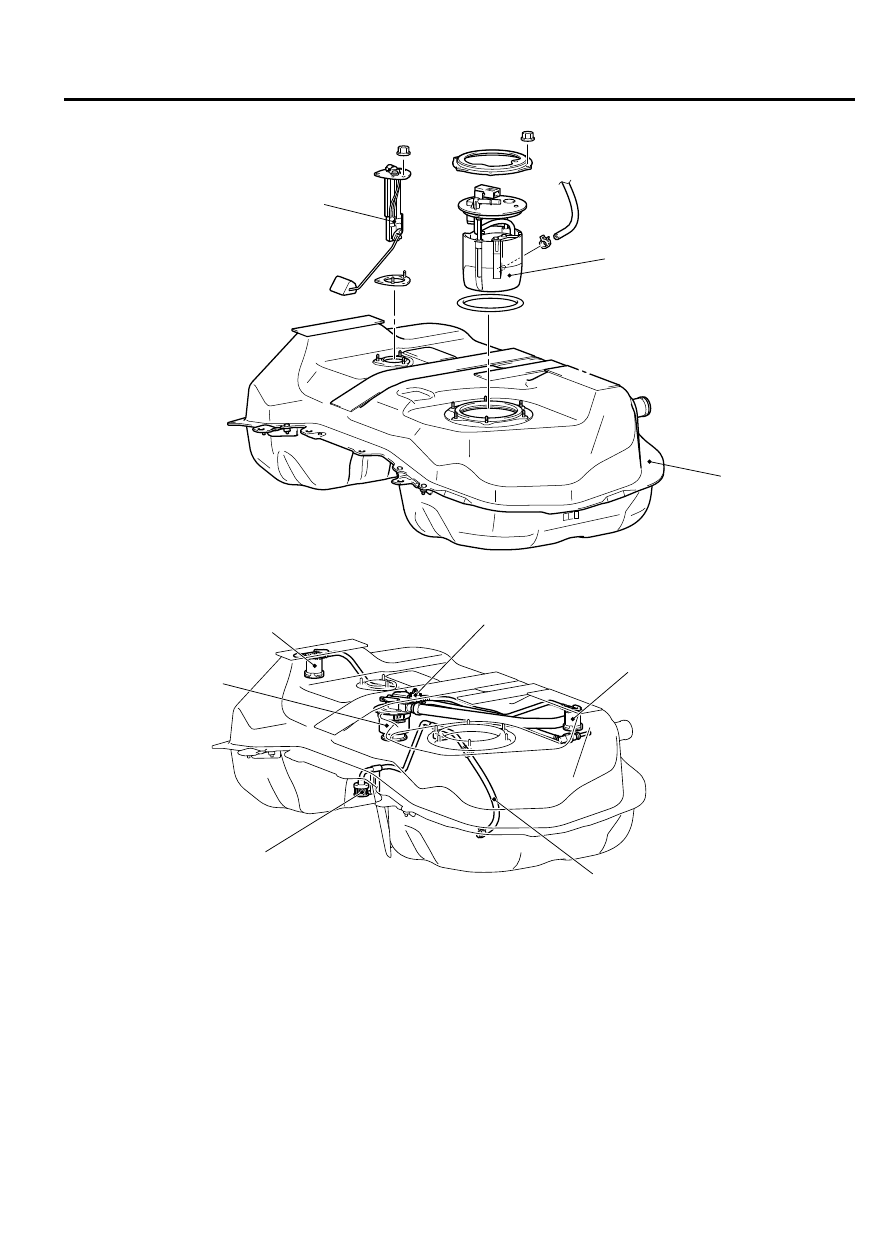

ZC6020820000

Fuel tank

Fuel pump module

Fuel level sensor (sub)

<AWD>

ZC601845

Fuel cut-off valve

Fuel cut-off valve

Fuel tank 2 way valve

Fuel tank leveling valve

0000

In-tank fuel filter

Fuel suction hose

FUEL SUPPLY

13B-5

FUEL TANK
