Control System Diagram

13A-4

MULTIPORT FUEL SYSTEM (MFI)

GENERAL INFORMATION

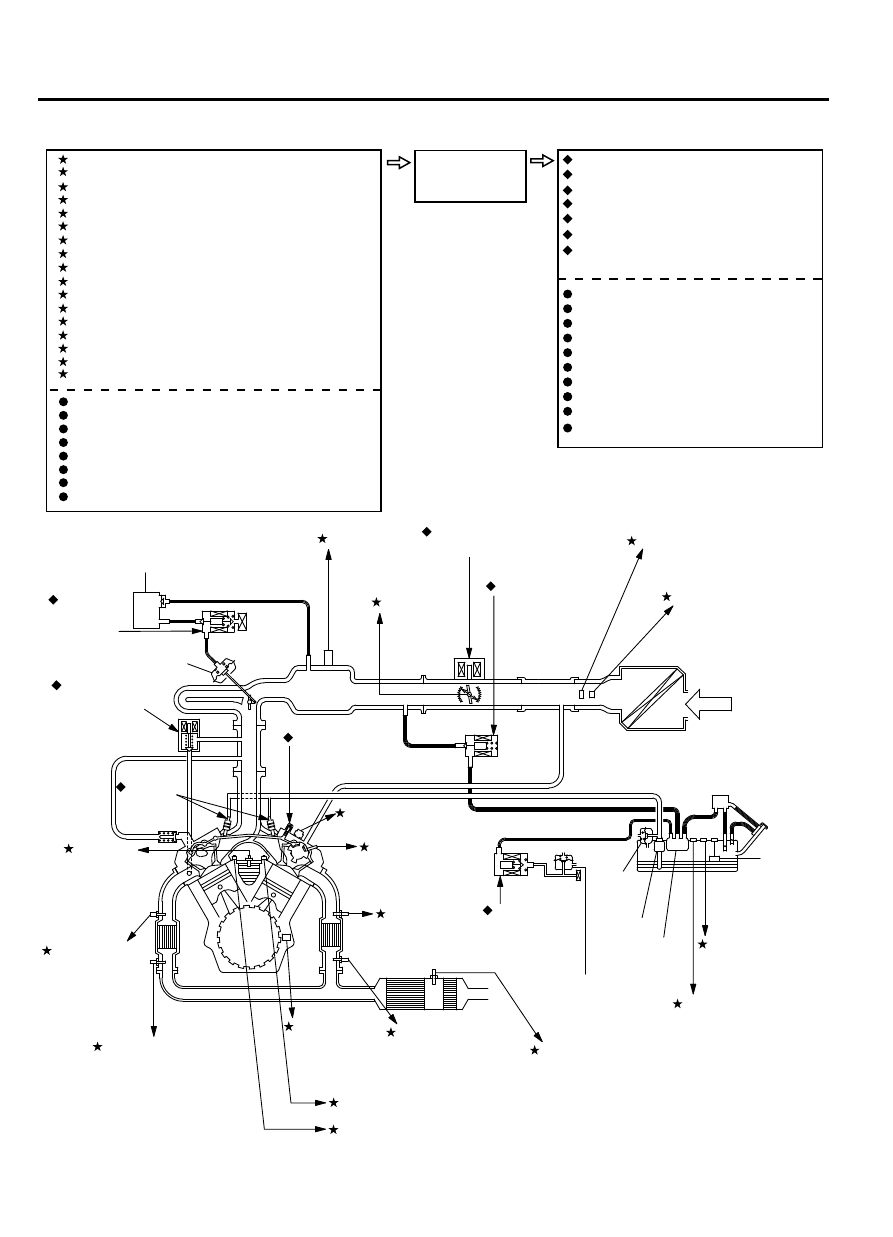

<Except for California>

ZK602755

Manifold
absolute
pressure
sensor

4

Crankshaft
position
sensor

1   Mass airflow sensor
2   Intake air temperature sensor
3   Throttle position sensor (main/sub)
4   Manifold absolute pressure sensor
5   Engine coolant temperature sensor
6   Engine oil pressure switch (for MIVEC)
7   Camshaft position sensor
8   Crankshaft position sensor
9   Right bank knock sensor
10 Left bank knock sensor
11 Right bank heated oxygen sensor (front)
12 Right bank heated oxygen sensor (rear)
13 Left bank heated oxygen sensor (front)
14 Left bank heated oxygen sensor (rear)
15 Fuel tank differential pressure sensor
16 Fuel tank temperature sensor

     Accelerator pedal position sensor (main/sub)
     Power steering pressure sensor
     Generator FR terminal
     Generator L terminal
     Ignition switch-IG
     Ignition switch-ST
     Power supply
     CAN communication (input signal)

1   Engine oil control valve
2   Intake manifold tuning solenoid
3   Throttle actuator control motor
4   EGR valve (stepper motor)
5   Injector
6   Evaporative emission purge solenoid
7   Evaporative emission ventilation
     solenoid

     Ignition coil, ignition power transistor
     Multiport fuel injection (MFI) relay
     Fuel pump relay
     Starter relay
     Throttle actuator control motor relay
     Generator G terminal
     Heated oxygen sensor heater
     A/C compressor relay
     Diagnostic output
     CAN communication (out put signal)

Sense

Act

AA00

Left bank
heated
oxygen
sensor (rear)

14

Fuel tank
differentical
pressure
sensor

15

Fuel tank
temperature
sensor

16

Fuel tank

Fuel level
sensor

Fuel pump

Fuel
pressure
regurator

Air inlet

Throttle actuator
control motor

Mass airflow
sensor

Intake air
temperature
sensor

Vacuum actuator

Vacuum tank

EGR valve
(stepper motor)

Right bank
heated oxygen
sensor (rear)

12

Left bank
heated
oxygen
sensor (front)

13

8

6

4

3

Evaporative
emission
ventilation
solenoid

Evaporative
emission
purge
solenoid

Evaporative
emission
ventilation
valve

Evaporative
emission
canister

7

9

Right bank
heated
oxygen
sensor (front)

11

Left bank knock sensor

10

Right bank knock sensor

Engine
coolant
temperature
sensor

Camshaft
position
sensor

7

Engine oil pressure
switch (for MIVEC)

6

Throttle
position
sensor
(main/sub)

3

Intake
manifold
tuning
solenoid

2

Injector

5

5

Engine oil
control valve

1

2

1

Decide

ECM
(with barometric
pressure sensor)

MULTIPORT FUEL SYSTEM (MFI)

13A-5

GENERAL INFORMATION

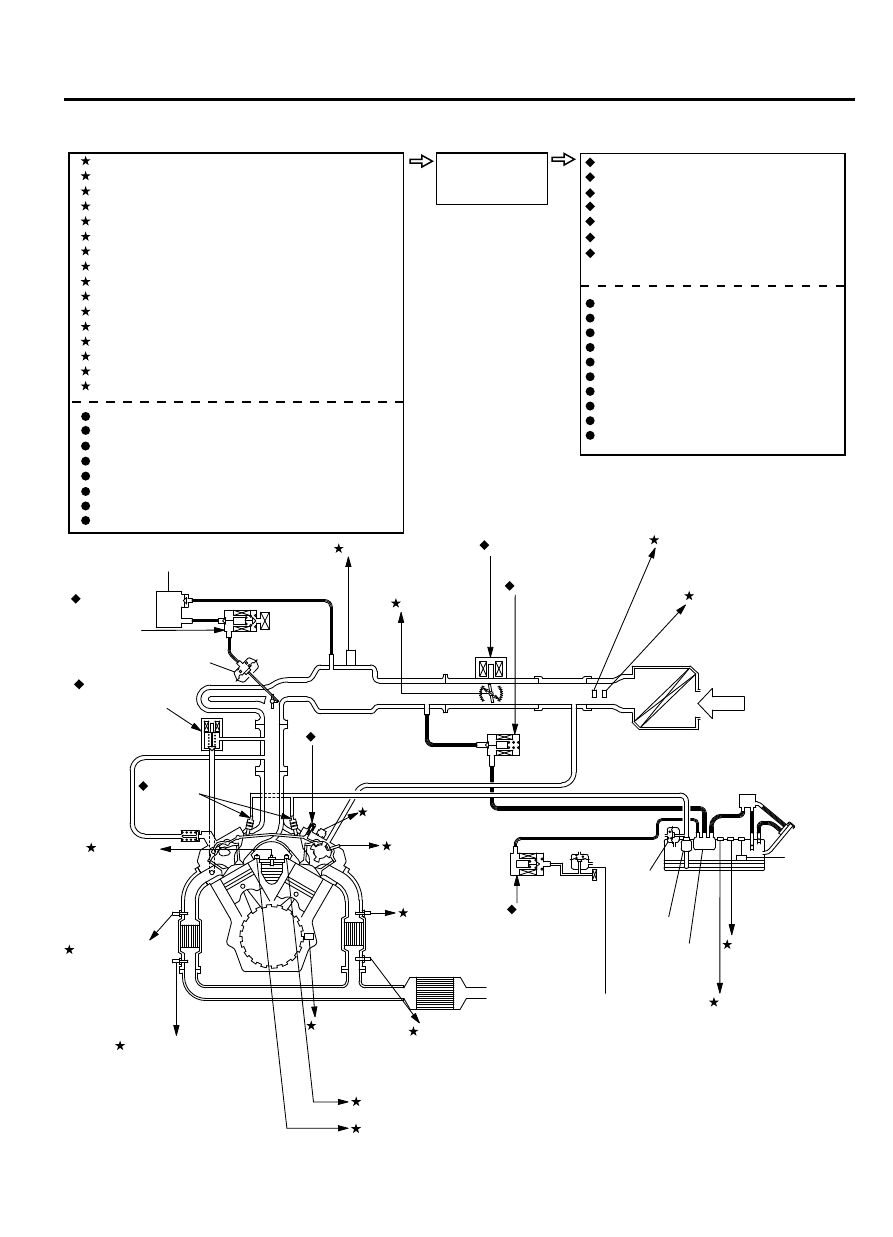

<California>

ZK602756

1   Mass airflow sensor
2   Intake air temperature sensor
3   Throttle position sensor (main/sub)
4   Manifold absolute pressure sensor
5   Engine coolant temperature sensor
6   Engine oil pressure switch (for MIVEC)
7   Camshaft position sensor
8   Crankshaft position sensor
9   Right bank knock sensor
10 Left bank knock sensor
11 Right bank heated oxygen sensor (front)
12 Right bank heated oxygen sensor (rear)
13 Left bank heated oxygen sensor (front)
14 Left bank heated oxygen sensor (rear)
15 Center exhaust pipe heated oxygen sensor
16 Fuel tank differential pressure sensor
17 Fuel tank temperature sensor

     Accelerator pedal position sensor (main/sub)
     Power steering pressure sensor
     Generator FR terminal
     Generator L terminal
     Ignition switch-IG
     Ignition switch-ST
     Power supply
     CAN communication (input signal)

1   Engine oil control valve
2   Intake manifold tuning solenoid
3   Throttle actuator control motor
4   EGR valve (stepper motor)
5   Injector
6   Evaporative emission purge solenoid
7   Evaporative emission ventilation
     solenoid

     Ignition coil, ignition power transistor
     Multiport fuel injection (MFI) relay
     Fuel pump relay
     Starter relay
     Throttle actuator control motor relay
     Generator G terminal
     Heated oxygen sensor heater
     A/C compressor relay
     Diagnostic output
     CAN communication (out put signal)

Sense

Act

AA00

Left bank
heated
oxygen
sensor (rear)

14

Fuel tank
differential
pressure
sensor

16

Fuel tank
temperature
sensor

17

Fuel tank

Fuel level
sensor

Fuel pump

Fuel
pressure
regurator

Air inlet

Throttle actuator
control motor

Mass airflow
sensor

Intake air
temperature
sensor

Vacuum actuator

Vacuum tank

EGR valve
(stepper motor)

Right bank
heated oxygen
sensor (rear)

12

Left bank
heated
oxygen
sensor (front)

13

8

15

6

4

3

Evaporative
emission
ventilation
solenoid

Evaporative
emission
purge
solenoid

Evaporative
emission
ventilation
valve

Center exhaust pipe
heated oxygen sensor

Evaporative
emission
canister

7

Manifold
absolute
pressure
sensor

9

Right bank
heated
oxygen
sensor (front)

11

Left bank knock sensor

10

Right bank knock sensor

Engine
coolant
temperature
sensor

Camshaft
position
sensor

7

Engine oil pressure
switch (for MIVEC)

6

Throttle
position
sensor
(main/sub)

3

Intake
manifold
tuning
solenoid

2

Injector

5

5

Engine oil
control valve

1

4

2

1

Decide

Crankshaft
position
sensor

ECM
(with barometric
pressure sensor)

13A-6

MULTIPORT FUEL SYSTEM (MFI)

GENERAL INFORMATION

CONTROL UNIT

M21302000215USA0000010000

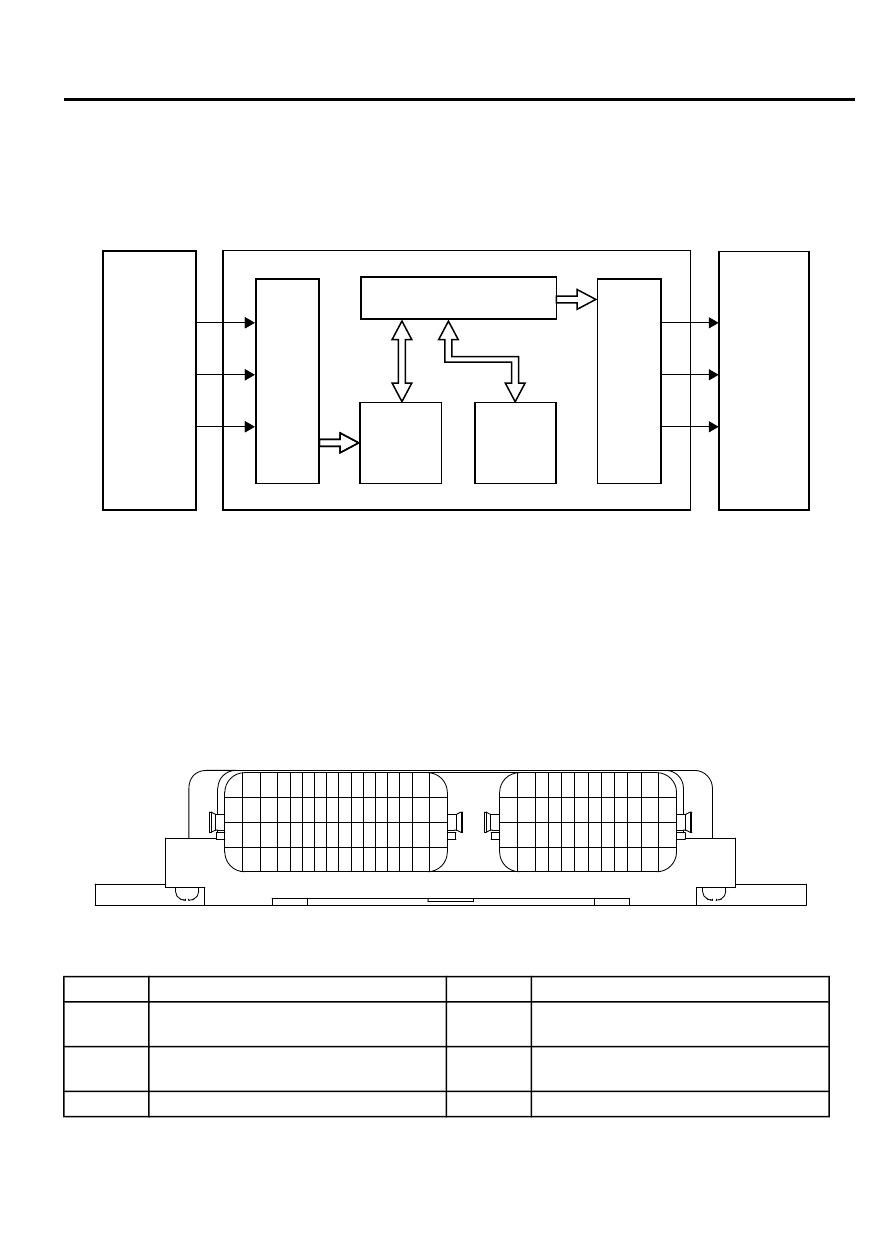

ENGINE CONTROL MODULE (ECM)

ZK600230

ECM

Microprocessor

RAM

Input
interface

Input
sensor

Output
interface

Output
actuator

AA02

ROM

ECM is installed on the lower side of the engine room.
ECM judges (calculates) the optimum control to deal
with the constant minute changes in driving conditions
based  on  information  input  from  the  sensors  and
drives  the  actuator.  ECM  is  composed  of  32-bit
microprocessor and Random Access Memory (RAM),
Read  Only  Memory  (ROM)  and  Input  /Output

interface. ECM uses flash-memory ROM that allows
re-writing  of  data  so  that  change  and  correction  of
control  data  is  possible  using  special  tools.  It  also
uses Electrically Erasable Programmable Read Only
Memory  (EEPROM)  so  that  studied  compensation
data  is  not  deleted  even  if  battery  terminals  are
disconnected.

ECM CONNECTOR INPUT/OUTPUT PIN ARRANGEMENT

ZK602508AA00

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

91

90

89

87

86

84

85

83

82

88

92

93

94

95

96

97

98

99

109

108

107

106

105

104

103

102

112

113

114

115

116

117

118

100

101

111

110

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

63

61

62

64

71

72

73

74

75

76

77

78

79

80

81

NOTE:

*: California

1

Engine oil control valve

2

No.1 injector

3

No.2 injector

4

Ignition  coil  No.1  (ignition  power
transistor)

5

Ignition  coil  No.2  (ignition  power
transistor)

6

Starter active signal

7

Engine oil pressure switch (for MIVEC) 8

Crankshaft position sensor

MULTIPORT FUEL SYSTEM (MFI)

13A-7

CONTROL UNIT
