MOTORS AND TRANSISTOR

REMOVAL AND INSTALLATION

M15502000923USA0000010000

ZC600334

1

2

3

4

0000

5

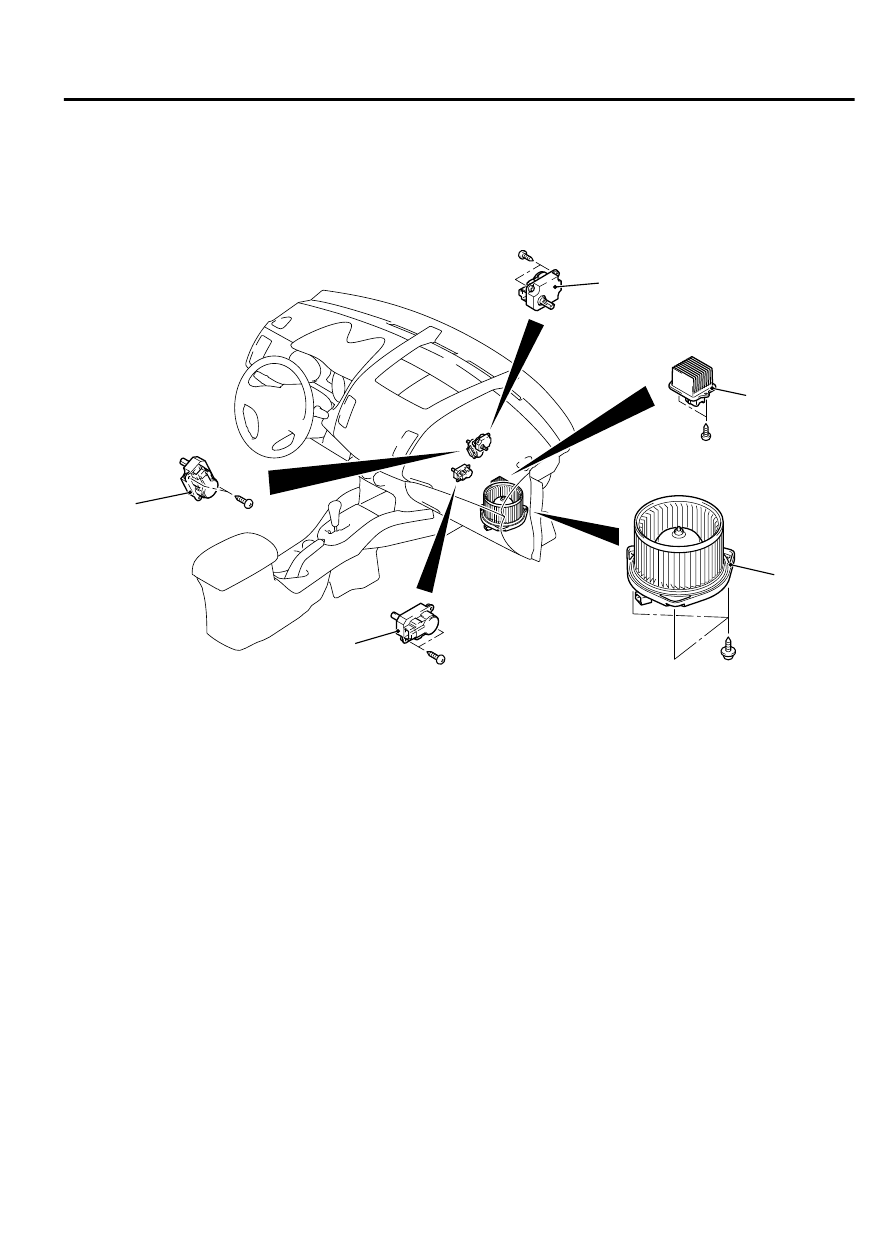

Blower motor removal steps

·

Bottom  cover  assembly  (passenger's
side)  (Refer  to  GROUP  52A  -
Instrument Panel P.52A-2).

1.

Blower motor
Power transistor removal steps

·

Bottom  cover  assembly  (passenger's
side)  (Refer  to  GROUP  52A  -
Instrument Panel P.52A-2).

2.

Power transistor
Air  mix  damper  motor  removal
steps

·

Refer to Foot duct P.55A-125.

·

Refer to A/C-ECU P.55A-117.

Air  mix  damper  motor  removal
steps

3.

Air mix damper motor
Removal  steps  for  outside  air  /
inside  air  circulation  switching
damper motor

·

Refer to Foot duct P.55A-125.

·

Refer to A/C-ECU P.55A-117.

4.

Outside/inside  air  selection  damper
motor
Removal  steps  for  air  outlet
changeover damper motor

·

Refer to Foot duct P.55A-125.

·

Refer to A/C-ECU P.55A-117.

5.

Air outlet changeover damper motor

AIR CONDITIONING

55A-115

MOTORS AND TRANSISTOR

INSPECTION

M15502000924USA0000010000

BLOWER MOTOR CHECK

ZC600454 0000

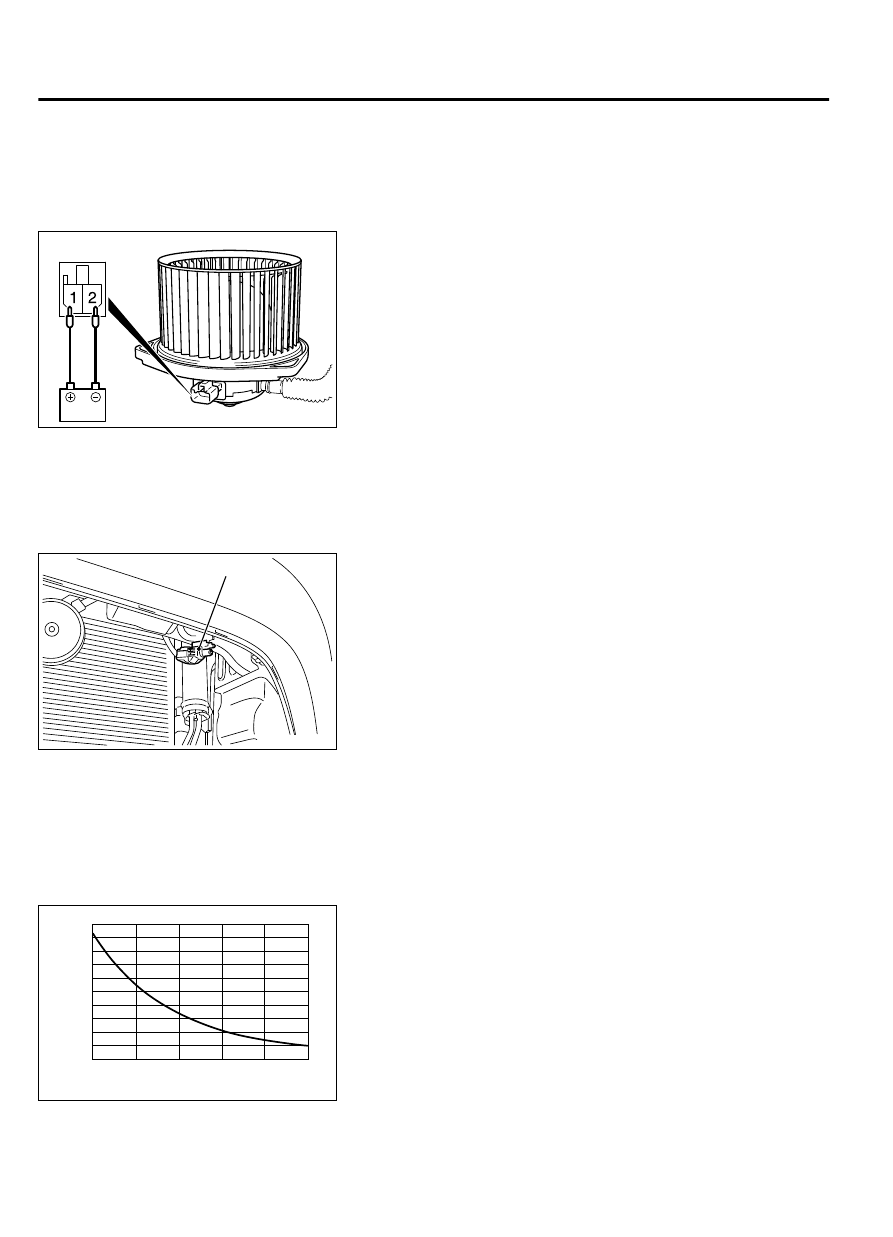

Check  that  the  motor  turns  when  applying  battery  power
between the connector terminals. Also check to see that there
is no abnormal sound emitted from the motor at this time.

AMBIENT TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

M15502000926USA0000010000

ZC6004650000

1

Removal steps

·

Front bumper grille

Removal steps

1.

Ambient temperature sensor

INSPECTION

M15502000927USA0000010000

AMBIENT AIR TEMPERATURE SENSOR CHECK

ZC601994AA00

RESISTANCE
(k

W

)

TEMPERATURE ºC (ºF)

8

6

4

2

0

9

7

5

3

1

 -10

  0

 20

  40

(14)

(32)

(68)

(104)

 30

(86)

  10

(50)

10

Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.

NOTE:

The temperature should be within the shown range.

55A-116

AIR CONDITIONING

AMBIENT TEMPERATURE SENSOR

A/C-ECU

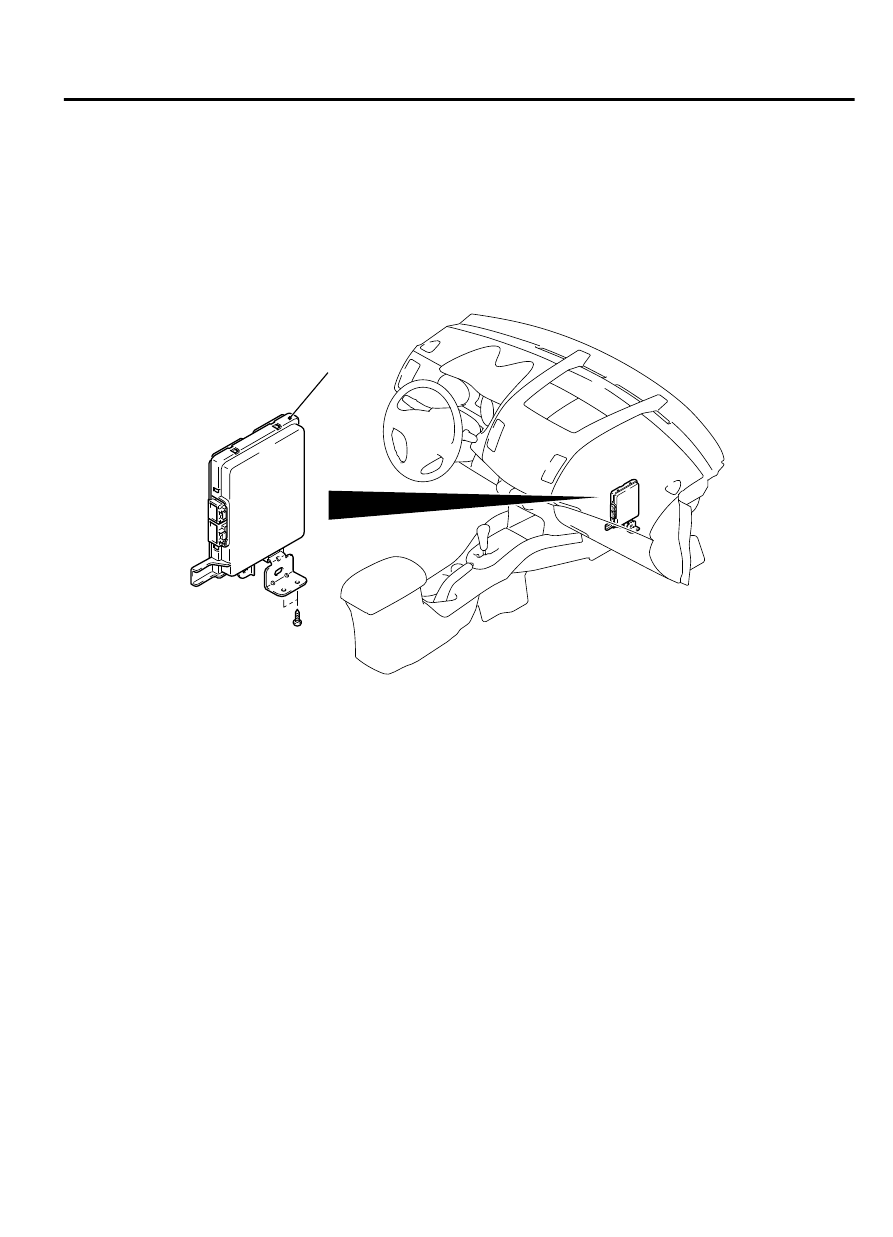

REMOVAL AND INSTALLATION

M15502000935USA0000010001

Pre-removal and Post-installation Operation

Glove  Box  and  Bottom  Cover  Assembly  (passenger's  side)  Removal  and  Installation  (Refer  to  GROUP  52A  -  Instrument

Panel P.52A-2).

ZC600336

A/C-ECU

0000

COMPRESSOR ASSEMBLY

REMOVAL AND INSTALLATION

M15502000044USA0000010000

Pre-removal Operation

｠

Refrigerant Discharging (Refer to P.55A-119).

｠

Front Bumper Under Cover (Refer to GROUP 51A, FRONT

BUMPER P.51A-3).

｠

Front  Under  Cover  RH  (Refer  to  GROUP  51A,  UNDER

COVER P.51A-18).

Post-installation Operation

｠

Drive  Belt  Tension  Adjustment  (Refer  to  GROUP  00,

Maintenance Service - Drive Belt P.00-58).

｠

Refrigerant Charging (Refer to P.55A-119).

｠

Front  Bumper  Under  Cover  (Refer  to  GROUP  51A,  FRONT

BUMPER P.51A-3).

｠

Front  Under  Cover  RH  (Refer  to  GROUP  51A,  UNDER

COVER P.51A-18).

AIR CONDITIONING

55A-117

A/C-ECU

ZC602016

1, 2

3

5

3

2

1

4

0000

3

N

N

25 ± 4 N·m
18 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

A/C compressor oil:
SUN PAG 56

-Pipe coupling

25 ± 4 N·m
18 ± 4 ft-lb

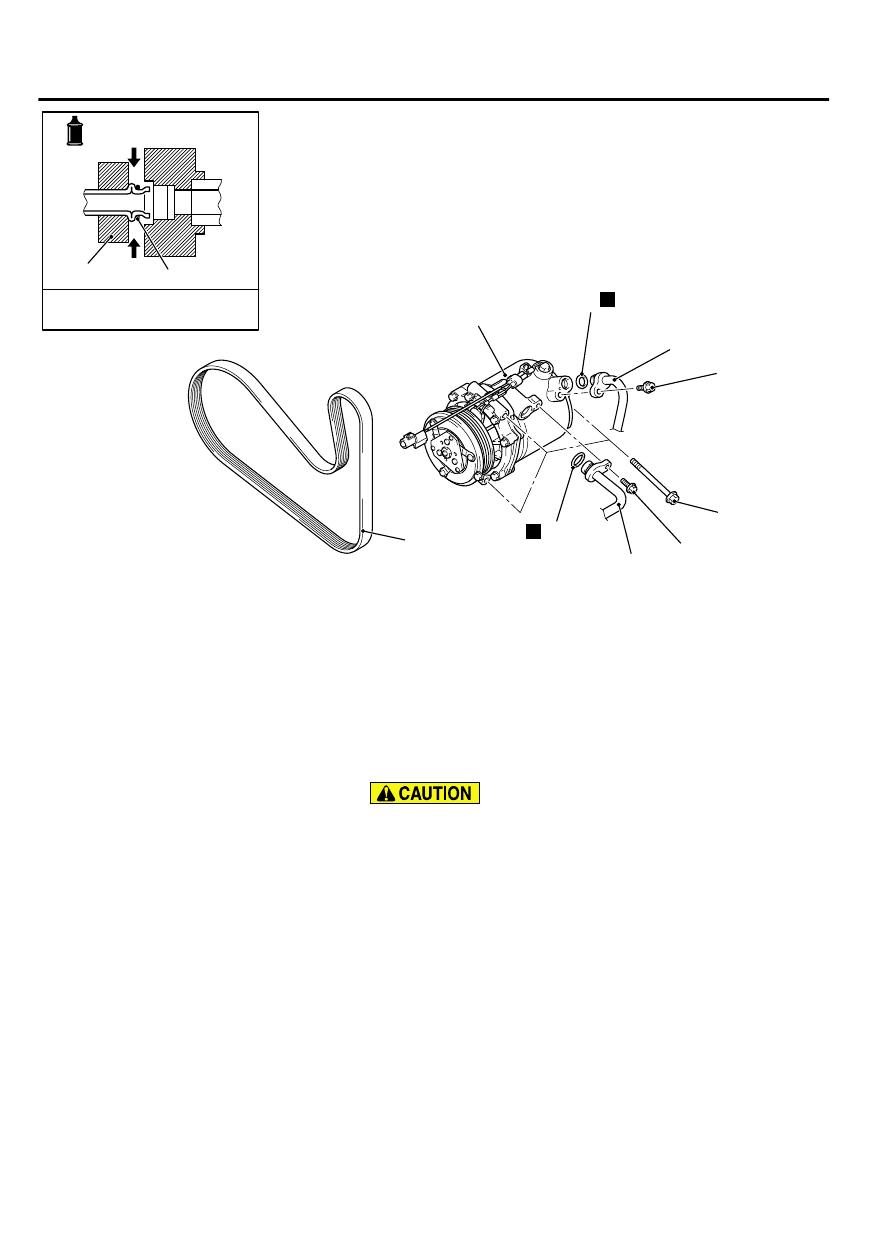

Removal steps

<<A>>

1.

Flexible suction hose connection

<<A>>

2.

Flexible discharge hose connection

3.

O-ring

Removal steps

<<B>>

4.

Drive belt

<<C>>

>>A<<

5.

A/C compressor

REMOVAL SERVICE POINTS

<<A>> FLEXIBLE SUCTION HOSE AND FLEXIBLE
DISCHARGE HOSE DISCONNECTION

As  the  compressor  oil  and  receiver  are  highly  moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To prevent the entry of dust or other foreign bodies, plug the
dismantled hoses and compressor nipples.

<<B>> DRIVE BELT REMOVAL
Refer to GROUP 11A, Crankshaft pulley P.11A-21.

<<C>> A/C COMPRESSOR REMOVAL
Take  care  not  to  spill  any  compressor  oil  when  removing  the
compressor.

55A-118

AIR CONDITIONING

COMPRESSOR ASSEMBLY
