SPECIAL TOOLS

M15502000006USA0000010000

TOOL

TOOL  NUMBER
AND NAME

SUPERSESSION

APPLICATION

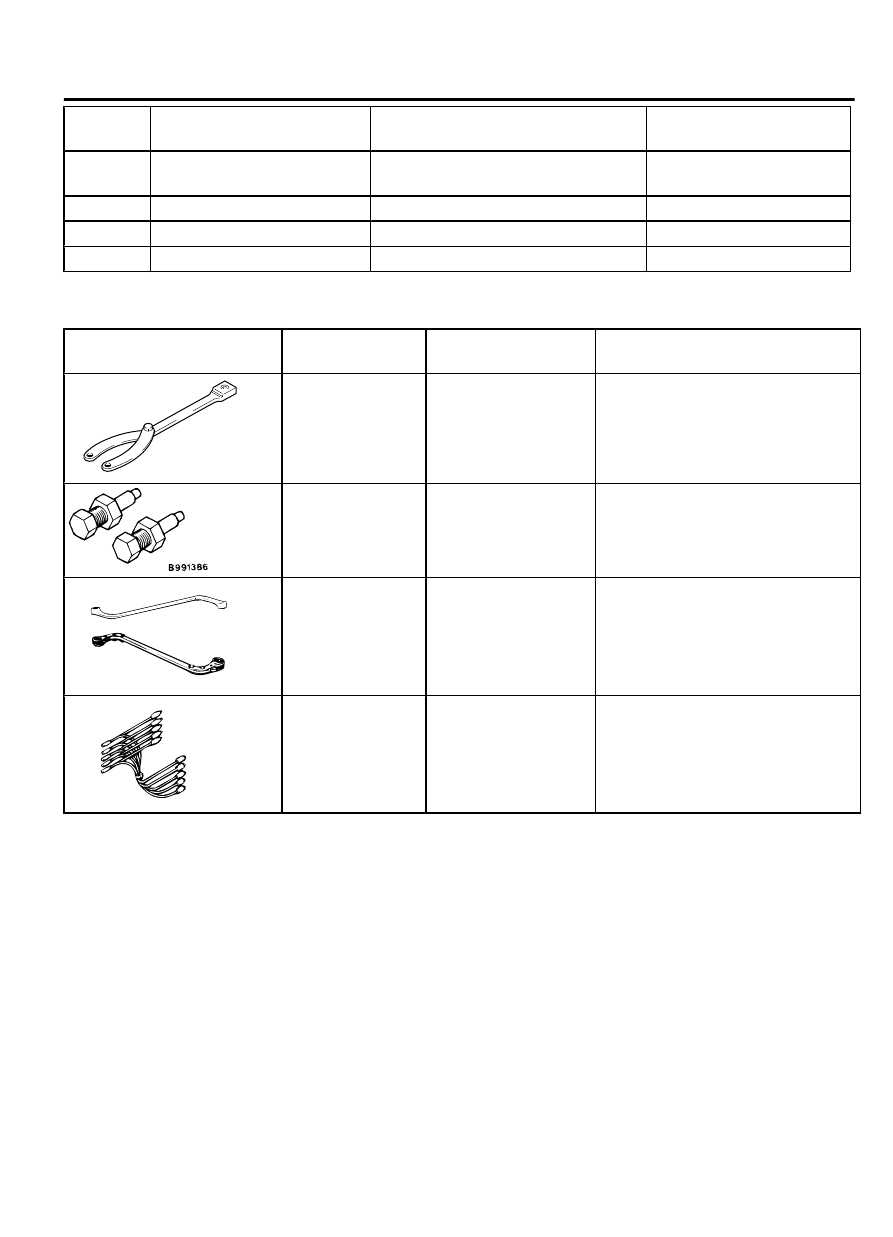

B991367

MB991367
Special spanner

MB991367-01

Armature

 mounting

 nut

 of

compressor

 removal

 and

installation

MB991386 Pin

MIT217213

Armature

 mounting

 nut

 of

compressor

 removal

 and

installation

MB990900

MB990900

 or

MB991164  Door
adjusting wrench

MB990900-01

Removal  and  installation  of  the
heater  unit  and  front  deck
crossmember assembly

MB991658

MB991658
Test harness set

Tool not available

Inspection of A/C pressure sensor

AIR CONDITIONING

55A-99

SPECIAL TOOLS

TOOL

TOOL  NUMBER
AND NAME

SUPERSESSION

APPLICATION

YB9912230000

Do not use

a

b

c

d

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

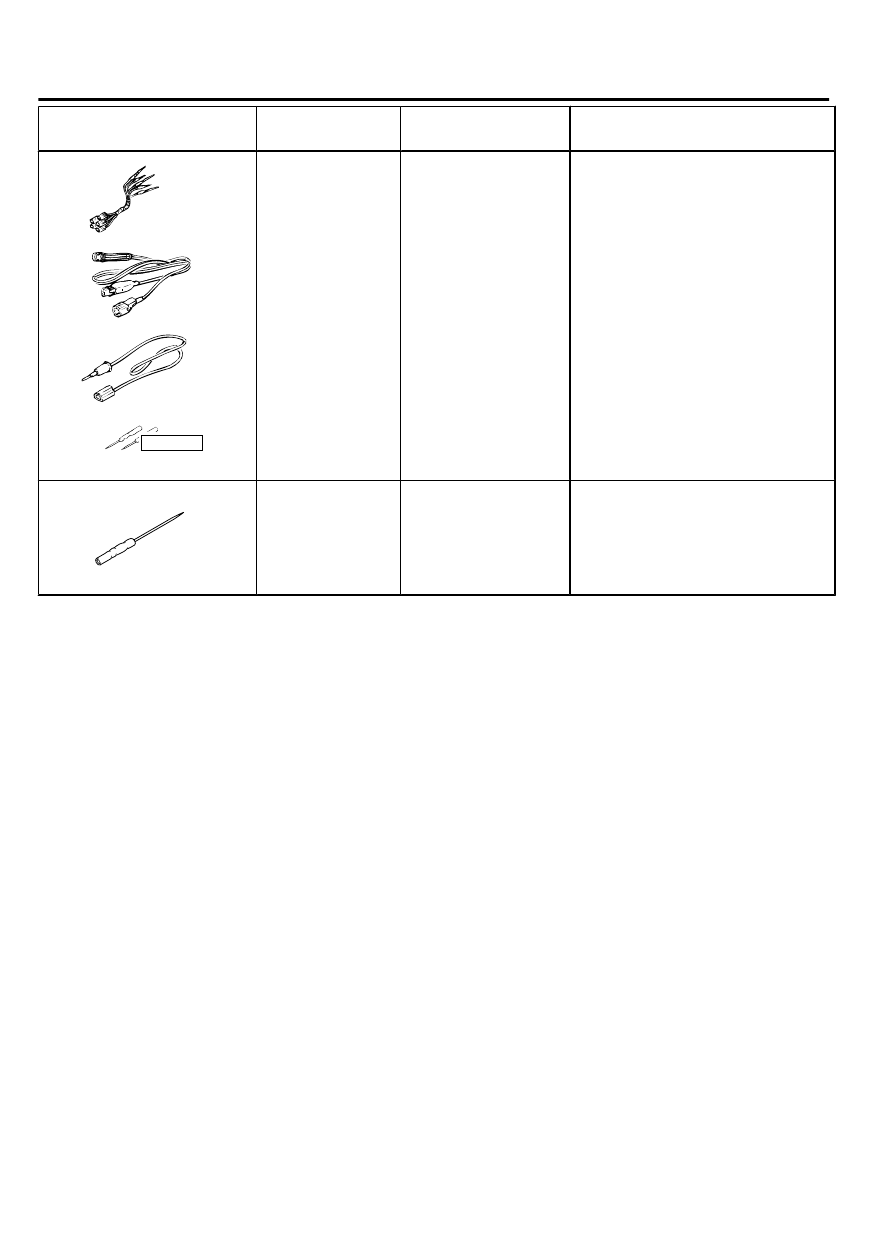

Harness set

A: Test harness
B: LED harness
C: LED harness
adaptor
D: Probe

General service tools Making  voltage  and  resistance

measurement

 during

troubleshooting

A:

 Connector

 pin

 contact

pressure inspection
B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester connection

MB992006

MB992006
Extra fine probe

General service tool

Making  voltage  and  resistance
measurement

 during

troubleshooting

55A-100

AIR CONDITIONING

SPECIAL TOOLS

TOOL

TOOL  NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

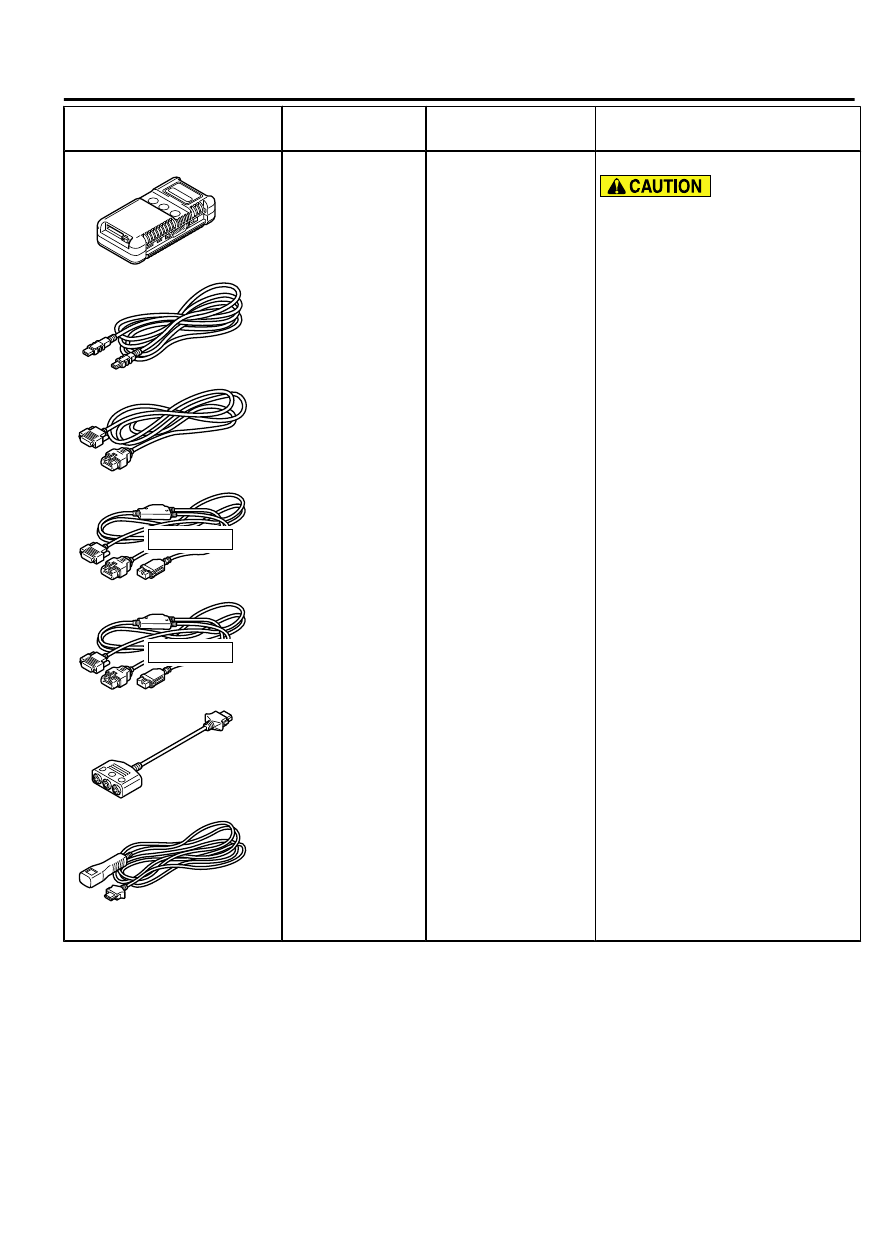

M.U.T.-III

 Sub

Assembly

A:

 Vehicle

communication
interface
(V.C.I.)
B:

 M.U.T.-III

USB cable
C:

 M.U.T.-III

main  harness  A
(Vehicles  with
CAN
communication
system)
D:

 M.U.T.-III

main  harness  B
(Vehicles
without

 CAN

communication
system)
E:

 M.U.T.-III

main harness C
(for

 Daimler

Chrysler models
only)
F:

 M.U.T.-III

measurement
adapter
G:

 M.U.T.-III

Trigger Harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

Checking diagnostic trouble codes

For

 vehicles

 with

 CAN

communication,  use  M.U.T.-III
main  harness  A  to  send
simulated  vehicle  speed.  If  you
connect  M.U.T.-III  main  harness
B

 instead,

 the

 CAN

communication

 does

 not

function correctly.

ON-VEHICLE SERVICE

A/C COMPRESSOR CLUTCH TEST

M15502000199USA0000010000

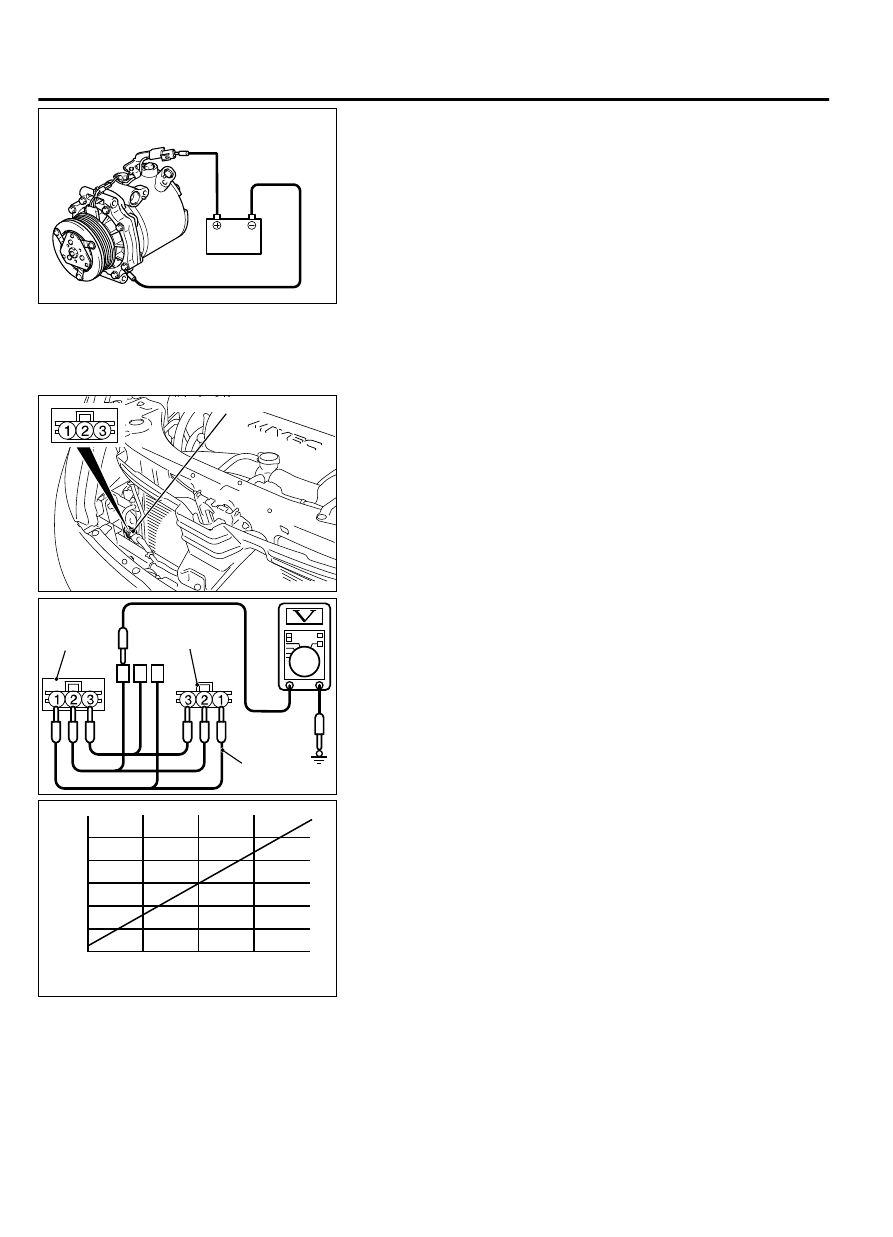

1.

Disconnect the A/C compressor clutch connector to the A/C
compressor clutch.

AIR CONDITIONING

55A-101

ON-VEHICLE SERVICE

ZC6004060000

2.

Connect positive battery voltage directly to the connector for
the A/C compressor clutch.

3.

If the A/C compressor clutch is normal, there will be a "click".
If the pulley and armature do not make contact ("no click"),
there is a malfunction.

SIMPLE INSPECTION OF THE A/C PRESSURE

SENSOR

M15502000147USA0000010000

ZC6035740000

A/C pressure sensor

AC603575

Harness side

A/C
pressure
sensor side

MB991658

0000

ZC6035760000

Refrigerant pressure MPa (psi)

Output voltage

(V)

0

1

2

3

5

4

1 (145)

2 (290)

3 (435)

1.

Assemble  a  gauge  manifold  on  the  high-pressure  service
valve.

2.

Disconnect the A/C pressure sensor connector and connect
special  tool  test  harness  MB991658  as  shown  in  the
illustration.

3.

Turn ON the engine and then turn ON the A/C switch.

4.

At this time, check to see that the voltage of A/C pressure
sensor terminal No. 2 reflects the specifications of the figure.

NOTE:

The allowance shall be defined as ±5%.

COMPRESSOR DRIVE BELT ADJUSTMENT

M15502000010USA0000010000

Refer  to  GROUP  00,  Maintenance  Service  -  Drive  Belts  P.
00-58.

55A-102

AIR CONDITIONING

ON-VEHICLE SERVICE
