(2)

Turn the ignition switch to the "ON" position.

ZC6022230019

Harness side: C-306

(3)

Measure the voltage between terminal 1 and ground.

｠

The  measured  value  should  be  approximately  12  volts
(battery positive voltage).

Q:Is the measured voltage approximately 12 volts?

YES:

 Go to Step 11.

NO:

 Go to Step 9.

STEP 9. Check ETACS-ECU connector C-301 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-301 in good condition?

YES:

 Go to Step 10.

NO:

 Repair or replace the connector. Refer to GROUP 00E,

Harness Connector Inspection P.00E-2. Check that the rear
window defogger system works normally.

STEP 10. Check the wiring harness between rear window
defogger relay connector C-306 (terminal 1) and ETACS-
ECU C-301 (terminal 12).

Q:Is the wiring harness between rear window defogger relay

connector  C-306  (terminal  1)  and  ETACS-ECU  C-301

(terminal 12) in good condition?

YES:

 Check that the rear window defogger system works

normally.

NO:

 Repair the wiring harness. Check that the rear window

defogger system works normally.

STEP 11. Check the wiring harness between rear window
defogger relay connector C-306 (terminal 2) and A/C-ECU
connector C-119 (terminal 6).

Q:Is the wiring harness between rear window defogger relay

connector  C-306  (terminal  2)  and  A/C-ECU  connector

C-119 (terminal 6) in good condition?

YES:

 Go to Step 12.

NO:

 Repair or replace the wiring harness. Refer to GROUP

00E, Harness Connector Inspection P.00E-2. Check that the
rear window defogger system works normally.

STEP 12. Check the wiring harness between rear window
defogger relay connector C-306 (terminal 3) and rear
window defogger connector F-20 (terminal 1).

NOTE:

Also check intermediate connector C-32 and D-12 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-32 and
D-12 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

AIR CONDITIONING

55A-91

MANUAL A/C DIAGNOSIS

Q:Is the wiring harness between rear window defogger relay

connector C-306 (terminal 3) and rear window defogger

connector F-20 (terminal 1) in good condition?

YES:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

 Repair or replace the wiring harness. Refer to GROUP

00E, Harness Connector Inspection P.00E-2. Check that the
rear window defogger system works normally.

STEP 13. Check rear window defogger connector F-05 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  window  defogger  connector  F-05  in  good

condition?

YES:

 Go to Step 14.

NO:

 Repair or replace the connector. Refer to GROUP 00E,

Harness Connector Inspection P.00E-2. Check that the rear
window defogger system works normally.

STEP 14. Measure the resistance at rear window defogger
connector F-05.

(1)

Disconnect  rear  window  defogger  connector  F-05,  and
measure at the wiring harness side.

AC604249 0002

Harness side: F-05

(2)

Measure the resistance between terminal 1 and ground.

｠

The measured value should be 2 ohms or less.

Q:Does the measured resistance value correspond with this

range?

YES:

 Go to Step 16.

NO:

 Go to Step 15.

STEP 15. Check the wiring harness between rear window
defogger connector F-05 (terminal 1) and the ground.

Q:Is  the  wiring  harness  between  rear  window  defogger

connector  F-05  (terminal  1)  and  the  ground  in  good

condition?

YES:

 Check that the rear window defogger system works

normally.

NO:

 Repair or replace the wiring harness. Refer to GROUP

00E, Harness Connector Inspection P.00-15. Check that the
rear window defogger system works normally.

55A-92

AIR CONDITIONING

MANUAL A/C DIAGNOSIS

STEP 16. Check the rear window defogger.

ZC3048440000

Voltage (V)

Normal characteristics of print heater

Abnormal characteristics of print heater

Voltage (V)

12

6

0

12

6

0

(+) terminal

(-) terminal

(+) terminal

(-) terminal

Length of print heater

Length of print heater

A (middle point)

Appr oximately 6  V

Disconnection
location

(1)

Let  the  engine  run  at  2,000  r/min,  and  check  the  printed
heater with the battery fully charged.

(2)

Turn  on  the  rear  window  defogger  switch,  and  use  a
voltmeter to measure the voltage in each printed heater at
middle point A on the rear window glass.

｠

The value should be approximately 6 volts.

Q:Does the rear window defogger work normally?

YES:

 Replace the A/C-ECU. Check that the rear window

defogger system works normally.

NO:

 Repair the rear window defogger.

AIR CONDITIONING

55A-93

MANUAL A/C DIAGNOSIS

INSPECTION PROCEDURE 10: Blower Motor power supply system.

M15502000957USA0000010000

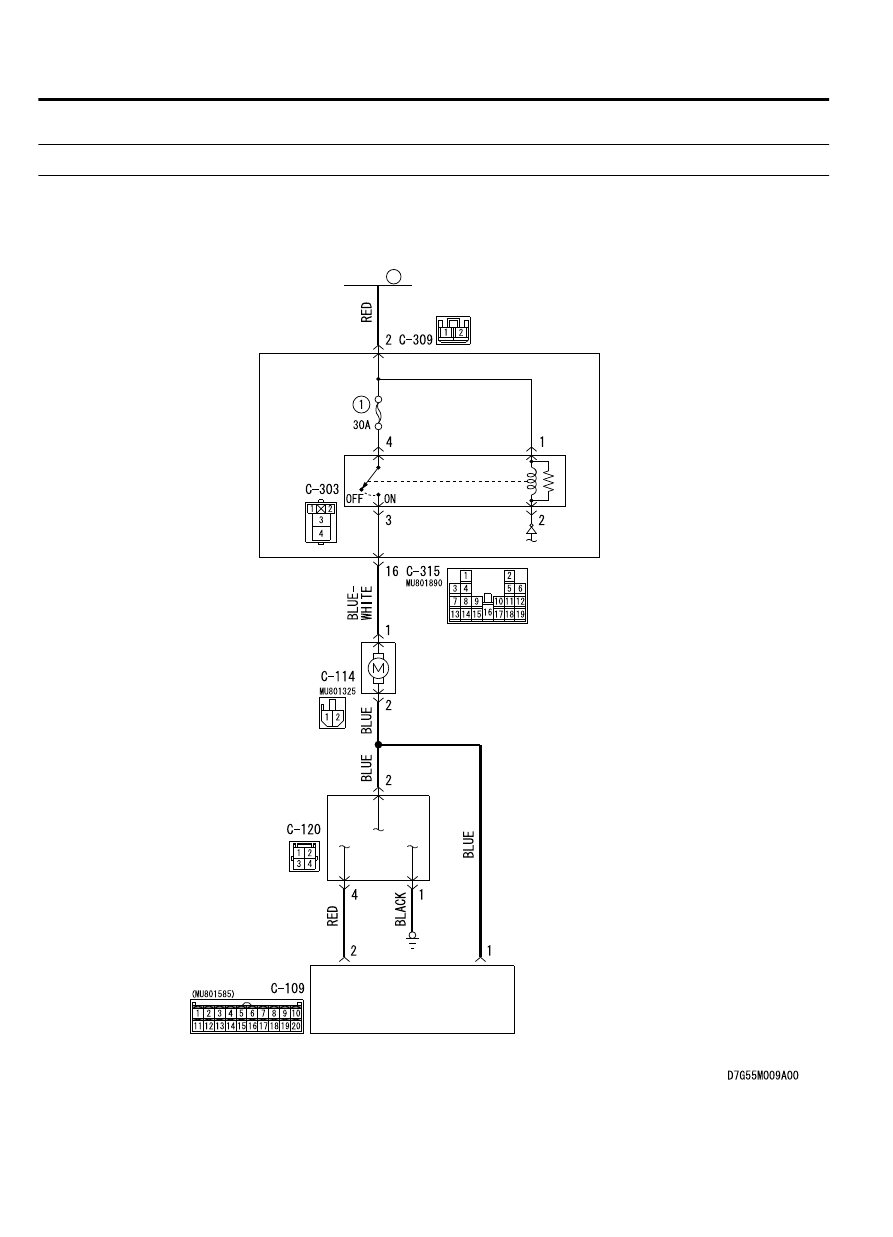

Blower Motor Circuit

FUSIBLE
LINK

37

BLOWER
RELAY

ETACS-
ECU

A/C-ECU

BLOWER
MOTOR

POWER
TRANSISTOR

55A-94

AIR CONDITIONING

MANUAL A/C DIAGNOSIS
