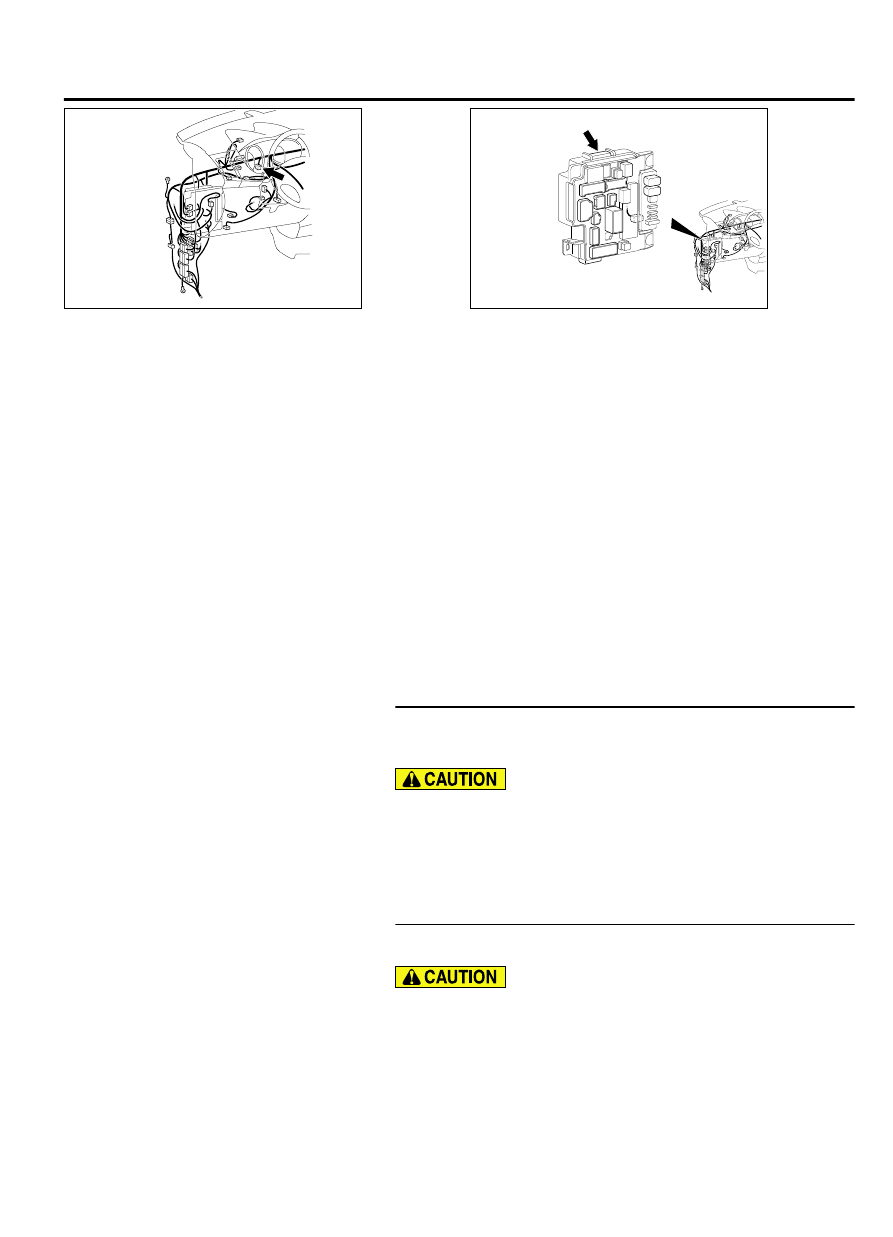

ZC6008750010

Connector: C-103

ZC6008780000

Connector: C-301

FUNCTION
If  a  failure  is  present  in  the  wiring  harness  wires
between  the  ETACS-ECU  connector,  the  joint
connector  (CAN1),  the  ETACS-ECU  connector  and
the joint connector (CAN1), this diagnosis result will
be set.

TROUBLE JUDGEMENT CONDITIONS
If a communication flag is set for none of the ECUs on
the CAN-B line, the ETACS-ECU determines that
there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction of the connector [joint connector
(CAN1) or ETACS-ECU connector improperly
connected]

｠

Malfunction of the wiring harness [open circuit
between the ETACS-ECU connector and the joint
connector (CAN1)]

｠

Malfunction of the ETACS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN1) C-103 and EATCS-
ECU connector C-301 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are joint connector (CAN1) C-103 and ETACS-ECU

connector C-301 in good condition?

YES:

Go to Step 2.

NO:

Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN1) C-103 and ETACS-ECU connector C-301.

Strictly observe the specified wiring harness repair
procedure. For details refer to P.54D-8.

(1)

Disconnect joint connector (CAN1) C-103 and ETACS-ECU
connector C-301, and check the wiring harness.

CONTROLLER AREA NETWORK (CAN)

54D-151

DIAGNOSIS

(2)

Check the wiring harness between joint connector (CAN1)
C-103 (terminal No.6) and ETACS-ECU connector C-301
(terminal No.6)

(3)

Check the wiring harness between joint connector (CAN1)
C-103 (terminal No.17) and ETACS-ECU connector C-301
(terminal No.7)

Q:Is the wiring harness between joint connector (CAN1)

C-103 and ETACS-ECU connector C-301 in good

condition?

YES:

Go to Step 3.

NO:

Repair the wiring harness between joint connector

(CAN1) C-103 and ETACS-ECU connector C-301.

STEP 3. Using scan tool MB991958, diagnose the CAN bus
line. (trouble symptom check)

Strictly observe the specified wiring harness repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

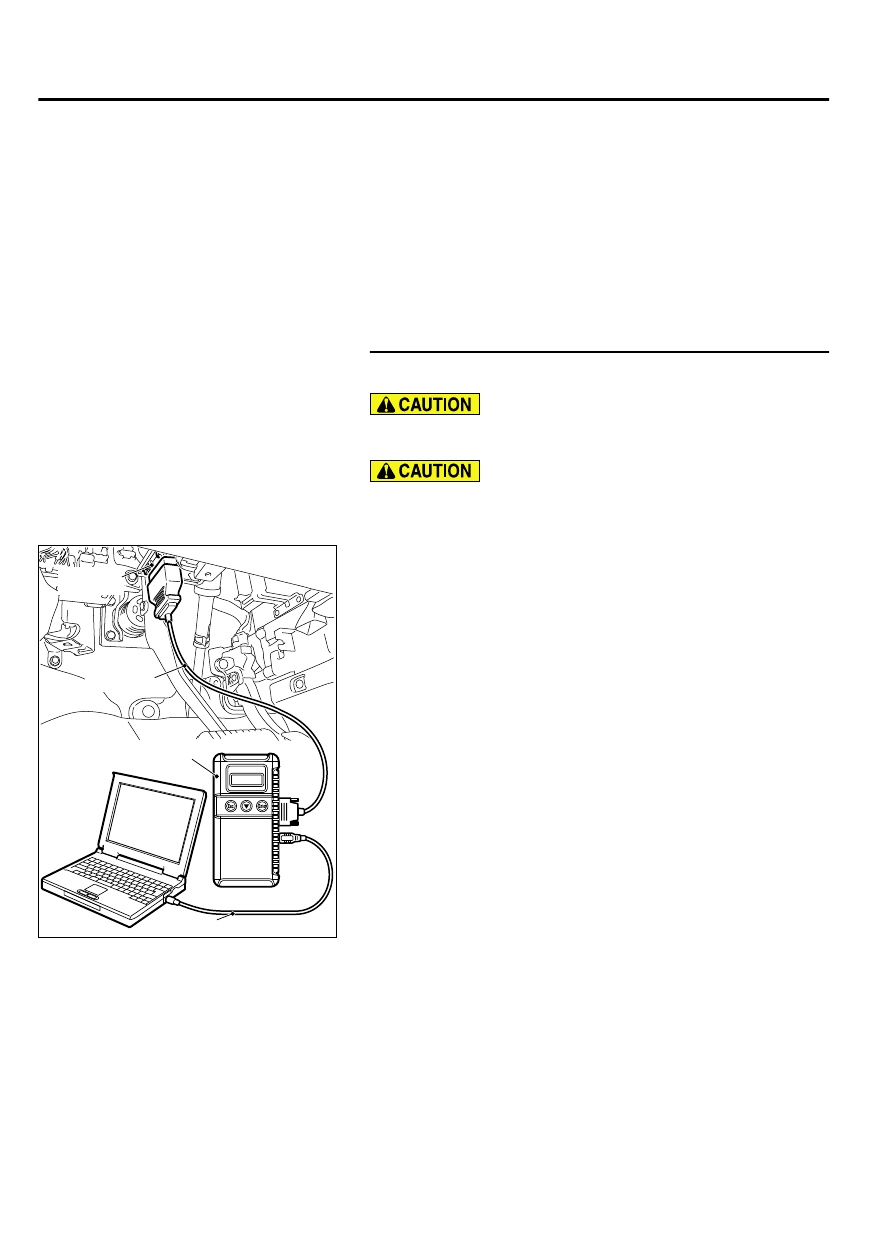

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

54D-152

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

ZC5018690000

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(3)

Diagnose CAN bus lines, and check if the scan tool
MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q:Does scan tool MB991958 screen correspond to the

illustration?

YES:

The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

Replace the ETACS-ECU.

DIAGNOSTIC ITEM 26: Short to power supply or ground, open circuit or line-to-line
short in the CAN-B bus lines.

M15408300036USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water pipe. If you fail to do so, a component
connected to the CAN bus line may be damaged.

CONTROLLER AREA NETWORK (CAN)

54D-153

DIAGNOSIS

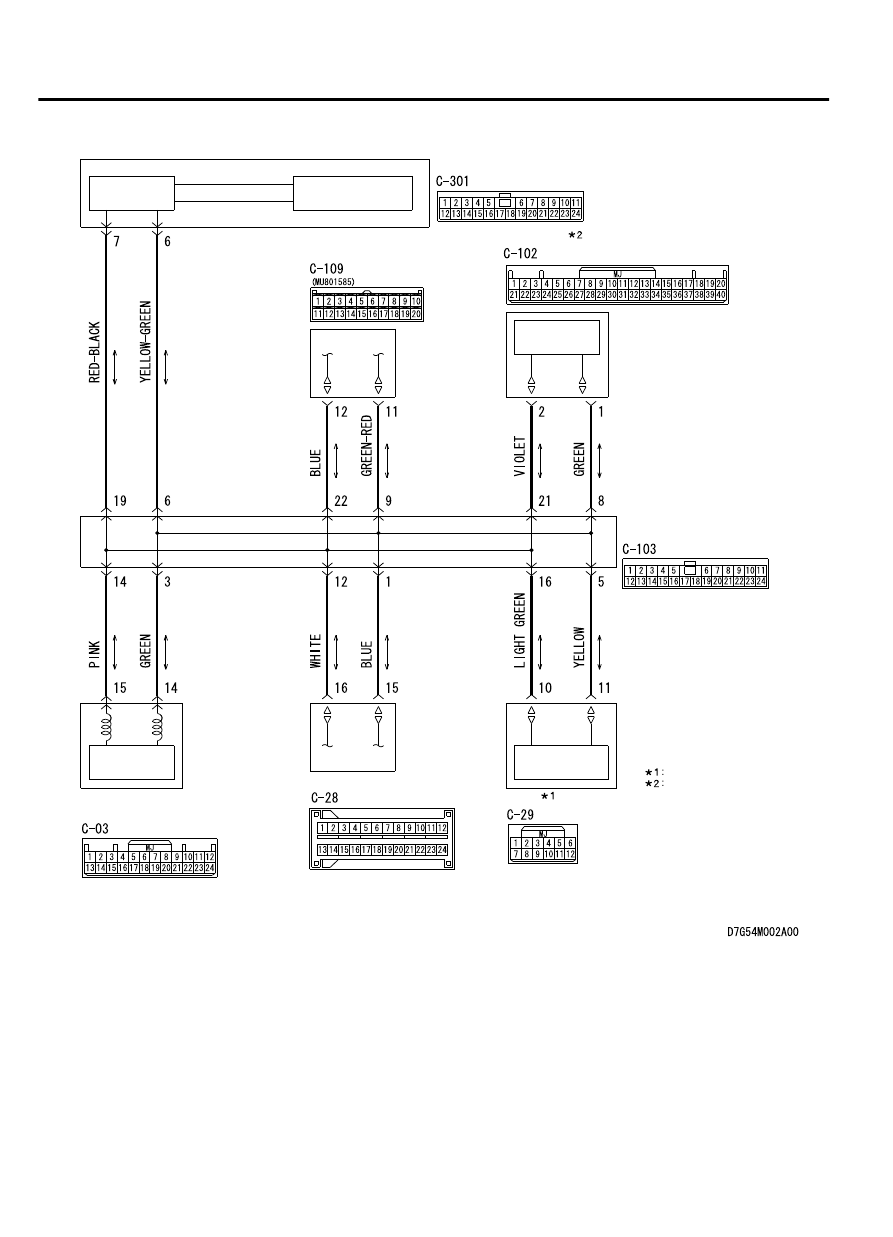

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

A/C-ECU

COMBINATION
METER

SRS-ECU

WCM

KOS-ECU

NOTE

VEHICLES WITH WCM
VEHICLES WITH KOS

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)

54D-154

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
