Mitsubishi Outlander XL. Manual - part 1155

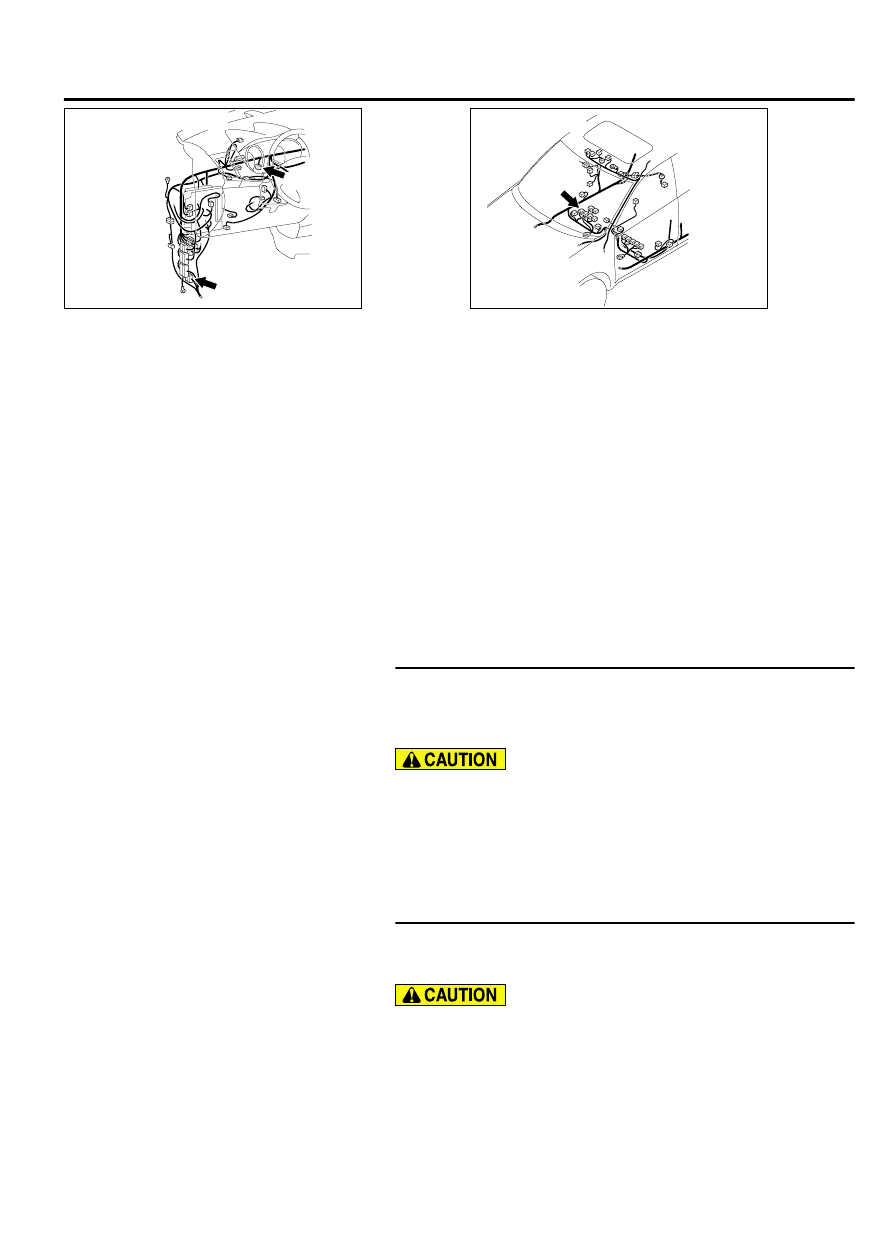

ZC6008750011

Connectors: C-31, C-103

C-103

C-31

ZC6008790000

Connector: D-34



FUNCTION
If the scan tool MB991958 cannot communicate with
the occupant classification-ECU, this diagnosis result
will be set.

TROUBLE JUDGMENT CONDITIONS
If  a  communication  flag  is  not  set  for  the  occupant
classification-ECU, the ETACS-ECU determines that
there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN1),  occupant  classification-ECU  connector
improperly connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between

 the

 occupant

 classification-ECU

connector  and  the  joint  connector  (CAN1),  power
supply circuit to the occupant classification-ECU]

｠

Malfunction of the occupant classification-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN1) C-103, occupant
classification-ECU connector D-34, D-34-2 and intermediate
connector C-31 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are

 joint

 connector

 (CAN1)

 C-103,

 occupant

classification-ECU

 connector

 D-34,

 D-34-2

 and

intermediate connector C-31 in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN1) C-103 and occupant classification-ECU connector
D-31-2.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect  joint  connector  (CAN1)  C-103  and  occupant
classification-ECU  connector  C-301,  and  check  the  wiring
harness.

CONTROLLER AREA NETWORK (CAN)

54D-103

DIAGNOSIS

(2)

Check the wiring harness between joint connector (CAN1)
C-103  (terminal  No.11)  and  occupant  classification-ECU
connector D-31-2 (terminal No.24)

(3)

Check the wiring harness between joint connector (CAN1)
C-103  (terminal  No.24)  and  occupant  classification-ECU
connector D-31-2 (terminal No.25)

Q:Is  the  wiring  harness  between  joint  connector  (CAN1)

C-103 and occupant classification-ECU connector D-31-2

in good condition?

YES:

 Check the power supply circuit of the occupant

classification-ECU. Refer to Group 52B, SRS air bag
Diagnosis P.52B-306.

NO:

 Repair the wiring harness between joint connector

(CAN1) C-103 and occupant classification-ECU connector
D-31-2.

DIAGNOSTIC ITEM 19: Diagnose when the scan tool cannot receive the data sent by A/
C-ECU.

M15408300029USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

54D-104

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

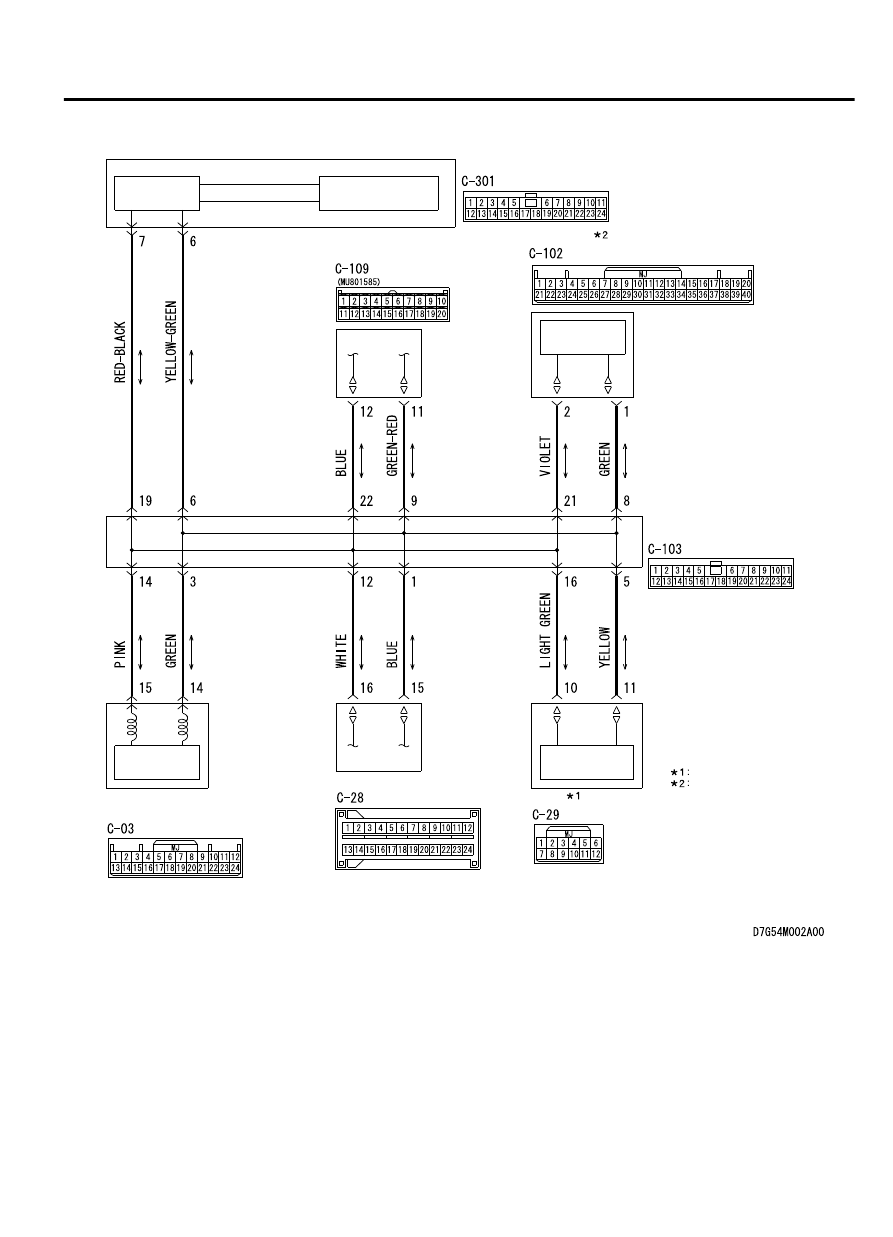

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

A/C-ECU

COMBINATION
METER

SRS-ECU

WCM

KOS-ECU

NOTE

VEHICLES WITH WCM
VEHICLES WITH KOS

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)

CONTROLLER AREA NETWORK (CAN)

54D-105

DIAGNOSIS

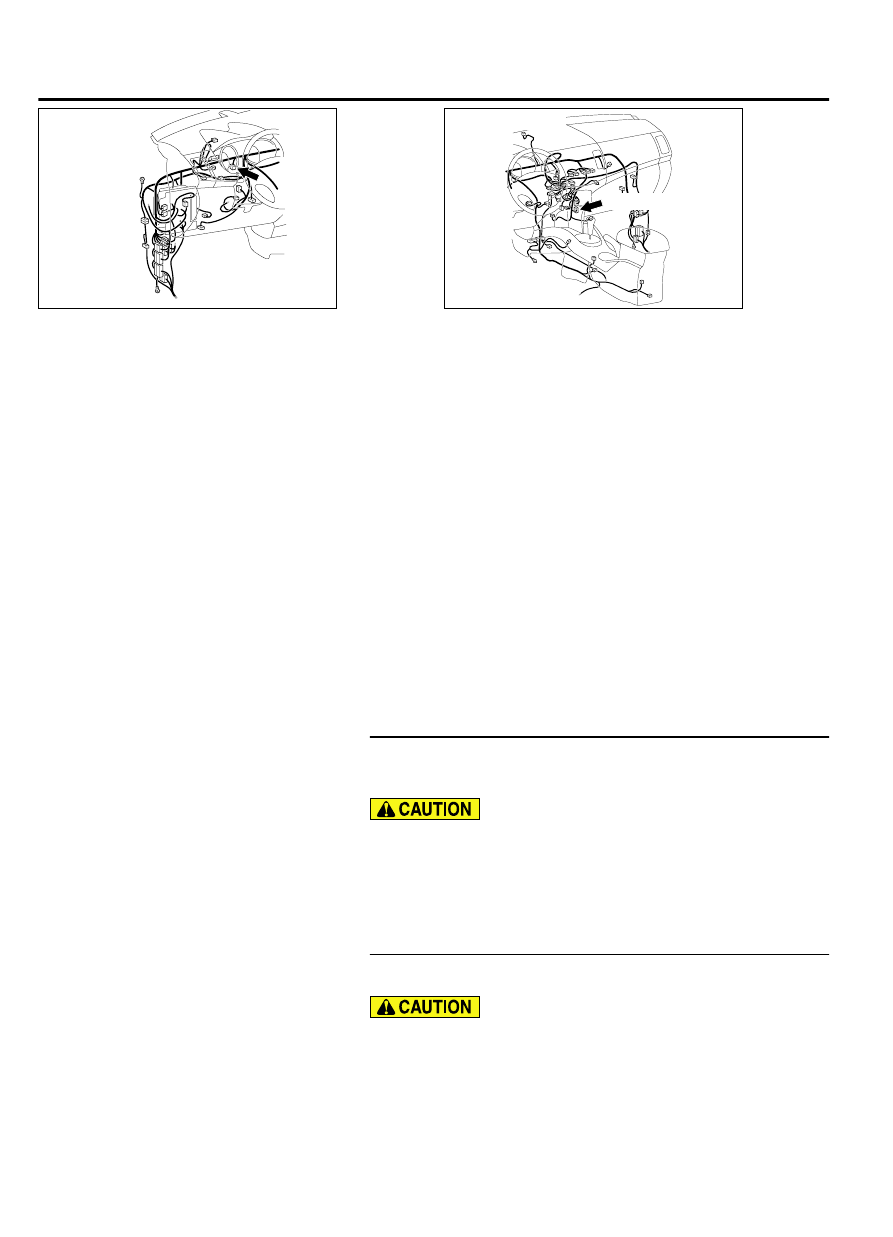

ZC6008750010

Connector: C-103

ZC6008760001

Connector: C-109

C-109 (B)



FUNCTION
If the scan tool MB991958 cannot communicate with
the A/C-ECU, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If a communication flag is not set for the A/C-ECU, the
ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN1),

 A/C-ECU

 connector

 improperly

connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between  the  A/C-ECU  connector  and  the  joint
connector (CAN1), power supply circuit to the A/C-
ECU]

｠

Malfunction of the A/C-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN1) C-103 and A/C-ECU
connector C-109 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are  joint  connector  (CAN1)  C-103  and  A/C-ECU

connector C-109 in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN1) C-103 and A/C-ECU connector C-109.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect  joint  connector  (CAN1)  C-103  and  A/C-ECU
connector C-301, and check the wiring harness.

54D-106

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
