ZC6008710002

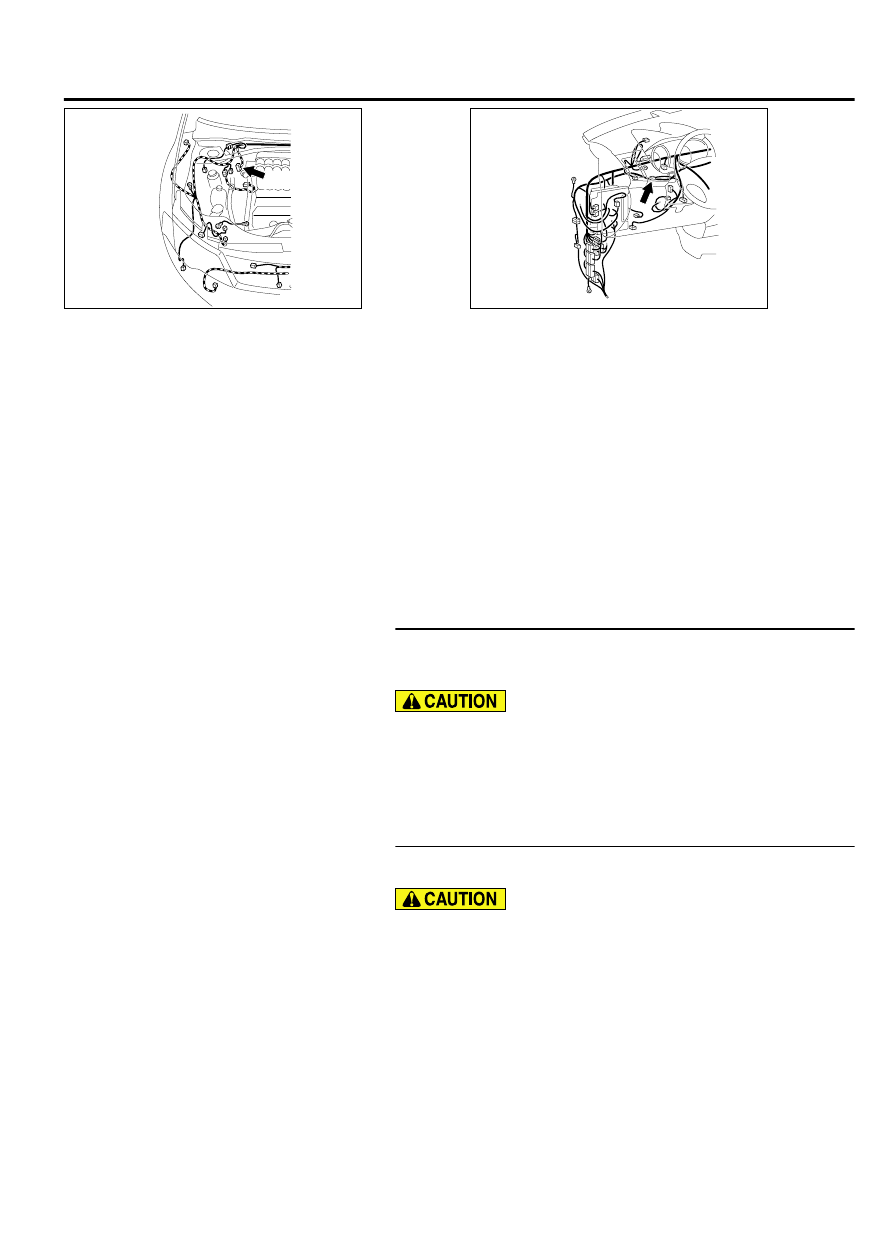

Connector: A-02

A-02 (B)

ZC6008750005

Connector: C-01



FUNCTION
If the scan tool MB991958 cannot communicate with
the ASC-ECU, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If a communication flag is not set for the ASC-ECU,
the ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN3)  or  ASC-ECU  connector  improperly
connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between  the  ASC-ECU  and  the  joint  connector
(CAN3), power supply circuit to the ASC-ECU]

｠

Malfunction of the ASC-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN3) C-01 and ASC-ECU
connector A-02 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are joint connector (CAN3) C-01 and ASC-ECU connector

A-02 in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN3) C-01 and ASC-ECU connector A-02.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect  joint  connector  (CAN3)  C-01  and  ASC-ECU
connector A-02, and check the wiring harness.

(2)

Check the wiring harness between joint connector (CAN3)
C-01 (terminal No.6) and ASC-ECU connector A-02 (terminal
No.11)

(3)

Check the wiring harness between joint connector (CAN3)
C-01  (terminal  No.19)  and  ASC-ECU  connector  A-02
(terminal No.15)

CONTROLLER AREA NETWORK (CAN)

54D-79

DIAGNOSIS

Q:Is  the  wiring  harness  between  joint  connector  (CAN3)

C-01 and ASC-ECU connector A-02 in good condition?

YES:

 Check the power supply circuit of the ASC-ECU. Refer

to Group 35C, Troubleshooting P.35C-176.

NO:

 Repair the wiring harness between joint connector

(CAN3) C-01 and ASC-ECU connector A-02.

DIAGNOSTIC ITEM 11: Diagnose when the scan tool cannot receive the data sent by
ECM.

M15408300017USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

54D-80

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

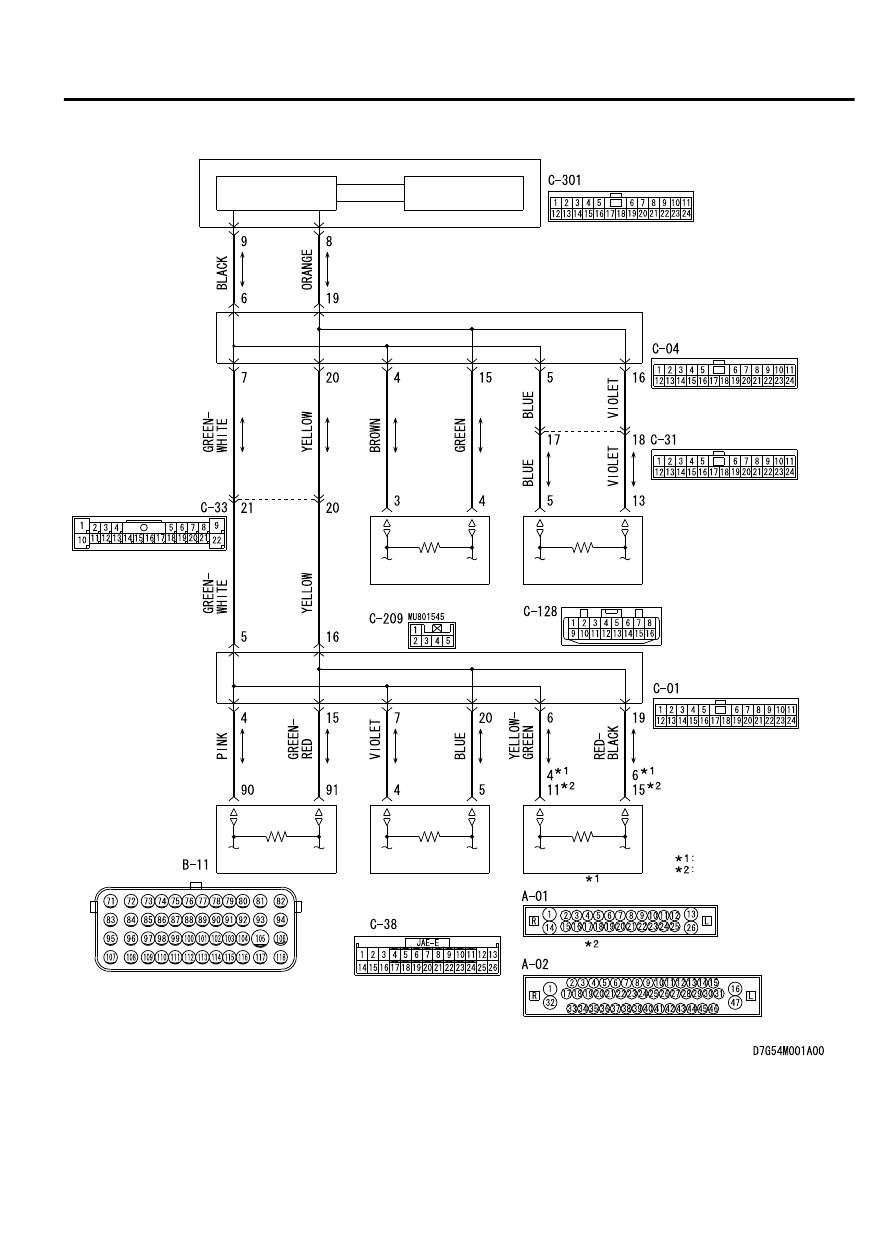

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

STEERING WHEEL
SENSOR

AWD-ECU

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

TRANSMISSION
CONTROL
MODULE

ASC-ECU

ABS-ECU

ENGINE
CONTROL
MODULE

NOTE

VEHICLES WITHOUT ASC
VEHICLES WITH ASC

CONTROLLER AREA NETWORK (CAN)

54D-81

DIAGNOSIS

ZC6008740000

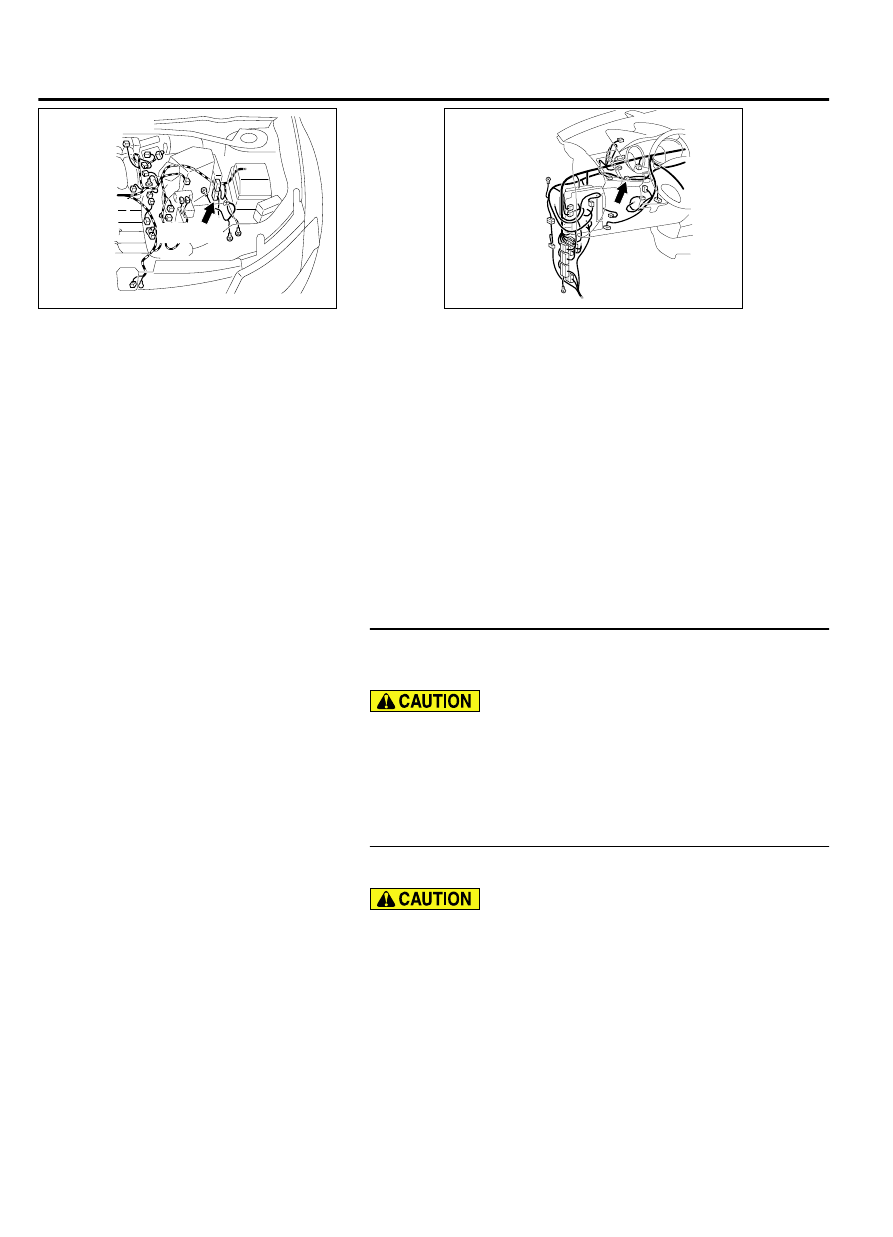

Connector: B-11

B-11 (GR)

ZC6008750005

Connector: C-01



FUNCTION
If the scan tool MB991958 cannot communicate with
the ECM, this diagnosis result will be set.

TROUBLE JUDGMENT CONDITIONS
If  a  communication  flag  is  not  set  for  the  ECM,  the
ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN3) or ECM connector improperly connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between the ECM and the joint connector (CAN3),
power supply circuit to the ECM]

｠

Malfunction of the ECM

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN3) C-01 and ECM
connector B-11 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are joint connector (CAN3) C-01 and ECM connector B-11

in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN3) C-01 and ECM connector B-11.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect joint connector (CAN3) C-01 and ECM connector
B-11, and check the wiring harness.

(2)

Check the wiring harness between joint connector (CAN3)
C-01 (terminal No.4) and ECM connector B-11 (terminal No.
90)

(3)

Check the wiring harness between joint connector (CAN3)
C-01 (terminal No.15) and ECM connector B-11 (terminal No.
91)

54D-82

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
