Mitsubishi Outlander XL. Manual - part 1147





(3)

Check the wiring harness between joint connector (CAN2)
C-04 (terminal No.15) and steering wheel sensor connector
C-209 (terminal No.4)

Q:Is  the  wiring  harness  between  joint  connector  (CAN2)

C-04 and steering wheel sensor connector C-209 in good

condition?

YES:

 Check the power supply circuit of the steering wheel

sensor. Refer to Group 35C, Troubleshooting P.35C-11.

NO:

 Repair the wiring harness between joint connector

(CAN2) C-04 and steering wheel sensor connector C-209.

DIAGNOSTIC ITEM 8: Diagnose when the scan tool cannot receive the data sent by
TCM.

M15408300013USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

CONTROLLER AREA NETWORK (CAN)

54D-71

DIAGNOSIS

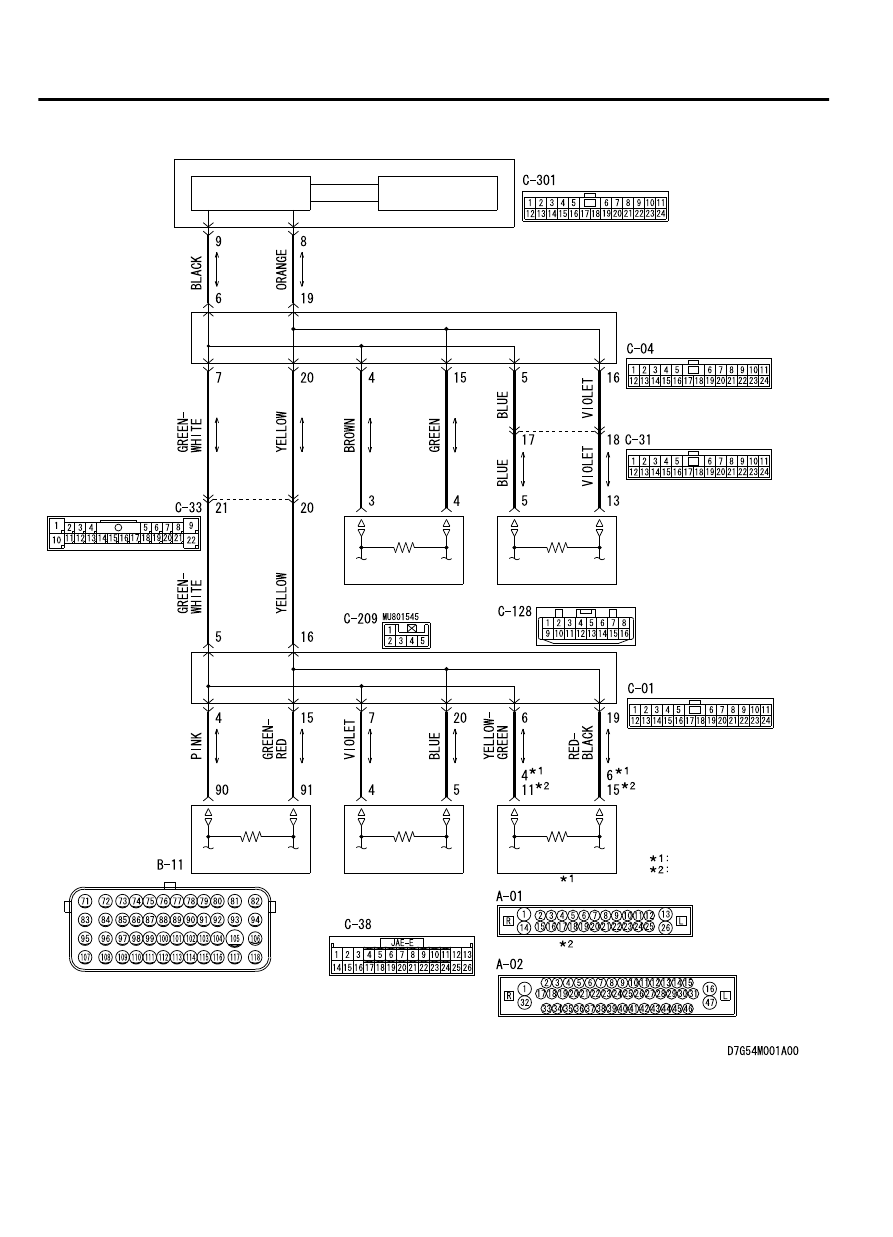

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

STEERING WHEEL
SENSOR

AWD-ECU

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

TRANSMISSION
CONTROL
MODULE

ASC-ECU

ABS-ECU

ENGINE
CONTROL
MODULE

NOTE

VEHICLES WITHOUT ASC
VEHICLES WITH ASC

54D-72

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

ZC6008750004

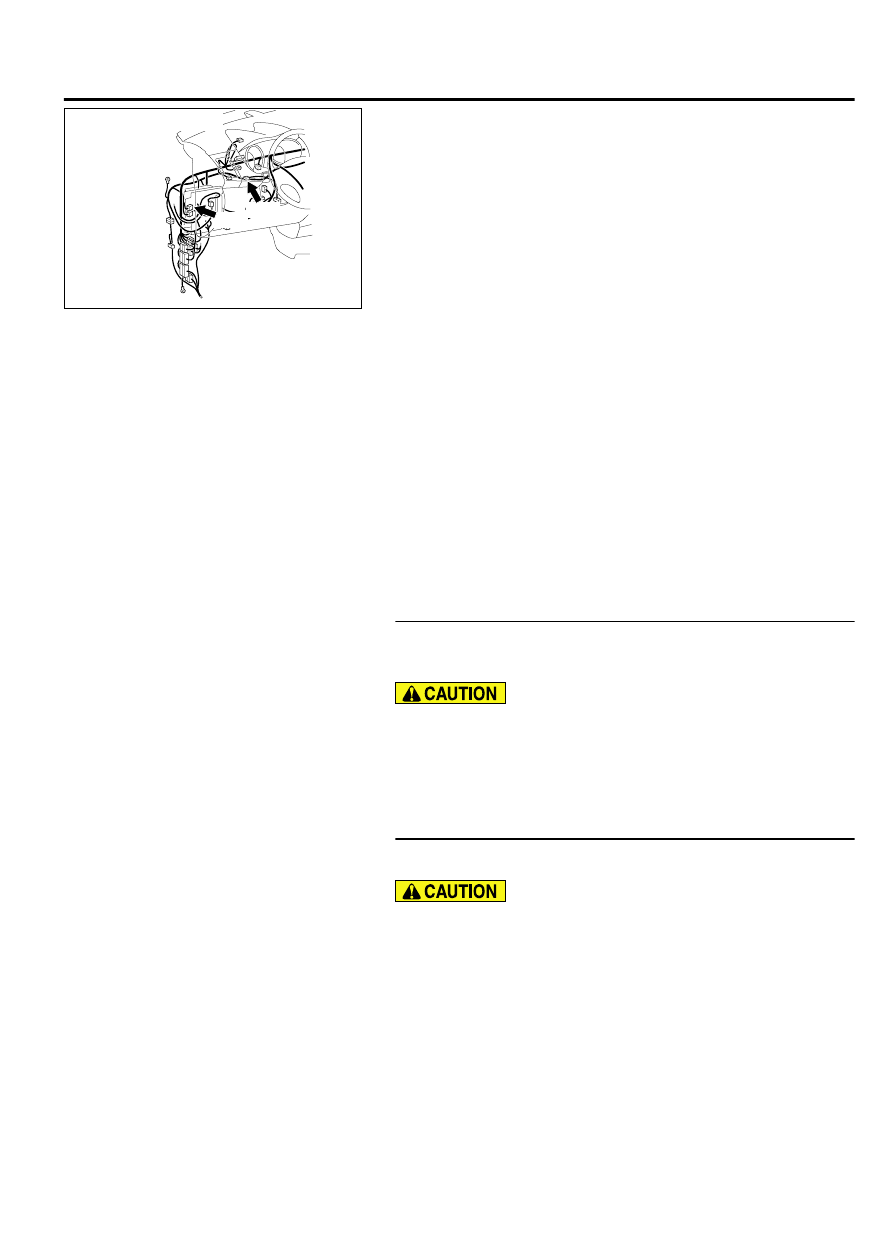

Connectors: C-01, C-38

C-01

C-38



FUNCTION
If the scan tool MB991958 cannot communicate with
the TCM, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If  a  communication  flag  is  not  set  for  the  TCM,  the
ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS

Malfunction  of  the  connector  [joint  connector
(CAN3) or TCM connector improperly connected]

Malfunction  of  the  wiring  harness  [open  circuit
between the TCM and the joint connector (CAN3),
power supply circuit to the TCM]

Malfunction of the TCM

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN2) C-04 and TCM
connector C-38 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are joint connector (CAN2) C-04 and TCM connector C-38

in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and TCM connector C-38.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect joint connector (CAN2) C-04 and TCM connector
C-38, and check the wiring harness.

(2)

Check the wiring harness between joint connector (CAN2)
C-04 (terminal No.7) and TCM connector C-38 (terminal No.
4)

(3)

Check the wiring harness between joint connector (CAN2)
C-04 (terminal No.20) and TCM connector C-38 (terminal No.
5)

CONTROLLER AREA NETWORK (CAN)

54D-73

DIAGNOSIS

Q:Is  the  wiring  harness  between  joint  connector  (CAN2)

C-04 and TCM connector C-38 in good condition?

YES:

 Check the power supply circuit of the TCM. Refer to

Group 23A, Troubleshooting P.23A-129.

NO:

 Repair the wiring harness between joint connector

(CAN2) C-04 and TCM connector C-38.

DIAGNOSTIC ITEM 9: Diagnose when the scan tool cannot receive the data sent by
ABS-ECU.

M15408300014USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

54D-74

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
