Mitsubishi Outlander XL. Manual - part 1146

ZC6008750002

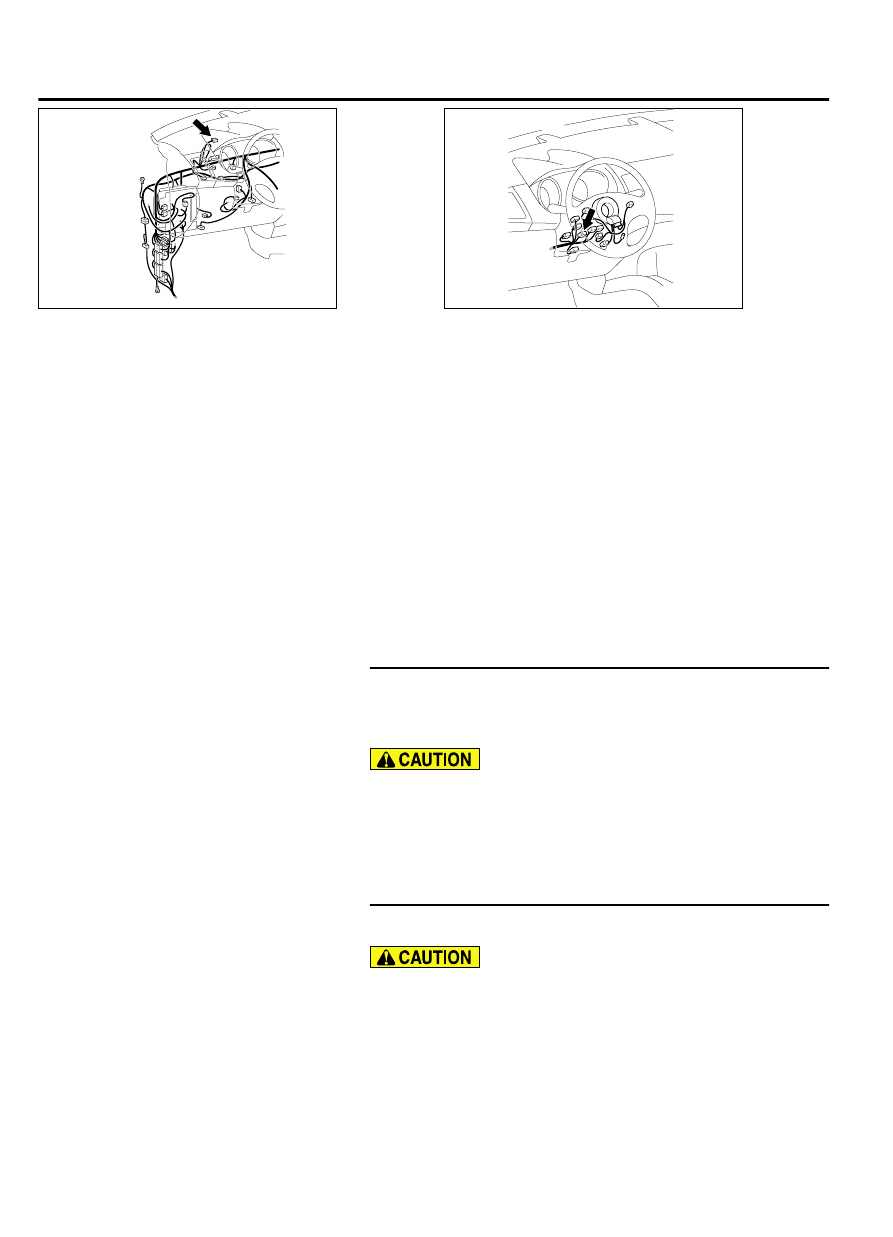

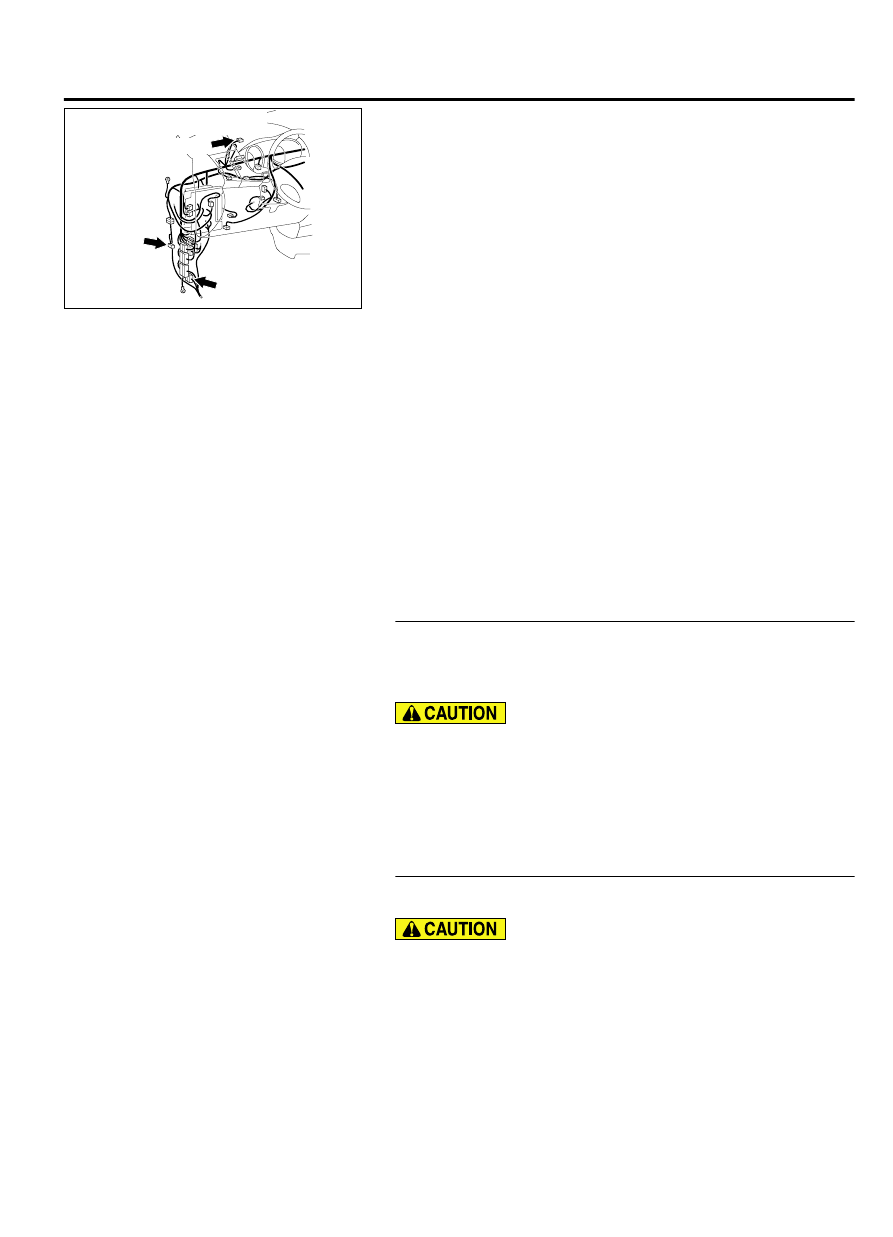

Connectors: C-04, C-31, C-128

C-128

C-31

C-04



FUNCTION
If the scan tool MB991958 cannot communicate with
the AWD-ECU, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If a communication flag is not set for the AWD-ECU,
the ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN2)  or  AWD-ECU  connector  improperly
connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between  the  AWD-ECU  and  the  joint  connector
(CAN2), power supply circuit to the AWD-ECU]

｠

Malfunction of the AWD-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN2) C-04, AWD-ECU
connector C-128 and intermediate connector C-31 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are  joint  connector  (CAN2)  C-04,  AWD-ECU  connector

C-128  and  intermediate  connector  C-31  in  good

condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and AWD-ECU connector C-128.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect  joint  connector  (CAN2)  C-04  and  AWD-ECU
connector C-301, and check the wiring harness.

(2)

Check the wiring harness between joint connector (CAN2)
C-04  (terminal  No.5)  and  AWD-ECU  connector  C-128
(terminal No.5)

CONTROLLER AREA NETWORK (CAN)

54D-67

DIAGNOSIS

(3)

Check the wiring harness between joint connector (CAN2)
C-04  (terminal  No.16)  and  AWD-ECU  connector  C-128
(terminal No.13)

Q:Is  the  wiring  harness  between  joint  connector  (CAN2)

C-04 and AWD-ECU connector C-128 in good condition?

YES:

 Check the power supply circuit of the AWD-ECU. Refer

to Group 27C, Multiselect AWD Diagnosis P.27C-74.

NO:

 Repair the wiring harness between joint connector

(CAN2) C-04 and AWD-ECU connector C-128.

DIAGNOSTIC ITEM 7: Diagnose when the scan tool cannot receive the data sent by
steering wheel sensor.

M15408300012USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

54D-68

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

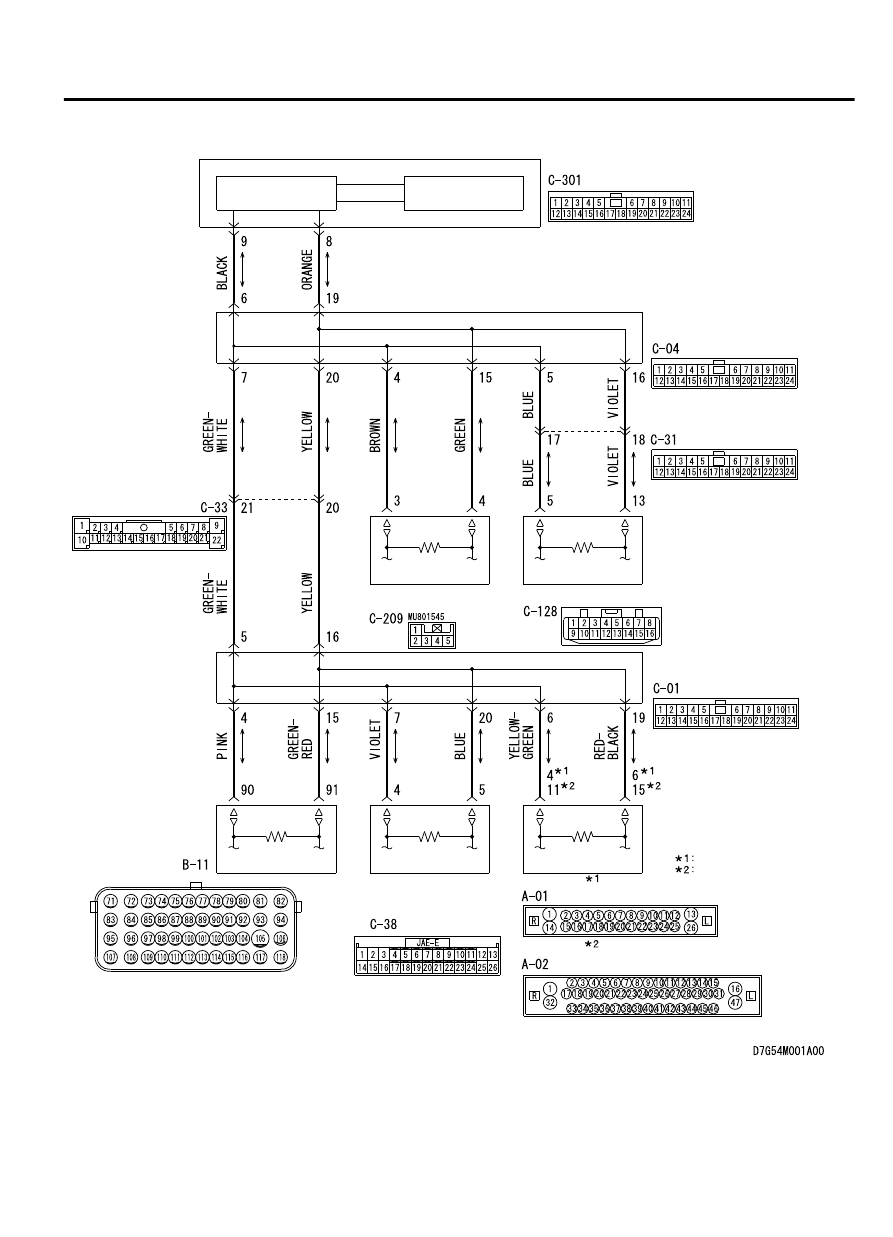

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

STEERING WHEEL
SENSOR

AWD-ECU

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

TRANSMISSION
CONTROL
MODULE

ASC-ECU

ABS-ECU

ENGINE
CONTROL
MODULE

NOTE

VEHICLES WITHOUT ASC
VEHICLES WITH ASC

CONTROLLER AREA NETWORK (CAN)

54D-69

DIAGNOSIS

ZC6008750003

Connector: C-04

ZC6008770000

Connector: C-209



FUNCTION
If the scan tool MB991958 cannot communicate with
the steering wheel sensor, this diagnosis result will be
set.

TROUBLE JUDGEMENT CONDITIONS
If  a  communication  flag  is  not  set  for  the  steering
wheel sensor, the ETACS-ECU determines that there
is a failure.

TROUBLESHOOTING HINTS

｠

Malfunction  of  the  connector  [joint  connector
(CAN2)  or  steering  wheel  sensor  connector
improperly connected]

｠

Malfunction  of  the  wiring  harness  [open  circuit
between  the  steering  wheel  sensor  and  the  joint
connector  (CAN2),  power  supply  circuit  to  the
steering wheel sensor]

｠

Malfunction of the steering wheel sensor

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN2) C-04 and steering
wheel sensor connector C-209 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to P.54D-8.

Q:Are  joint  connector  (CAN2)  C-04  and  steering  wheel

sensor connector C-209 in good condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and steering wheel sensor connector C-209.

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

(1)

Disconnect joint connector (CAN2) C-04 and steering wheel
sensor connector C-209, and check the wiring harness.

(2)

Check the wiring harness between joint connector (CAN2)
C-04 (terminal No.4) and steering wheel sensor connector
C-209 (terminal No.3)

54D-70

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
