Mitsubishi Outlander XL. Manual - part 1083





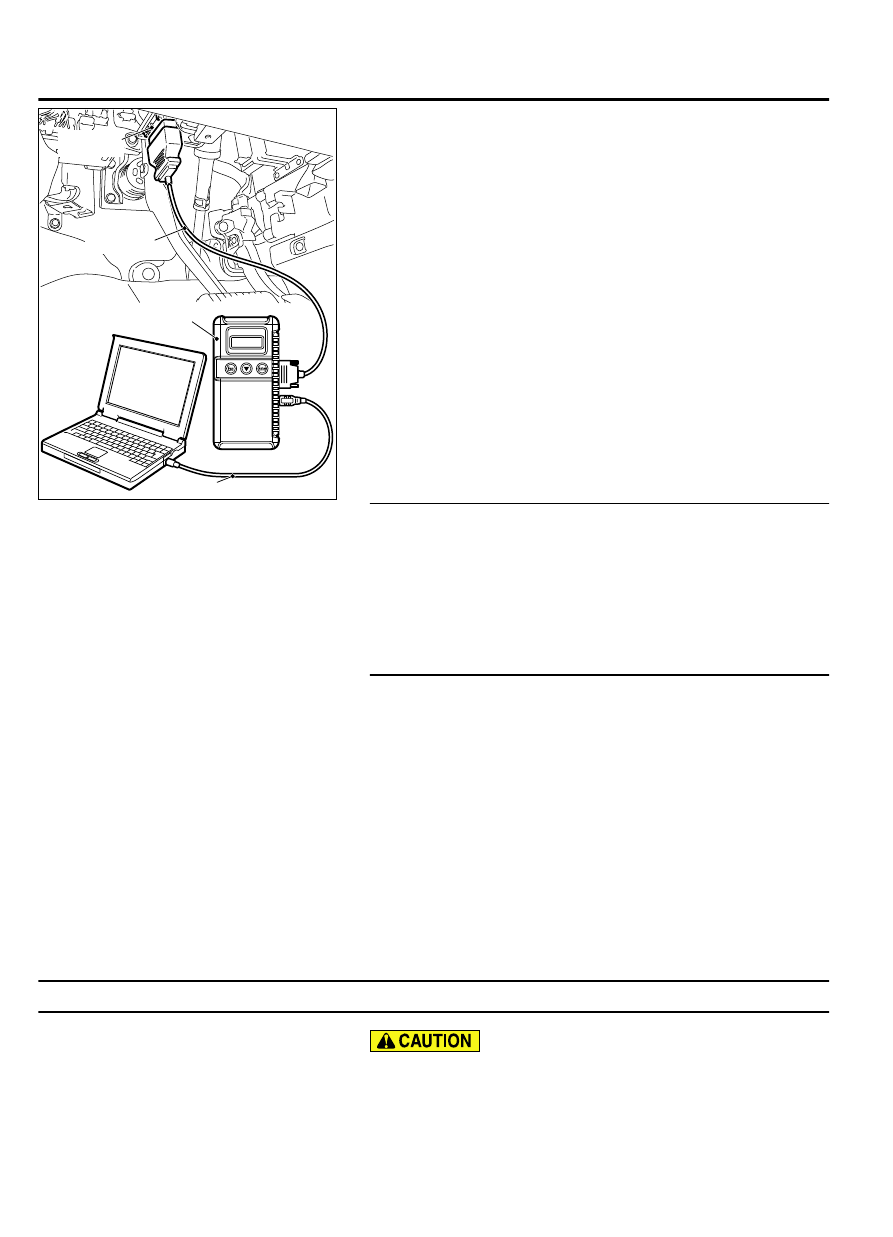

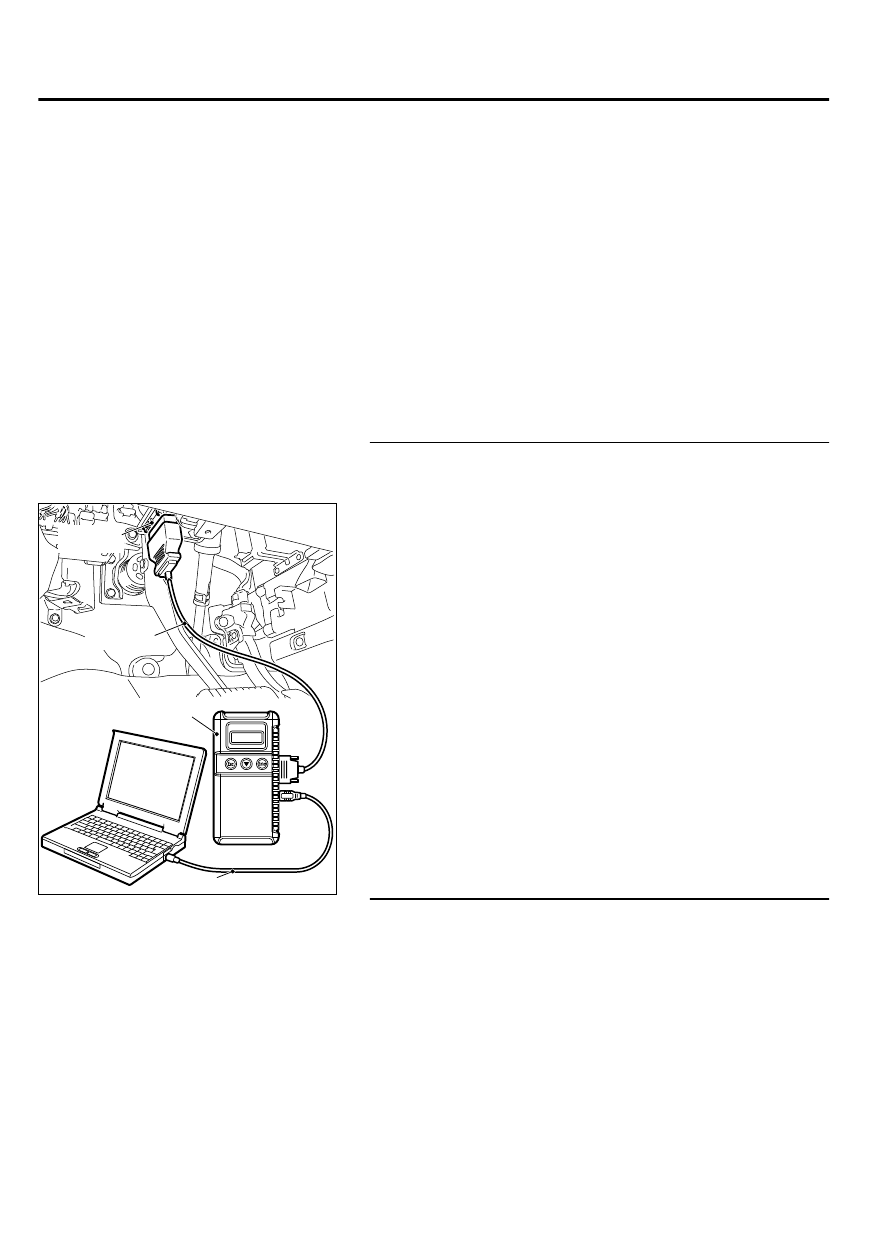

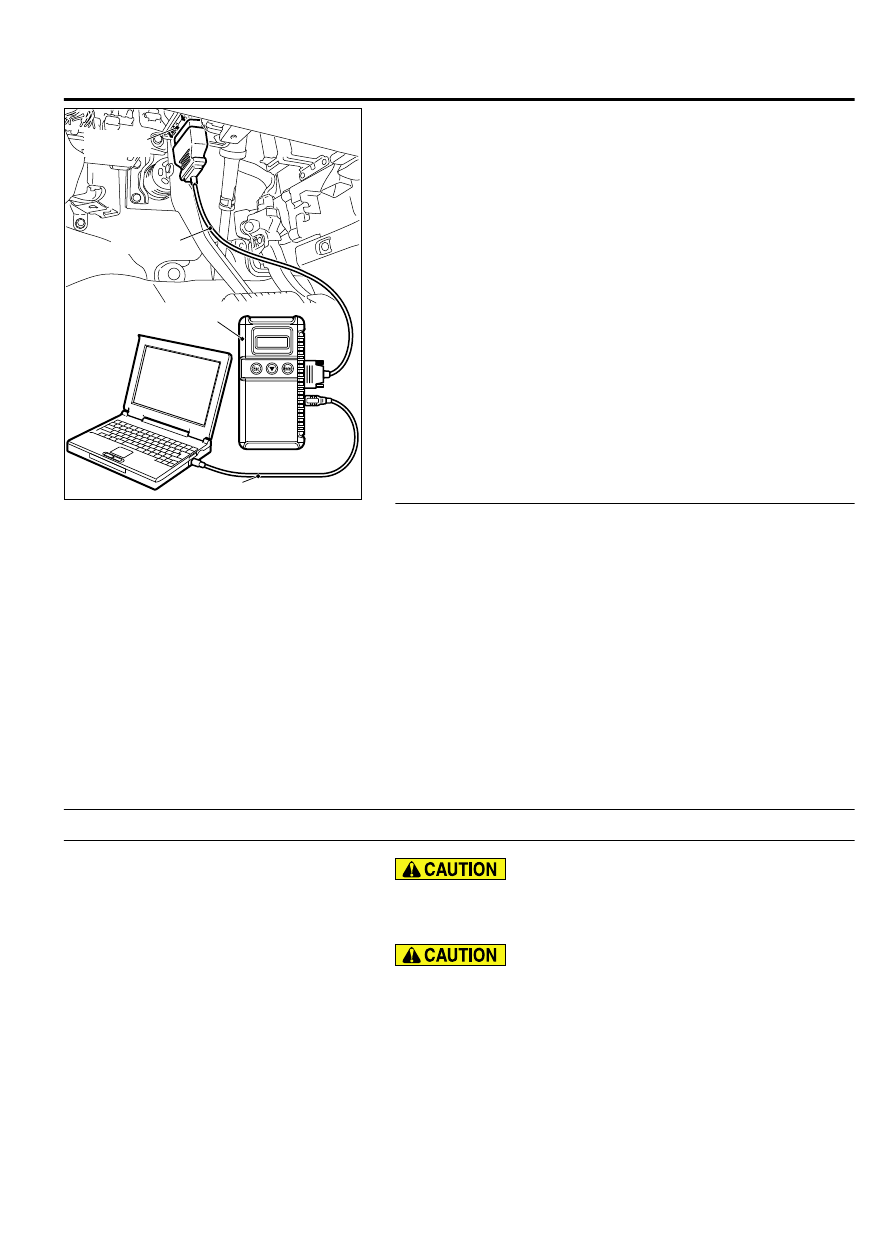

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to "ON" position.

(3)

Diagnose the CAN bus line.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-10.) On completion, go to Step 2.

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player or CD
changer.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace the radio and CD player or CD changer.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use Troubleshooting/inspection
Service Points, How to Cope with Intermittent
Malfunction P.00-15).

DTC B2424: CD player error

M15410800368USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

Before replacing the AM/FM radio and CD player, be sure to
check  that  the  power  supply  circuit,  ground  circuit,  and
communication circuit are normal.

AUDIO AND NAVIGATION SYSTEM

54B-13

DIAGNOSIS

TROUBLE JUDGMENT
During the use of the CD player of AM/FM radio and CD player,
if any of the ERROR01, ERROR02, ERROR03, or ERROR HOT
continues for 1 minute, the diagnostic trouble code is set.

COMMENTS ON TROUBLE SYMPTOM
The AM/FM radio and CD player or CAN bus line may have a
problem.

PROBABLE CAUSES

Malfunctions of AM/FM radio and CD player

Malfunction of CAN bus line wiring harness and connector

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to diagnose the CAN bus lines.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to "ON" position.

(3)

Diagnose the CAN bus line.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-10.) On completion, go to Step 2.

STEP 2. CD check
Playback  a  clean  and  unscratched  CD  for  one  minute,  and
recheck if the diagnostic trouble code is set to the AM/FM radio
and CD player.

(1)

Erase the diagnostic trouble code.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Playback the clean, unscratched CD for one minute.

(4)

Check if diagnostic trouble code is set.

Q:Is the diagnostic trouble code set?

54B-14

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

YES:

 Go to Step 3.

NO:

 Clean the CD, use a CD without scratches and burrs,

or remove the CD burrs, and then reinsert the CD.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the AM/FM radio and CD player.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace the AM/FM radio and CD player.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to Cope with Intermittent
Malfunction P.00-15).

Code No.B2450 Switch panel communication

M15410800354USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

Before replacing the radio and CD player or CD changer, be
sure to check that the power supply circuit, ground circuit,
and communication circuit are normal.

TROUBLE JUDGMENT
If the radio and CD player or CD changer cannot establish the
communication with center panel assembly for 1 minute or more,
the diagnostic trouble code is set.

COMMENTS ON TROUBLE SYMPTOM
The radio and CD player or CD changer, center panel assembly,
or CAN bus line may have a problem.

PROBABLE CAUSES

Malfunctions of radio and CD player or CD changer

Malfunction of center panel assembly

Malfunction of CAN bus line wiring harness and connector

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to diagnose the CAN bus lines.

AUDIO AND NAVIGATION SYSTEM

54B-15

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to "ON" position.

(3)

Diagnose the CAN bus line.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-10.) On completion, go to Step 2.

STEP 2. Connection status check of radio and CD player or
CD changer with center panel assembly
Check  that  the  radio  and  CD  player  or  CD  changer  are
connected to the center panel assembly without any problem.

Q:Is the connection established?

YES:

 Go to Step 3.

NO:

 Securely connect the radio and CD player or CD

changer with the center panel assembly.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player or CD
changer.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace the radio and CD player or CD changer.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use Troubleshooting/inspection
Service Points, How to Cope with Intermittent
Malfunction P.00-15).

DTC B2451: Audio panel type error

M15410800355USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

54B-16

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
