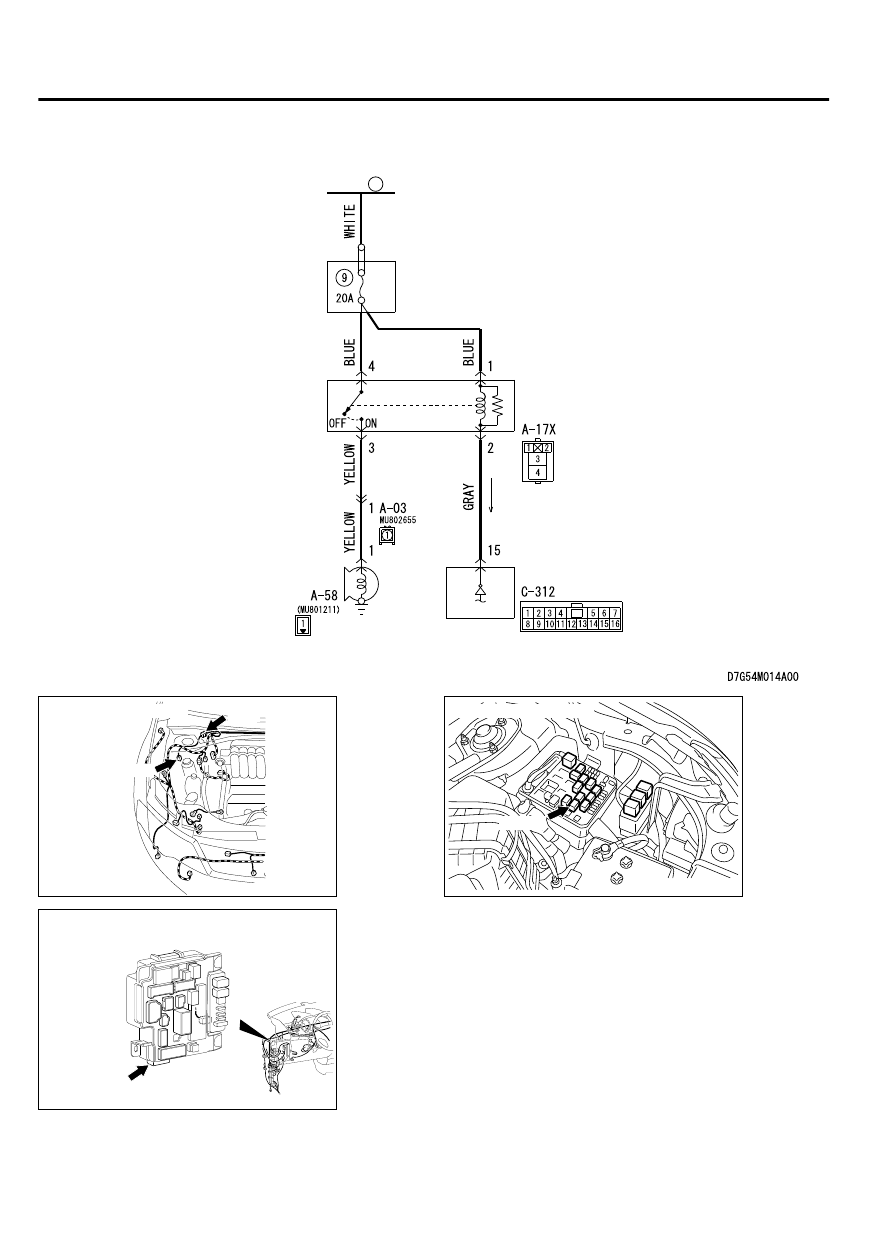

Inspection Procedure 2: The interior alarm does not work normally while the theft-alarm
is triggered.
M15410300030USA0000010000
Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the
communication circuit are normal.
TECHNICAL DESCRIPTION (COMMENT)
If the interior alarm does not work normally, the input
signal circuits to the components below, ETACS-
ECU, or combination meter built-in tone alarm may
have a problem. Also, the theft-alarm function may
have been disabled with a configuration function.
｠
Hood switch
｠
All of the door switches
｠
Liftgate latch switch
TROUBLESHOOTING HINTS
｠
Hood switch may be defective
｠
All the door switch may be defective
｠
Liftgate latch switch may be defective
｠
The ETACS-ECU may be defective
｠
Combination meter may be defective
｠
The wiring harness or connectors may have loose,
corroded, or damaged terminals, or terminals
pushed back in the connector
DIAGNOSIS
Required Special Tools:
｠
MB991958: Scan Tool (M.U.T.-III Sub Assembly)
｠
MB991824: Vehicle Communication Interface (V.C.I.)
｠
MB991827: M.U.T.-III USB Cable
｠
MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

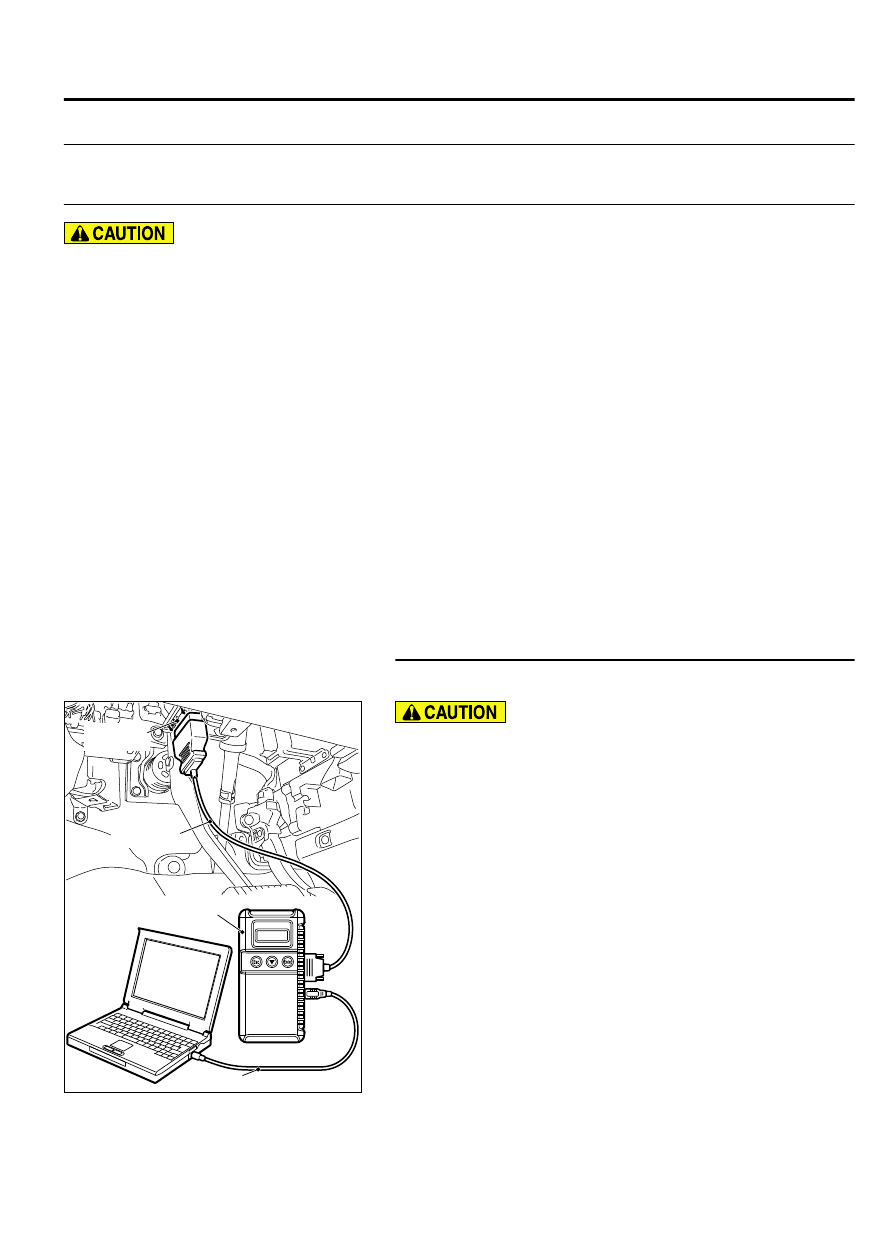

STEP 1. Using scan tool MB991958, Check the configuration
function.
ZC501967
AC404789
ZC5019680000
MB991824
MB991827
MB991910
Data link
connector
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.
(1)
Connect scan tool MB991958. Refer to "How to connect scan
tool (M.U.T.-III) P.54Af-4."
(2)
Turn the ignition switch to the "ON" position.
(3)
Use the ETACS-ECU configuration function to check that the
"Alarm" is set to "Enable".
(4)
Turn the ignition switch to the "LOCK" (OFF) position.
Q:Is the "Alarm" sent to "Enable"?
YES:
Go to Step 2.
NO:
Use the ETACS-ECU configuration function to set the
"Alarm" to "Enable" (Refer to P.54Af-27).
ALARM SYSTEM
54Af-13
DIAGNOSIS
