Terminal
No.

Check item

Check condition

Normal
condition

7

Ignition  switch  (START)  power
supply

Ignition switch: START

Battery voltage

8

Power window motor power supply Ignition switch: ON

Battery voltage

9

Ignition switch (ACC) power supply Ignition switch: ACC

Battery voltage

10

Power  window  main  switch  power
supply

Ignition switch: ON

Battery voltage

11

Output to accessory socket 2

Ignition switch: ACC

Battery voltage

12

Output to accessory socket 3

Ignition switch: ACC

Battery voltage

13

Input from key reminder switch

Key  reminder  switch:  ON  (ignition  key
removed)

0 volt

14

-

-

-

2

Input  from  power  window  main
switch  or  front  power  window  sub
switch (unlock)

Power  window  main  switch  or  front
power window sub switch: Unlocked

0 volt

16

Output to blower motor

Blower motor in operation

Battery voltage

17

Ground (signal)

Always

0 volt

18

Output  to  ignition  key  cylinder
illumination light

When ignition key cylinder illumination is
ON

12 volts

19

Input from horn switch

Horn switch: ON

0 volt

CONNECTOR: C-316

ZC6019740000

Terminal
No.

Check item

Check condition

Normal
condition

1

-

-

-

2

Sunroof  motor  assembly  power
supply

Always

Battery voltage

3, 4

-

-

-

5

Input from dome light

When dome light is illuminated

0 volt

6

Output to dome light output

When dome light is illuminated

2 volts or less

CONNECTOR: C-317

ZC6019750000

Terminal
No.

Check item

Check condition

Normal
condition

1

Battery power supply

Always

Battery voltage

2

Battery power supply

Always

Battery voltage

ETACS

54Ad-99

CHECK WITH TERMINAL VOLTAGE

Terminal
No.

Check item

Check condition

Normal
condition

3, 4

-

-

-

5

Ignition switch (IG1) power supply

Ignition switch: ON

Battery voltage

6

Input from ignition switch (IG1)

Ignition switch: ON

Battery voltage

7

Input from ignition switch (ACC)

Ignition switch: ACC

Battery voltage

8

-

-

-

9

Output to theft-alarm indicator light When  theft-alarm  indicator  light  is

illuminated

0 volt

10

Battery power supply

Always

Battery voltage

11-14

-

-

-

15

Ground

Always

0 volt

54Ad-100

ETACS

CHECK WITH TERMINAL VOLTAGE

GROUP 54Ae

ACCESSORY

CONTENTS

GENERAL INFORMATION...........

54Ae-2

ACCESSORY SOCKET..............

54Ae-4

REMOVAL AND INSTALLATION......

54Ae-4

AC POWER SUPPLY...............

54Ae-6

SPECIAL TOOLS.................

54Ae-6

DIAGNOSIS.....................

54Ae-6

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING.................

54Ae-6

TROUBLE SYMPTOM CHART...........

54Ae-6

SYMPTOM PROCEDURES............

54Ae-7

INSPECTION PROCEDURE 1: Even when the
equipment (power consumption is 100 W
or less) is connected, the equipment
cannot be used..................

54Ae-7

CHECK AT ECU TERMINALS.......

54Ae-12

REMOVAL AND INSTALLATION. . . . .

54Ae-13

HANDS-FREE CELLULAR PHONE SYSTEM
.............................

54Ae-14

DIAGNOSIS....................

54Ae-14

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING................

54Ae-14

TROUBLE SYMPTOM CHART..........

54Ae-14

SYMPTOM PROCEDURES...........

54Ae-15

Inspection Procedure 1: Hands-free
cellular phone system does not work
normally.......................

54Ae-15

Inspection Procedure 2: During the
conversation with the hands-free

system, the speaker’s voice cannot be
heard by the other party.......

54Ae-23

Inspection Procedure 3: During the
conversation with the hands-free
system, the voice of other party cannot
be heard.......................

54Ae-25

Inspection Procedure 4: Even when the
steering voice-control switch is
operated, the conversation is not
possible.......................

54Ae-27

Inspection Procedure 5: The cellular
phone is not recognized or the
connection cannot be established.
...............................

54Ae-32

Inspection Procedure 6: Check the
hands-free module power supply
circuit........................

54Ae-33

REMOVAL AND INSTALLATION. . . . .

54Ae-35

STEERING WHEEL VOICE-CONTROL SWITCH
CONTINUITY CHECK.............

54Ae-37

54Ae-1

GENERAL INFORMATION

M15410400001USA0000010000

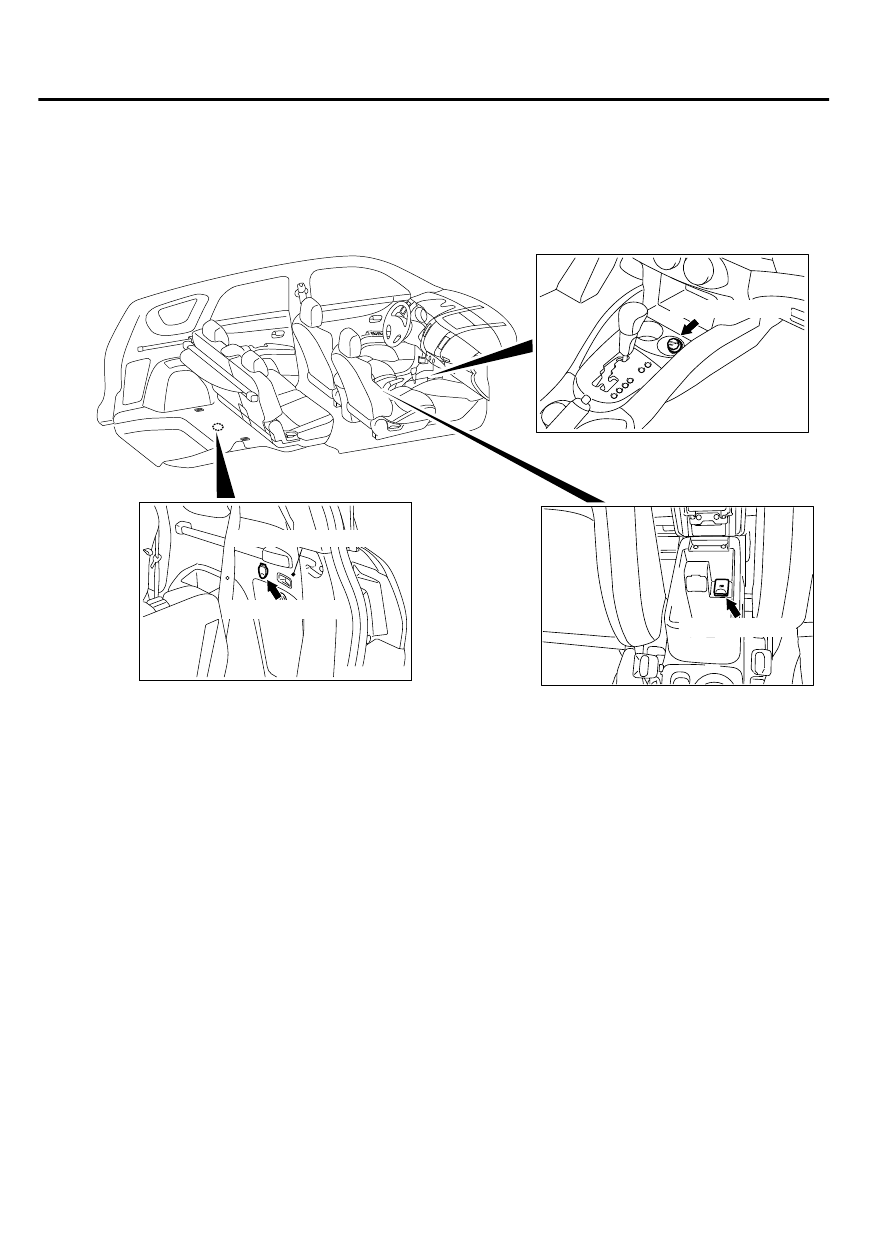

ACCESSORY SOCKET

The plug-in type accessory socket has been installed
for the convenient use of accessories.

ZC6004910000

Lower quarter trim (RH)

Accessory socket

Accessory socket

Accessory socket

｠

Accessory  sockets  have  been  added  to  the  front
floor console. if so equipped rear floor console and
lower quarter trim (RH).

｠

The  maximum  load  is  120  W  when  a  single
accessory  socket  is  used.  When  three  accessory

sockets  are  used  simultaneously,  the  combined
maximum load for three sockets is 120 W.

AC POWER SUPPLY

The AC power supply which can be used as power
supply for home electric appliances has been installed
to the rear floor console. <Option>

54Ae-2

ACCESSORY

GENERAL INFORMATION
