Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Turn

 power

source

Adjustment  of  turn-
signal

 light

operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort

 flasher

function

Disable

Without function

Enable

With function (default)

Comfort  flasher
switch time

Switch

 operation

time  to  activate  the
comfort

 flasher

function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard  answer
back

Adjustment  of  the
number  of  keyless
hazard warning light
answer

 back

flashes

Lock:1, Unlock:2

LOCK:  Flashes  once,  UNLOCK:  Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

Without function

Front

 wiper

operation

Adjustment  of  the
intermittent
windshield

 wiper

operation

Normal INT

Intermittent  wiper  interval  is  fixed  to  4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Vehicle

 speed

dependent

Intermittent  wiper  interval  is  calculated
according to the intermittent wiper volume
control and vehicle speed (default).

Front

 wiper

washer

Disabling

 or

enabling

 washer-

linked

 wiper

function

Washer only

Without function

Washer-linked wiper

With function (default)

Rear

 wiper

intermittent
duration

Adjustment  of  rear
wiper interval

0 seconds

No wiper interval

4 seconds

4 seconds

8 seconds

8 seconds (default)

16 seconds

16 seconds

Rear  wiper  low
speed mode

Disabling

 or

enabling  rear  wiper
continuous
operation

Disabled

Without function (default)

Enabled

With function

Room

 lamp

delay timer with
door

Adjustment

 of

interior  light  delay
shutdown time

0sec

0 second (no delay shutdown time)

7.5sec

7.5 seconds

15sec

15 seconds

30sec

30 seconds (default)

ETACS

54Ad-91

ON-VEHICLE SERVICE

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Head lamp auto
cut customize

Adjustment

 of

headlight  automatic
shutdown function

Disable

Without function

C-spec.

With function (default)

Interior

 lamp

auto cut timer

Adjustment

 of

interior

 light

automatic shutdown
function  operation
time

Disabled

Without function

3min

3 minutes

30min

30 minutes (default)

60min

60 minutes

Door

 unlock

mode

Door lock system

All doors unlock

All the doors are unlocked when the driver's
side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked when
the driver's side door is unlocked. (default)

Auto

 door

unlock  by  P
position

Auto door unlock by
P position function

Disable

Without function (default)

Always enabled

Always with function

P/W unlocked

With  function  (with  power  window
unlocked)

Duration of horn
chirp

Horn sounding time
during  horn  answer
back

Short

0.01 second (default)

Long

0.02 second

Horn  chirp  by
RKE

Horn chirp by RKE

Not sound horn

Without horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Buzzer  answer
back

Adjusts  the  buzzer
answer

 back

function.

Not sound buzzer

Without function

At keyless key

Sounds when the keyless entry system is
activated.

At keyless

Sounds when KOS is activated (default).

At Both

Sounds when the keyless entry system or
KOS is activated.

Timer lock timer Timer  lock  period

adjustment

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Duration

 pre-

alarm

Adjustment  of  pre-
alarm continue time

10 sec

10 seconds (default)

6 sec

6 seconds

54Ad-92

ETACS

ON-VEHICLE SERVICE

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Alarm

With/without  theft-
alarm function

Disable

Without function

Enable

With function (default)

Panic

 alarm

switch

With/without  panic
alarm function

Disable

Without function

Enable

With function (default)

Fob out of car

With/without  KOS
key

 exterior

detection function

Disable

Without function (default)

Enable

With function

KOS feature

KOS

 function

adjustment

Both enable

All KOS functions are enabled (default).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

KOS

 unlock

disable time

Adjusts  the  door
unlock

 inhibition

period  after  door
lock is activated.

0sec

0 seconds

3sec

3 seconds (default)

5sec

5 seconds

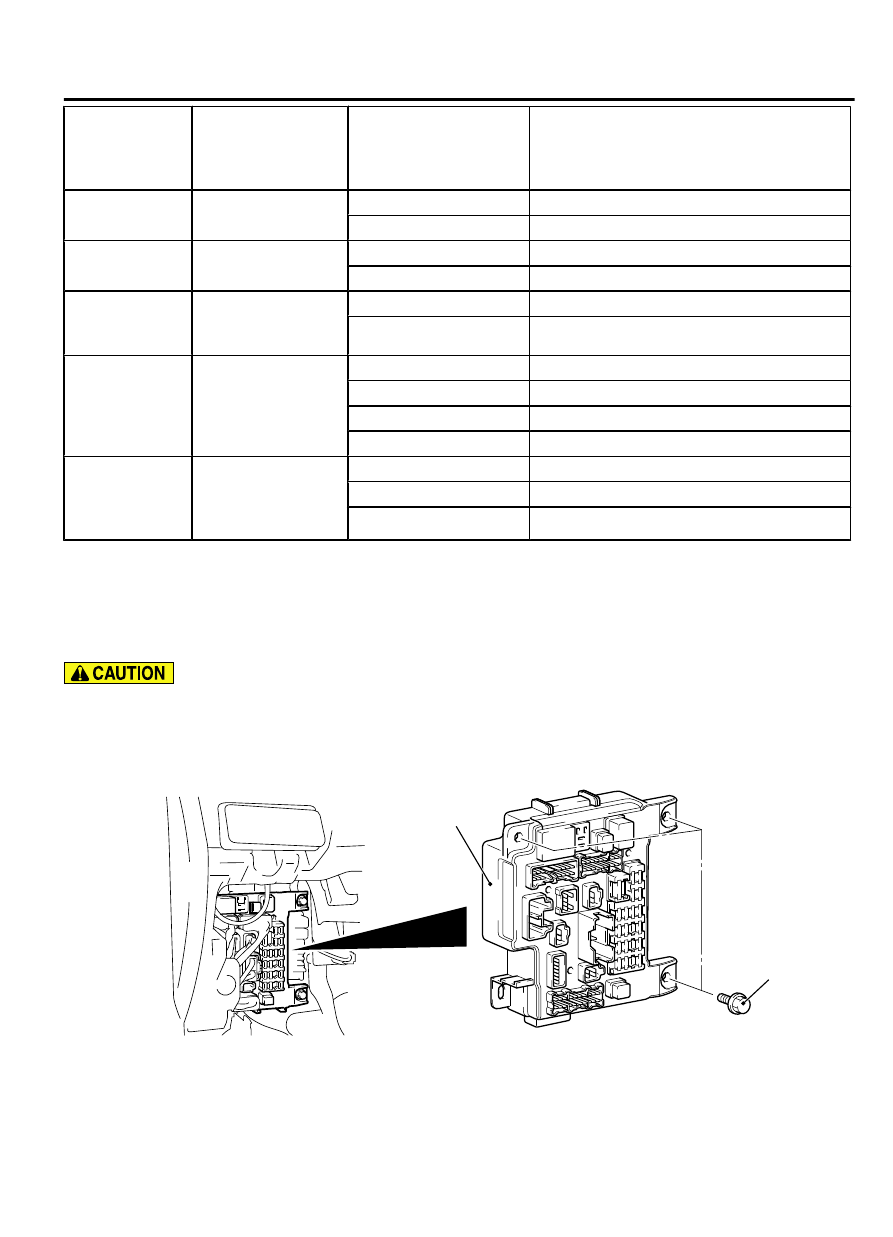

ETACS-ECU

REMOVAL AND INSTALLATION

M15410600039USA0000010000

When replacing the ETACS-ECU, use the ETACS-
ECU to which the chassis number is written and
the  coding  is  implemented.  Also,  if  diagnostic
trouble

 code

 B1761

 "Chassis

 No.

 not

programmed" or B222C "Coding not completed"
is set to the ETACS-ECU, replace with the ETACS-
ECU to which the chassis number same as that of
vehicle is written and the coding is implemented.

ZC601140AA00

1

4.0 ± 2.0 N·m
36 ± 17 in-lb

Removal Steps

·

Side air outlet, bottom cover assembly
(driver's  seat),  side  lower  panel

Removal Steps
assembly  (Refer  to  GROUP  52A,
Instrument Panel Assembly P.52A-2.)

ETACS

54Ad-93

ETACS-ECU

Removal Steps

1.

ETACS-ECU

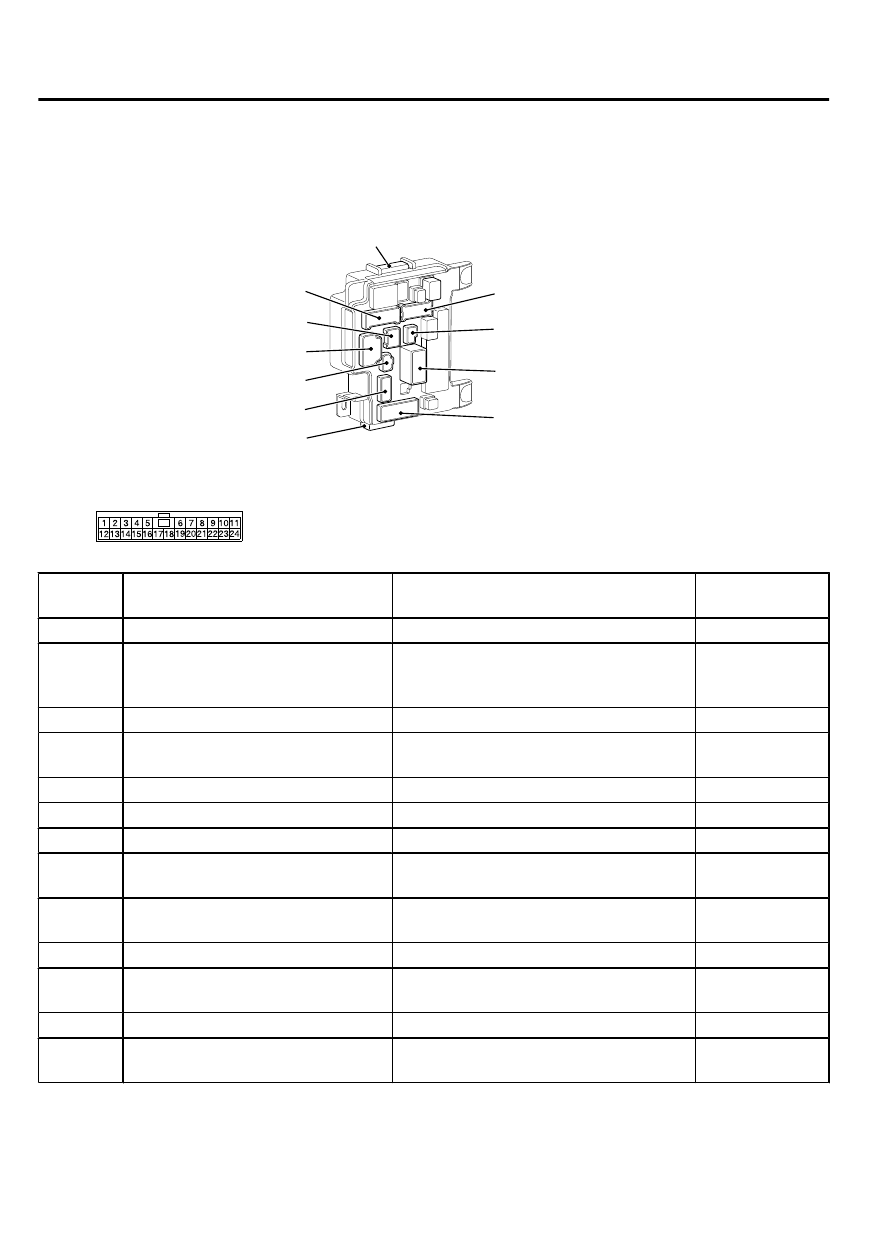

CHECK WITH TERMINAL VOLTAGE

M15410600075USA0000010000

ZC6019640000

C-301

C-304

C-307

C-309

C-311

C-312

C-313

C-314

C-315

C-316

C-317

CONNECTOR: C-301

ZC6019650000

Terminal
No.

Check item

Check condition

Normal
condition

1

-

-

-

2

Input  from  power  window  main
switch  or  front  power  window  sub
switch (lock)

Power  window  main  switch  or  front
power window sub switch: Locked

0 volt

3-9

-

-

-

10

Input  from  front  passenger's  door
lock actuator (unlock)

Front passenger's door lock: Unlocked

0 volt

11

-

-

-

12

Output to defogger switch

Defogger switch: ON

0 volt

13-15

-

-

-

16

Input  from  door  lock  key  cylinder
switch (lock)

Door lock key cylinder switch: Locked

0 volt

17

Input  from  door  lock  key  cylinder
switch (unlock)

Door lock key cylinder switch: Unlocked 0 volt

18

-

-

-

19

Input  from  hazard  warning  light
switch

Hazard warning light switch: ON

0 volt

20

-

-

-

21

Input from windshield wiper backup
switch

Windshield  low-speed  wiper  switch  or
windshield high-speed wiper switch: ON

0 volt

54Ad-94

ETACS

CHECK WITH TERMINAL VOLTAGE
