Mitsubishi Outlander XL. Manual - part 1044

Item No.

Scan tool MB991958 display

Condition

235

Front wiper ACT

ON or OFF

236

Front wiper Lo/Hi

ON or OFF

237

Front washer

ON or OFF

238

Rear washer

ON or OFF

239

Rear wiper

ON or OFF

240

Power window

ON or OFF

241

Hold mirror open

ON or OFF

242

Hold mirror close

ON or OFF

243

Dead lock

ON or OFF

244

Independent DRL

ON or OFF

251

Auto Light Sensor

Voltage

252

Ambient Temperature Sensor

Voltage

253

Voltage sensing of IOD Line

Voltage

254

IG voltage

Voltage

255

Theft sensor

ON or OFF

256

Dr door ajar switch

Open or Close

257

As door ajar switch

Open or Close

258

RR door ajar switch

Open or Close

259

RL door ajar switch

Open or Close

260

Trunk/gate trunk ajar switch

Open or Close

262

Room lamp center ON switch

ON or OFF

263

Room lamp center OFF switch

ON or OFF

264

Handle lock switch

Key out or Key in

265

Hazard switch

ON or OFF

266

Hood switch

ON or OFF

267

Mirror switch

ON or OFF

268

Trunk/gate opener switch

ON or OFF

270

Dr door lock switch

Unlock or Not Unlock

271

Dr door unlock switch

Unlock or Not Unlock

272

As door unlock switch

Unlock or Not Unlock

273

Except Dr/As door unlock switch

Unlock or Not Unlock

274

Door key lock switch

ON or OFF

275

Dr door key unlock switch

ON or OFF

276

Door key unlock switch

ON or OFF

277

Power lock switch

ON or OFF

278

Power unlock switch

ON or OFF

279

Brake fluid switch

ON or OFF

280

Washer fluid switch

ON or OFF

281

ASC/TCL OFF switch

ON or OFF

ETACS

54Ad-55

DIAGNOSIS

Item No.

Scan tool MB991958 display

Condition

287

Starter switch

ON or OFF

288

ACC switch

ON or OFF

289

Backup lamp or shift reveres SW

ON or OFF

290

Brake switch

ON or OFF

291

Front wiper auto stop switch

ON or OFF

292

Rear wiper auto stop switch

ON or OFF

293

Process error information

-

294

Process error

times

295

Rear sunroof unlock

ON or OFF

340

Head light switch(tail)

ON or OFF

341

Head light switch

ON or OFF

342

Head light switch(Dimmer)

ON or OFF

343

Turn switch left

ON or OFF

344

Turn switch right

ON or OFF

345

Fog light ON

ON or OFF

346

Fog light OFF

ON or OFF

347

Switch type

LHD or RHD

348

Head light switch(auto)

ON or OFF

349

Head light cleaner

ON or OFF

350

Head light switch(flasher)

ON or OFF

351

Column ECU sleep

OK or NG

352

Front wiper(INT)

ON or OFF

353

Front wiper(LO)

ON or OFF

354

Front wiper(HI)

ON or OFF

355

Front wiper(washer)

ON or OFF

356

Rear wiper

ON or OFF

357

Rear wiper(washer)

ON or OFF

358

Front wiper(MIST)

ON or OFF

359

Front wiper(interval volume)

-

360

Wiper switch lever fail

No fail or Fail

361

Turn/Light switch lever fail

No fail or Fail

TROUBLE SYMPTOM CHART

M15410600017USA0000010000

Trouble symptom

Reference page

Malfunction of ETACS-ECU power supply circuit

 P.54Ad-57

54Ad-56

ETACS

DIAGNOSIS

SYMPTOM PROCEDURES

Malfunction of ETACS-ECU power supply circuit

M15410600019USA0000010000

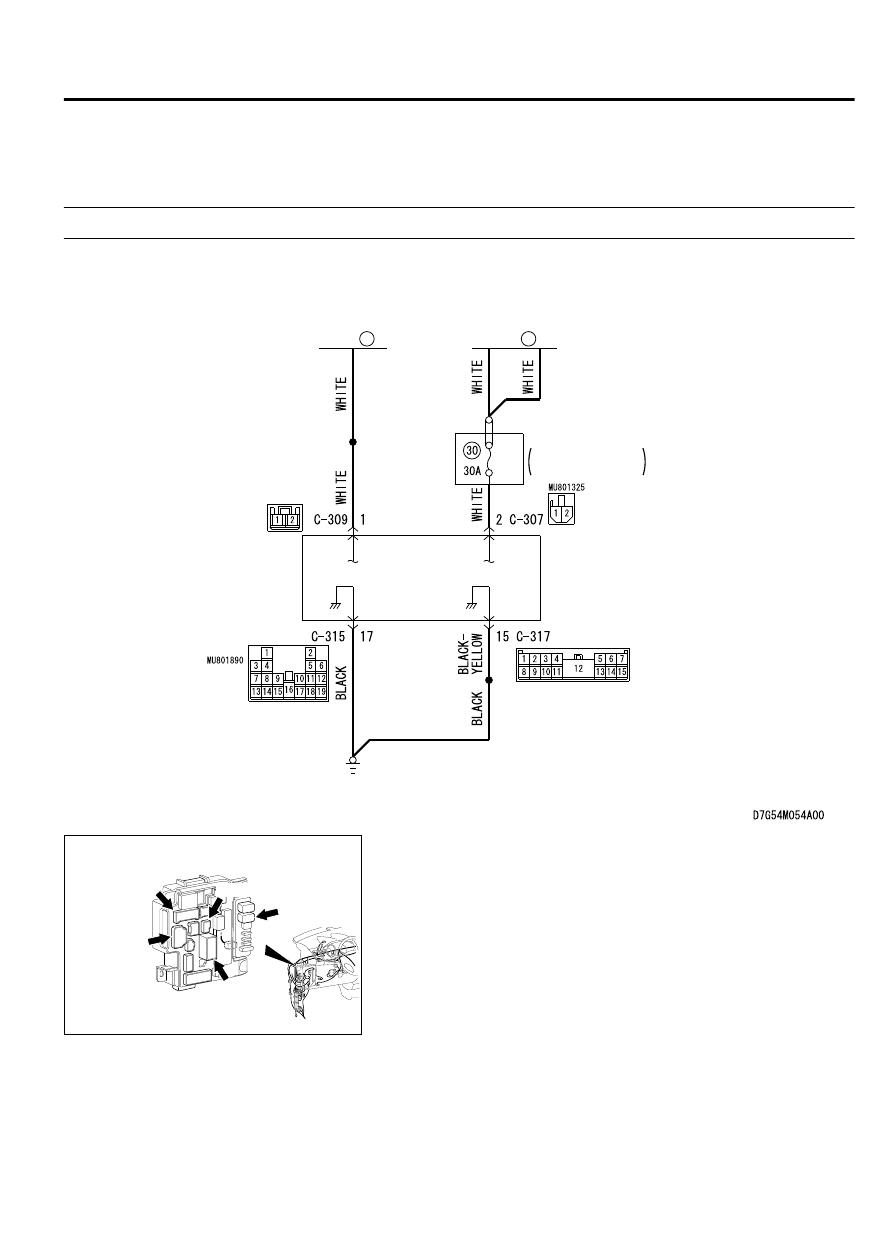

ETACS-ECU Power Supply Circuit

FUSIBLE
LINK

36

FUSIBLE
LINK

34

ETACS-ECU

RELAY BOX

ENGINE
COMPARTMENT

ZC6008780016

Connectors: C-306, C-307, C-309, C-315, C-317

C-306

C-307 (B)

C-309 (B)

C-315

C-317

TECHNICAL DESCRIPTION (COMMENT)
If the ETACS-ECU functions do not work at all, the
ETACS-ECU power supply system, earth system, or
ETACS-ECU may have a problem.

TROUBLESHOOTING HINTS

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The ETACS-ECU may be defective

ETACS

54Ad-57

DIAGNOSIS

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

STEP 1. Check ETACS-ECU connectors C-315 and C-317 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  ETACS-ECU  connectors  C-315  and  C-317  in  good

condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

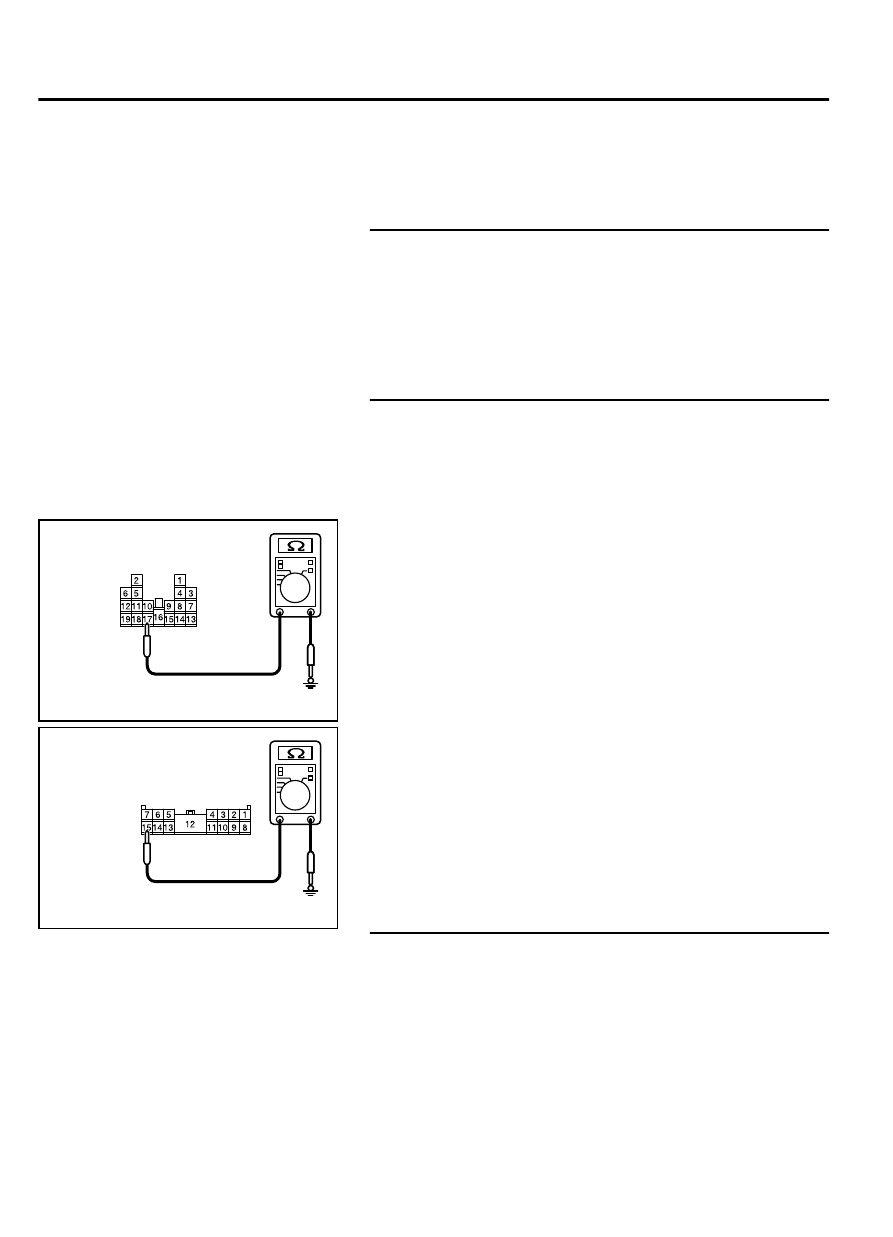

STEP 2. Check the ground circuit to the ETACS-ECU.
Measure the resistance at ETACS-ECU connectors C-315
and C-317.

(1)

Disconnect  ETACS-ECU  connector  C-315  and  C-317  and
measure the resistance available at the wiring harness side
of the connector.

ZC6022220000

Connector C-315
(Harness side)

(2)

Measure  the  resistance  value  between  ETACS-ECU
connector C-315 terminal 17 and ground.

｠

The resistance should be 2 ohms or less.

ZC6022220001

Connector C-317
(Harness side)

(3)

Measure  the  resistance  value  between  ETACS-ECU
connector C-317 terminal 15 and ground.

｠

The resistance should be 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 4.

NO:

 Go to Step 3.

STEP 3. Check the wiring harness between ETACS-ECU
connector C-315 (terminal 17) or C-317 (terminal 15) and the
ground.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-315 (terminal 17) or C-317 (terminal 15) and the ground

in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or

54Ad-58

ETACS

DIAGNOSIS
