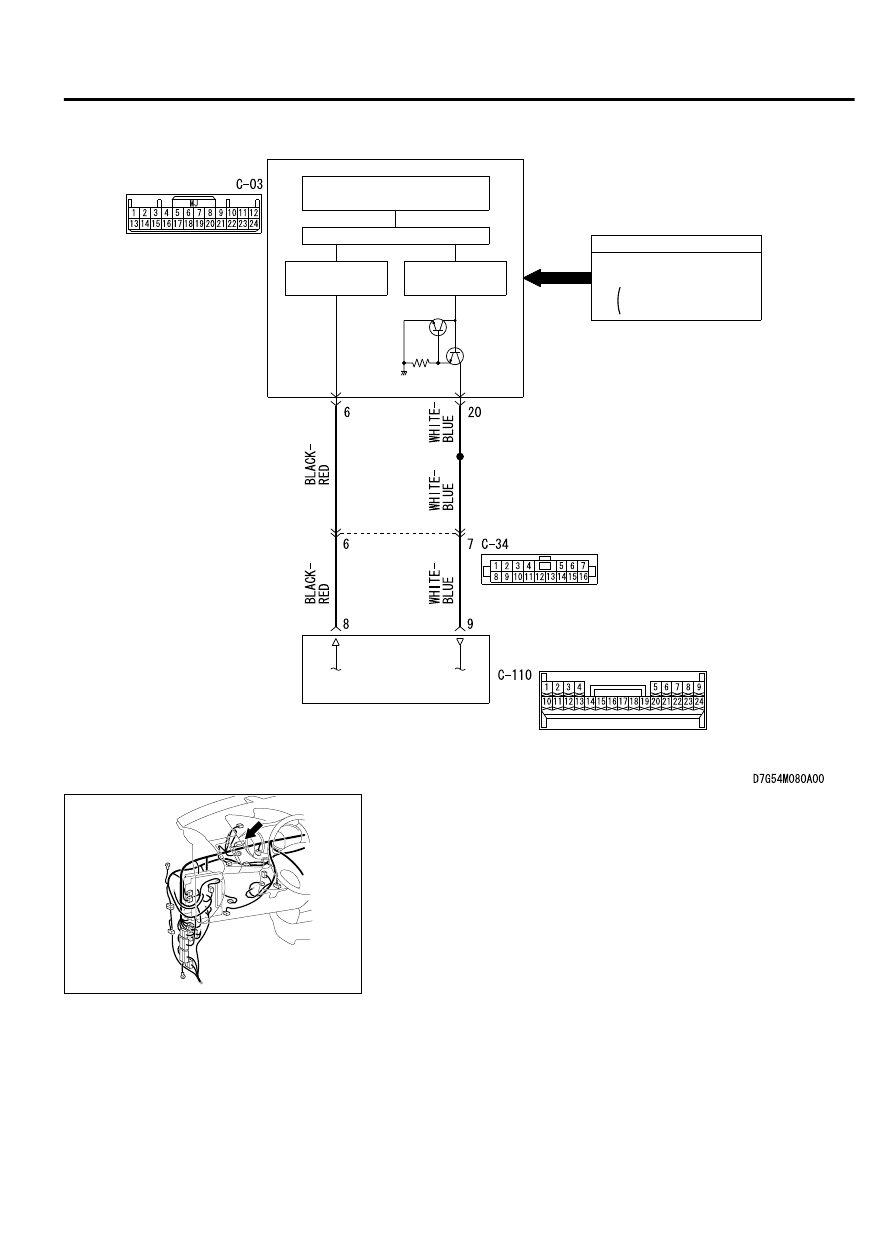

Headlight Automatic Leveling Warning Display Circuit

INPUT SIGNAL

TRANSMISSION
CONTROL MODULE

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CPU

LCD

COMBINATION
METER

HEADLIGHT AUTOMATIC
LEVELING-ECU

OUTPUT SHAFT
SPEED SENSOR

(HEADLIGHT LEVELING)

ZC6008750015

Connector: C-03

LIGHTING

54Ac-93

DIAGNOSIS

ZC6008760030

Connector: C-110

ZC6008750023

Connector: C-34

C-34 (BR)

OPERATION
When the height sensor or headlight leveling unit is abnormal,
the headlight automatic leveling warning is displayed.

COMMENTS ON TROUBLE SYMPTOM
If the headlight automatic leveling warning is not displayed, the
combination  meter,  headlight  automatic  leveling-ECU,  or  the
harness and connector(s) between the two may have a problem.

TECHNICAL DESCRIPTION (COMMENT)

｠

Malfunction of the headlight automatic leveling-ECU

｠

Malfunction of combination meter

｠

The wiring harness or connectors may have loose, corroded,
or  damaged  terminals,  or  terminals  pushed  back  in  the
connector

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check of automatic leveling.
Check that the automatic leveling operates normally.

Q:Is the check result normal?

54Ac-94

LIGHTING

DIAGNOSIS

YES:

 Go to Step 2.

NO:

 Refer to Inspection Procedure 2 "Neither right nor

left automatic leveling operates." P.54Ac-84.

STEP 2. Using scan tool MB991958, check other system
actuator test.
Perform the actuator test for the combination meter, and check
that the headlight automatic leveling warning is displayed .

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

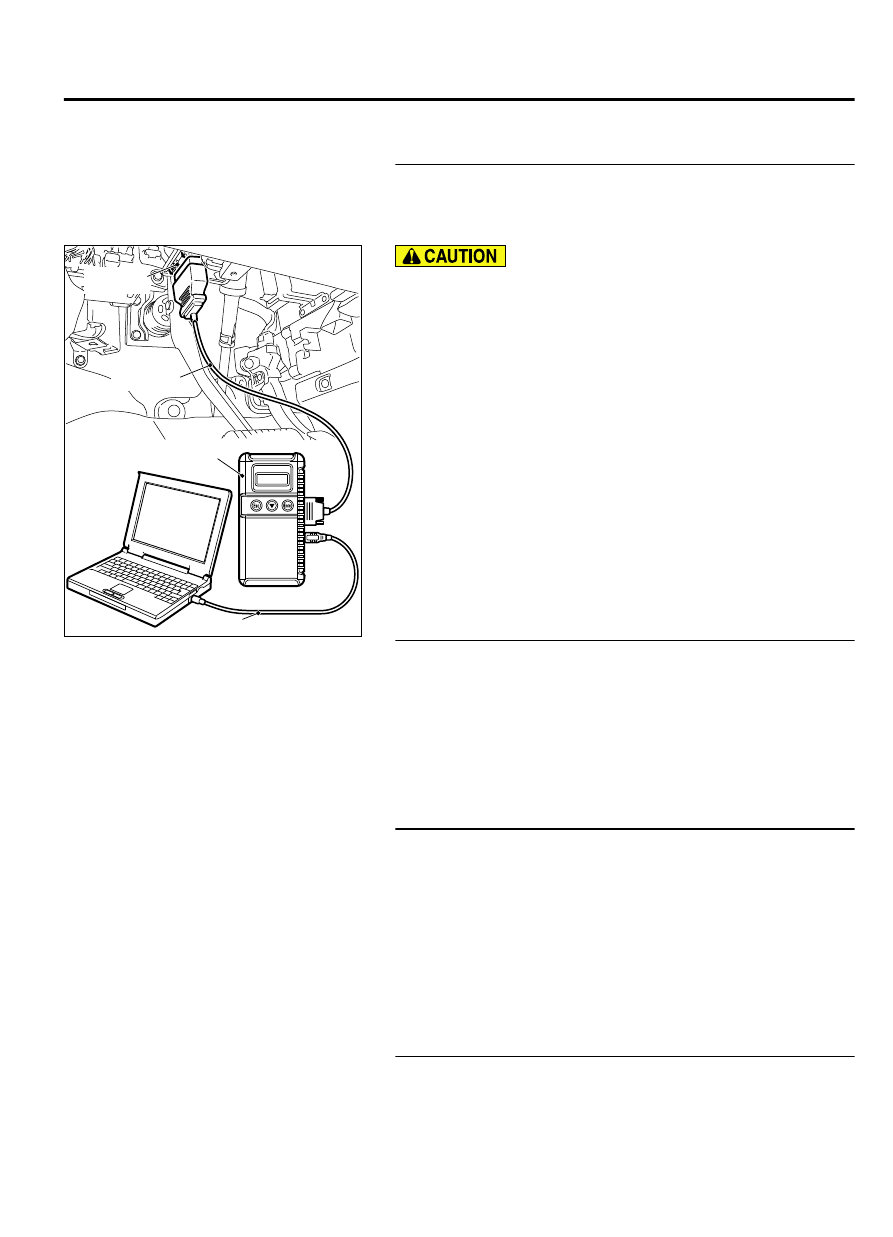

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
tool (M.U.T.-III) P.54Ac-58."

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

(4)

Set scan tool MB991958 to the actuator test mode.

｠

Item 8: Indicator2

(5)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Replace the combination meter.

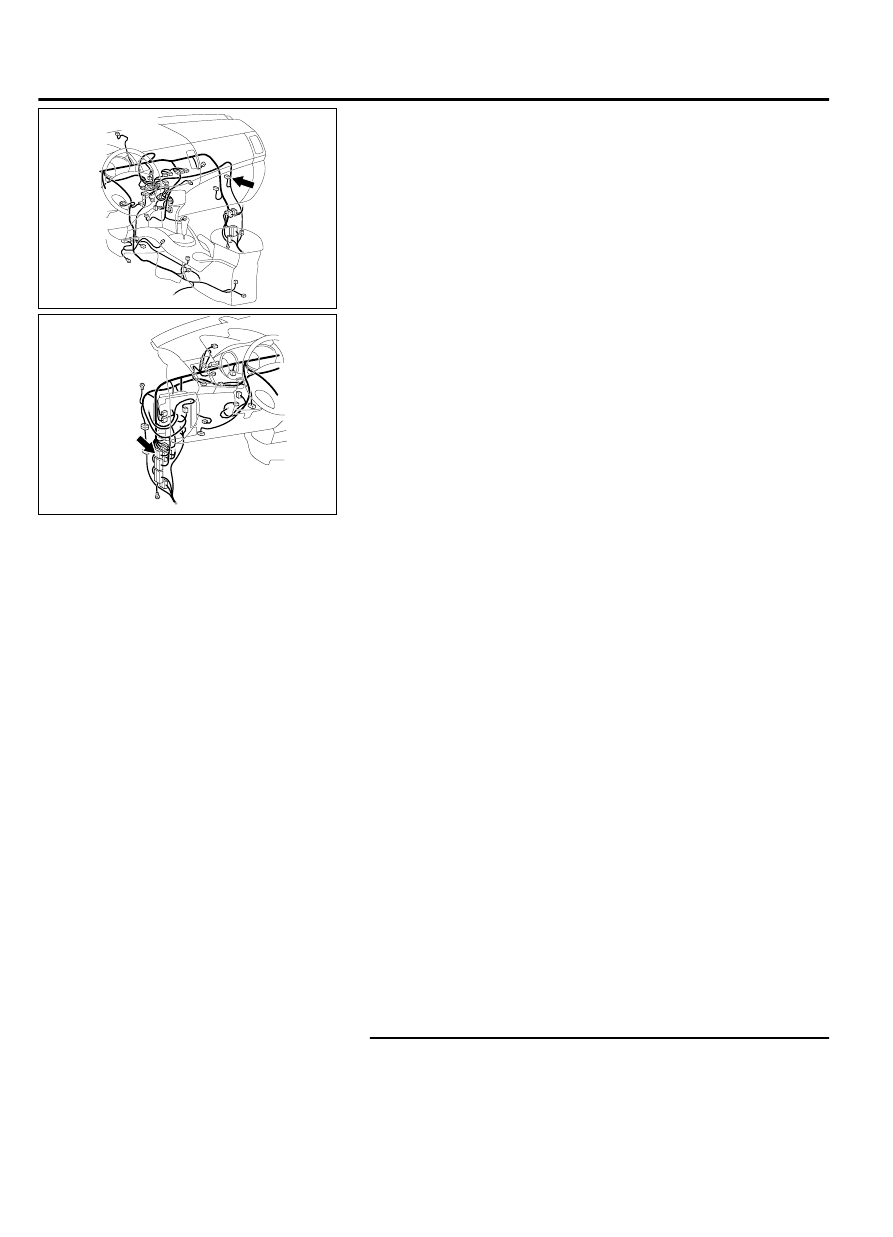

STEP 3. Check combination meter connector C-03,
headlight automatic leveling-ECU connector C-110 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  combination  meter  connector  C-03,  headlight

automatic  leveling-ECU  connector  C-110  in  good

condition?

YES:

 Go to Step 4.

NO:

 Repair the damaged parts.

STEP 4. Check wiring harness between combination meter
connector C-03 (terminal No. 6/20) and the headlight
automatic leveling-ECU connector C-110 (terminal No. 8/9).

NOTE:

Prior to the wiring harness inspection, check

intermediate connector C-34, and repair if necessary.

Q:Are  the  wiring  harness  between  combination  meter

connector  C-03  (terminal  No.  6/20)  and  the  headlight

automatic  leveling-ECU  connector  C-110  (terminal  No.

8/9) in good condition?

YES:

 Go to Step 5.

NO:

 Repair the wiring harness.

STEP 5. Retest the system
Check that the headlight automatic leveling warning display is
illuminated under the illumination conditions.

LIGHTING

54Ac-95

DIAGNOSIS

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the headlight automatic leveling-ECU.

Inspection Procedure 5: The headlight automatic leveling warning light does not go off.

M15410900111USA0000010000

Before  replacing  the  ECU,  ensure  that  the  power  supply
circuit, the ground circuit and the communication circuit are
normal.

TECHNICAL DESCRIPTION (COMMENT)
If the headlight automatic leveling warning display does not go
off,  DTC  may  be  set,  or  the  automatic  leveling  ECU  or  the
combination meter may have a problem.

TROUBLESHOOTING HINTS

｠

Diagnostic trouble code setting is under way.

｠

Malfunction of the headlight automatic leveling-ECU

｠

Malfunction of combination meter

｠

The wiring harness or connectors may have loose, corroded,
or  damaged  terminals,  or  terminals  pushed  back  in  the
connector

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)
