MFI SYSTEM

CIRCUIT DIAGRAMS

90-49

MALFUNCTION INDICATOR LIGHT
(SERVICE ENGINE SOON)

CAN DRIVE
CIRCUIT

CAN
TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

INTERFACE
CIRCUIT

FRONT SIDE

COMBINATION
METER

12

(FUSE     )

ETACS-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

INPUT SIGNAL

·OUTPUT SHAFT SPEED
 SENSOR
·TRANSMISSION RANGE
 SWITCH

CPU

LCD

MALFUNCTION
INDICATOR
LIGHT
SERVICE
ENGINE
SOON

INPUT SIGNAL

A/C SWITCH

A/C-ECU

TRANSMISSION
CONTROL
MODULE

COOLING SYSTEM

CIRCUIT DIAGRAMS

90-50

COOLING SYSTEM

FUSIBLE
LINK

28

FAN
CONTROL
RELAY

CONDENSER
FAN
RELAY

CONDENSER
FAN
MOTOR

ETACS-
ECU

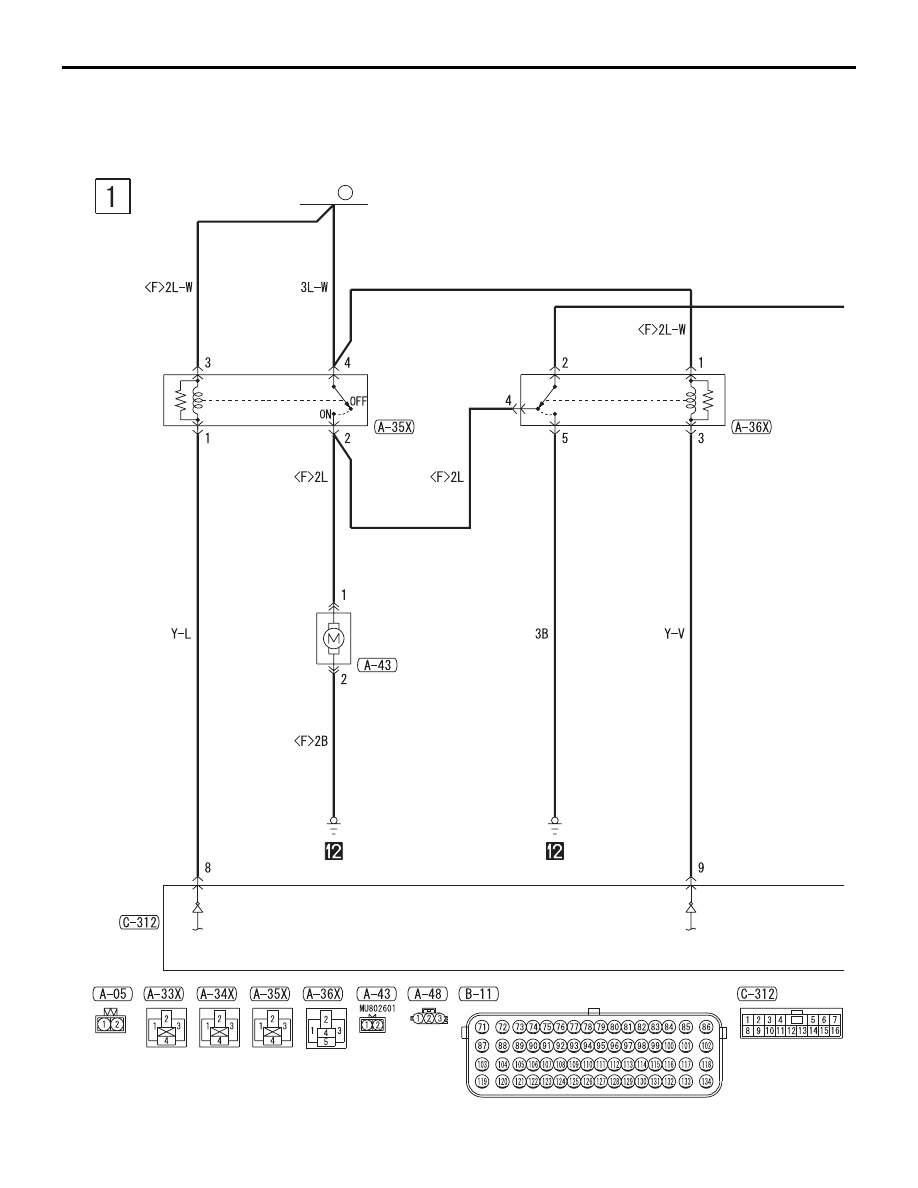

COOLING SYSTEM

CIRCUIT DIAGRAMS

90-51

FUSIBLE
LINK

36

FUSIBLE
LINK

29

MFI
RELAY

RELAY BOX

ENGINE
COMPARTMENT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

RADIATOR
FAN
RELAY

RADIATOR
FAN
MOTOR

RADIATOR
SENSOR

MFI SYSTEM

ENGINE
CONTROL
MODULE

COOLING SYSTEM

CIRCUIT DIAGRAMS

90-52

COOLING SYSTEM (CONTINUED)

A/C-ECU

INPUT SIGNAL

ENGINE COOLANT
TEMPERATURE
SENSOR

INPUT SIGNAL

A/C SWITCH

INPUT SIGNAL

OUTPUT SHAFT
SPEED SENSOR

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ETACS-ECU

ENGINE
CONTROL
MODULE

TRANSMISSION
CONTROL
MODULE
