POWER DISTRIBUTION SYSTEM

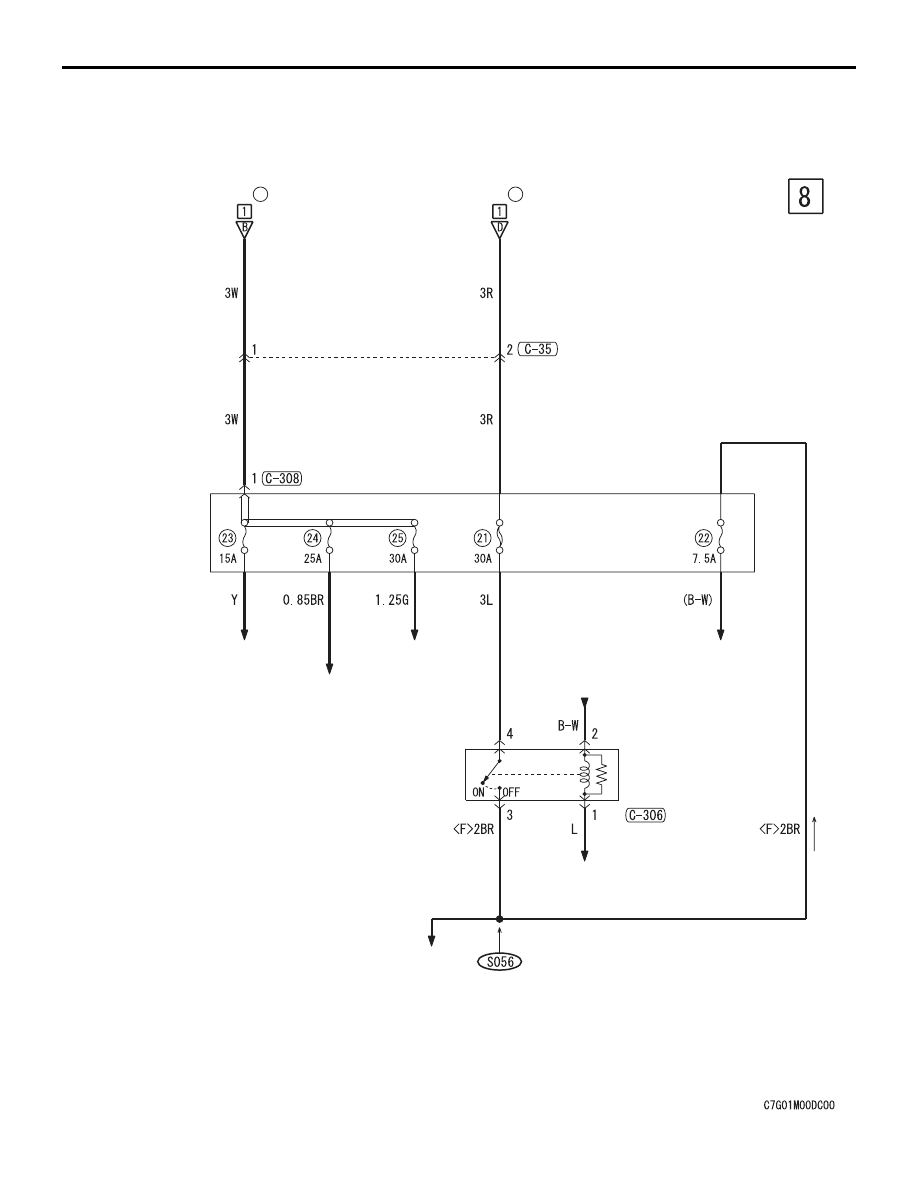

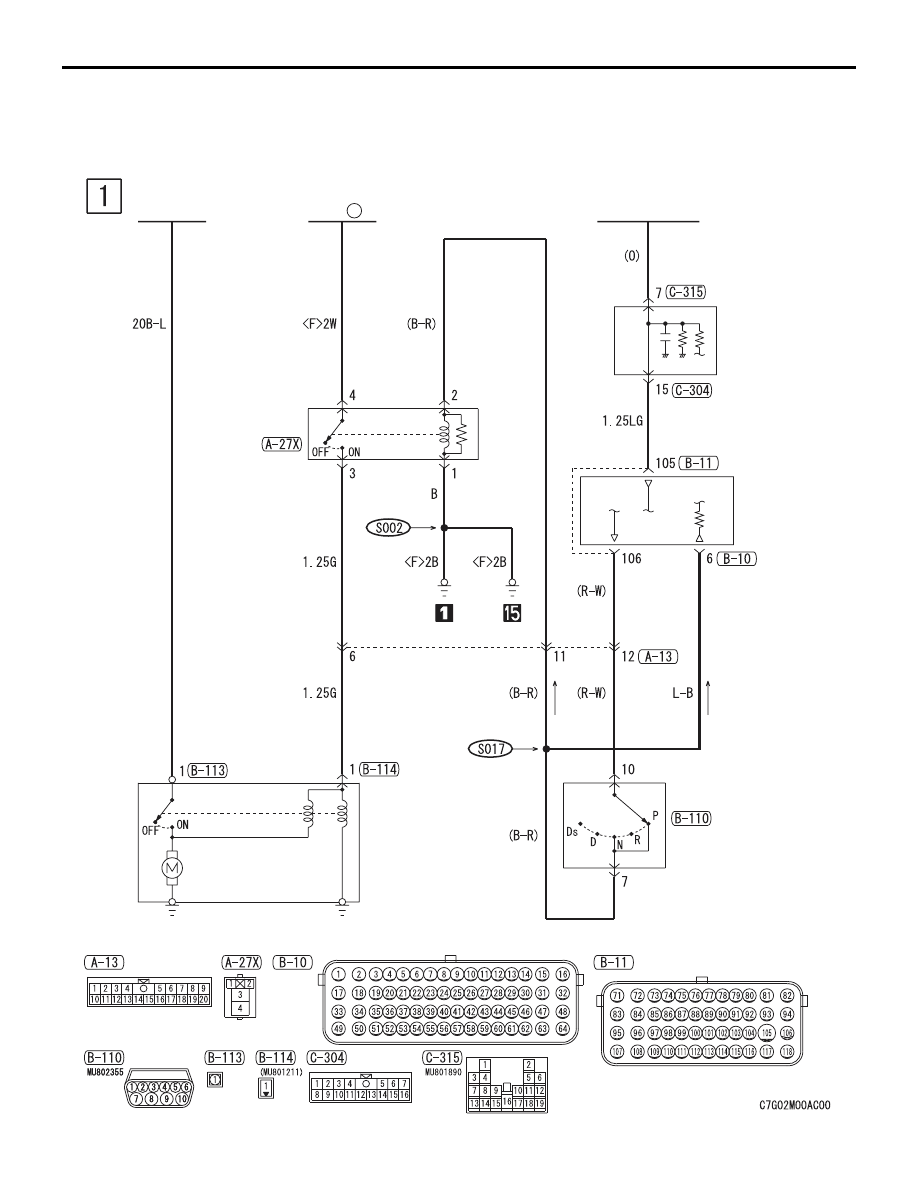

CIRCUIT DIAGRAMS
90-25
ACC
RELAY 3
·REAR WIPER
AND WASHER
·WINDSHIELD
WIPER AND
WASHER
REAR WIPER
AND WASHER
·CENTRAL DOOR
LOCKING SYSTEM
·SPARE CONNECTOR
(FOR TRAILER LIGHT)
·THEFT-ALARM SYSTEM
·TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT
SUNROOF
·CONTROLLER AREA
NETWORK (CAN)
·ELECTRIC CONTROLLED
AWD
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
POWER WINDOWS
·GLOVE BOX LIGHT
·SPARE CONNECTOR
(FOR TRAILER LIGHT)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR
TONE ALARM
FUSIBLE
LINK
34
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE SKID CONTROL SYSTEM
(ASC)
·AUDIO SYSTEM
·AUTO-CRUISE CONTROL SYSTEM
·AIR CONDITIONING SYSTEM
·BACKUP LIGHT
·BRAKE WARNING LIGHT
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·COOLING SYSTEM
·DAYTIME RUNNING LIGHT
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT AND IGNITION
KEY HOLE ILLUMINATION LIGHT
·DOOR AJAR WARNING TONE ALARM
·ELECTRIC CONTROLLED 4WD
·FUEL WARNING LIGHT
·HANDS FREE SYSTEM
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING
SYSTEM
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·KEYLESS OPERATING SYSTEM (KOS)
·METER AND GAUGE
·MFI SYSTEM
·MITSUBISHI MULTI-COMMUNICATION
SYSTEM (MMCS)
·OIL PRESSURE WARNING LIGHT
·POWER WINDOWS
·REAR SEAT ENTERTAINMENT SYSTEM
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SPARE CONNECTOR (FOR REAR DISPLAY)
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·ANTI-LOCK BRAKING
SYSTEM (ABS)
·ANTI-LOCK BRAKING
SYSTEM (ABS) AND
ACTIVE SKID CONTROL
SYSTEM (ASC)
·AUTO-CRUISE CONTROL
SYSTEM
·INVECS-II 6A/T
·SHIFT LOCK MECHANISM
·SPARE CONNECTOR
(FOR TRAILER LIGHT)
·STOPLIGHT
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
