Mitsubishi Outlander XL. Manual - part 68





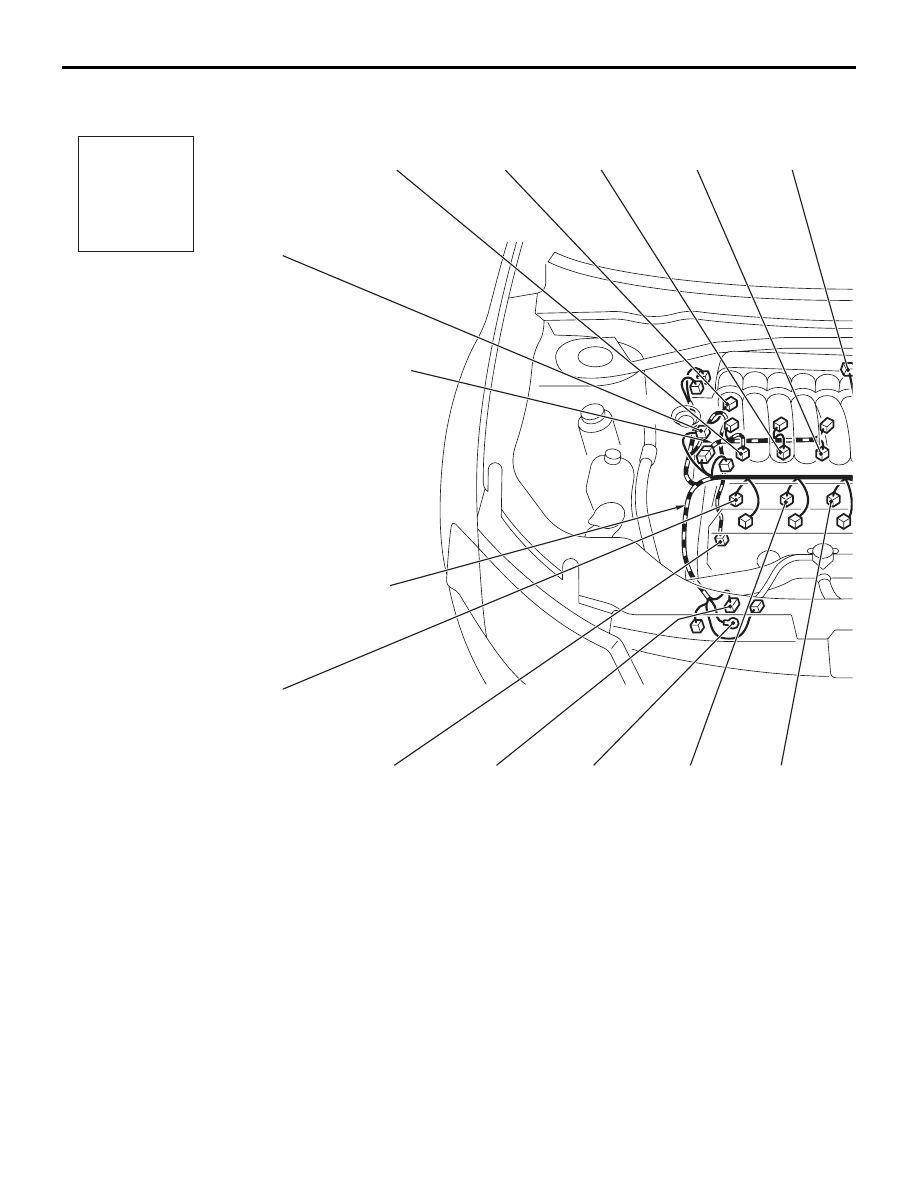

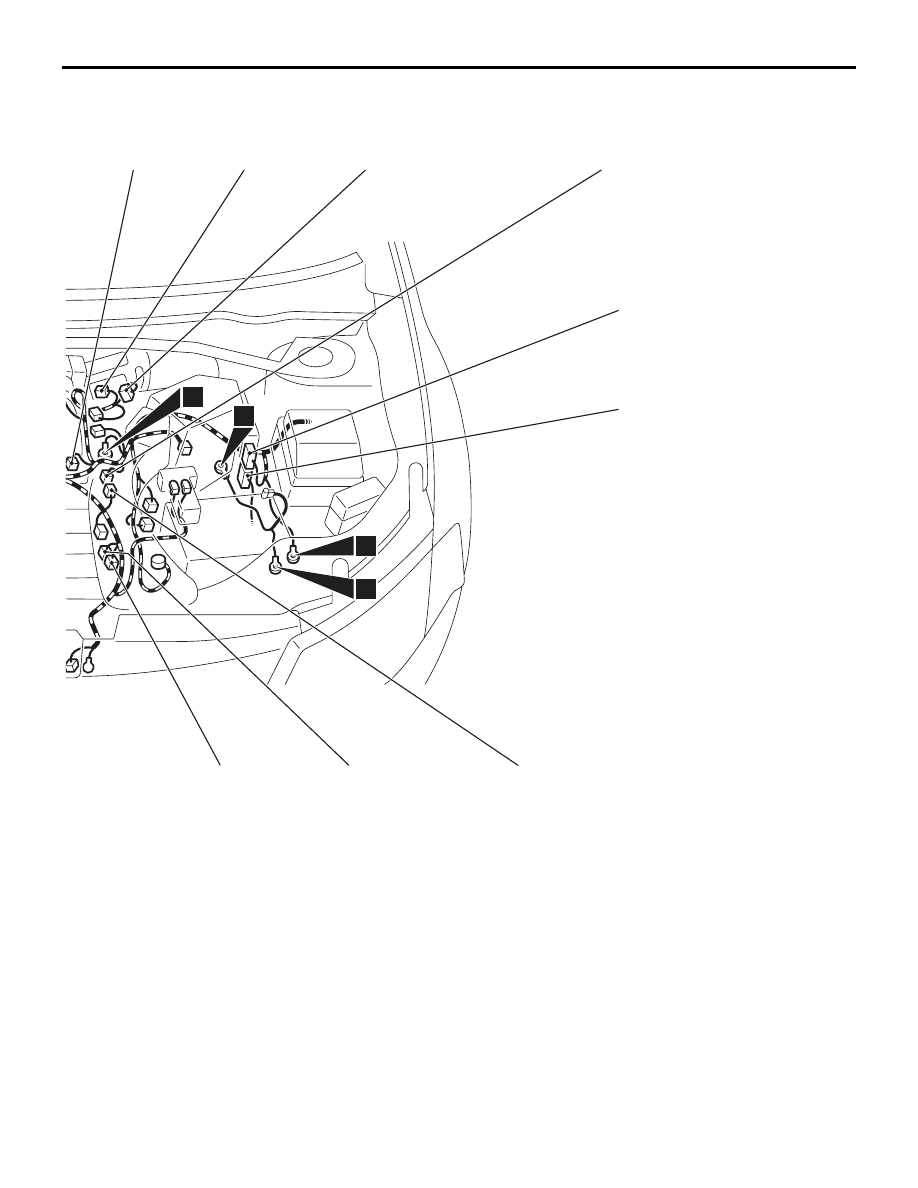

ENGINE AND TRANSAXLE

CONFIGURATION DIAGRAMS

80A-7

ZC600324

ZC6003240000

B-06

B-07

B-08

B-09

B-10

B-11

B-12

B-13

B-14

11

13

14

3

B-13

(4-GR)

Left bank heated oxygen sensor
(Rear)

B-14

(4-B)

Left bank heated oxygen sensor
(Front)

B-15

(3-B)

Ignition coil 6

B-16

(1)

Engine oil pressure switch

B-17

(1-B)

A/C compressor assembly

B-18

(3-B)

Ignition coil 4

B-19

(3-B)

Ignition coil 2

B-20

(2-B)

Knock sensor 2

B-21

(10-B)

Control wiring harness and injector
wiring harness combination

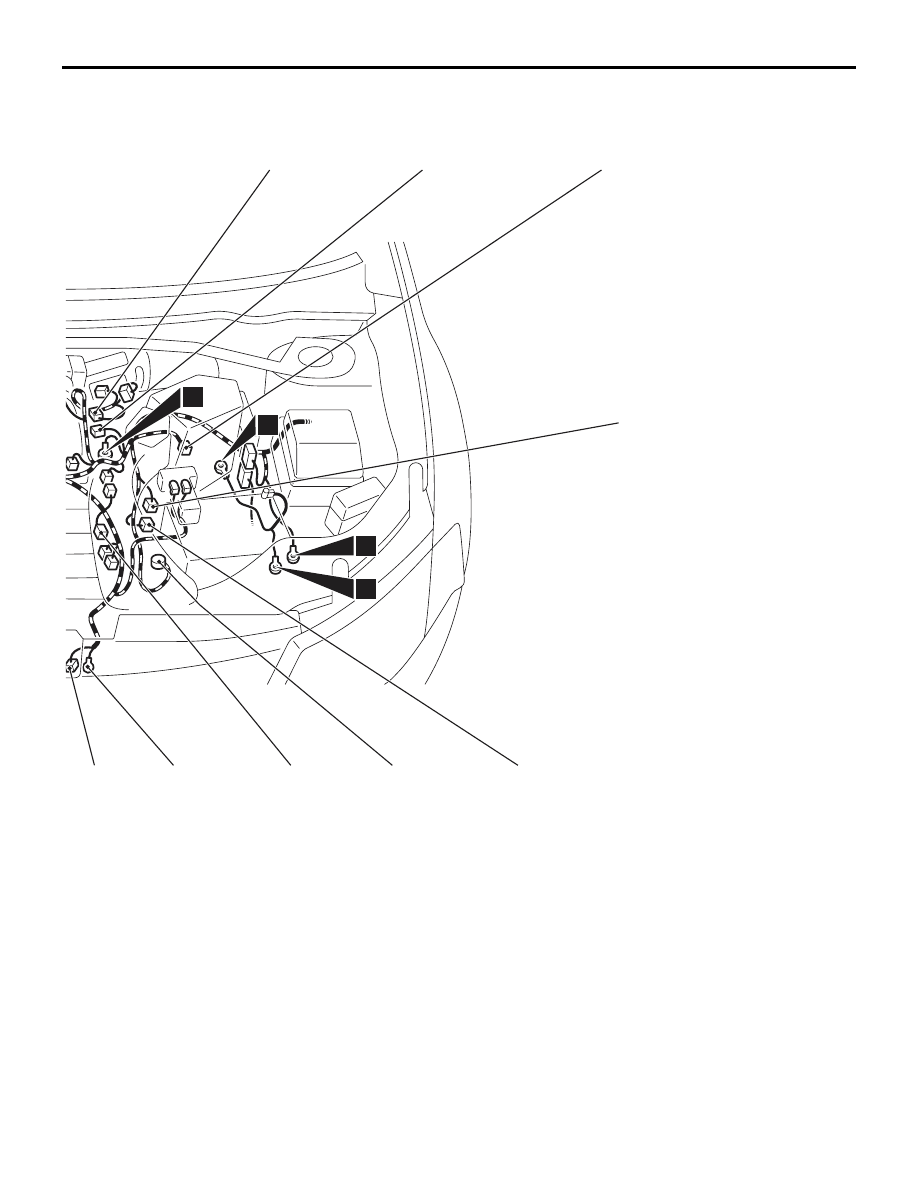

ENGINE AND TRANSAXLE

CONFIGURATION DIAGRAMS

80A-8

ENGINE AND TRANSAXLE (CONTINUED)

B-101

B-102

B-103

B-104

B-105

Connector
symbol

-101
thru
-121

B

B-117

B-119

B-118

B-120

B-121

Injector
wiring
harness

Control
wiring
harness

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-116

B-115

B-101 (2-GR)

Injector 1

B-102 (3-B)

Power steering pressure sensor

B-103 (2-GR)

Injector 3

B-104 (2-GR)

Injector 5

B-105 (3-B)

Manifold absolute pressure sensor

B-106 (2-B)

Engine oil control valve

B-107 (1-B)

Engine oil pressure switch (for engine
oil control valve)

B-108 (3-B)

Output shaft speed sensor

B-109 (3-B)

Input shaft speed sensor

B-110 (10-B)

Transmission range switch

B-111 (22-B)

A/T control solenoid valve assembly

ENGINE AND TRANSAXLE

CONFIGURATION DIAGRAMS

80A-9

ZC600324

ZC6003240001

B-106

B-107

B-108

B-109

B-110

B-111

B-112

B-113

B-114

11

13

14

3

B-112 (3-GR)

Camshaft position sensor

B-113 (1)

Starter

B-114 (1-B)

Starter

B-115 (2-GR)

Injector 6

B-116 (2-GR)

Injector 4

B-117 (1)

Generator

B-118 (4-GR)

Generator

B-119 (3-GR)

Crankshaft position sensor

B-120 (2-GR)

Injector 2

B-121 (2-B)

Variable intake air control solenoid
valve

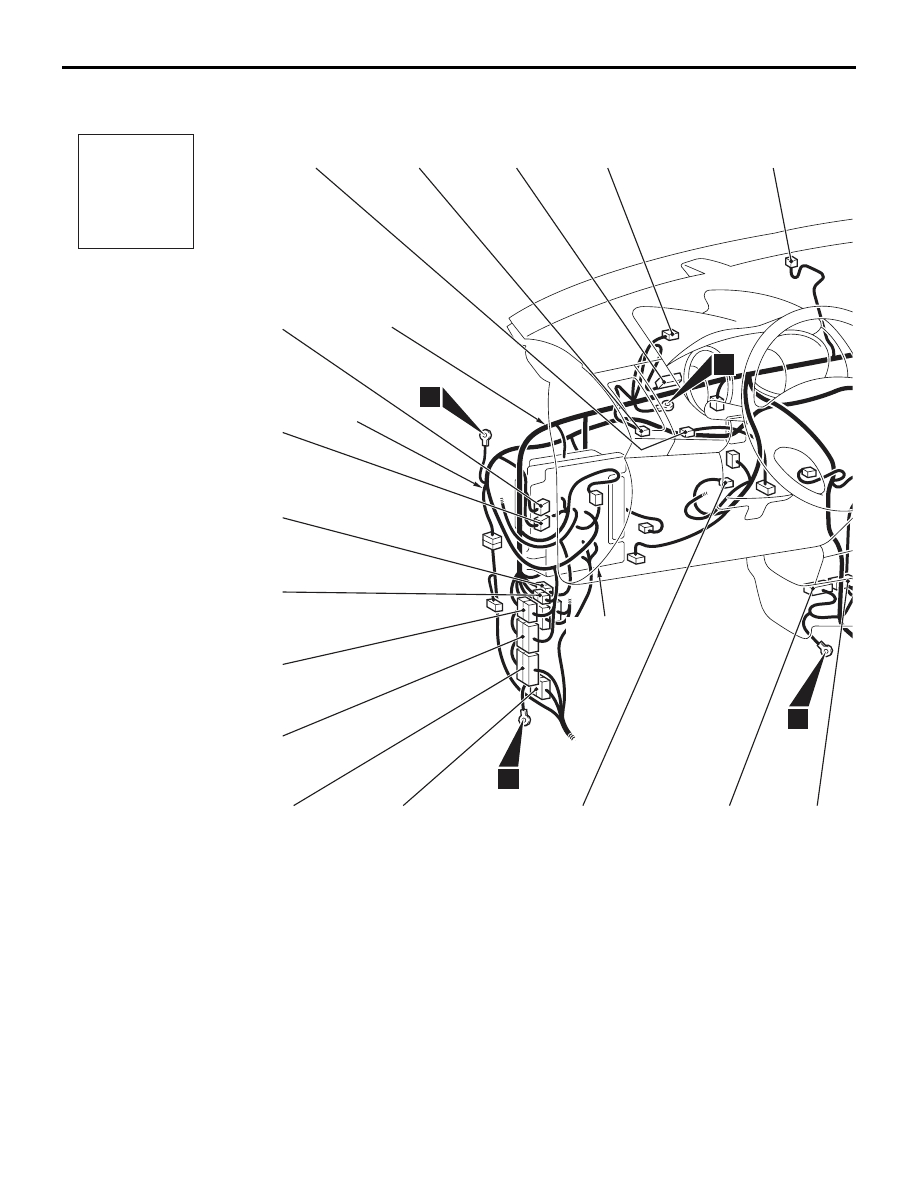

DASH PANEL

CONFIGURATION DIAGRAMS

80A-10

DASH PANEL

Connector
symbol

-01
thru
-38

C

C-01

C-02

C-03

C-04

C-05

C-27

C-28

C-29
C-30

C-31

C-32

C-33

C-34

C-35

C-36

C-37

C-38

Front
wiring
harness

Instrument panel
wiring harness

ETACS-ECU

16

17

19

6

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-01

(24)

J/C (CAN3)

C-02

(4)

Meter information switch

C-03

(24)

Combination meter

C-04

(24)

J/C (CAN2)

C-05

(5)

Photo sensor

C-06

(7)

Audio visual navigation unit

C-07

(32)

Audio visual navigation unit

C-08

(3)

Audio visual navigation unit

C-09

(5)

Audio visual navigation unit

C-10

(18)

Audio visual navigation unit

C-11

(4-Y)

Passenger's (Front) air bag module
(squib)

C-12

(2-B)

Glove box light

C-13

(10)

CAN box unit

C-14

(18)

Radio, CD player or CD changer

C-15

(18)

Instrument panel wiring harness and
audio navigation display wiring
harness combination

C-16

(20)

Radio, CD player or CD changer

C-17

(20)

Instrument panel wiring harness and
audio navigation display wiring
harness combination

C-18

(24)

Radio, CD player or CD changer

C-19

(24)

Instrument panel wiring harness and
audio navigation display wiring
harness combination

C-20

(20)

Instrument panel wiring harness and
floor wiring harness combination

C-21

(4)

Front wiring harness and floor wiring
harness combination
