INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

GARNISH

M40800000120USA0000010000

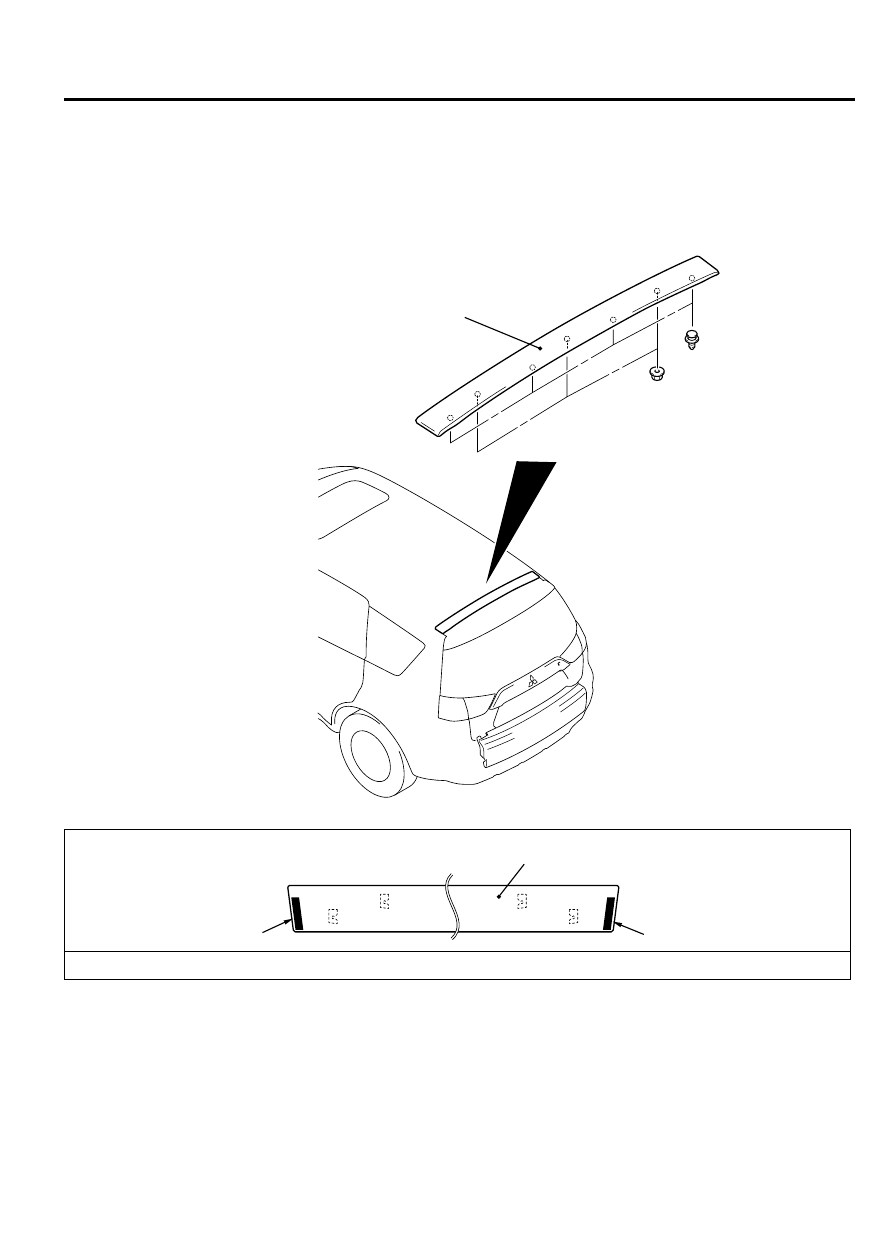

Rear roof garnish

0000

ZB600413

0000

Double-sided tape: 10 mm (0.39 in) width and 1.2 mm (0.05 in) thickness

Double-sided tape affixed location

Rear roof garnish

Double-sided tape

Double-sided tape

ZB600414

REFERENCE MATERIAL

8-7

INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

REAR ROOF GARNISH REMOVAL

BOTH-SIDE TAPE
The removal and adherence procedures of the both-side tape
are the same as for the side air dam.

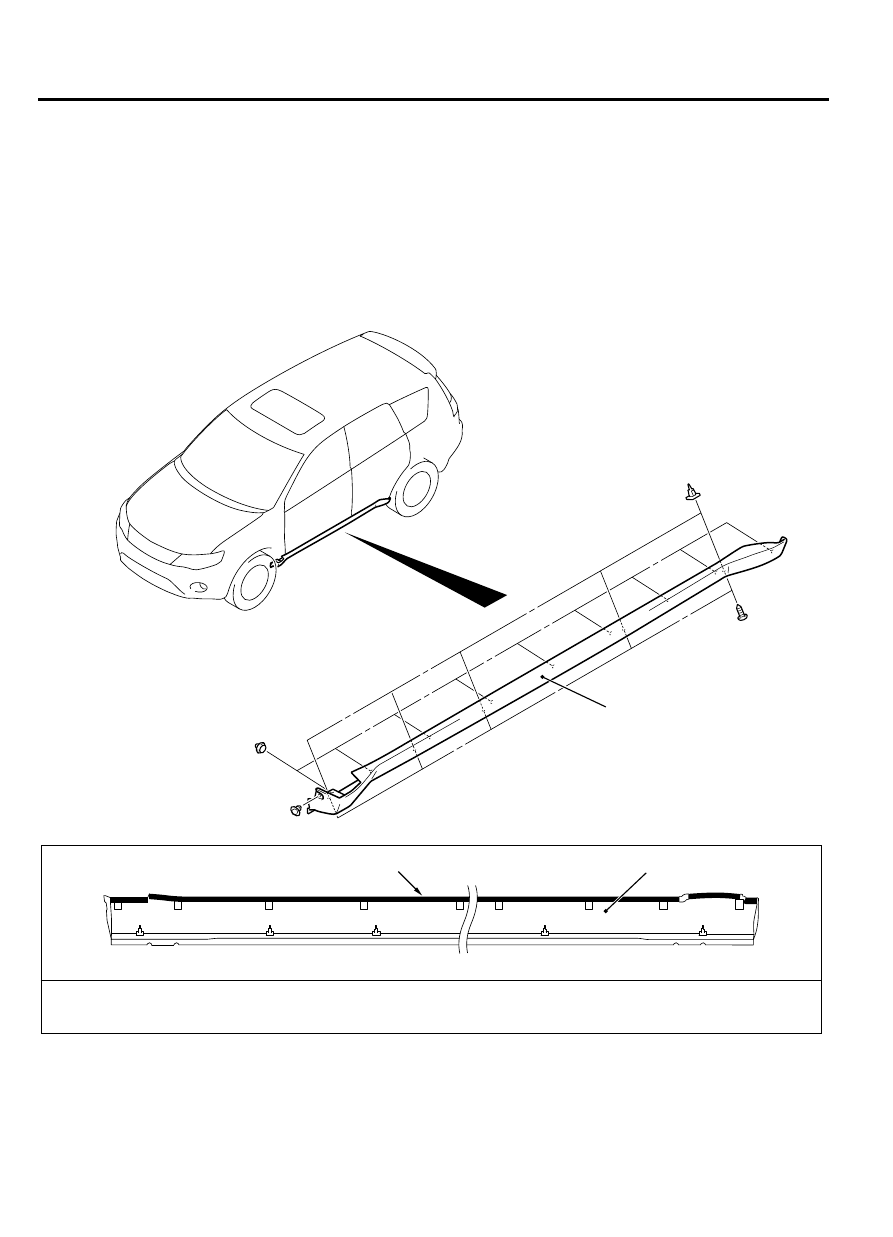

SIDE AIR DAM

M40800000002USA0000010000

ZB6004150000

Side air dam

Double-sided tape

Side air dam

Double-sided tape affixed location

Double-sided tape:
4 mm (0.16 in) width and 1.2 mm (0.05 in) thickness

8-8

REFERENCE MATERIAL

INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

REMOVAL SERVICE POINT

A SIDE AIR DAM REMOVAL
Gently lift and remove the side air dam. If there is any double-
sided tape remaining on the side air dam, remove according to
the following instructions.

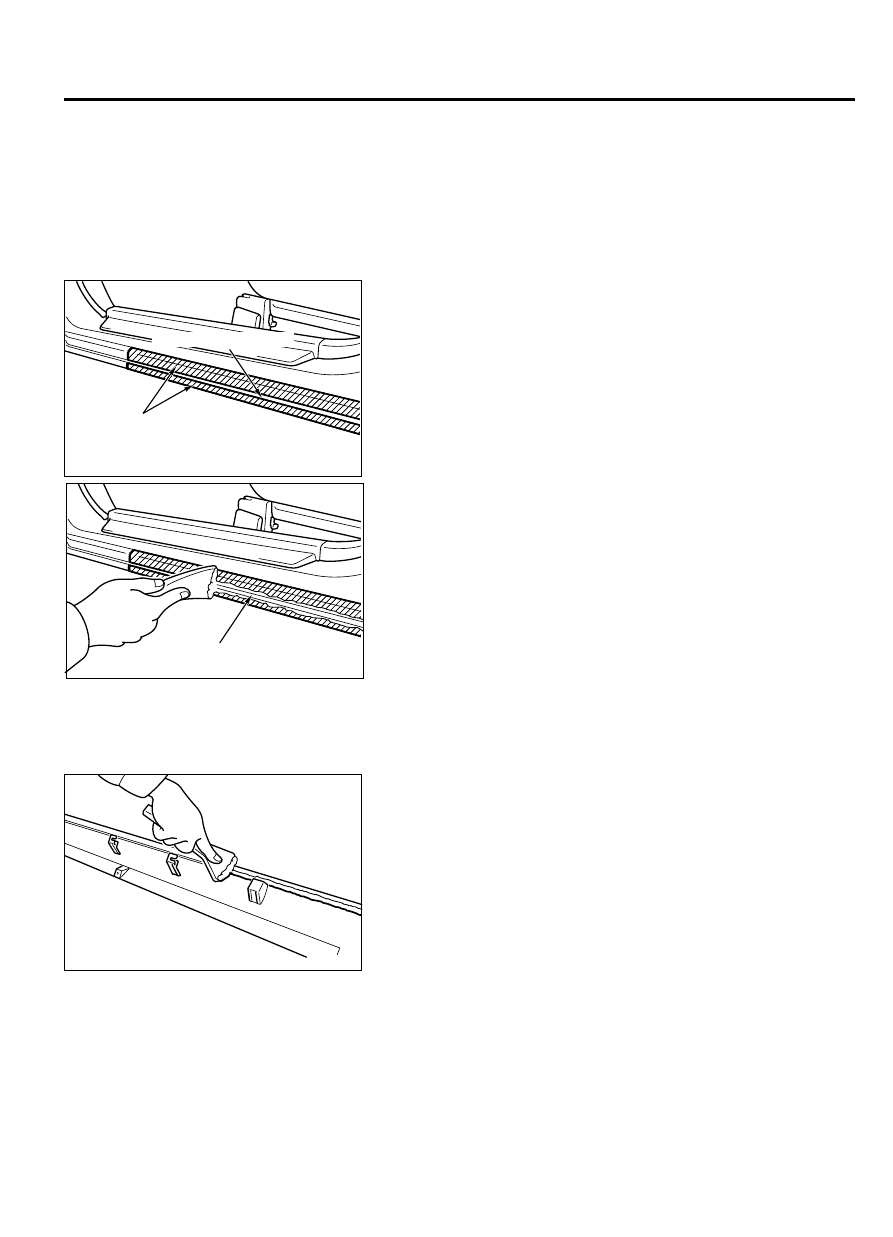

Remove double-sided tape remaining on the body surface

ZB6004180000

Protection tape

Double-sided tape

1.

Attach  protection  tape  all  the  way  along  the  edges  of  the
double-sided tape which is still adhering to the body.

ZB6004190000

Double-sided tape

2.

Scrape off the double-sided tape with a resin spatula as much
as possible.

3.

Peel off the protection tape.

4.

Wipe the body surface and clean it with a rag moistened with
isopropyl alcohol.



Remove  double-sided  tape  remaining  on  side  air  dam  and
adhere double-sided tape (when re-using side air dam)

ZB6004200000

1.

Scrape off the double-sided tape on the side air dam with a
resin spatula as much as possible.

2.

Wipe  the  side  air  dam  surface  and  clean  it  with  a  rag
moistened with isopropyl alcohol.

3.

Remove only a small portion of the residual adhesive.

4.

Adhere the double-sided tape as specified on the side air dam.

REFERENCE MATERIAL

8-9

INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

INSTALLATION SERVICE POINT

A SIDE AIR DAM INSTALLATION

ZB600421

Backing paper

Adhesive tape

0000

1.

Tear off the double-sided tape backing paper.

NOTE:

If attach the adhesive tape to the edge of the

backing paper, it will be easy to tear off.

2.

Install the side air dam.

NOTE:

If the double-sided tape is difficult to affix in

cold temperature, etc., warm the bonding surfaces of the
body and side air dam to about 40- 60°C before affixing
the tape.

3.

Firmly press in the side air dam.

ADJUSTMENT OF OTHER PARTS

FRONT WHEEL ALIGNMENT CHECK AND

ADJUSTMENT

M40800000090USA0000010000

Measure wheel alignment with alignment equipment on a level
surface.  The  front  suspension,  steering  system,  wheels,  and
tires should be serviced to normal condition before measuring
wheel alignment.

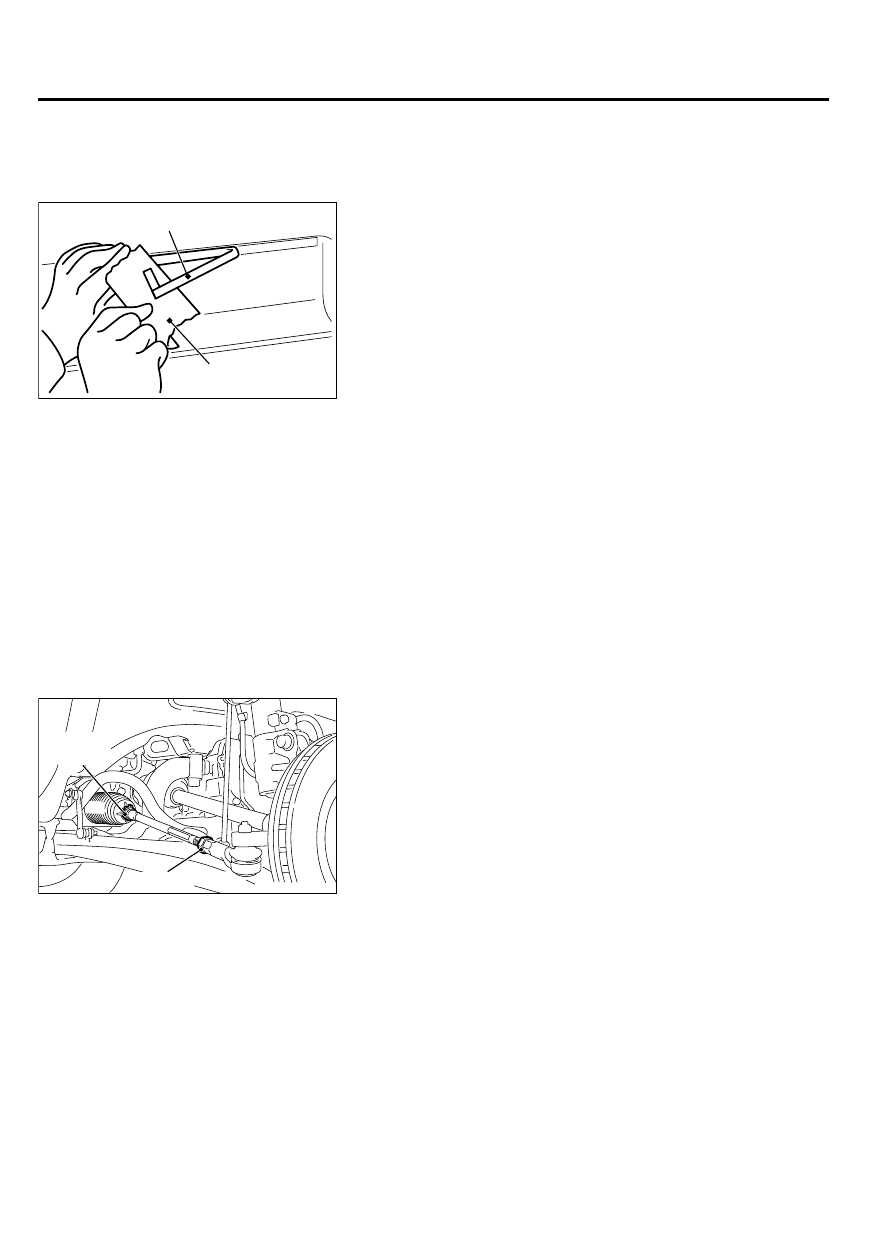

TOE-IN

Standard value: 1 ± 2 mm (0.04 ± 0.09 inch)

ZB6006960000

Bellows
clip

Jam nut

1.

Adjust the toe-in by undoing the clip and jam nut, and turning
the left and right tie rod turnbuckles by the same amount (in
opposite directions).

NOTE:

The toe will move out as the left turnbuckle is

turned toward the front of the vehicle and the right
turnbuckle is turned toward the rear of the vehicle.

2.

Install the clip and tighten the jam nut to the specified torque.

Tightening torque: 52 ± 2 N·m (38 ± 2 ft-lb)

3.

Confirm that the toe-in is at the standard value.

4.

Use a turning radius gauge to check that the steering angle is
at the standard value.

STEERING ANGLE
Standard value:

38°40' ± 1°30’ Inner wheel
32°20' Outer wheel (reference)



CAMBER, CASTER AND KINGPIN INCLINATION

Required Special Tool:

MB991004: Wheel Alignment Gauge Attachment

8-10

REFERENCE MATERIAL

ADJUSTMENT OF OTHER PARTS
