MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-521

STEP 2. Check harness connector B-11 at ECM and
harness connector D-19 at fuel tank differential pressure
sensor for damage.
Q: Is the harness connector in good condition?

YES : Then go to Step 3 .
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8 .

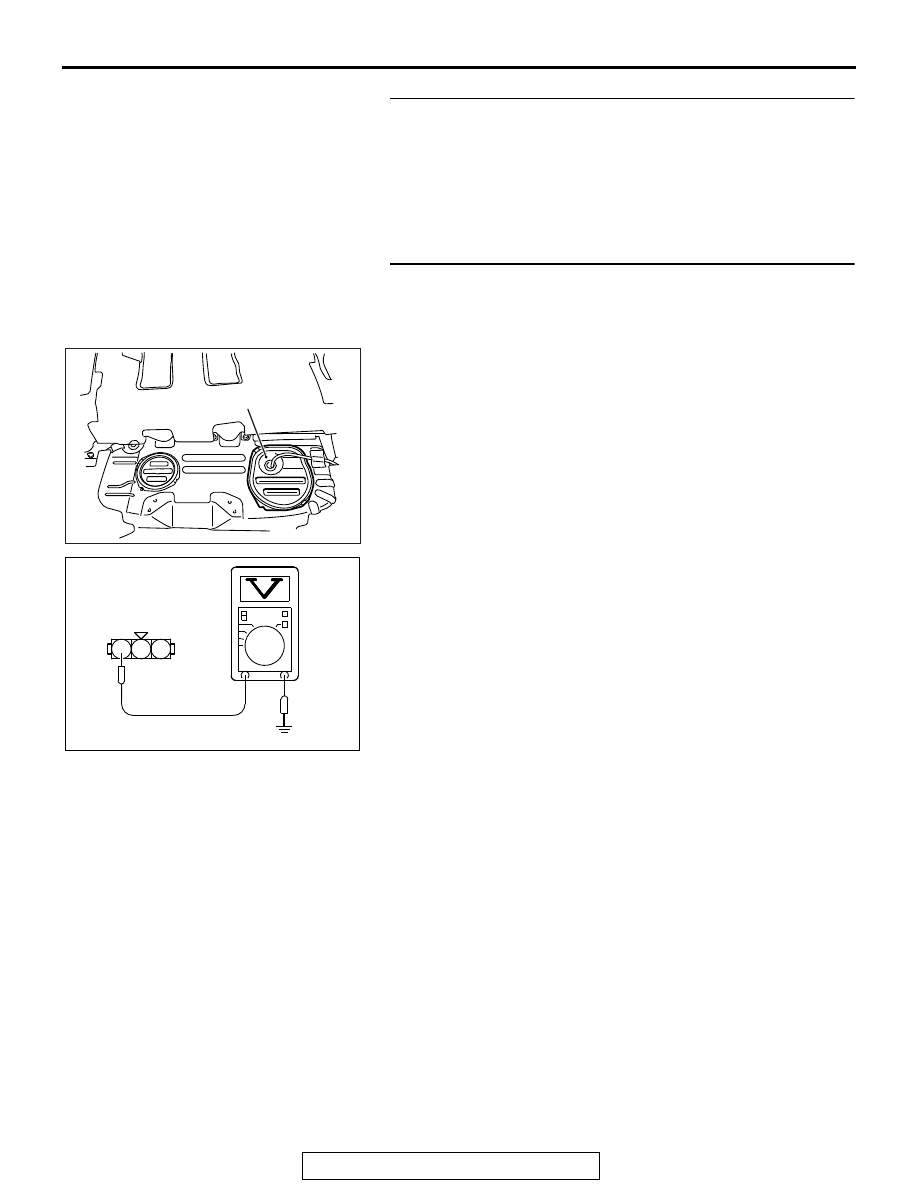

STEP 3. Measure the 5-volt reference signal at fuel tank
differential pressure sensor connector D-19.
(1) Remove the second seat assembly (Refer to GROUP 52A,

Second Seat Assembly

P.52A-25

).

(2) Remove the floor inspection lid (LH).
(3) Disconnect fuel tank differential pressure sensor connector

D-19.

(4) Turn the ignition switch to the "ON" position.

(5) Measure the voltage between terminal 3 and ground.

• The voltage should measure between 4.9 and 5.1 volts.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 6 .
NO :  Go to Step 4 .

AK704172

Floor inspection lid (LH)

AB

AK704173

1

2

3

AB

D-19 Harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-522

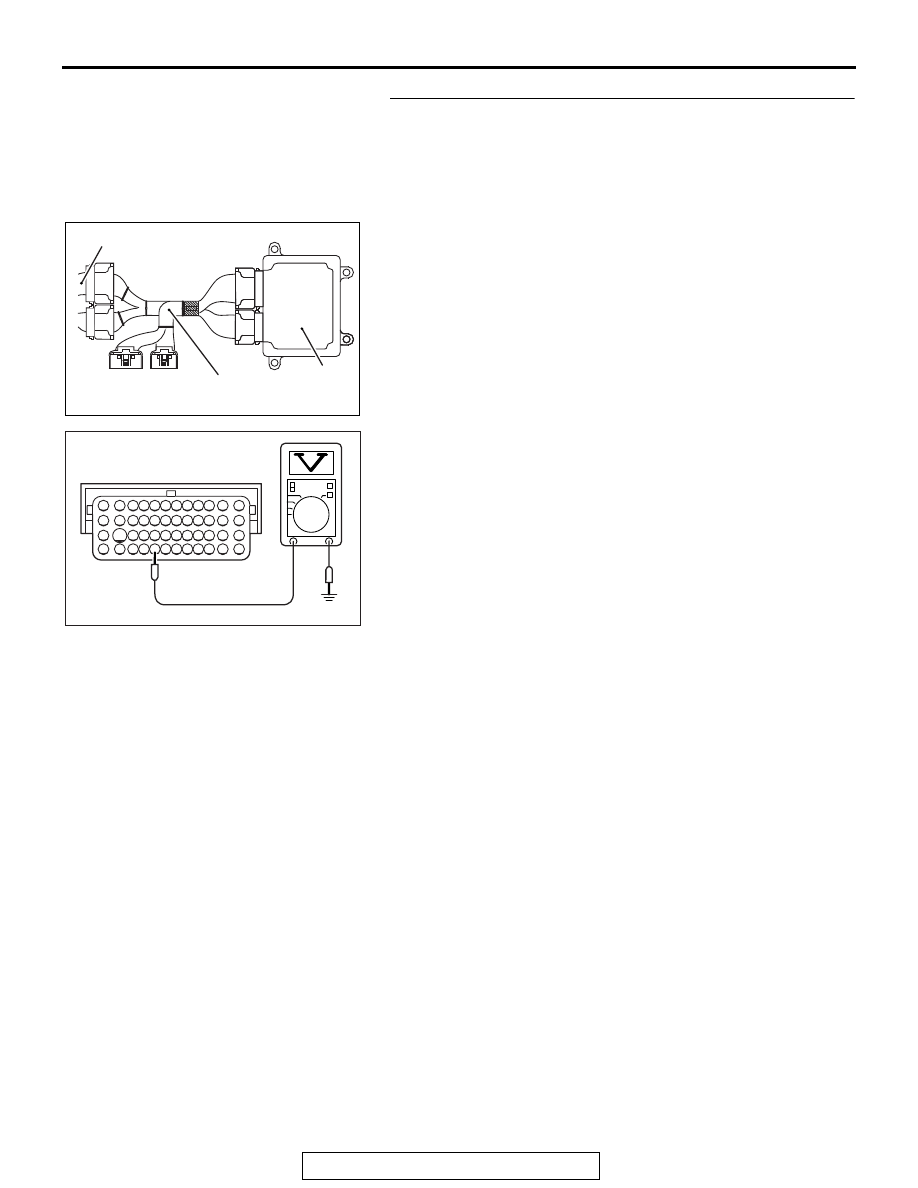

STEP 4. Measure the 5-volt reference signal at ECM
connector B-11 by using check harness special tool
MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Turn the ignition switch to the "ON" position.
(3) Remove the fuel cap.

(4) Measure the voltage between terminal 114 and ground.

• The voltage should measure between 4.9 and 5.1 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Check harness connector C-129 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness connector
Inspection

P.00E-2

. If intermediate connector C-129

is in good condition, repair it because of harness
damage fuel tank differential pressure sensor
connector D-19 (terminal No. 3) and ECM connector
B-11 (terminal No. 114). Then go to Step 8 .

NO :  Go to Step 5 .

AK704154

ECM

AB

Body side harness

MB992110

AK704174

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

Special tool 48-pin connector
component side

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-523

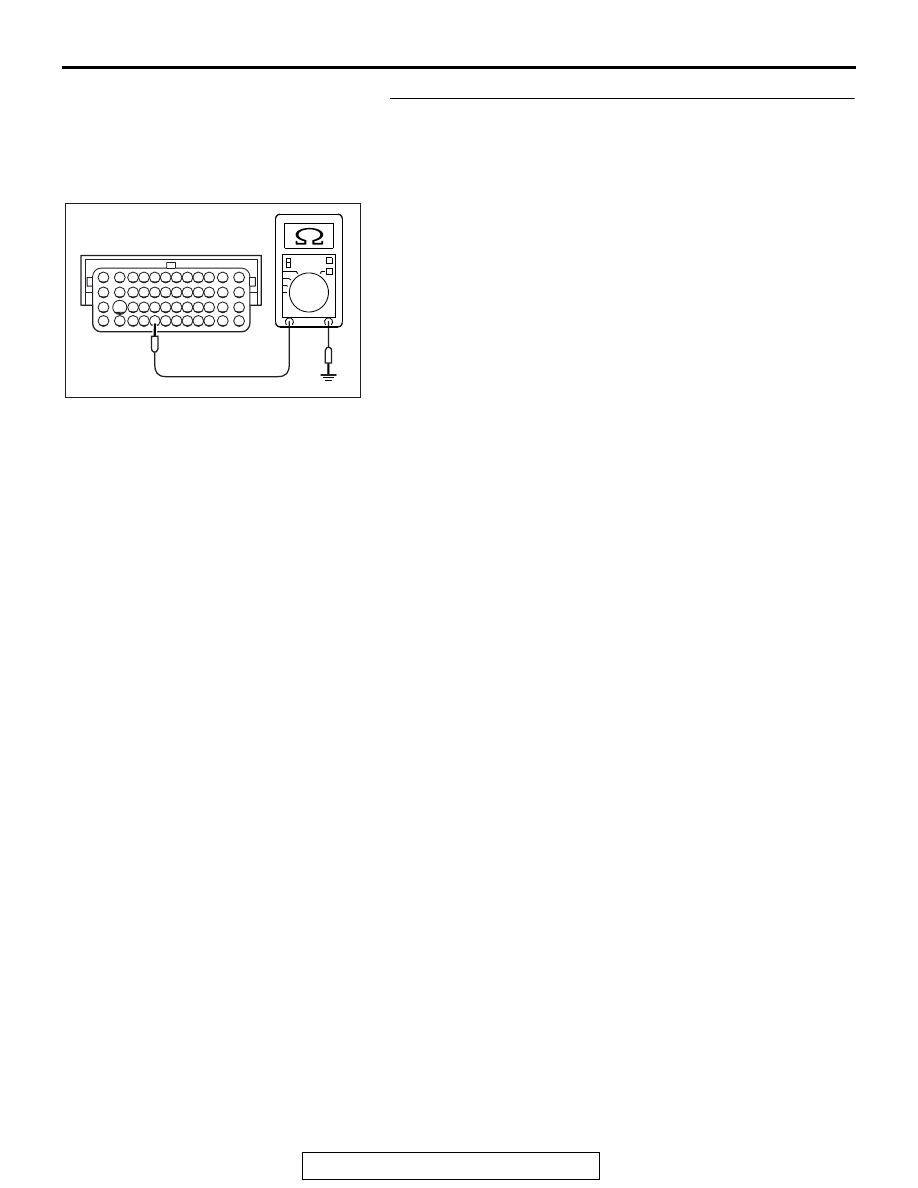

STEP 5. Check for short circuit to ground between fuel
tank differential pressure sensor connector D-19 and ECM
connector B-11.
(1) Disconnect the connector D-19 and B-11 measure at the

harness side.

(2) Check for the continuity between connector B-11 (terminal

No. 114) and ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Judgment Table <Vehicles with KOS>

P.42B-15

 or GROUP 42C, ID Code Registration

Judgment Table <Vehicles with WCM>

P.42C-10

.

Then go to Step 8 .

NO :  Check harness connector C-129 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness connector
Inspection

P.00E-2

. If intermediate connector C-129

is in good condition, repair it because of open circuit
or harness damage fuel tank differential pressure
sensor connector D-19 (terminal No. 3) and ECM
connector B-11 (terminal No. 114). Then go to Step 8 .

AK704176

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

B-11 Harness connector:
component side

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-524

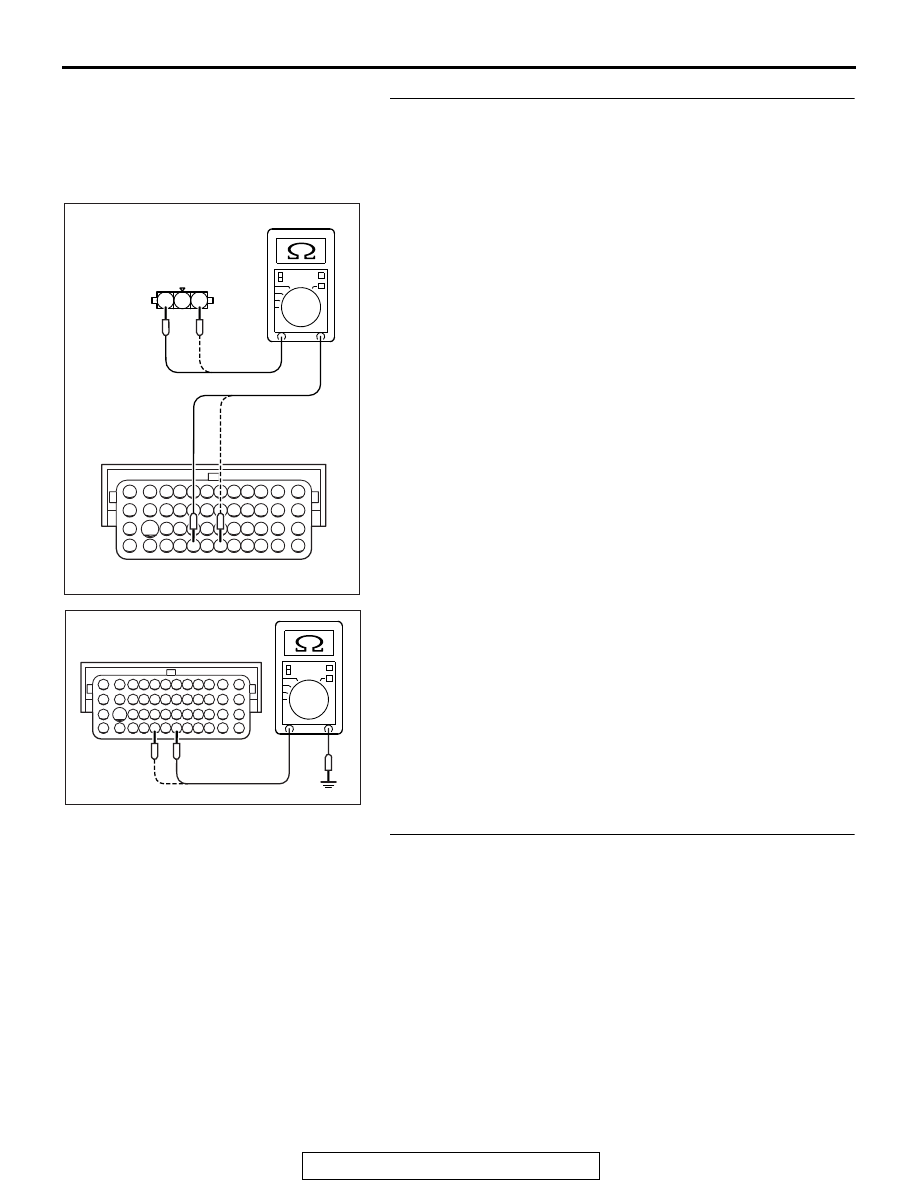

STEP 6. Check for open circuit or short circuit to ground or
harness damage between fuel tank differential pressure
sensor connector D-19 and ECM connector B-11.
(1) Disconnect the connector D-19 and B-11 measure at the

harness side.

(2) Measure the resistance between fuel tank differential

pressure sensor connector D-19 and the ECM connector
B-11.

a. Connector D-19 (terminal No. 3) and connector B-11

(terminal No. 114).

b. Connector D-19 (terminal No. 1) and connector B-11

(terminal No. 112).

• Should be less than 2 ohms.

(3) Check for the continuity between the ECM connector B-11

and ground.

a. Connector B-11 (terminal No. 112) and ground
b. Connector B-11 (terminal No. 114) and ground

• Not continuity.

Q: Is the harness connector in good condition?

YES : Then go to Step 7 .
NO :  Repair it. Then go to Step 8 .

STEP 7. Replace the fuel tank differential pressure sensor.
(1) Replace the fuel tank differential pressure sensor.
(2) Carry out test drive with the drive cycle pattern. Refer to

Diagnostic Function. OBD-II Drive Cycle. Pattern 22

P.13B-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P0452 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Judgment Table <Vehicles with KOS>

P.42B-15

 or GROUP 42C, ID Code Registration

Judgment Table <Vehicles with WCM>

P.42C-10

.

Then go to Step 8 .

NO :  The inspection is complete.

AK704177

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

1

2

3

D-19 harness connector:
component side

B-11 harness connector:
component side

AB

AK704178

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

B-11 Harness connector:
component side

AB
