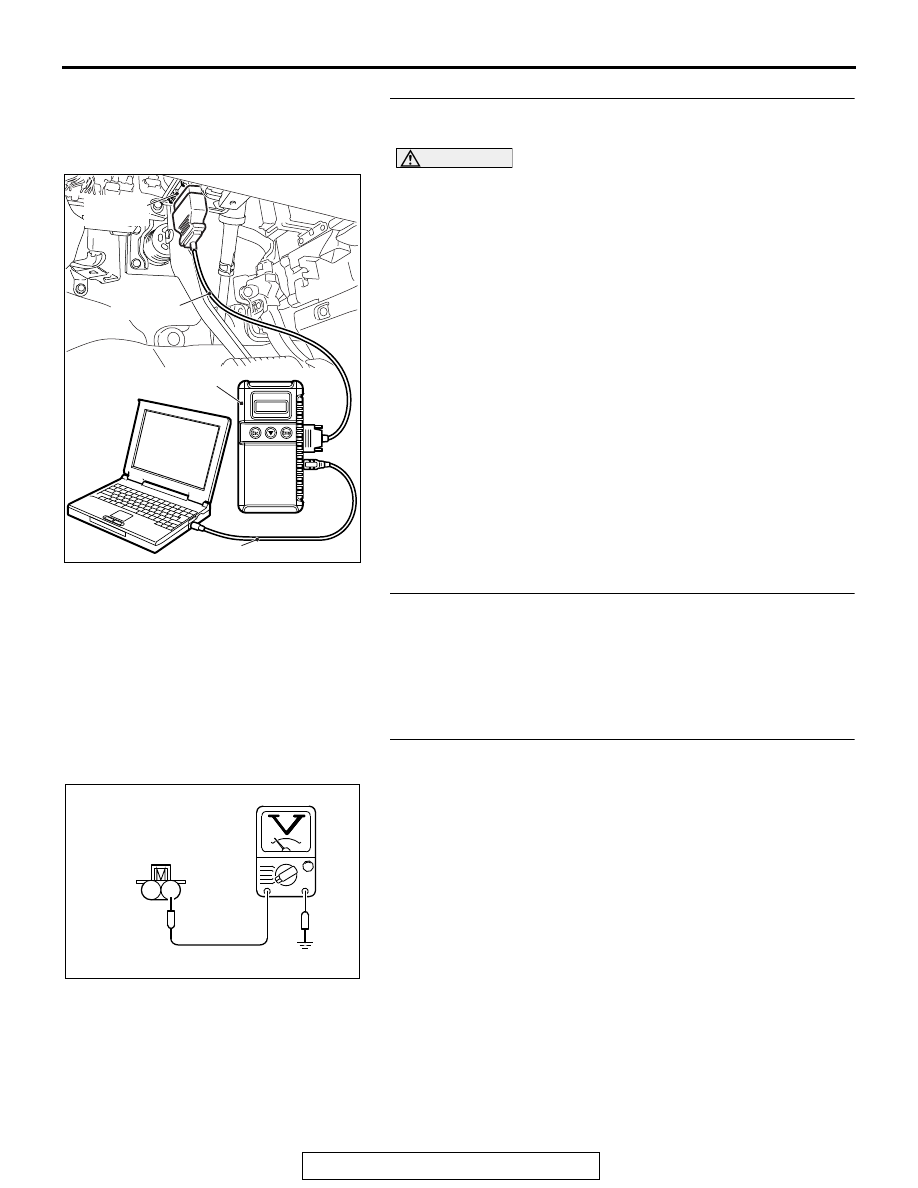

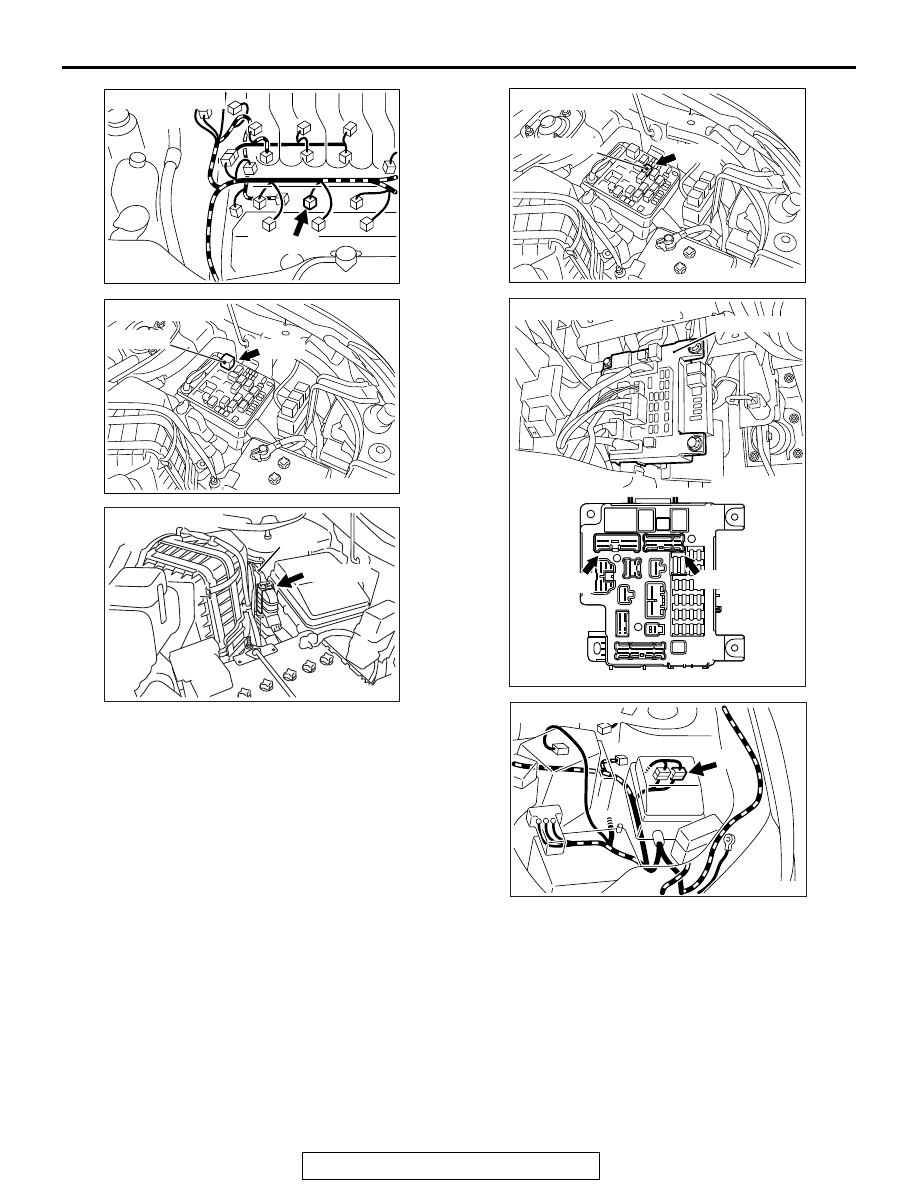

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE> 13B-369 . CIRCUIT OPERATION • The injector power is supplied from the injector relay (terminal No. 3). • The ECM controls the injector by turning the power transistor in the ECM "ON" and "OFF". . TECHNICAL DESCRIPTION • The amount of fuel injected by the injector is con- trolled by the amount of continuity time the coil is . DESCRIPTIONS OF MONITOR METHODS The ECM detects open circuit and short malfunction. . MONITOR EXECUTION Continuous . AK900140AD Connector: B-116 B-116 (GR) AK700399AB MFI relay A-33X Connector: A-33X AK700401AB ECM B-10 (GR) Connector: B-10 AK700413AB A-24X Connector: A-24X Injector relay AK700414 AB ETACS-ECU C-317 Connectors: C-304, C-317 C-304 AK900602 Connector: A-13 A-13 AB |
