ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-875

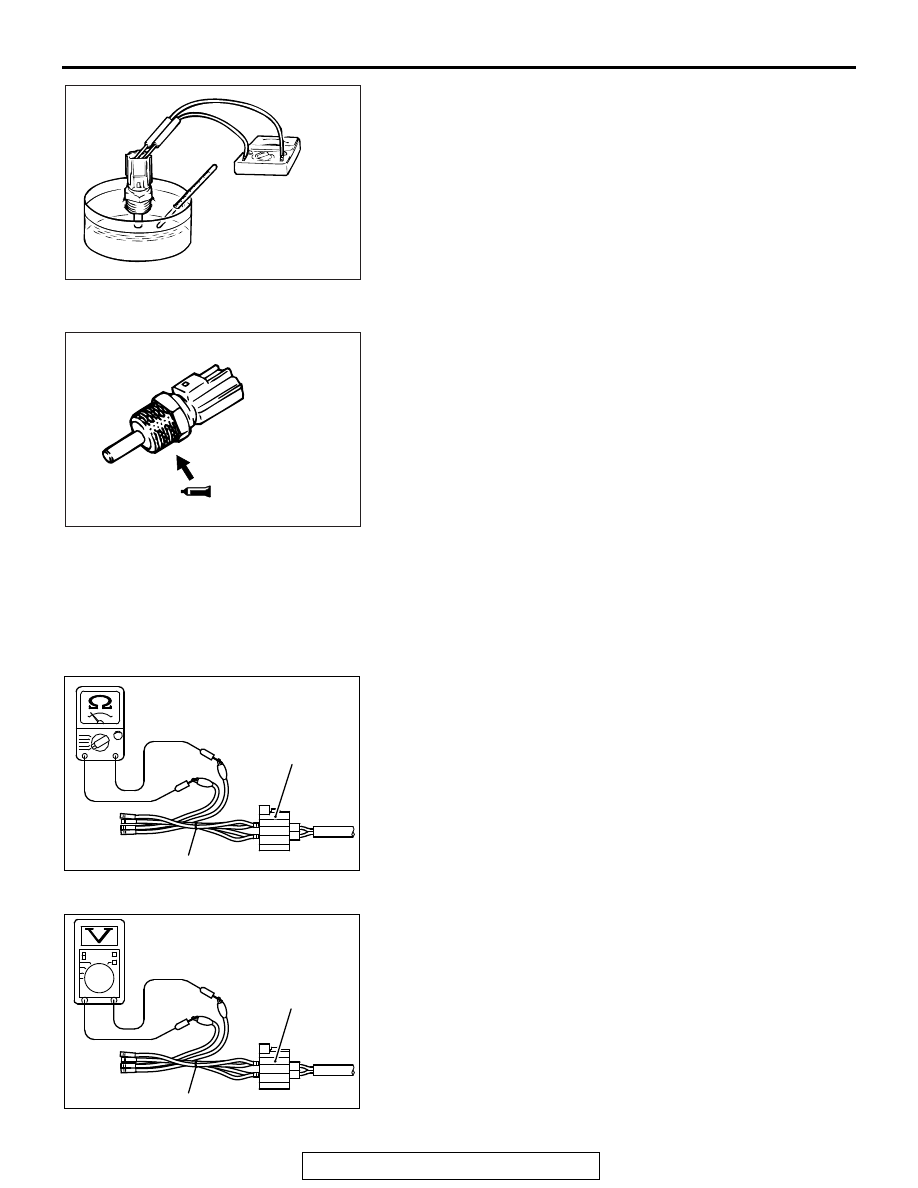

2. With the temperature sensing portion of engine coolant

temperature sensor immersed in hot water, check the
resistance.

Standard value:

14

− 17 kΩ [at -20°C (-4°F)]

5.1

− 6.5 kΩ [at 0°C (32°F)]

2.1

− 2.7 kΩ [at 20°C (68°F)]

0.9

− 1.3 kΩ [at 40°C (104°F)

0.48

− 0.68 kΩ [at 60°C (140°F)]

0.26

− 0.36 kΩ [at 80°C (176°F)]

3. If resistance deviates from the standard value greatly,

replace the sensor.

4. Apply LOCTITE 262 or equivalent to threaded portion.
5. With the special tool MB992042 (engine coolant

temperature sensor wrench) tighten the engine coolant
temperature sensor to the specified torque.

Tightening torque: 30

± 9 N⋅m (22 ± 6 ft-lb)

HEATED OXYGEN SENSOR CHECK

M1131005003775

Required Special Tool:

• MB991658: Test Harness

.

Heated oxygen sensor (rear)

1. Disconnect the heated oxygen sensor connector and

connect special tool MB991658 to the connector on the
heated oxygen sensor side.

2. Measure the resistance between terminal No. 1 and terminal

No. 2.

Standard value: 4.5

− 8.0 Ω [at 20 °C (68 °F)]

3. If the resistance deviates from standard value, replace the

heated oxygen sensor.

4. Warm up the engine until engine coolant is 80

°C (176°F) or

higher.

5. Drive at 50 km/h (31 mph) or more for 10 minutes.
6. Connect a digital voltage meter between terminal No. 3 and

terminal No. 4.

7. Measure the output voltage of the heated oxygen sensor

under the following driving.

• Transaxle: 2nd

• Drive with wide open throttle

AK604488AB

AK604489AB

AK604492AB

MB991658

Heated oxygen
sensor component
side connector

AK604493AB

MB991658

Heated oxygen
sensor component
side connector

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-876

• Engine: 3,500 r/min or more

Standard value:

NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air-fuel ratio.
NOTE: When the vehicle is driven with high loads, the tem-
perature of the sensing area of the heated oxygen sensor is
sufficiently high. Thus, it is not necessary to apply the volt-
age to the heater.

8. If the output voltage is not within the standard value, replace

the heated oxygen sensor.
NOTE: For removal and installation of the heated oxygen
sensor, refer to GROUP 15, Exhaust Pipe and Main Muffler

−

 Removal and Installation <2.4L ENGINE>

P.15-22

.

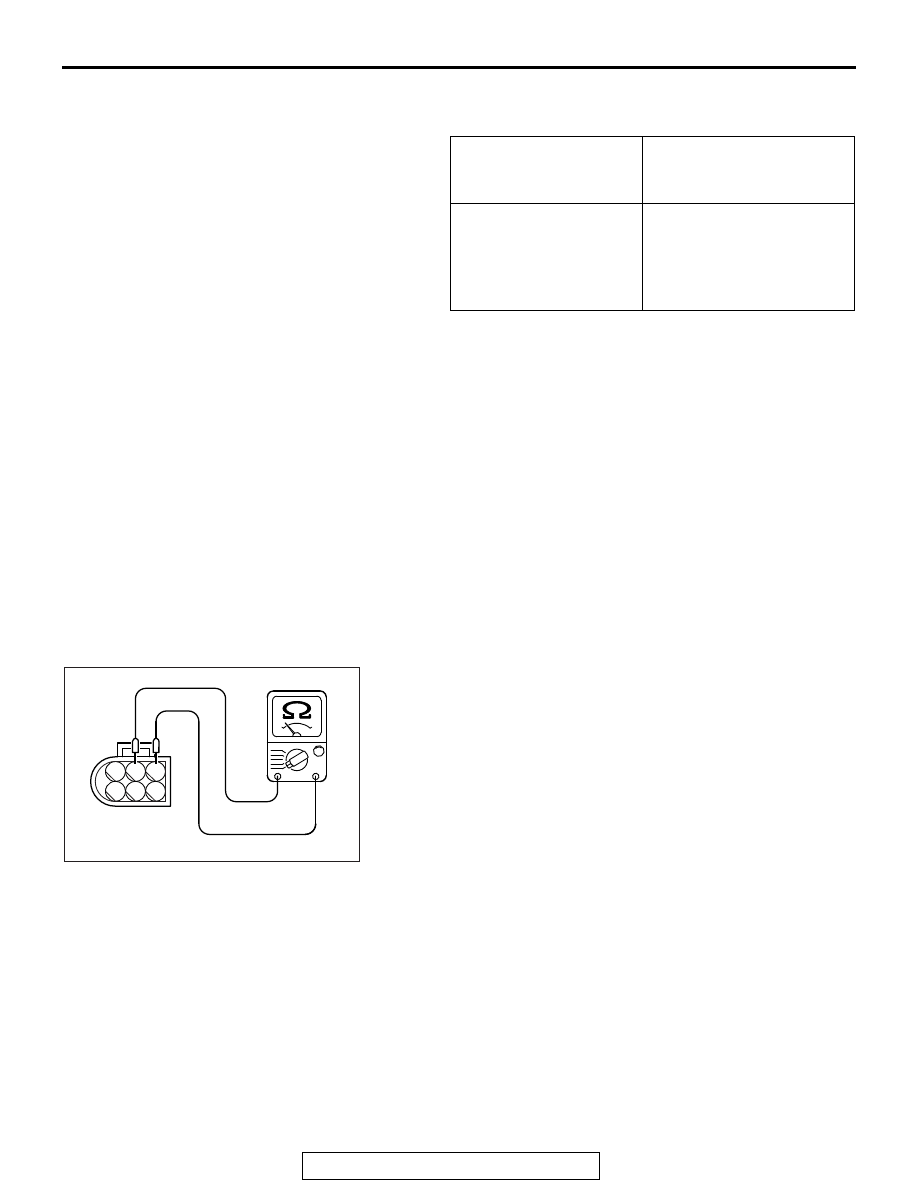

LINEAR AIR-FUEL RATIO SENSOR CHECK

M1131055300040

1. Disconnect the linear air-fuel ratio sensor connector and

connect special tool MB991658 to the connector on the
linear air-fuel ratio sensor side.

2. Measure the resistance between terminal No. 2 and terminal

No. 3.

Standard value: 2.3

− 4.2 Ω [at 20 °C (68°F)]

3. If the resistance deviates from standard value, replace the

linear air-fuel ratio sensor.

NOTE: For removal and installation of the linear air-fuel ratio
sensor, refer to GROUP 15, Exhaust Pipe and Main Muffler

−



Removal and Installation <2.4L ENGINE>

P.15-22

.

HEATED OXYGEN
SENSOR OUTPUT
VOLTAGE

REMARKS

0.6

− 1.0 V

High load operation makes
air/fuel ratio richer and
normal heated oxygen
sensor also can output
voltage of 0.6

− 1.0 V.

AK900847

3

2

1

6

5

4

Linear air-fuel
ratio sensor
connector

AB

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-877

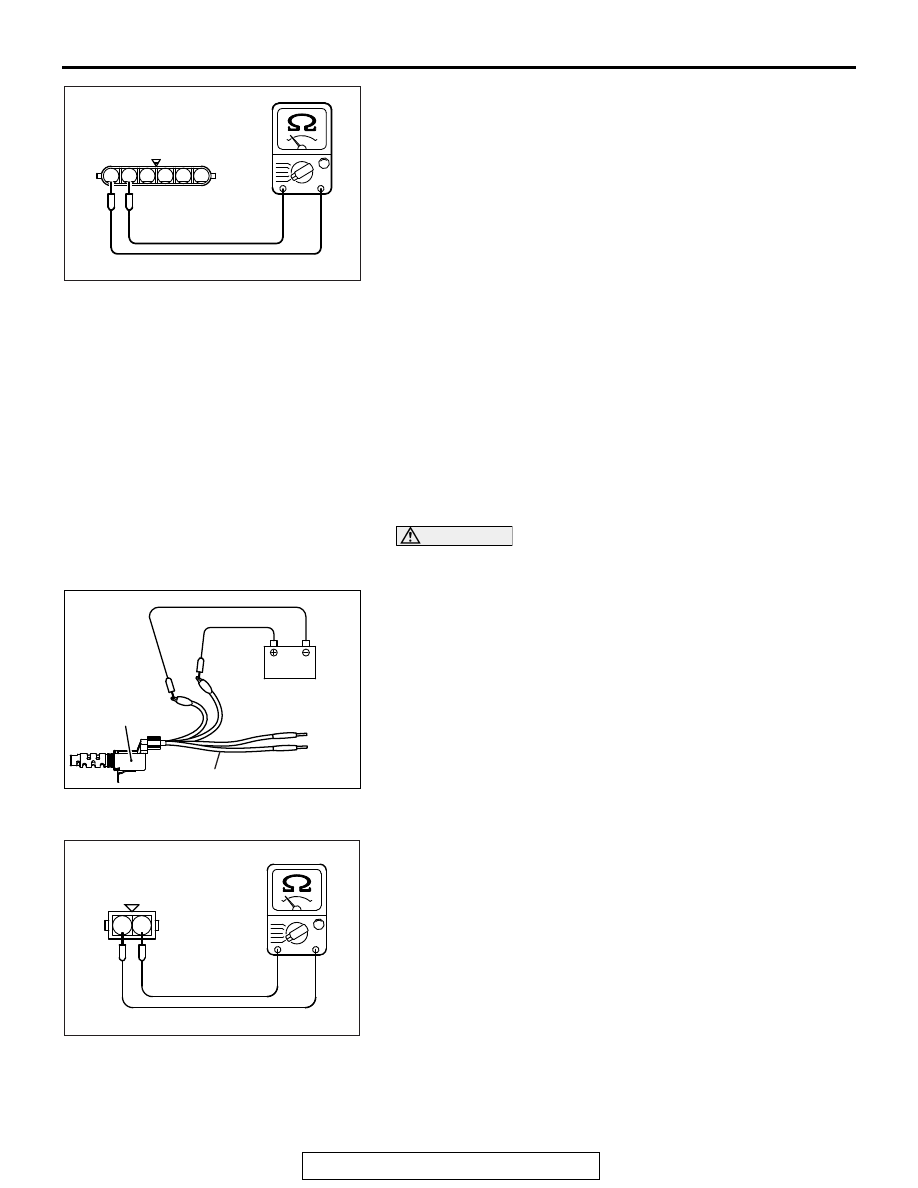

INJECTOR CHECK

M1131005201988

<Checking the Operation Sound>

Using a stethoscope or long blade screwdriver, check the oper-
ation sound ("tick-tick-tick") of injectors during idling or during
cranking. Check that as the engine speed increases, the fre-
quency of the operating sound also increases.
1. If the injector you are checking is not operating, you may

hear the operating sound of the other injectors.

2. If no operating sound is heard from the injector that is being

checked, check the injector drive circuit. If there is nothing
wrong with the circuit, a defective injector or ECM is
suspected.

<Checking the Coil Resistance>

.

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector

terminals 1 and 2.

Standard value: 10.5

− 13.5 Ω [at 20°C (68°F)]

3. Connect the injector connector.

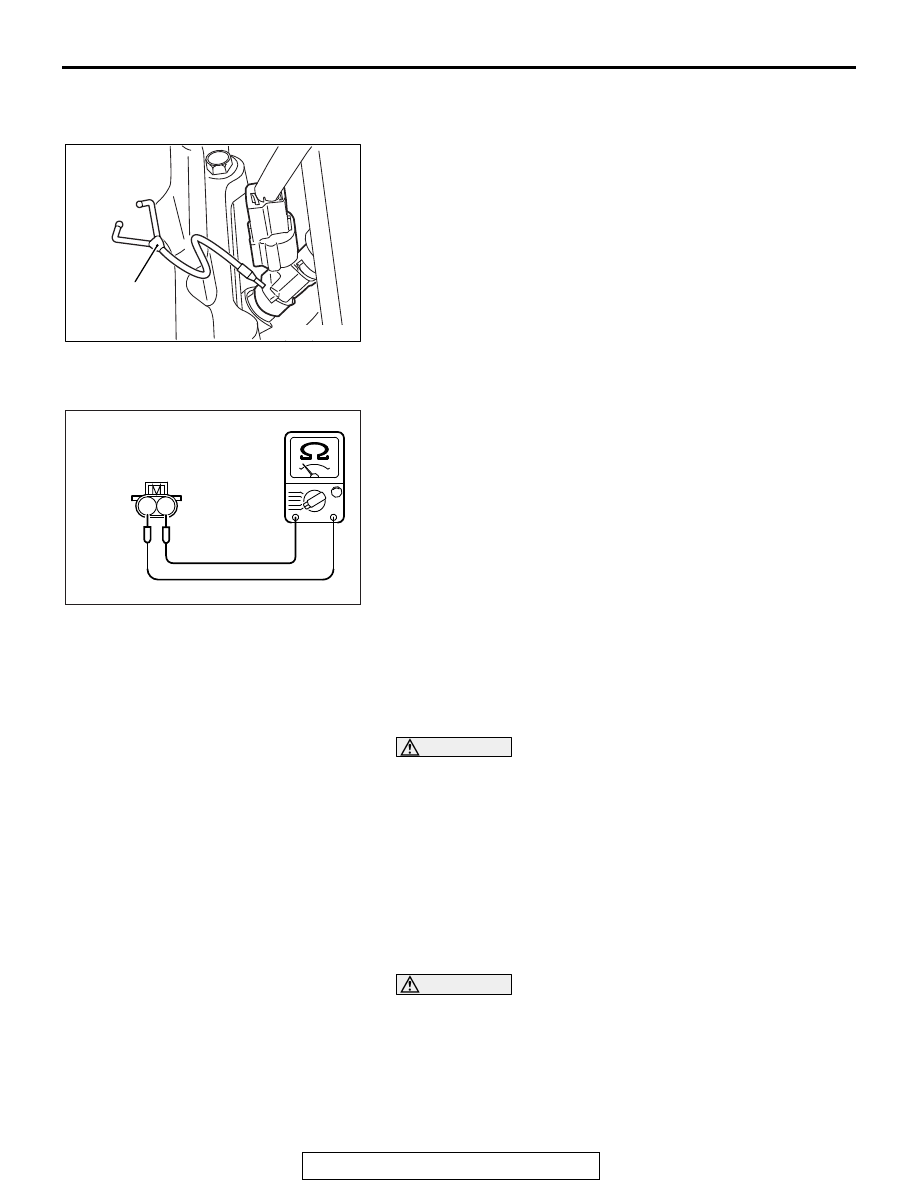

THROTTLE ACTUATOR CONTROL MOTOR
CHECK

M1131051000810

.

<Operation Inspection>

WARNING

When checking the throttle valve operation, never
insert fingers into the throttle valve. The extremely
strong power of the throttle valve motor might trap
and injure fingers.

1. Disconnect the air intake hose from the throttle body.
2. Set the ignition switch to the "ON" position.
3. Operate the accelerator pedal and confirm that the throttle

valve is opening and closing accordingly.

.

<Checking the Terminal Resistance>

WARNING

If the throttle valve is operated in service, a finger
might be injured as the result of being caught by the
throttle valve. Make sure that the ignition switch is
surely in "LOCK" (OFF) position before the service in
order that the throttle valve cannot be operated.

1. Disconnect the throttle position sensor connector.

AK704440AB

Stethoscope

AK604494

1 2

AB

Injector
connector

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-878

2. Measure the resistance between terminal No. 1 and No. 2.

Standard value: 0.3

− 80 Ω [at 20°C (68°F)]

NOTE: If the measured resistance deviates from the stan-
dard value, fully open the throttle valve with your finger more
then five times, then check the result again. If the throttle
valve control serve is not used for an extended period of
time, the resistance may be increased as a result of internal
forming of oxide film. Therefore, it means that the oxide film
can be removed through a self cleaning capability of the
throttle valve control servo, if forcibly moved.

3. If resistance is outside the standard value, replace the

throttle body assembly.

ENGINE OIL CONTROL VALVE CHECK

M1131053200605

Required Special Tools:

• MB991658: Test Harness

Intake engine oil control valve

.

<Checking the Operation Sound>

1. Disconnect the intake engine oil control valve connector.

CAUTION

To prevent the coil from burning, keep the duration of the
voltage application as short as possible.
2. Check that the operation sound of the intake engine oil

control valve can be heard when the positive battery voltage
is supplied to the intake engine oil control valve. (Use the
special tool MB991658 to connect terminal No. 2 of the
intake engine oil control valve connector to the positive
battery terminal and terminal No. 1 to the negative battery
terminal.)

3. If the operation sound cannot be heard, replace the intake

engine oil control valve.

.

<Checking the Coil Resistance>

1. Disconnect the intake engine oil control valve connector.
2. Measure resistance between terminal No. 1 and terminal

No. 2 of the connector at the intake engine oil control valve
side.

Standard value: 6.9

− 7.9 Ω [at 20°C (68°F)]

3. If resistance is not within the standard value, replace the

intake engine oil control valve.

Exhaust engine oil control valve

.

<Checking the Operation Sound>

1. Disconnect the exhaust engine oil control valve connector.

6

1 2 3 4 5

AK604495AB

Throttle actuator control
motor connector

AK703721AB

Intake engine oil
control valve

MB991658

AK604497

1

2

AC

Intake engine oil
control valve connector
