MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS
TSB Revision
MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>
13A-847

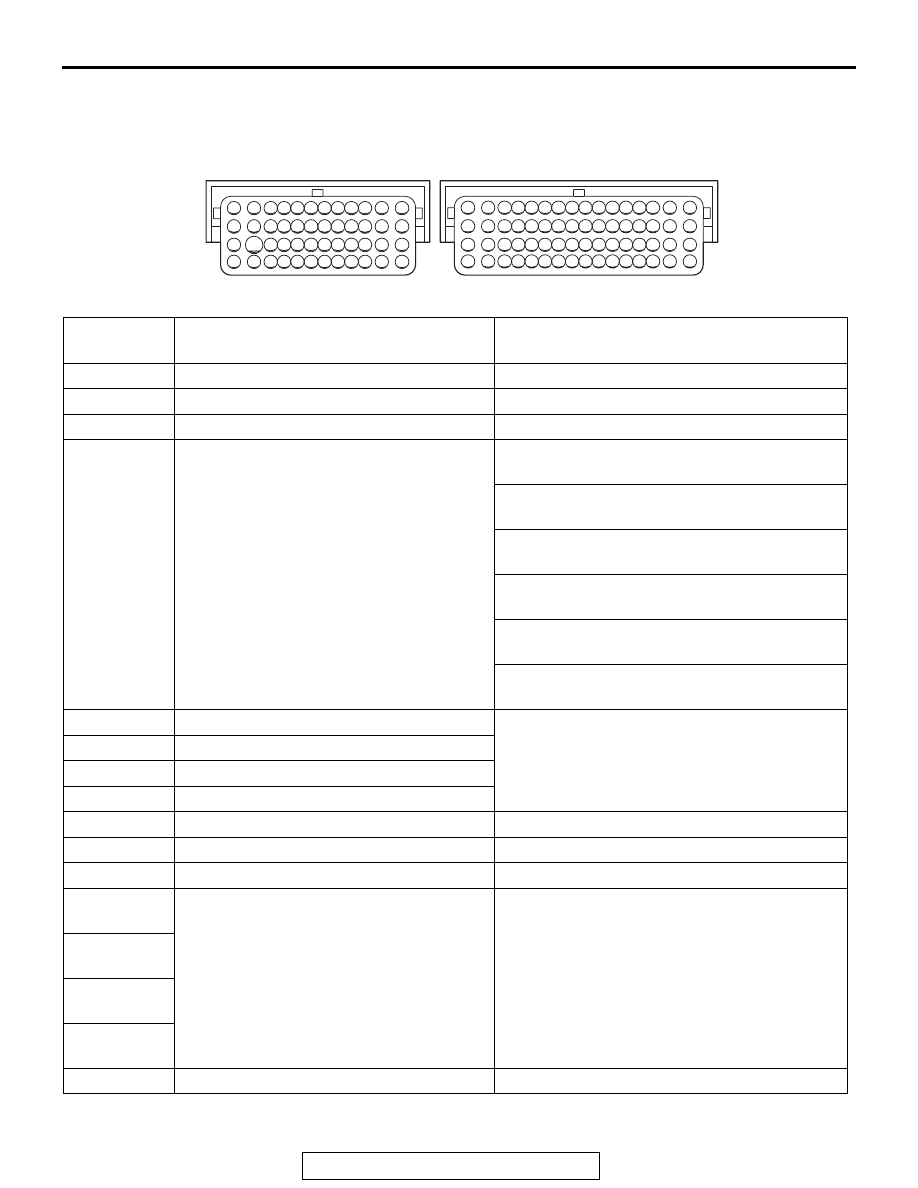

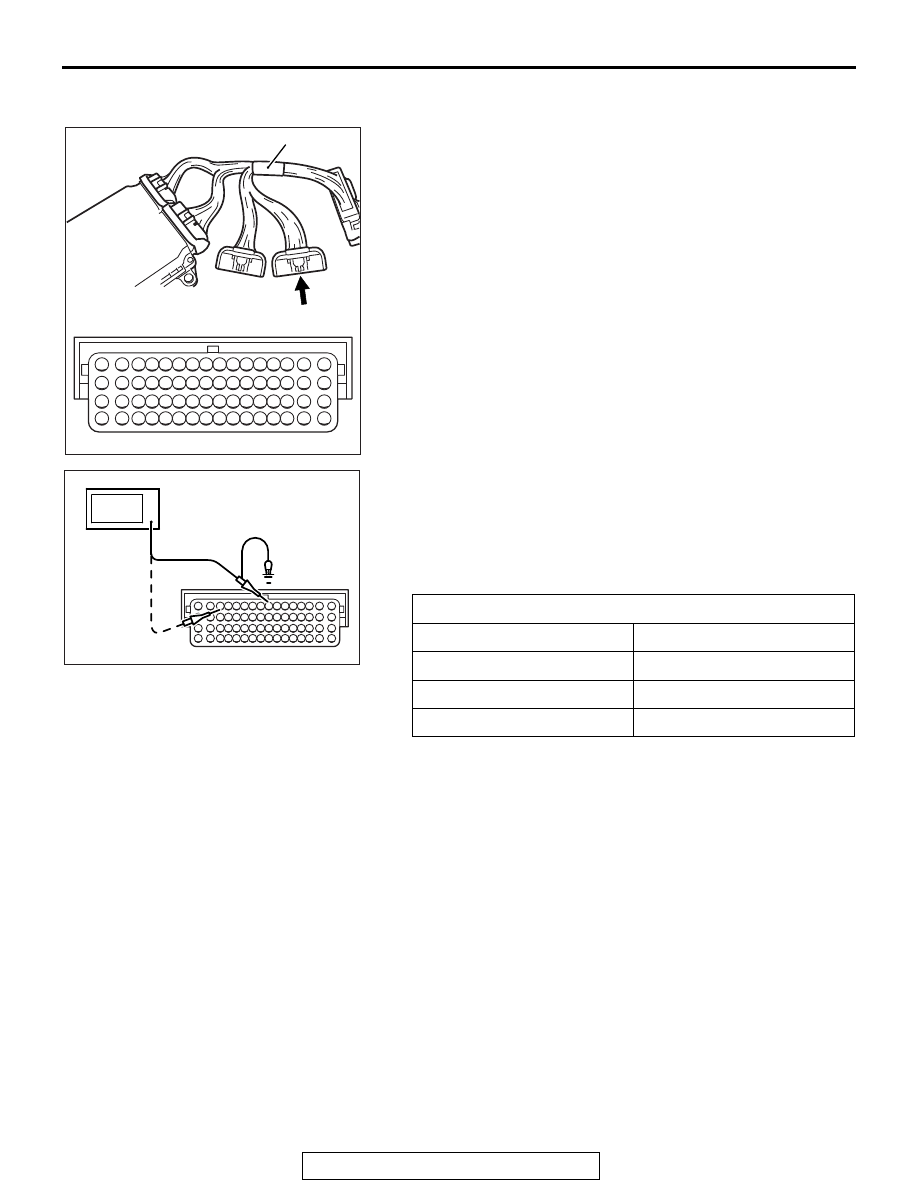

TERMINAL RESISTANCE AND CONTINUITY CHECK
AK700420
82 81 80 79 78 77 76 75 74 73 72 71
94 93 92 91 90 89 88 87 86 85 84 83
99 98 97 96 95
100
101
102
103
104
105
106
112
113
114
109 108
107
110
111
115
116
117
118
16 15 14 13 12 11 10 9 8 7 6 5 4 3
2
1
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
AB
B-10
B-11
ECM Harness side Connector Terminal Arrangement
TERMINAL
NO.
INSPECTION ITEM
NORMAL CONDITION (INSPECTION
CONDITION)
1
− 82
Intake engine oil control valve
6.9
− 7.9 Ω [at 20°C (68°F)]
15
− 16
Throttle actuator control motor
0.3
− 80 Ω [at 20°C (68°F)]
17
− 82
Exhaust engine oil control valve
6.9
− 7.9 Ω [at 20°C (68°F)]
26
− 27
Engine coolant temperature sensor
14
− 17 kΩ [when engine coolant temperature
is
−20°C (−4°F)]
5.1
− 6.5 kΩ [when engine coolant temperature
is 0
°C (32°F)]
2.1
− 2.7 kΩ [when engine coolant temperature
is 20
°C (68°F)]
0.9
− 1.3 kΩ [when engine coolant temperature
is 40
°C (104°F)]
0.48
− 0.68 kΩ [when engine coolant
temperature is 60
°C (140°F)]
0.26
− 0.36 kΩ [when engine coolant
temperature is 80
°C (176°F)]
31
− 82
EGR valve [Stepper motor coil (A)]
20
− 24 Ω [at 20°C (68°F)]
32
− 82
EGR valve [Stepper motor coil (B)]
47
− 82
EGR valve [Stepper motor coil (C)]
48
− 82
EGR valve [Stepper motor coil (D)]
34
− 82
Linear air-fuel ratio sensor heater
2.3
− 4.2 Ω [at 20°C (68°F)]
35
− 82
Heated oxygen sensor (rear) heater
4.5
− 8.0 Ω [at 20°C (68°F)]
37
− 82
Evaporative emission purge solenoid
22
− 26 Ω [at 20°C (68°F)]
71
− Body
ground
ECM ground
Continuity (2
Ω or less)
81
− Body
ground
83
− Body
ground
93
− Body
ground
82
− 117
Evaporative emission ventilation solenoid
17
− 21 Ω [at 20°C (68°F)]
