MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-811

STEP 8. Check for harness damage between MFI relay
connector A-33X (terminal No. 2) and ignition coil
connector B-01, B-19, B-04 and B-18 (terminal No. 3)
NOTE: Check harness after checking intermediate connector
A-13. If intermediate connector is damaged, repair or replace it.
After to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 9. Check for harness damage between ignition coil
connector and ECM connector.

a. Check the harness wire between ignition coil connector

B-01 (terminal No. 2) and ECM connector B-10 (terminal
No. 151) at ignition coil 1.

b. Check the harness wire between ignition coil connector

B-19 (terminal No. 2) and ECM connector B-10 (terminal
No. 143) at ignition coil 2.

c. Check the harness wire between ignition coil connector

B-04 (terminal No. 2) and ECM connector B-10 (terminal
No. 150) at ignition coil 3.

d. Check the harness wire between ignition coil connector

B-18 (terminal No. 2) and ECM connector B-10 (terminal
No. 148) at ignition coil 4.

Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then confirm that the malfunction

symptom is eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-812

Inspection procedure 26: A/C system

AK900376

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

1

2

3
4

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9



1

WHITE

WHITE

7

10A

ORANGE

A/C COMPRESSOR
CLUTCH RELAY

4

2

1

A-16X

B-17

MU802655

A-13

OFF

A/C
REFRIGERANT
TEMPERATURE
SWITCH

A/C COMPRESSOR CLUTCH ASSEMBLY

A/C
COMPRESSOR
CLUTCH

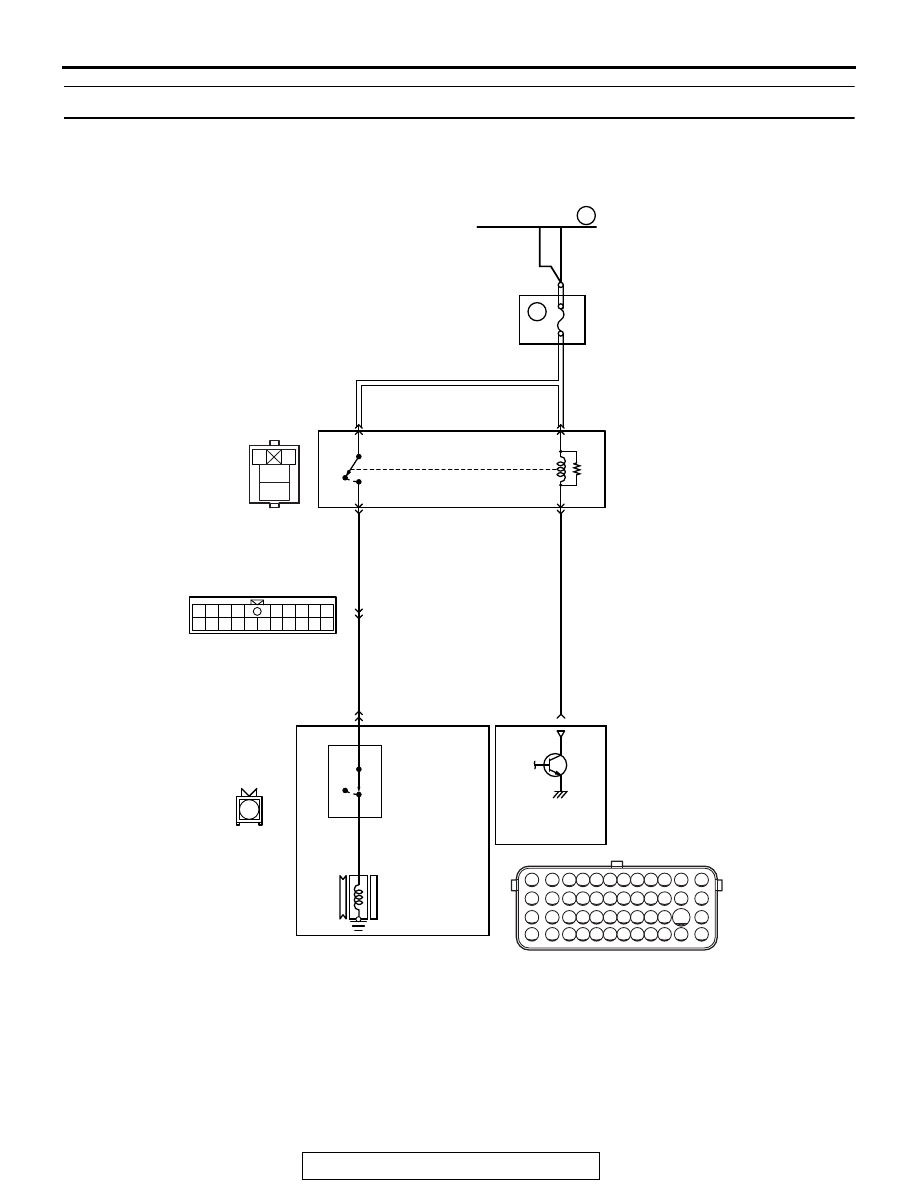

A/C COMPRESSOR CLUTCH RELAY CIRCUIT

102

AC

B-11

LIGHT GREEN

LIGHT GREEN

3

1

5

OFF

ON

ON

FUSIBLE LINK  36

ON

→

OFF

: 155˚C
OFF

→

ON

: 125˚C

RELAY BOX
(ENGINE COMPARTMENT)

ENGINE CONTROL MODULE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-813

.

CIRCUIT OPERATION

• When the A/C switch ON signal is input into the

ECM, the ECM turns ON the A/C compressor
relay. This causes battery positive voltage to be
supplied to the A/C compressor and the magnet
clutch actuates.

.

COMMENT

• When the A/C is "ON" the ECM turns "ON" the

power transistor in the ECM. The ECM delays
A/C engagement momentarily while it increases
idle speed. Then the A/C compressor clutch relay
coil will be energized.

With this, the A/C compressor clutch relay turns
"ON", and the A/C compressor clutch operates.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case: )

• Malfunction of the A/C control system.

• Open or shorted A/C compressor relay circuit,

harness damage, or connector damage.

• Malfunction of the ECM.

DIAGNOSIS

STEP 1. Check harness connector B-11 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK704087AB

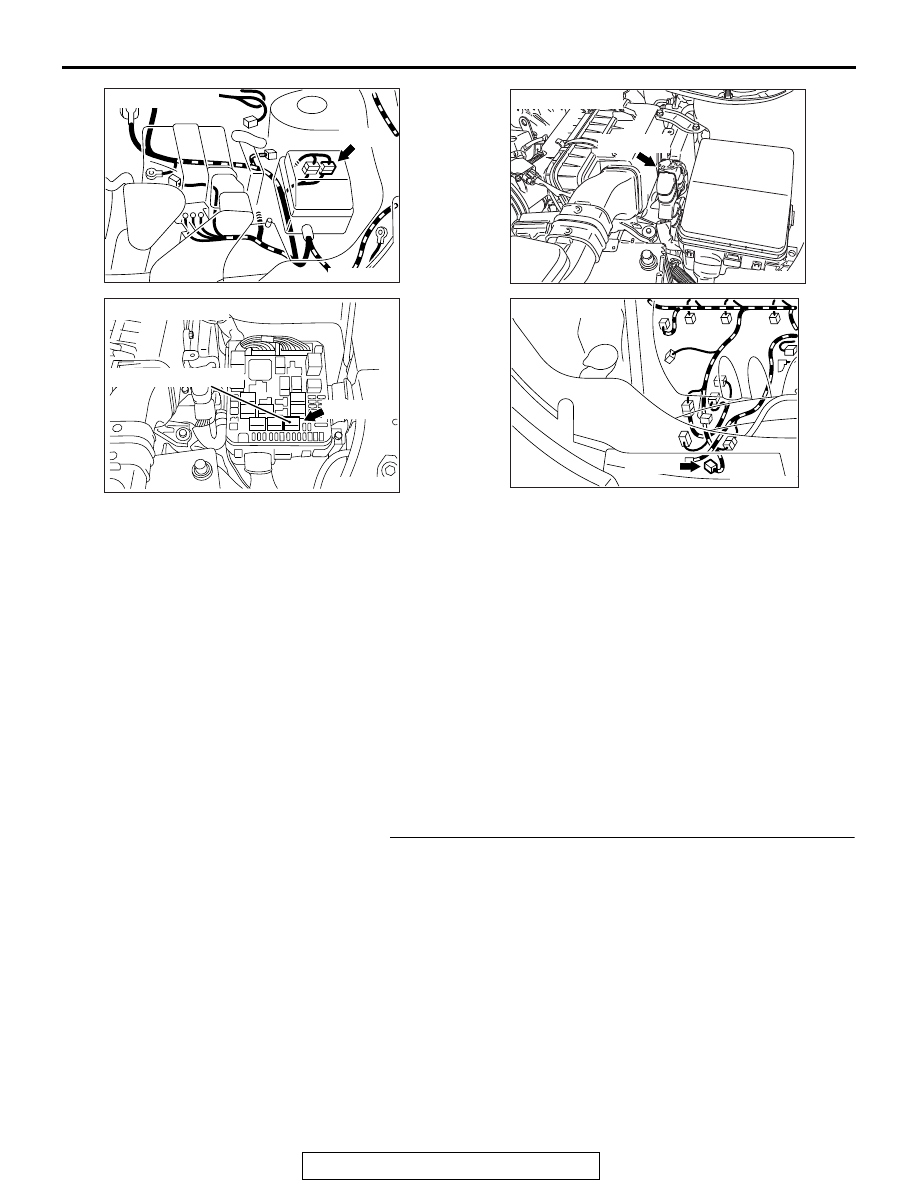

Connector: A-13

A-13

AK704326

AB

A/C compressor relay

Connector: A-16X

A-16X

AK704097AB

Connector: B-11

B-11 (GR)

AK704327

AB

Connector: B-17

B-17 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-814

STEP 2. Check the circuit at ECM connector B-11.

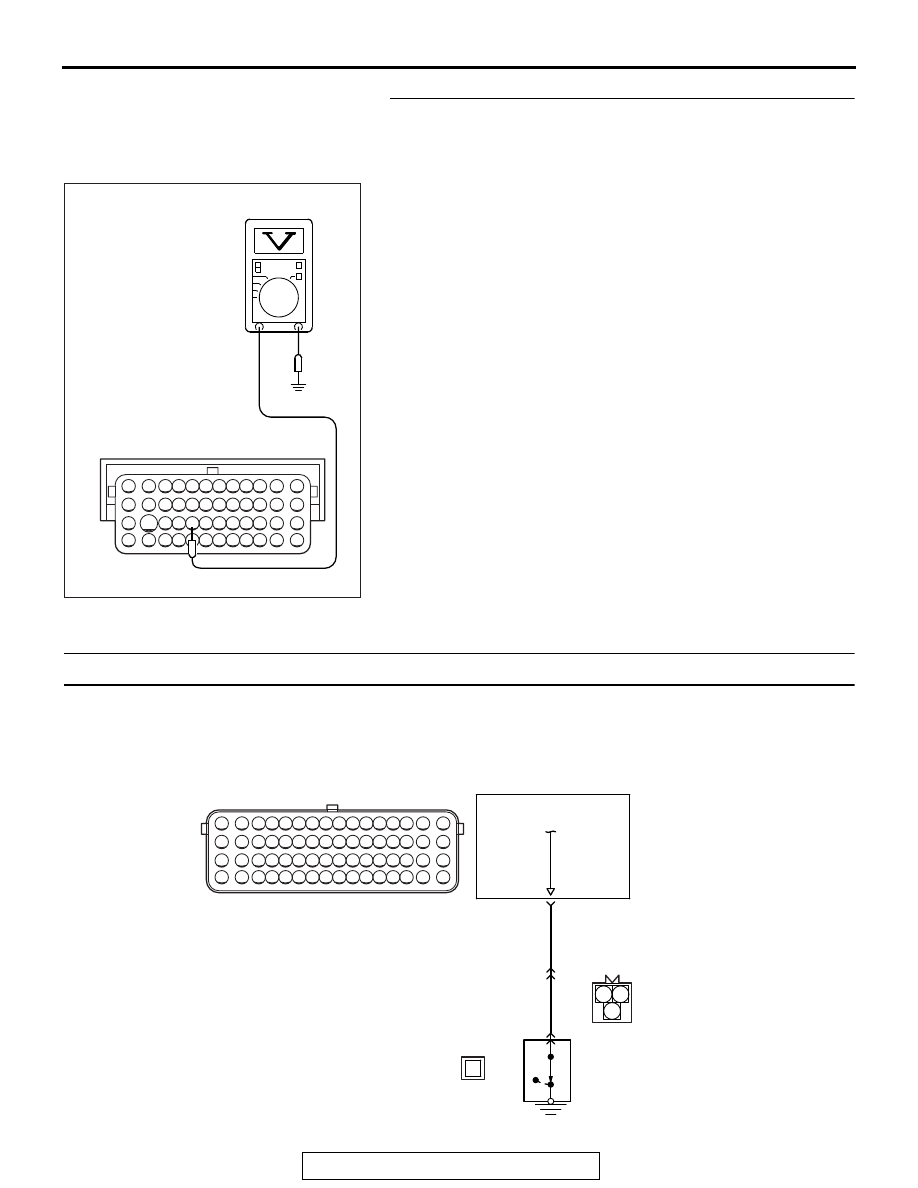

(1) Disconnect the connectors B-11 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 102 and ground.

• Voltage should be battery positive voltage.

(4) Using a jumper wire, connect terminal No. 102 to ground.

• A/C compressor clutch relay should turn "ON".

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage and A/C compressor relay condition

normal?
YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then confirm that the malfunction

symptom is eliminated.

NO  :  Refer to GROUP 55A, Manual A/C Diagnosis

−

Introduction To Heater, Air Conditioning And
Ventilation Diagnosis

P.55A-6

 <Manual A/C>, 55B,

Automatic A/C Diagnosis

− Introduction To Heater, Air

Conditioning And Ventilation Diagnosis

P.55B-3



<Automatic A/C>. Then confirm that the malfunction
symptom is eliminated.

Inspection procedure 27: Engine oil pressure switch system

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

AK700226AB

B-11 harness
connector:
component side

AK604021

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1

2

1

3

36

GRA

Y

GRA

Y

ENGINE OIL
PRESSURE
SWITCH

B-16

1

ENGINE OIL PRESSURE SWITCH CIRCUIT

AC

B-10

OFF

ON

3

B-24

MU802603

ENGINE
CONTROL
MODULE
