MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-623

STEP 3. Replace the heated oxygen sensor (rear).
(1) Replace the heated oxygen sensor (rear).
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 1

P.13A-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P2097 set?

YES :  Go to Step 4.
NO :  The inspection is complete.

STEP 4. Replace the injector.
(1) Replace the injector.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 1

P.13A-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P2097 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

.

NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-624

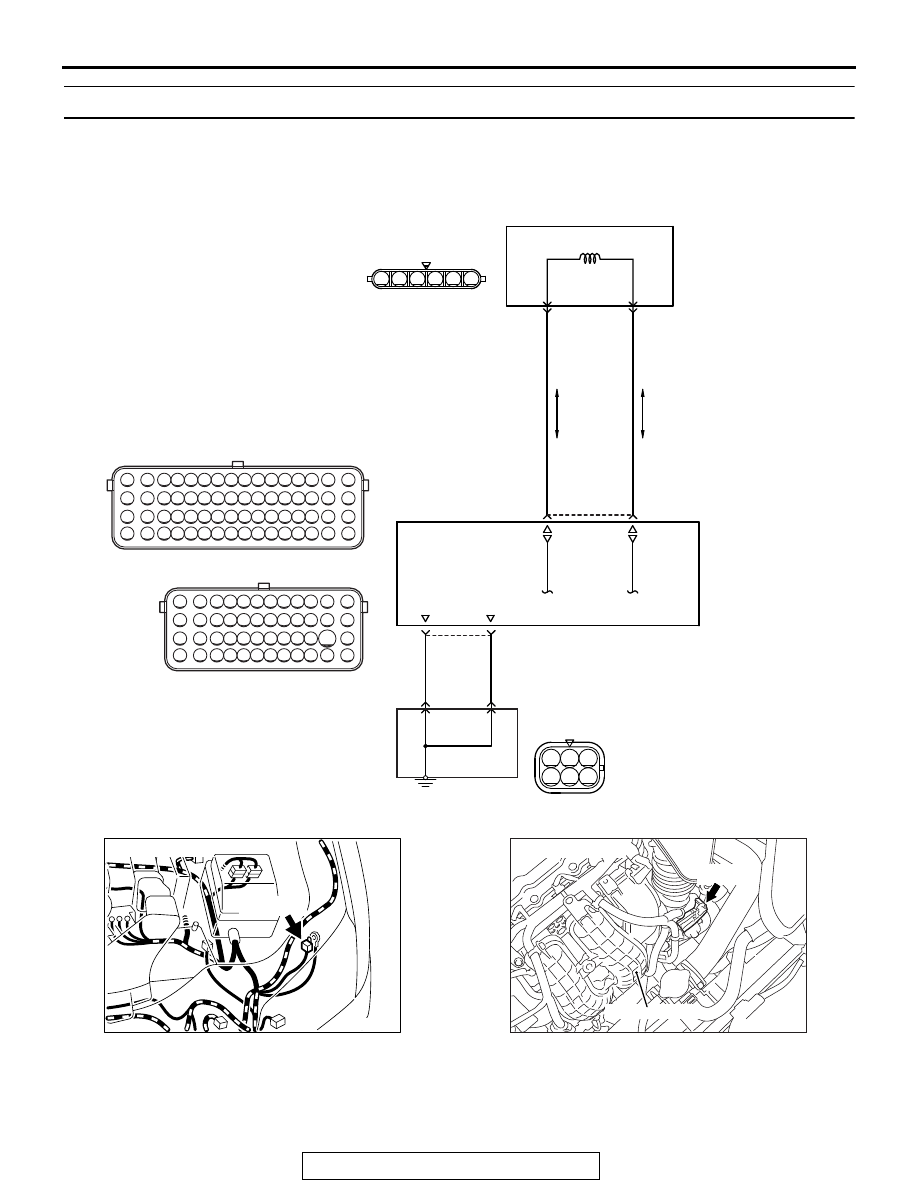

DTC P2100: Throttle Actuator Control Motor Circuit (open)

6

1 2 3 4 5

AKA00830

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

1

2 3

4

5 6

ORANGE

BLUE-WHITE

B-08

(MU805200)

15

1

16

2

GND

GND

B-10

B-11

ENGINE
CONTROL
MODULE

THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT

THROTTLE ACTUATOR
CONTROL MOTOR

AC

BLA

CK

BLA

CK

71

83

3

2

A-66

(MU802755)

GROUND
(FRONT: LH)

AKA00840

Connector: A-66

A-66 (GR)

AB

AK704102AB

Intake manifold

Connector: B-08

B-08 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-625

.

CIRCUIT OPERATION

• Controls the current that is applied from the ECM

(terminals No. 15, No. 16) to the throttle actuator
control motor (terminals No. 1, No. 2).

.

TECHNICAL DESCRIPTION

• ECM varies the direction and the amperage of

the current that is applied to the throttle actuator
control motor in order to control the opening of
the throttle valve.

.

DESCRIPTIONS OF MONITOR METHODS

The voltage difference between the throttle position
sensor output voltage and the throttle position sensor
output at the throttle actuator control motor relay off
is smaller than the specified value.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DTC SET CONDITIONS

Check Conditions

• Battery positive voltage is higher than 8.3 volts.

• The output voltage of the throttle position sensor

(main) minus the proposed output voltage
becomes 0.1 volt or more.

• The output voltage of the throttle position sensor

(sub) minus the proposed output voltage
becomes 0.1 volt or more.

• The drive duty of the throttle actuator control

motor is 100 percent or more.

or

• Battery positive voltage is higher than 8.3 volts.

• The proposed output voltage minus the output

voltage of the throttle position sensor (main)
becomes 0.1 volt or more.

• The proposed output voltage minus the output

voltage of the throttle position sensor (sub)
becomes 0.1 volt or more.

• The drive duty of the throttle actuator control

motor is 100 percent or more.

Judgement Criterion

• The output voltage of the throttle position sensor

(main) minus the learning value of the middle
-opened degree becomes 0.2 volt or less for 0.4
second.

or

• The output voltage of the throttle position sensor

(sub) minus the learning value of the middle
-opened degree becomes 0.2 volt or less for 0.4
second.

.

OBD-II DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Throttle actuator control motor failed.

• Open throttle actuator control motor circuit, har-

ness damage, or connector damage.

• ECM failed.

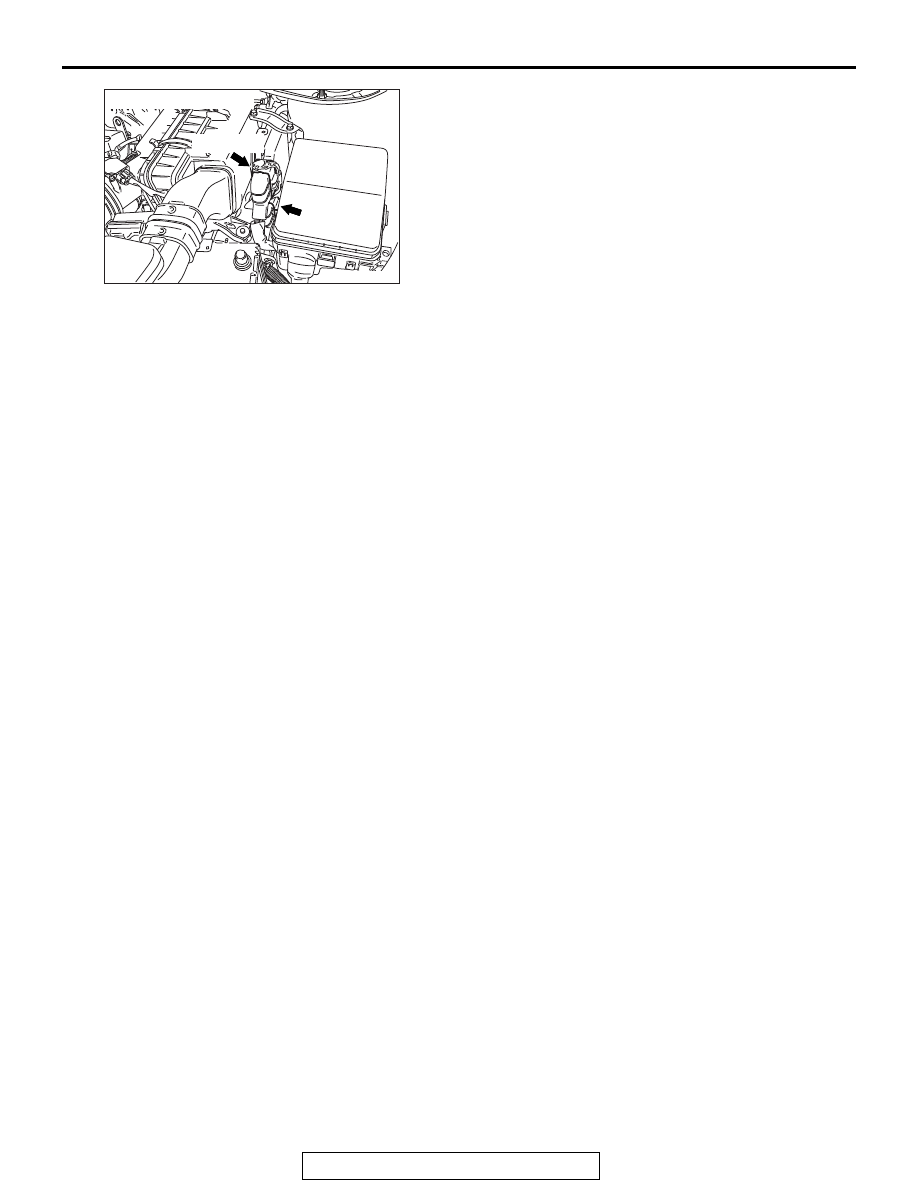

AK704151AB

Connector: B-10, B-11

B-10 (GR)

B-11 (GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-626

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check harness connector B-08 at throttle actuator
control motor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

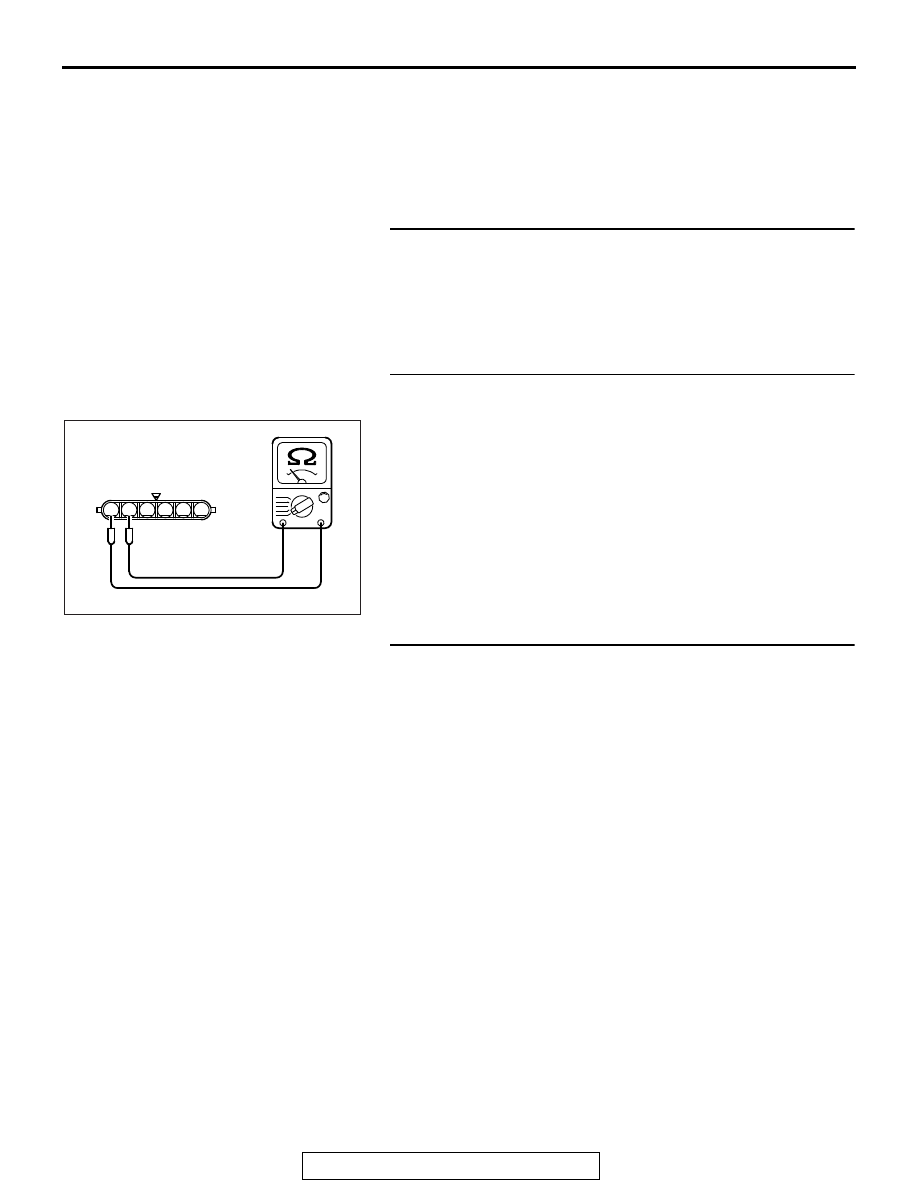

STEP 2. Check the throttle actuator control motor.
(1) Disconnect the connector B-08.
(2) Measure the resistance between throttle actuator control

motor side connector terminal No. 1 and No. 2.

Standard value: 0.3

− 80 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 0.3 and 80 ohms [at

20

°C (68°F)]?

YES : Go to Step 3.
NO :  Replace the throttle body assembly. Then go to Step

9.

STEP 3. Check harness connector B-11 at ECM for damage
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

6

1 2 3 4 5

AK604495AB

Throttle actuator control
motor connector
