MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-519

DTC SET CONDITIONS

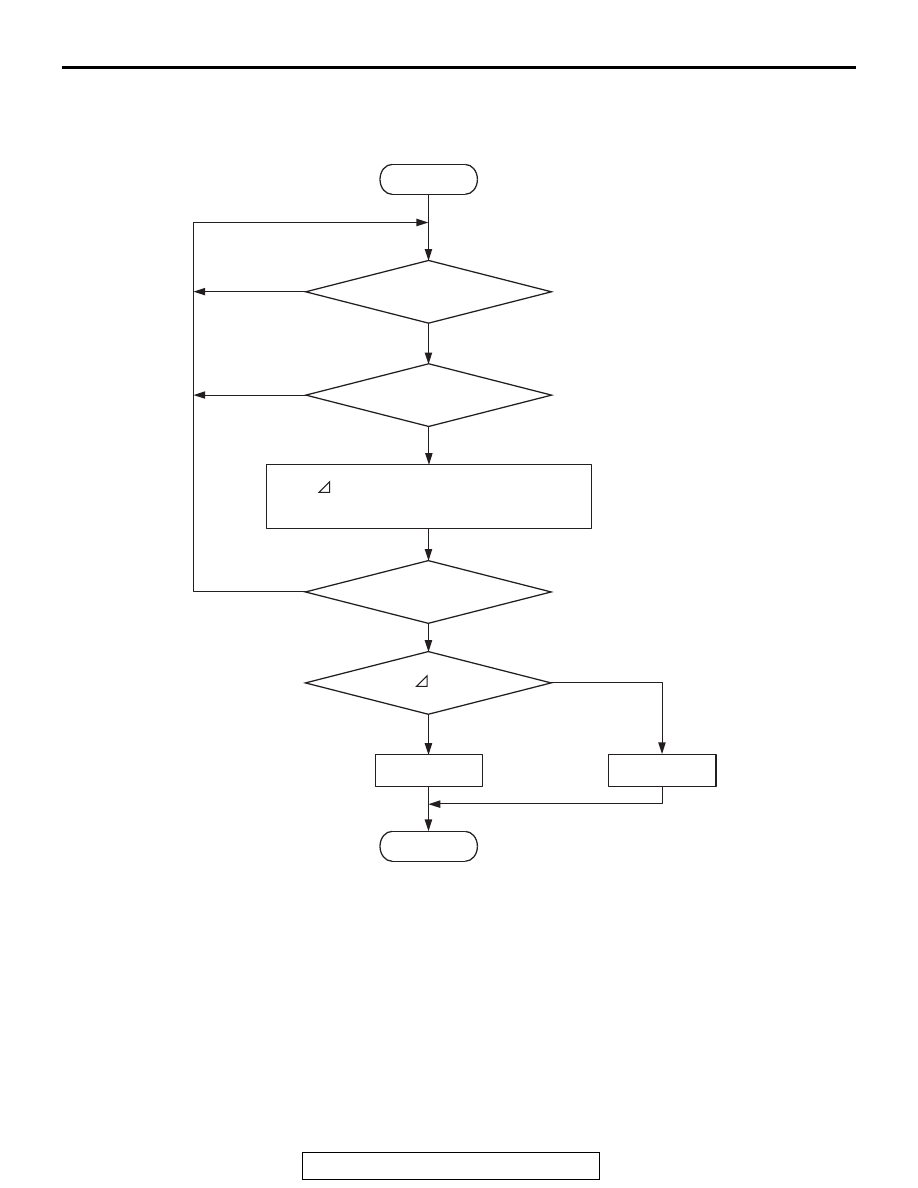

Logic Flow Chart

.

Check Conditions

• Under the ignition timing retard control.

• Engine coolant temperature is between 7°C

(45

°F) and 41°C (106°F).

Judgement Criterion

• For 10 seconds, the difference between the basic

ignition timing and the target/specified ignition
timing is 3

°CA or less on average during the

retard control.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 19

P.13A-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• The thermostat is faulty.

• ECM failed.

End

No

No

Malfunction

Good

Average

θ <= 3˚CA

AK604371

Start

Yes

Yes

Yes

Yes

Monitoring
conditions

10secs have passed

Ignition timing retard

control status ON

θ = Base ignition timing -

      commanded ignition timing

No

No

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-520

DIAGNOSIS

Required Special Tools

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check the throttle body. (throttle valve area)
Q: Is the throttle valve area dirty?

YES : Perform cleaning. Refer to Throttle body (throttle

valve area) cleaning

P.13A-865

. Then go to Step 3.

NO :  Repair it. Then go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P050B set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 3.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 3. Test the OBD-II drive cycle.
(1) Carry out test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 19

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P050B set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

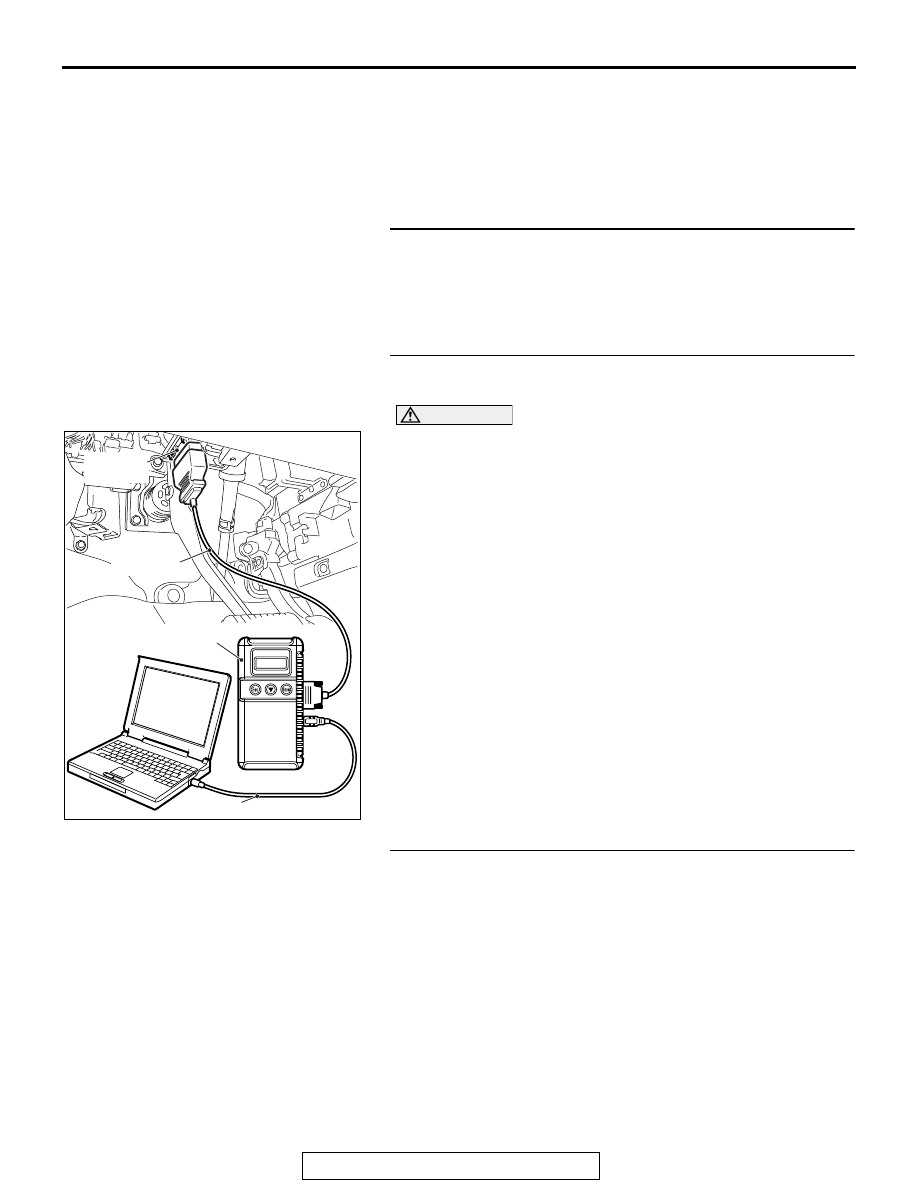

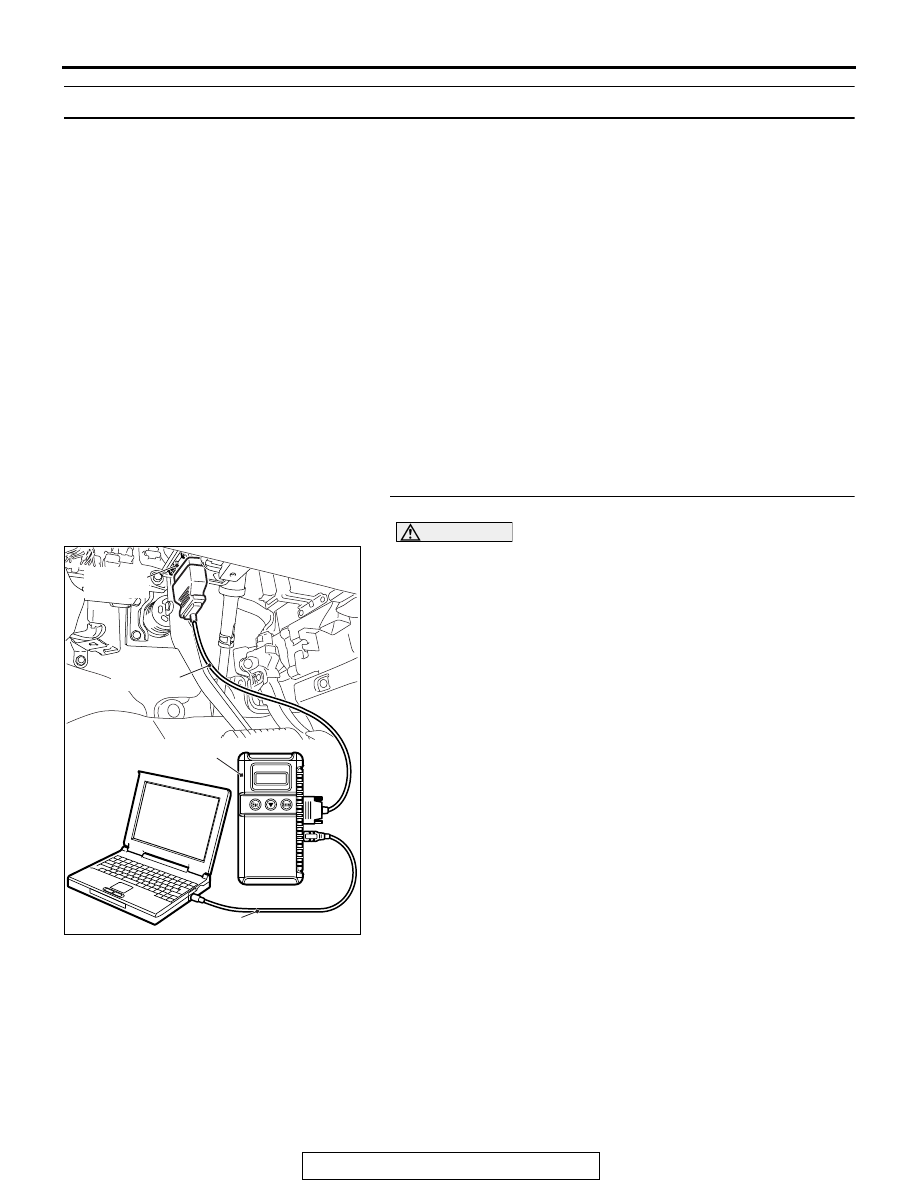

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-521

DTC P0513: Immobilizer Malfunction

.

TECHNICAL DESCRIPTION

• ECM monitors the communication condition with

the immobilizer-ECU. When an abnormality in
communication is found, ECM prevents engine
start.

.

DTC SET CONDITIONS

Check Condition

• Ignition switch is "ON" position.

Judgment Criterion

• When it was different in the encrypted code sent

from immobilizer-ECU and operation result by
ECM.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• CAN system failed.

• Immobilizer system failed.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, check VIN Information.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position
(3) Set scan tool MB991958 to the coding mode for VIN

Information.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Has VIN (current) been written?

YES : Go to Step 2.
NO :  Write VIN. Then go to Step 2.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-522

STEP 2. Using scan tool MB991958, read the immobilizer
diagnostic trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) Read the immobilizer-DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the immobilizer-DTC set?

YES : Refer to GROUP 42B, Diagnosis

− Diagnostic

Trouble Code Chart <Vehicles with KOS>

P.42B-35



or GROUP 42C, diagnosis

− Diagnostic Trouble Code

Chart <Vehicles with WCM>

P.42C-18

.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code (DTC)
(1) Turn the ignition switch to the "ON" position.
(2) After the DTC has been deleted, read the DTC again.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0513 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.
