MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-443

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

3

2

1

AK604513

3

2

1

4

2

3

114

113

112

5 V

AC

D-19

(MU802723)

C-129

B-11

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

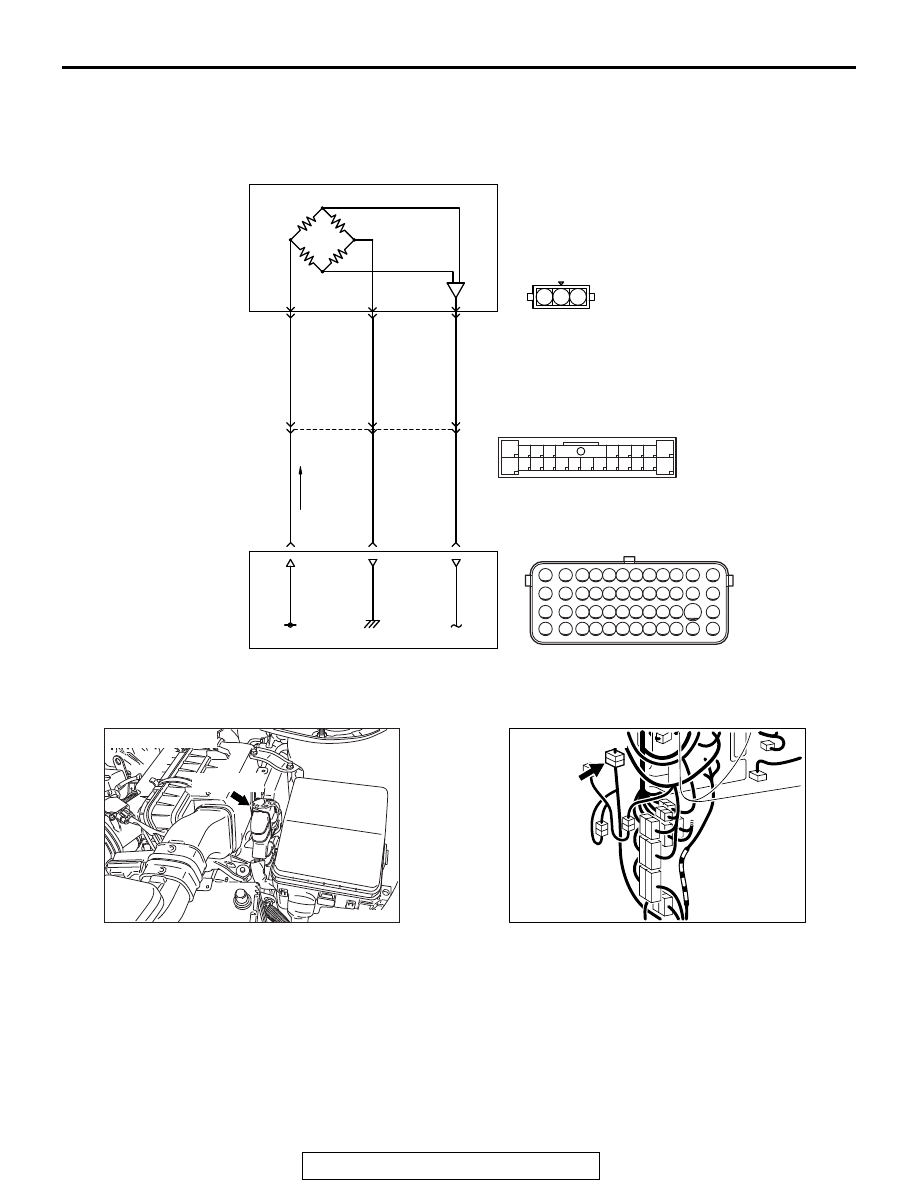

FUEL TANK DIFFERENTIAL PRESSURE SENSOR CIRCUIT

ENGINE CONTROL
MODULE

YELLO

W

-BLA

CK

YELLO

W

-BLA

CK

BR

O

W

N

BR

O

W

N

RED-GREEN

RED-GREEN

AK704097AB

Connector: B-11

B-11 (GR)

AK900595

Connector: C-129

C-129

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-444

.

CIRCUIT OPERATION

• The ECM (terminal No. 114) supplies a 5 volts

reference signal to the fuel tank differential pres-
sure sensor (terminal No. 3). The fuel tank differ-
ential pressure sensor (terminal No. 2) is
grounded through the ECM (terminal No. 113).

• The fuel tank differential pressure sensor (termi-

nal No. 1) returns a voltage signal to the ECM
(terminal No. 112) that is proportional to the pres-
sure in the fuel tank.

.

TECHNICAL DESCRIPTION

• The ECM monitors the fuel tank differential pres-

sure sensor signal voltage.

• The ECM determines whether the fuel tank differ-

ential pressure sensor signal voltage is within
normal operating parameters.

.

DESCRIPTIONS OF MONITOR METHODS

• Detect malfunction if change of fuel tank differen-

tial pressure sensor output voltage during idling
stays large during specified go/stop operations.

.

MONITOR EXECUTION

• Continuous.

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission ventilation solenoid monitor

• Fuel temperature sensor monitor

• Fuel level sensor monitor

 Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

• Accelerator pedal position sensor

.

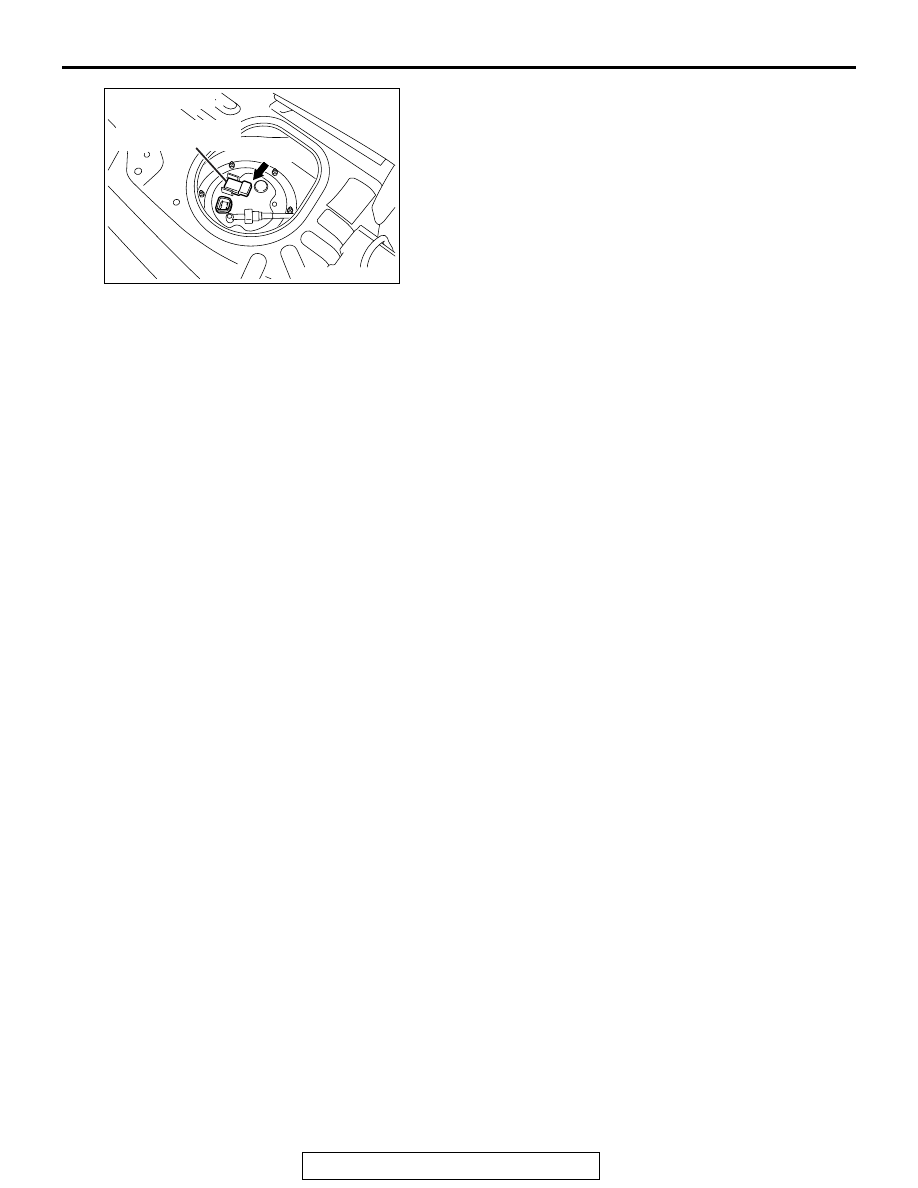

AK704189

Fuel tank differential
pressure sensor

D-19

Connector: D-19

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-445

DTC SET CONDITIONS

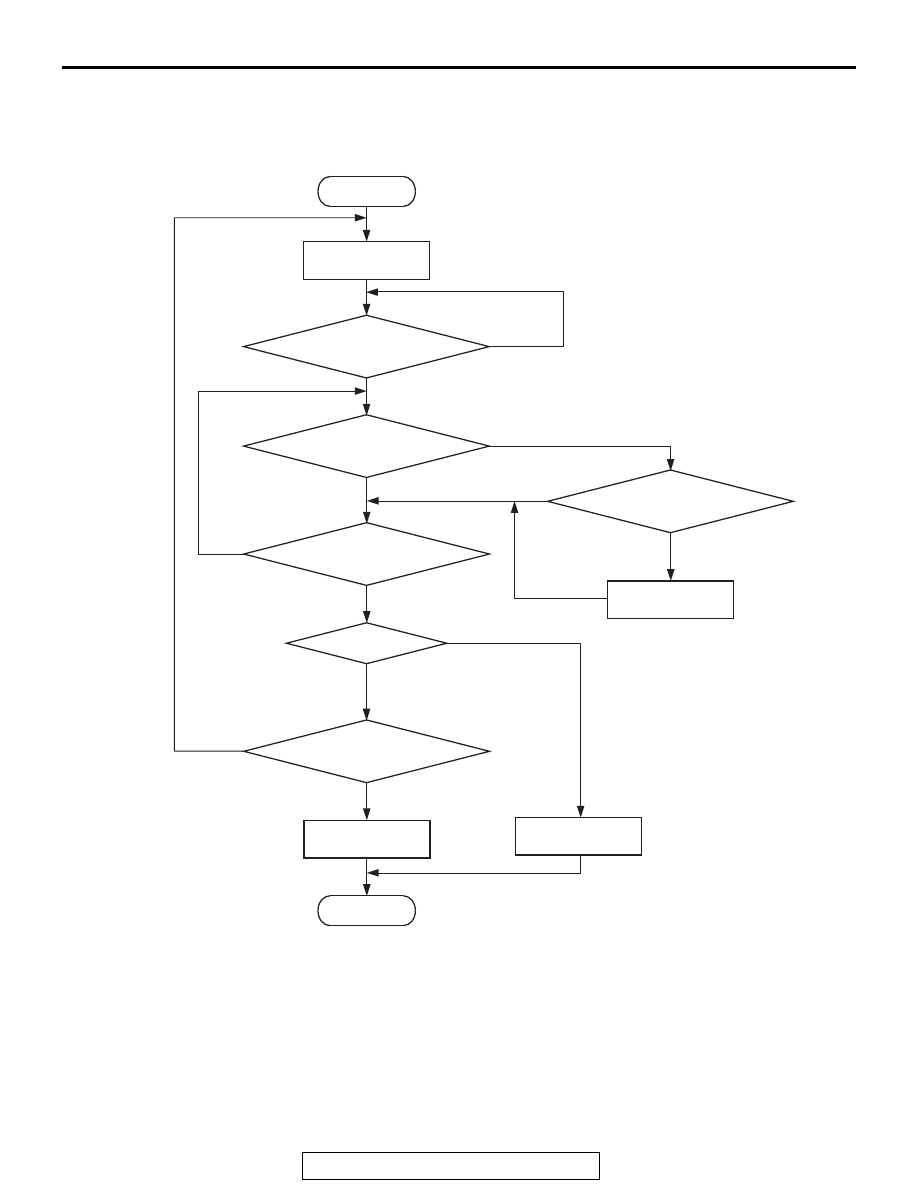

Logic Flow Chart (Monitor Sequence)

.

Check Conditions

• Accelerator pedal is not depressed.

• Vehicle speed is 1.5 km/h (1 mph) or less.

NOTE: The conditions for deviating from idling oper-
ation are as follows:

.

Vehicle speed is 50 km/h (31 mph) or more.

Judgement Criteria

• The drastic pressure fluctuation is detected 20

times or more per engine idling, which is that the
fuel tank differential pressure sensor output volt-
age is 0.2 V or more.

AK705072

Start

Off-idling condition

Idling condition?

F1 = 0

Off-idling condition

Yes

No

End

No

Malfunction

F1 > 20

FTPS output voltage

fluctuation > 0.2V

No

Yes

Yes

F1 = F1 + 1

Good

No

Yes

Yes

No

Yes

No

Specified times

monitored

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-446

• The condition described above is consecutively

detected 4 times under the normal driving condi-
tions

NOTE: If the number of sudden pressure fluctuations
does not reach twenty during any one period of
engine idling, or if the ignition switch is turned OFF,
the counter will reset to zero.

.

OBD-ll DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Pattern 16

P.13A-11

.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Fuel tank differential pressure sensor failed.

• Fuel tank differential pressure sensor circuit har-

ness damage, or connector damage.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A
