MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS
TSB Revision
MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>
13A-431
STEP 6. Check harness connector B-11 at the crankshaft
position sensor for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 7.
NO : Repair or replace it. Refer to GROUP 00E, Harness
Connector Inspection
. Then go to Step 10.

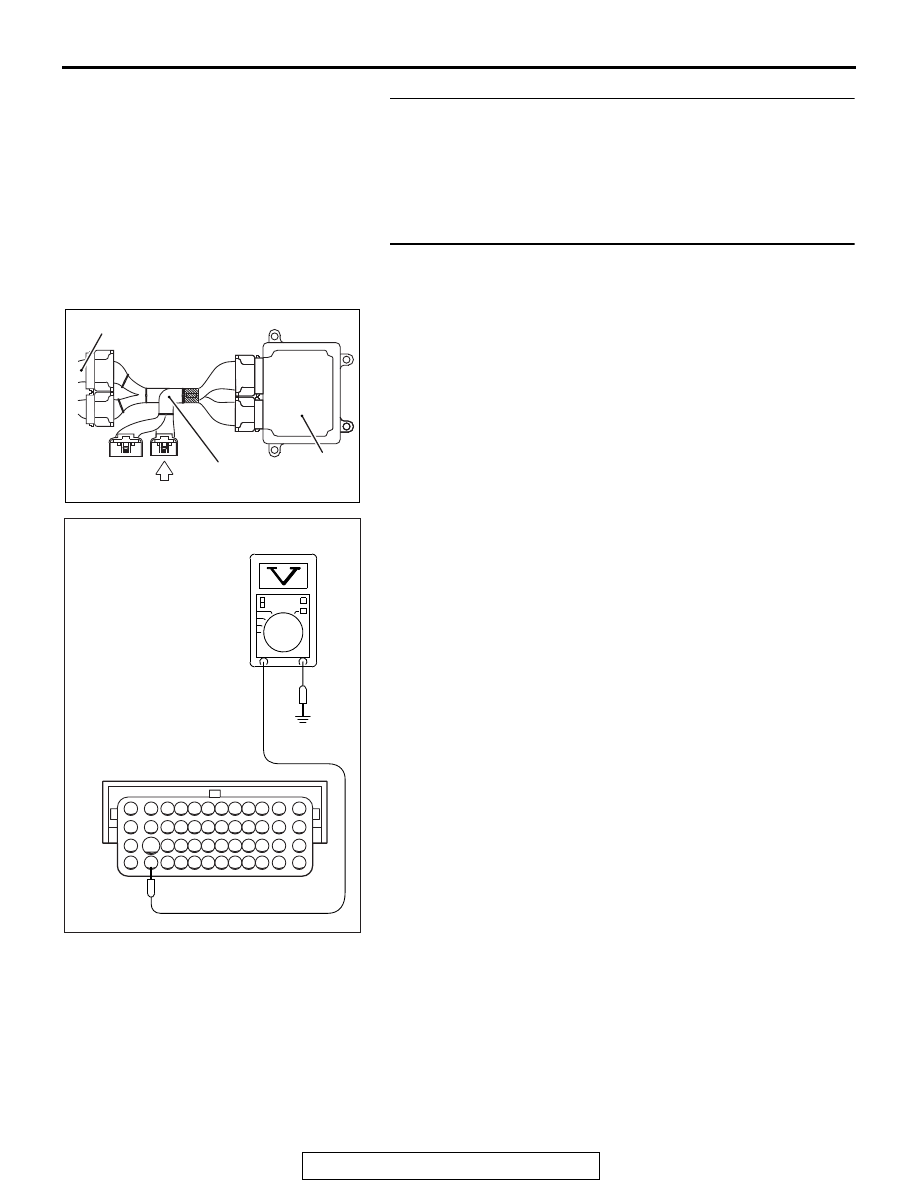

STEP 7. Measure the power supply voltage at ECM
connector B-11 by using power plant ECU check harness
special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant
ECU check harness special tool MB992110 between the
separated connectors.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 117 and ground.
• Voltage should be battery positive voltage.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)
present?
YES : Go to Step 8.
NO : Check harness connectors C-129 and D-113 at
intermediate connector for damage, and repair or
replace as required. Refer to GROUP 00E, Harness
Connector Inspection
. If intermediate
connector is in good condition, repair harness wire

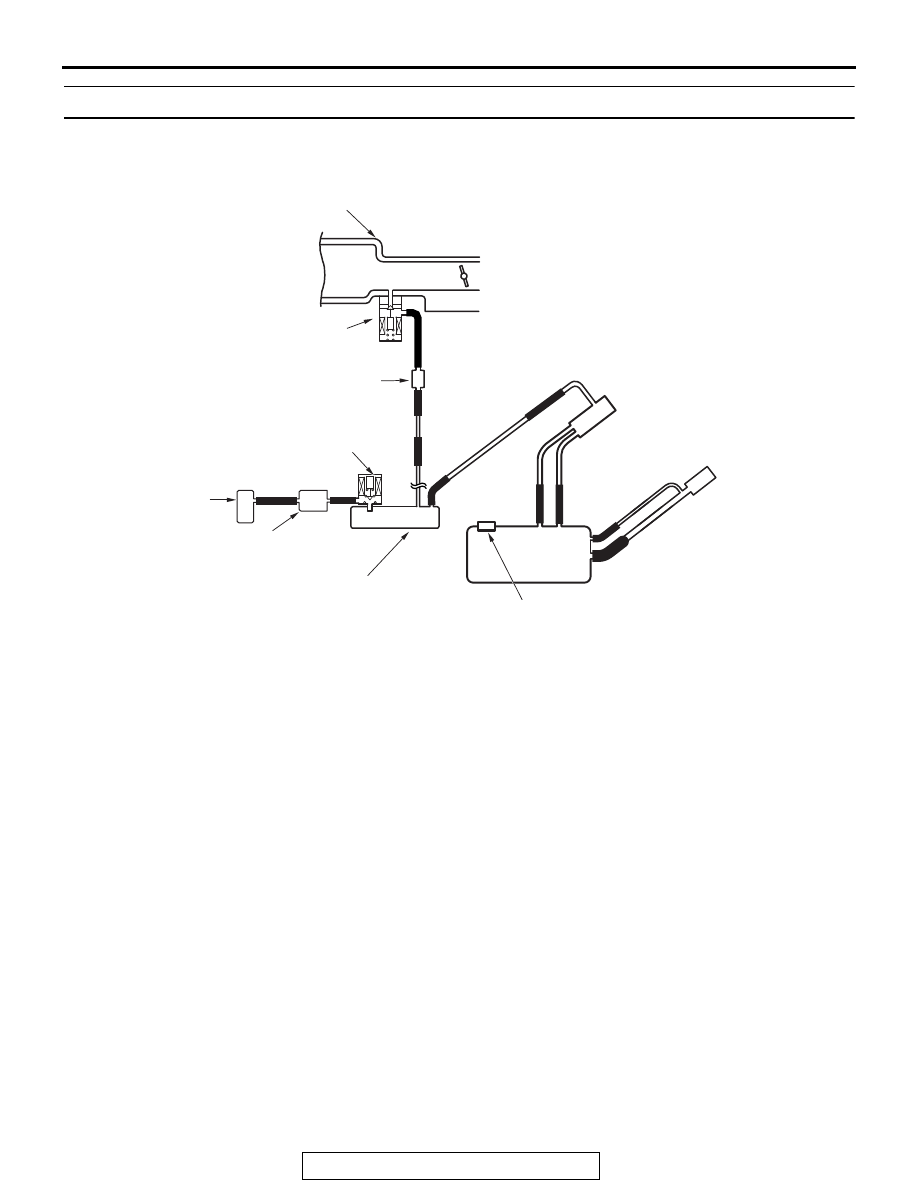

between evaporative emission ventilation solenoid
connector D-116 (terminal No. 1) and ECM connector
B-11 (terminal No. 117) because of open circuit or
short circuit to ground. Then go to Step 10.

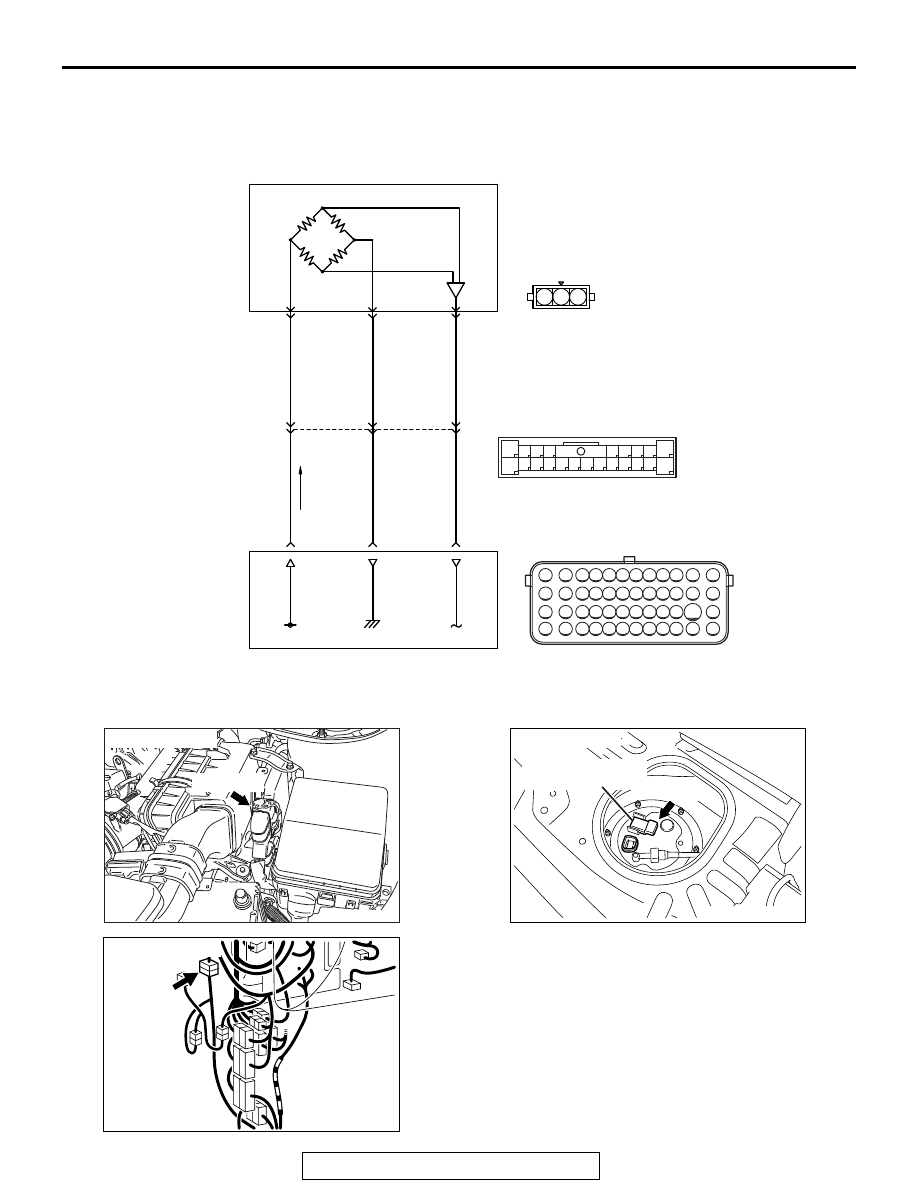

AK604171
ECM
AB
Body side harness
MB992110
82 81 80 79 78 77 76 75 74 73 72 71
94 93 92 91 90 89 88 87 86 85 84 83
99 98 97 96 95
100
101
102
103
104
105
106
112
113
114
109 108
107
110
111
115
116
117
118
AK604210 AB
Power plant ECU
check harness connector
