MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-291

STEP 8. Check harness connector B-11 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

STEP 9. Check for harness damage between fuel tank
temperature sensor connector D-20 (terminal No. 3) and
ECM connector B-11 (terminal No. 115).
NOTE: Check harness after checking intermediate connector
C-129. If the intermediate connector is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 10.

Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 10.

NO :  Repair it. Then go to Step 10.

STEP 10. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 23

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0183 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-292

DTC P0201: Injector Circuit-Cylinder 1

AKA00837

1

3

2

4

1

2

3
4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2 3 4

5 6 7

15

14

13

12

11

9

8

1

6

4

5

9

8

10

10

11

13

15

14

12

16

7

2 3

2

1

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9



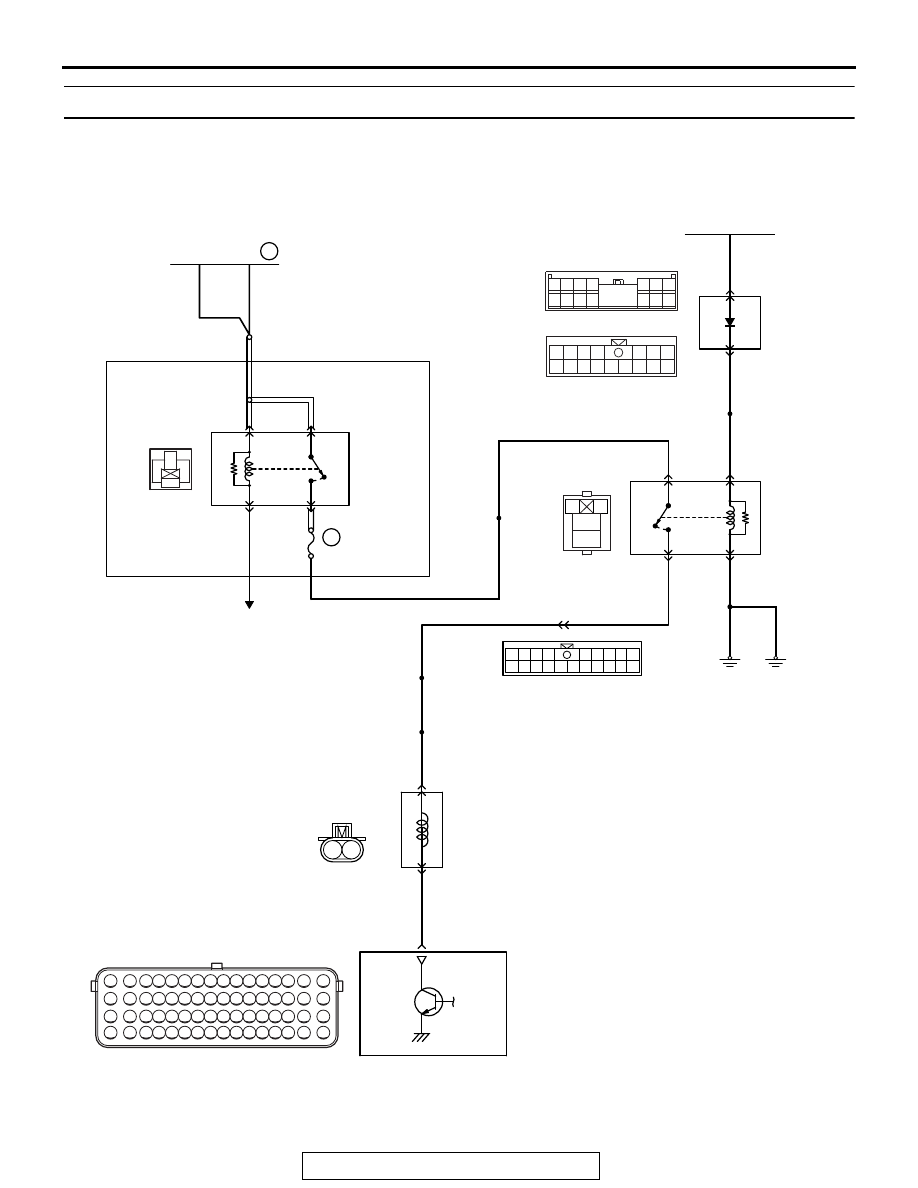

INJECTOR CIRCUIT-CYLINDER 1

BLUE

B-10

AB

20A

WHITE

WHITE

A-33X

MFI
RELAY

4

3

1

2

22

36

FUSIBLE LINK

OFF

ON

4

1

7

A-13

A-24X

3

2

INJECTOR
RELAY

OFF

ON

RELAY BOX
(ENGINE COMPARTMENT)

ENGINE CONTROL MODULE

TO ECM

BLA

CK

BLA

CK

BLA

CK

INJECTOR
NO. 1

B-101

(MU802062)

1

2

2

RED-

WHITE

RED-

WHITE

RED-

WHITE

GREEN-

WHITE

WHITE

WHITE

WHITE

VIOLET

VIOLET

10

6

C-304

C-317

IGNITION
SWITCH (IG1)

ETACS-
ECU

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-293

.

CIRCUIT OPERATION

• The injector power is supplied from the injector

relay (terminal No. 3).

• The ECM controls the injector by turning the

power transistor in the ECM "ON" and "OFF".

.

TECHNICAL DESCRIPTION

• The amount of fuel injected by the injector is con-

trolled by the amount of continuity time the coil is
grounded by the ECM.

.

DESCRIPTIONS OF MONITOR METHODS

The ECM detects open circuit and short malfunction.

.

MONITOR EXECUTION

Continuous

.

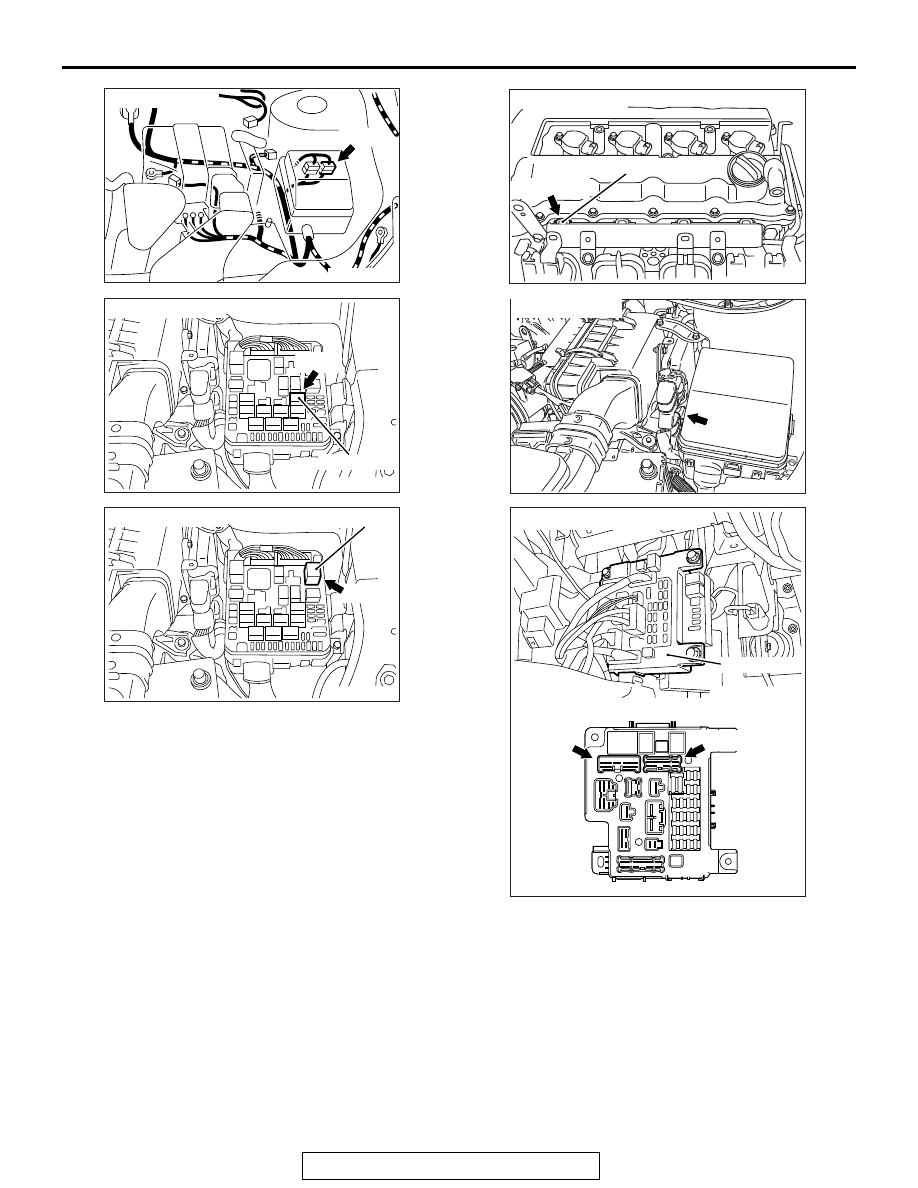

AK704087AB

Connector: A-13

A-13

AK704115

Injector relay

AB

Connector: A-24X

A-24X

AK704088

MFI relay

AB

Connector: A-33X

A-33X

AK704116

Injector No. 1

AB

Connector: B-101

B-101 (GR)

AK704090AB

Connector: B-10

B-10 (GR)

AK704117 AB

ETACS-ECU

Connectors: C-304, C-317

C-317

C-304

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-294

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DTC SET CONDITIONS <Circuit continuity

− open circuit and shorted low>

Logic Flow Chart

Check Condition

• Engine is running.

Judgement Criterion

• The supply voltage is 3 volts or less without the

injector driving for 2 seconds.

.

Good

Malfunction

Injector voltage <= 3V

End

No

No

No

No

AK604331

Start

Yes

Yes

Continuous

failure for 2secs

Monitoring
conditions
