MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-271

STEP 2. Using scan tool MB991958, check data list item 5:
Intake Air Temperature Sensor.
(1) Turn the ignition switch to the "ON" position.
(2) Set scan tool MB991958 to the data reading mode for item

5, Intake Air Temperature Sensor.

• The intake air temperature and temperature shown with

the scan tool should approximately match.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 3.
NO :  Refer to DTC P0111

− Intake Air Temperature Circuit

Range/Performance Problem

P.13A-161

, DTC P0112

− Intake Air Temperature Circuit Low Input

P.13A-167

, DTC P0113

− Intake Air Temperature

Circuit High Input

P.13A-171

.

STEP 3. Using scan tool MB991958, check data list item 6:
Engine Coolant Temperature Sensor.
(1) Turn the ignition switch to the "ON" position.
(2) Set scan tool MB991958 to the data reading mode for item

6, Engine Coolant Temperature Sensor.

• The engine coolant temperature and temperature

shown with the scan tool should approximately match.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 4.
NO :  Refer to DTC P0116

− Engine Coolant Temperature

Circuit Range/Performance Problem

P.13A-177

, DTC

P0117

− Engine Coolant Temperature Circuit Low

Input

P.13A-183

, DTC P0118

− Engine Coolant

Temperature Circuit High Input

P.13A-187

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-272

STEP 4. Using scan tool MB991958, check data list item 8:
Manifold Absolute Pressure Sensor.
(1) Turn the ignition switch to the "ON" position.
(2) Set scan tool MB991958 to the data reading mode for item

8, Manifold Absolute Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

in.Hg).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

in.Hg).

(3) Start the engine.

• When the engine is idling, 16 − 36 kPa (4.7 − 10.6

in.Hg).

• When the engine is suddenly revved, manifold absolute

pressure varies.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 5.
NO :  Refer to DTC P0106

− Manifold Absolute Pressure

Circuit Range/Performance Problem

P.13A-139

, DTC

P0107

− Manifold Absolute Pressure Circuit Low

Input

P.13A-148

, DTC P0108

− Manifold Absolute

Pressure Circuit High Input

P.13A-156

.

STEP 5. Check the injector.
(1) Disconnect the injector connector B-101, B-120, B-103 and

B-116.

(2) Measure the resistance between each injector side

connector terminal No. 1 and No. 2.

Standard value: 10.5

− 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 6.
NO :  Replace the injector. Then go to Step 8.

STEP 6. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13A-868

.

Q: Is the fuel pressure normal?

YES : Go to Step 7.
NO :  Repair it. Then go to Step 8.

AK604038

1 2

AB

Injector side
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-273

STEP 7. Replace the injector.
(1) Replace the injector.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 21

P.13A-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P0172 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 8.

NO :  The inspection is complete.

STEP 8. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 21

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0172 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-274

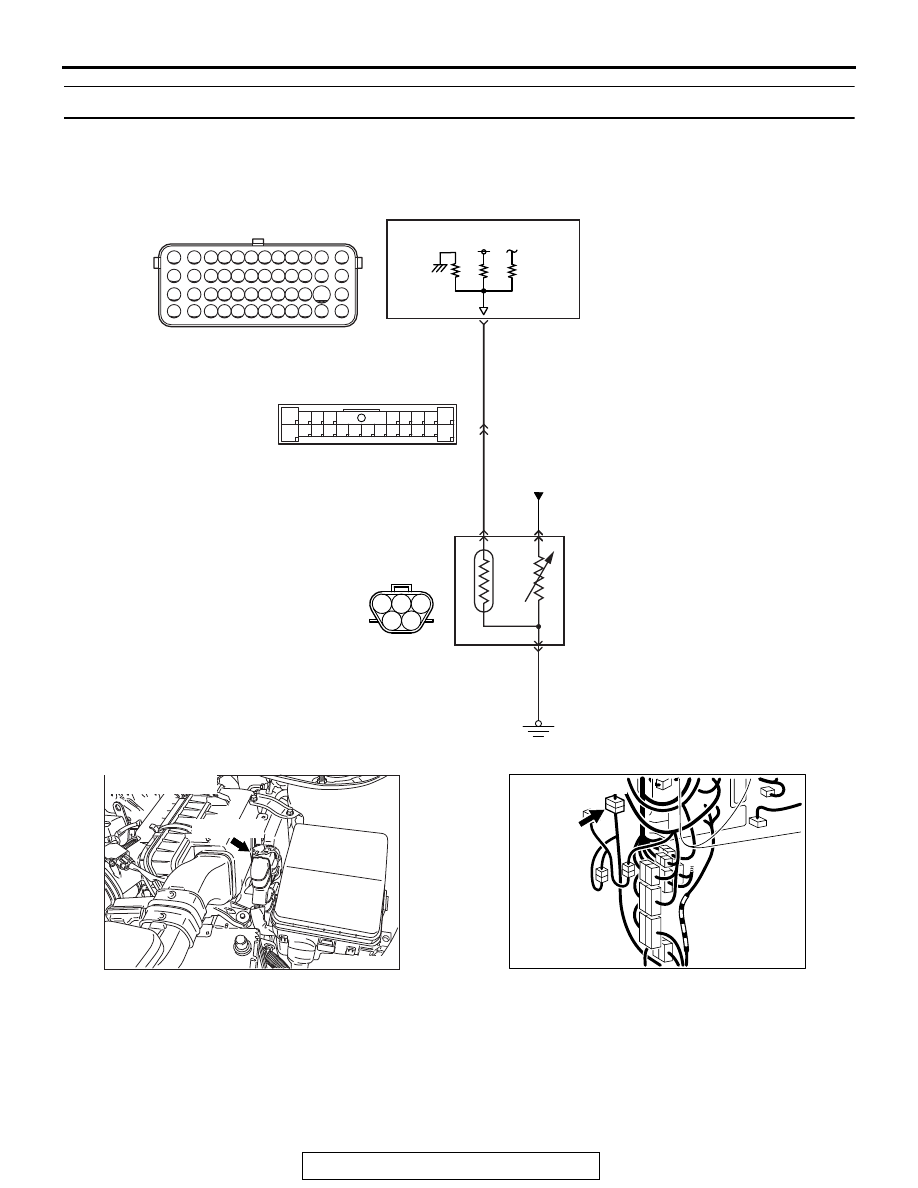

DTC P0181: Fuel Tank Temperature Sensor Circuit Range/Performance

1

2 3

4

5

AK704106

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

AB

FUEL TANK TEMPERATURE  SENSOR  CIRCUIT

7

3

2

1

BLA

CK

D-20

(MU802058)

115

FUEL TANK TEMPERATURE
SENSOR (INTEGRATED IN FUEL
PUMP MODULE)

5 V

VIOLET

VIOLET

B-11

C-129

FROM
COMBNATION
METER

ENGINE
CONTROL
MODULE

AK704097AB

Connector: B-11

B-11 (GR)

AK900595

Connector: C-129

C-129

AB
