Mitsubishi Outlander GS45X. Manual - part 531





CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-23

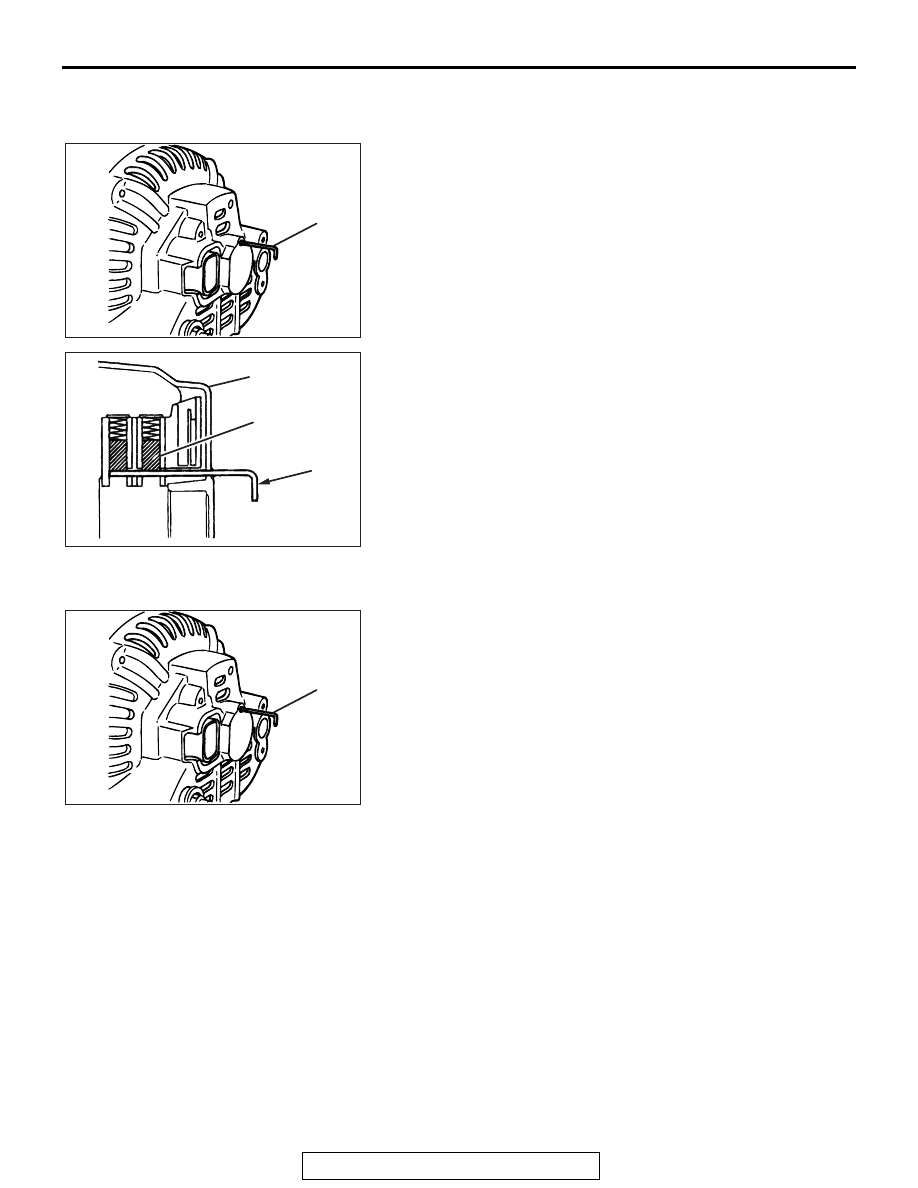

REASSEMBLY SERVICE POINTS

.

>>A<< REGULATOR ASSEMBLY INSTALLATION

After installing the regulator assembly, insert a piece of wire
through the hole in the rear bracket while pressing the brush to
keep the brush against movement.
NOTE: Holding the brush with the wire facilities installation of
the rotor.

.

>>B<< ROTOR INSTALLATION

Remove the brush holding wire after the rotor has been
installed.

.

AK304673

Wire

AE

AK304674

Rear bracket

Brush

Wire

AE

AK304673

Wire

AE

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-24

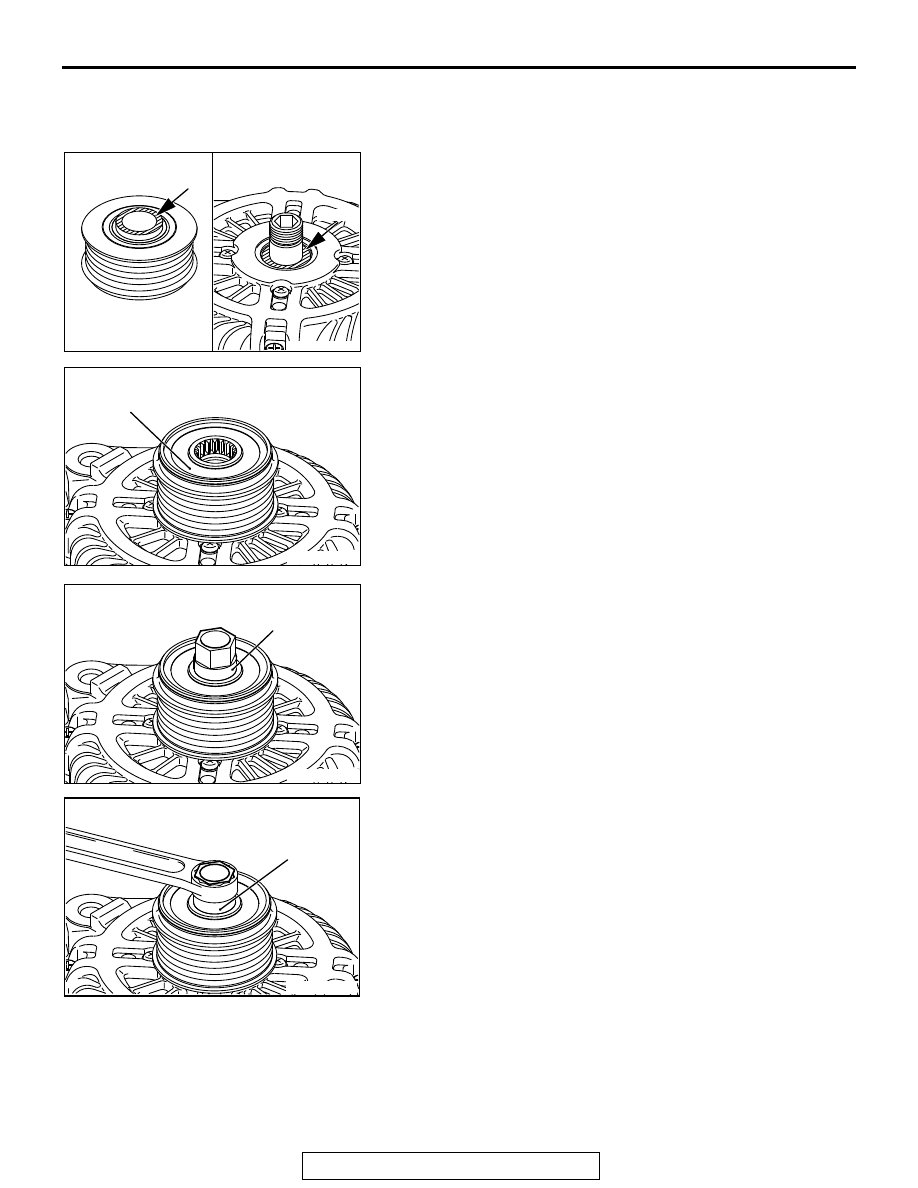

>>C<< PULLEY INSTALLATION<2.4L ENGINE>

1. Clean the inner race of the front bearing and that of the

pulley.

2. Screws the inner race of the pulley until it touches the inner

race of the front bearing.

3. Set the special tool Serration socket (MB992226) to the

pulley.

4. Set the closed wrench to the hexagonal area of the special

tool Serration socket (MB992226).

AK602609 AF

Clean

Clean

AK602610AF

Pulley

AK602611AF

MB992226

AK602612 AF

MB992226

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-25

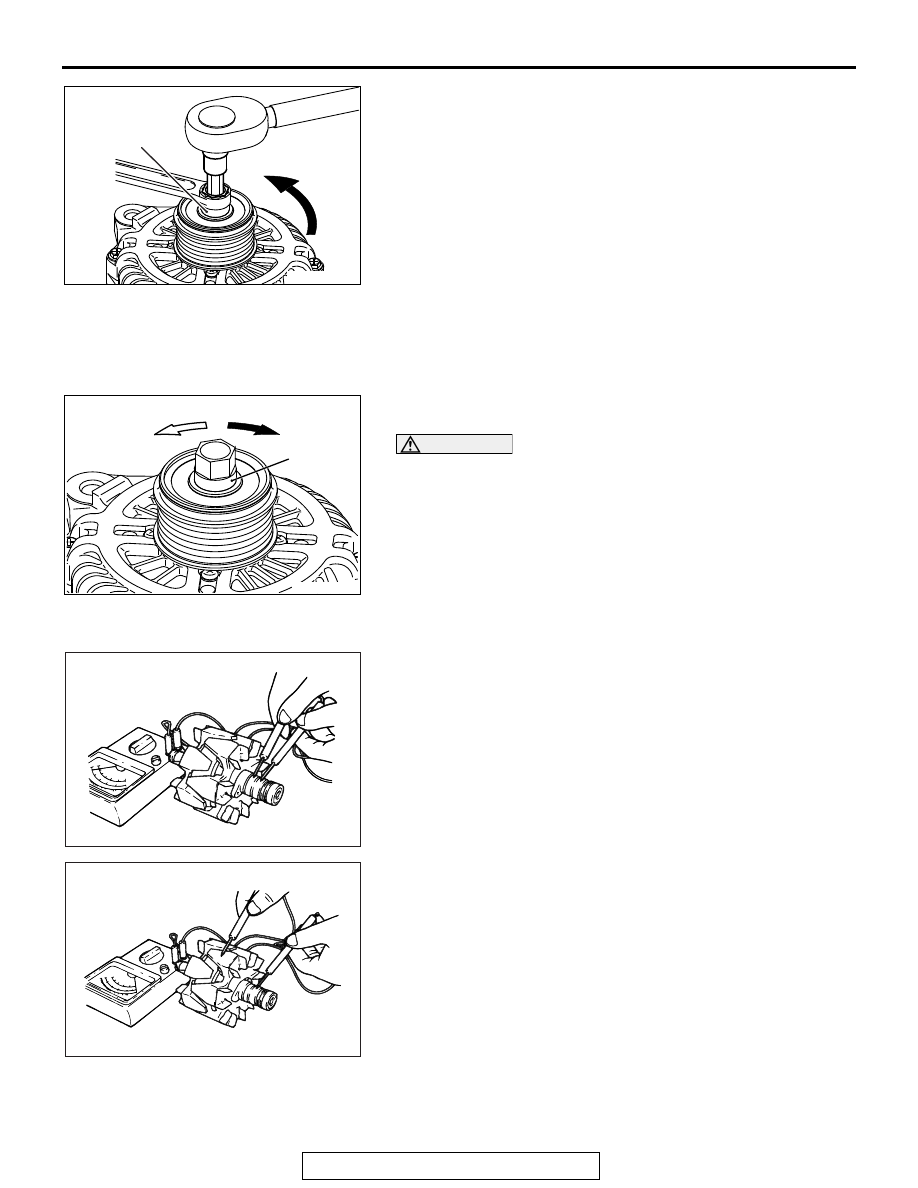

5. Insert the hexagonal bit socket having width across flats of

10 mm into the hexagonal area of the rotor shaft.

6. Hold the pulley with the closed wrench.

Rotate the hexagonal bit socket counterclockwise to tighten
it to the specified torque of 73

± 12 N⋅m (54 ± 9 ft-lb).

INSPECTION

M1161001700442

.

PULLEY<2.4L ENGINE>

Lock the pulley when rotating it clockwise. Check that the pul-
ley rotates smoothly when rotating it counterclockwise.

CAUTION

Locking the one-way clutch might cause the damaged
drive belt and an abnormal noise.

.

ROTOR

1. Measure the resistance between the two slip rings of the

rotor coil to check the continuity between them.
Replace the rotor if the resistance is not within the standard
value range.

Standard value: 2.1

 2.4 Ω

2. Check the continuity between the slip rings and core.

3. If continuity is present, replace the rotor.

.

AK602613AE

MB992226

AK602663AF

Lock

Rotate

MB992226

AK304676

AK304677

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-26

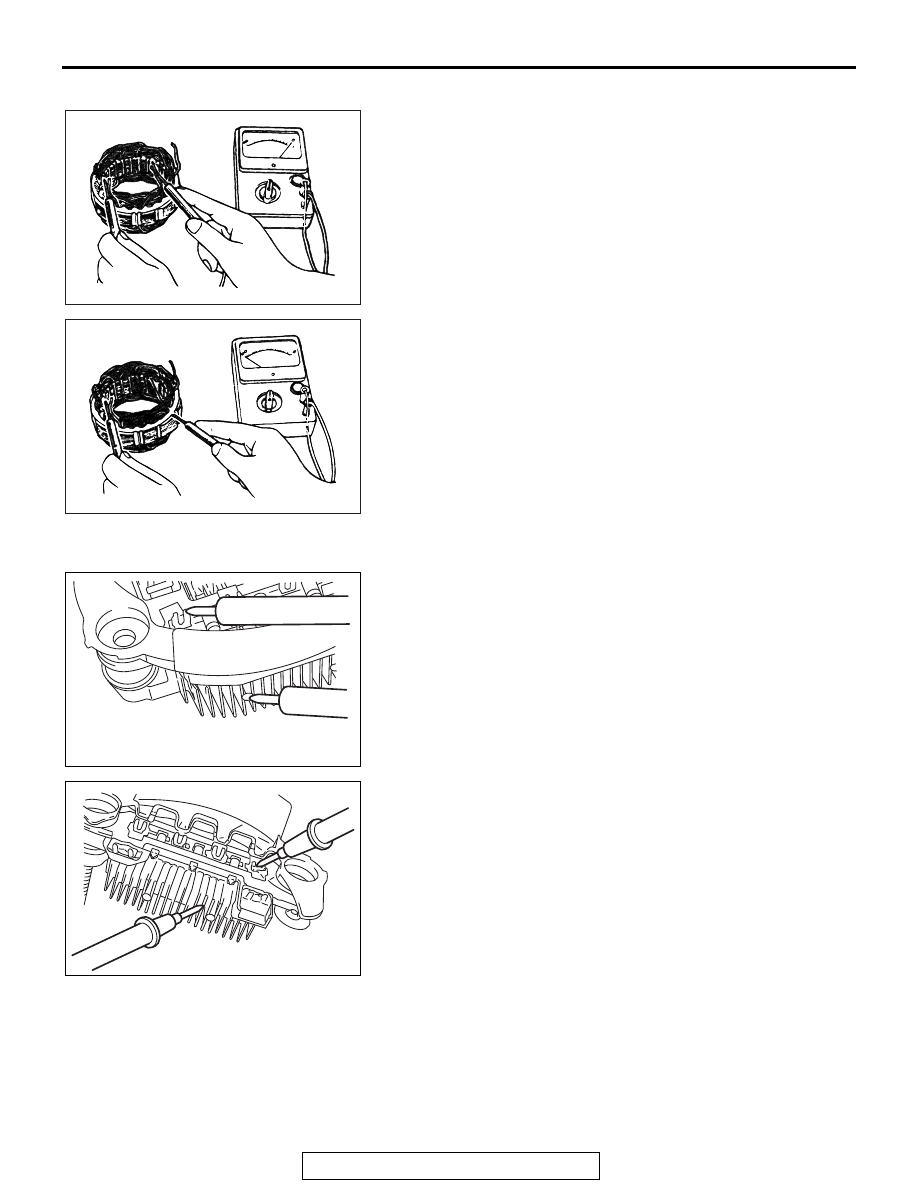

STATOR

1. Check the continuity between coil leads.

If there is no continuity, replace the stator.

2. Check the continuity between coil and core.

If there is continuity, replace the stator.

.

RECTIFIER ASSEMBLY

1. Check the condition of the (+) heat sink by checking the

continuity between the (+) heat sink and each of the stator
coil lead connecting terminals.
If the continuity is present for both terminals, or if no
continuity is present for both terminals, the diode is shorted.
Replace the rectifier assembly.

2. Check the condition of the (

−) heat sink by checking the

continuity between the (

−) heat sink and each of the stator

coil lead connecting terminals.
If the continuity is present for both terminals, or if no
continuity is present for both terminals, the diode is shorted.
Replace the rectifier assembly.

.

AK304678

AK304679

AK603113

AK603114
