EXHAUST PIPE AND MAIN MUFFLER
TSB Revision
INTAKE AND EXHAUST
15-27

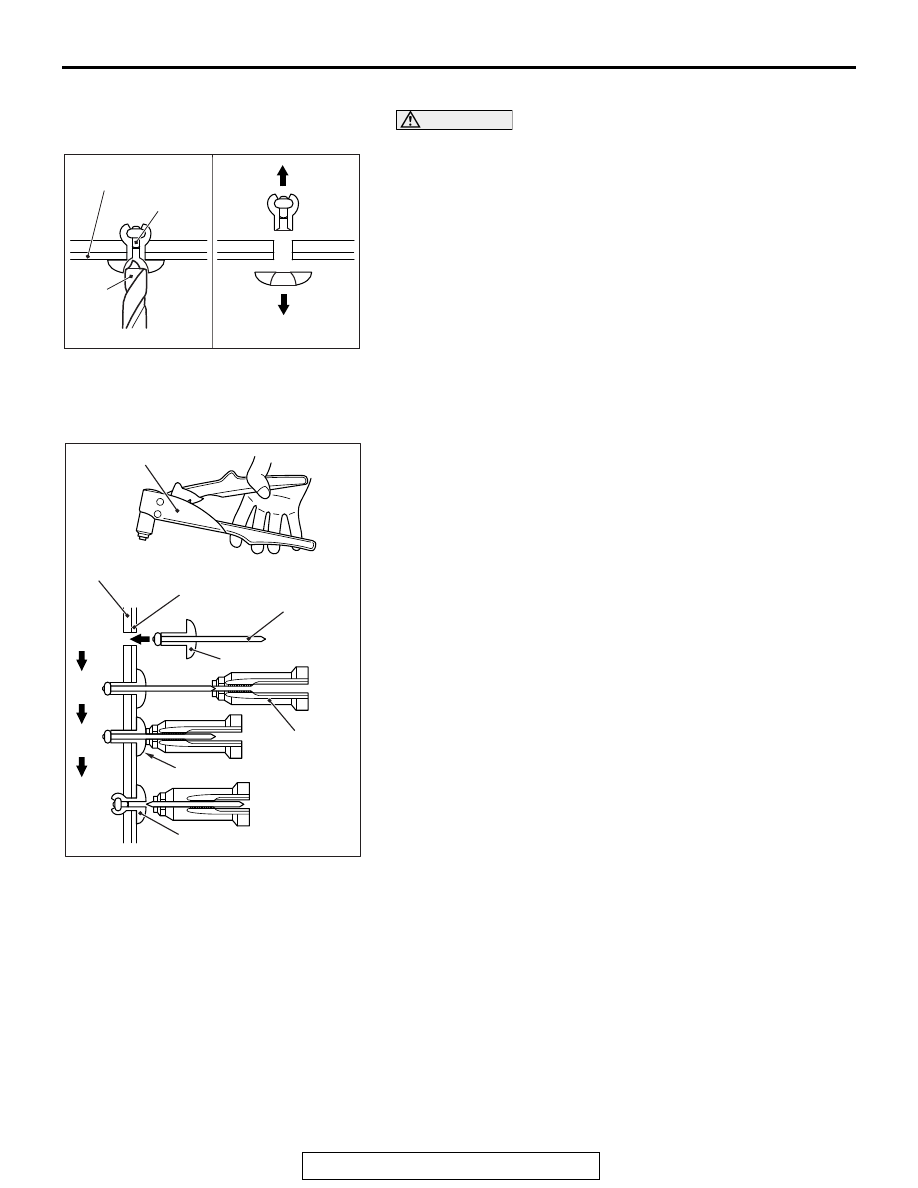

<<B>> RIVET REMOVAL
CAUTION
Be careful not to damage the heat protector with the drill.
Use a drill [6.0 mm (0.24 inch)] to make a hole in the rivet to
break it, and then remove the rivet.
INSTALLATION SERVICE POINT
.
>>A<< RIVET INSTALLATION
Use a rivet tool shown in the illustration to connect the parts
with rivets by the following procedures.
1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a portion A of rivet.
3. While pushing the flange surface of the rivet onto parts to be
fixed with the rivet tool, press the handle of the tool.
4. Thin part of portion A of the rivet will be cut off and the part is
fixed in position.
AC703719
Heat protector
Rivet
Drill
AB
AC700168
Heart protector
Rivet tool
AB
1
2
3
4
Rivet
Fixing parts
Rivet tool
Rivet
Portion A
Flange
