Mitsubishi Outlander GS45X. Manual - part 510





ENGINE OIL PRESSURE SWITCH

TSB Revision

ENGINE LUBRICATION

12-9

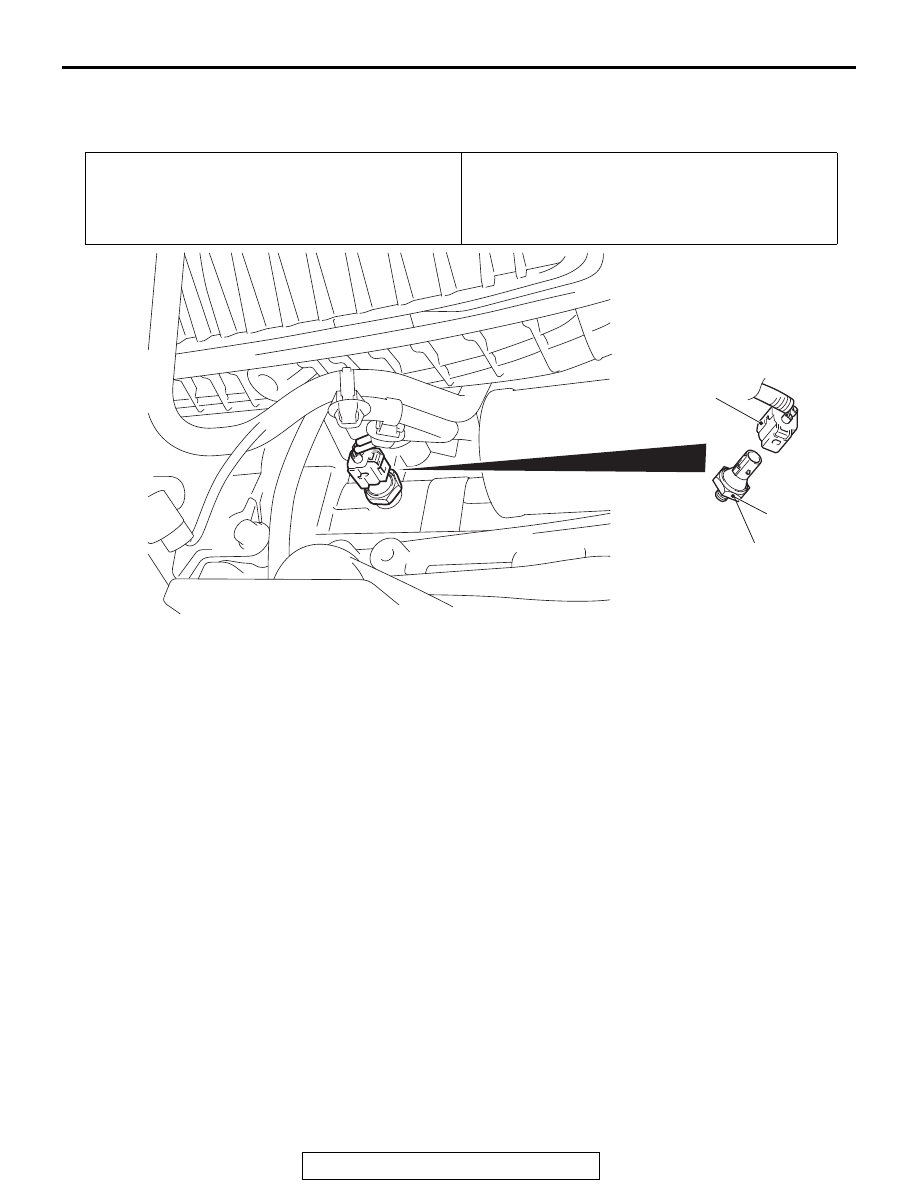

ENGINE OIL PRESSURE SWITCH

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1121002502045

Required Special Tool:

• MB992118: Oil Pressure Switch Wrench

REMOVAL SERVICE POINTS

.

<<A>> THROTTLE BODY MOUNTING BOLTS
REMOVAL

Remove the throttle body mounting bolts and put the throttle
body aside so as not to interfere the oil pressure switch con-
nector disconnection.

.

Pre-removal Operation
• Engine Room Under Cover Front A, B Removal (Refer to

GROUP 51, Under Cover

P.51-23

).

• Intake Manifold Stay Removal (Refer to GROUP 15,

Intake Manifold

P.15-9

).

Post-installation Operation
• Intake Manifold Stay Installation (Refer to GROUP 15,

Intake Manifold

P.15-9

).

• Engine Room Under Cover Front A, B Installation (Refer

to GROUP 51, Under Cover

P.51-23

).

AC506629 AE

1

2

10 ± 2 N·m
87 ± 17 in-lb

Removal steps

<<

A

>>

Throttle body mounting bolts (Refer
to Group 13A, Throttle Body
Assembly

P.13A-897

)

1.

Engine oil pressure switch
connector connection

<<

B

>> >>

A

<< 2.

Engine oil pressure switch

Removal steps (Continued)

ENGINE OIL PRESSURE SWITCH

TSB Revision

ENGINE LUBRICATION

12-10

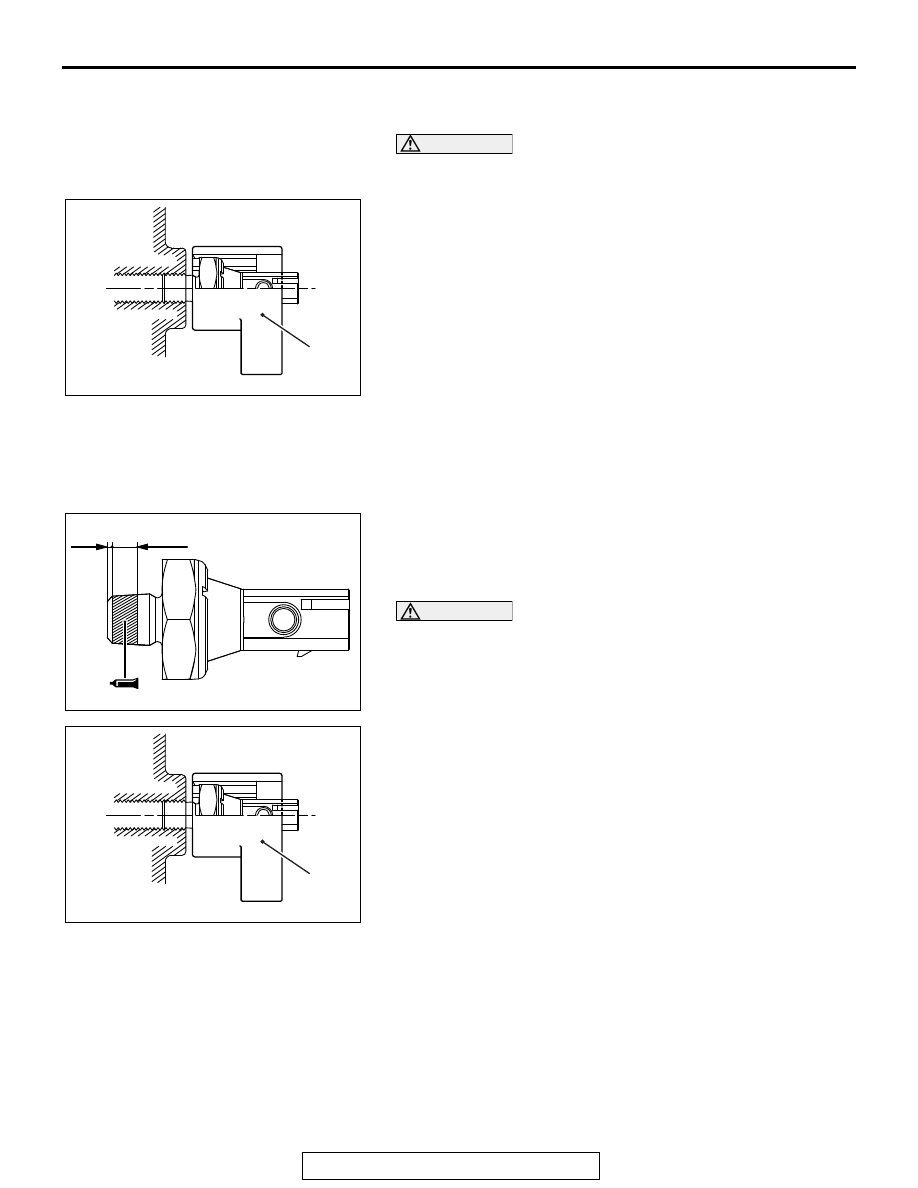

<<B>> ENGINE OIL PRESSURE SWITCH
REMOVAL

CAUTION

The sealant is applied to the bolt. Remove the bolt with
care not to break it.
Use special tool MB992118 to remove the engine oil pressure
switch.

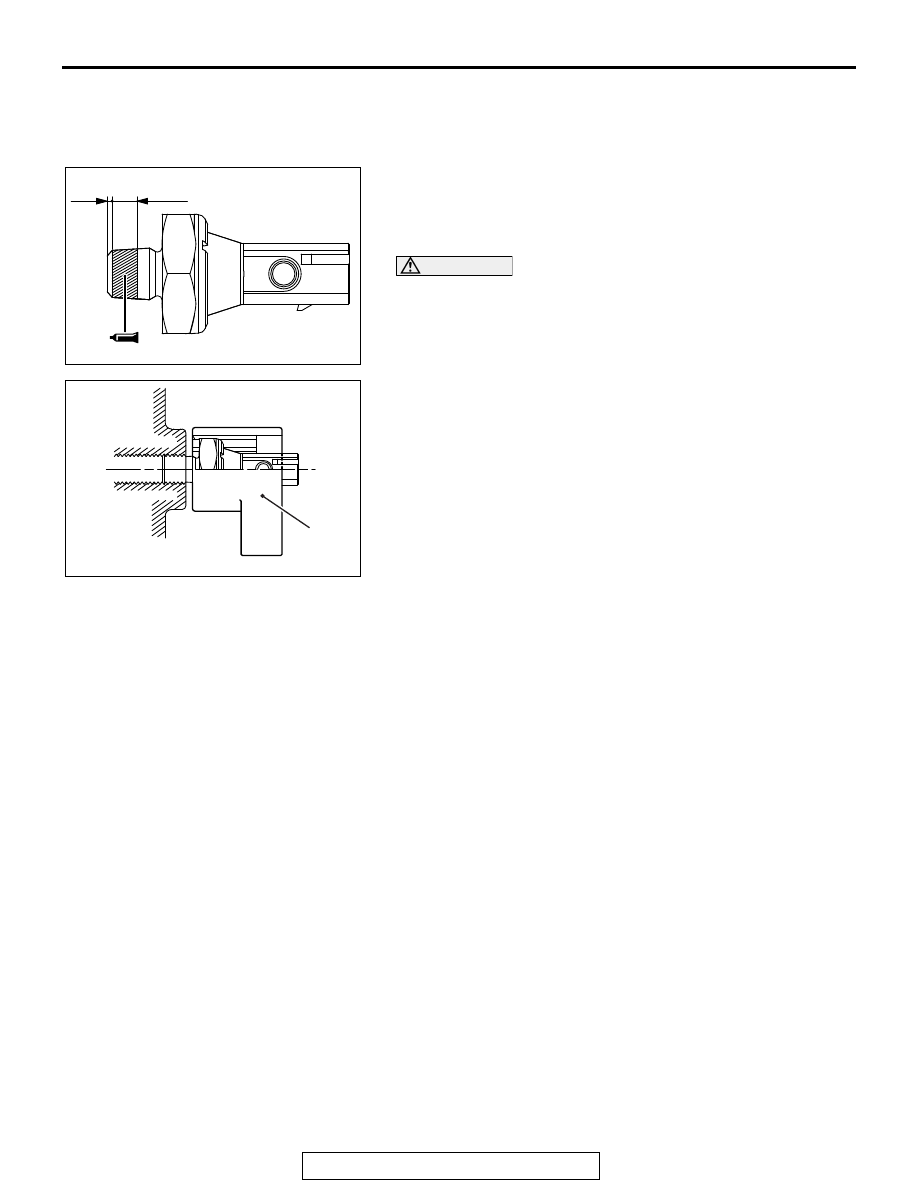

INSTALLATION SERVICE POINT

.

>>A<< ENGINE OIL PRESSURE SWITCH INSTAL-
LATION

1. Apply sealant to the engine oil pressure switch thread.

Specified sealant: ThreeBond 1141J or equivalent

NOTE: Install the engine oil pressure switch immediately
after applying sealant.

CAUTION

After the installation, until a sufficient period of time (one
hour or more) elapses, do not apply the oil or water to the
sealant application area or start the engine.

2. In the same manner as removal, use special tool MD992118

to tighten the engine oil pressure switch to the specified
torque.

Tightening torque: 10

± 2 Nm (87 ± 17 inlb)

AK502606 AD

MB992118

AK402699

1 mm
(0.04 in)

5 mm
(0.2 in)

AD

AK502606 AD

MB992118

ENGINE OIL PRESSURE SWITCH

TSB Revision

ENGINE LUBRICATION

12-11

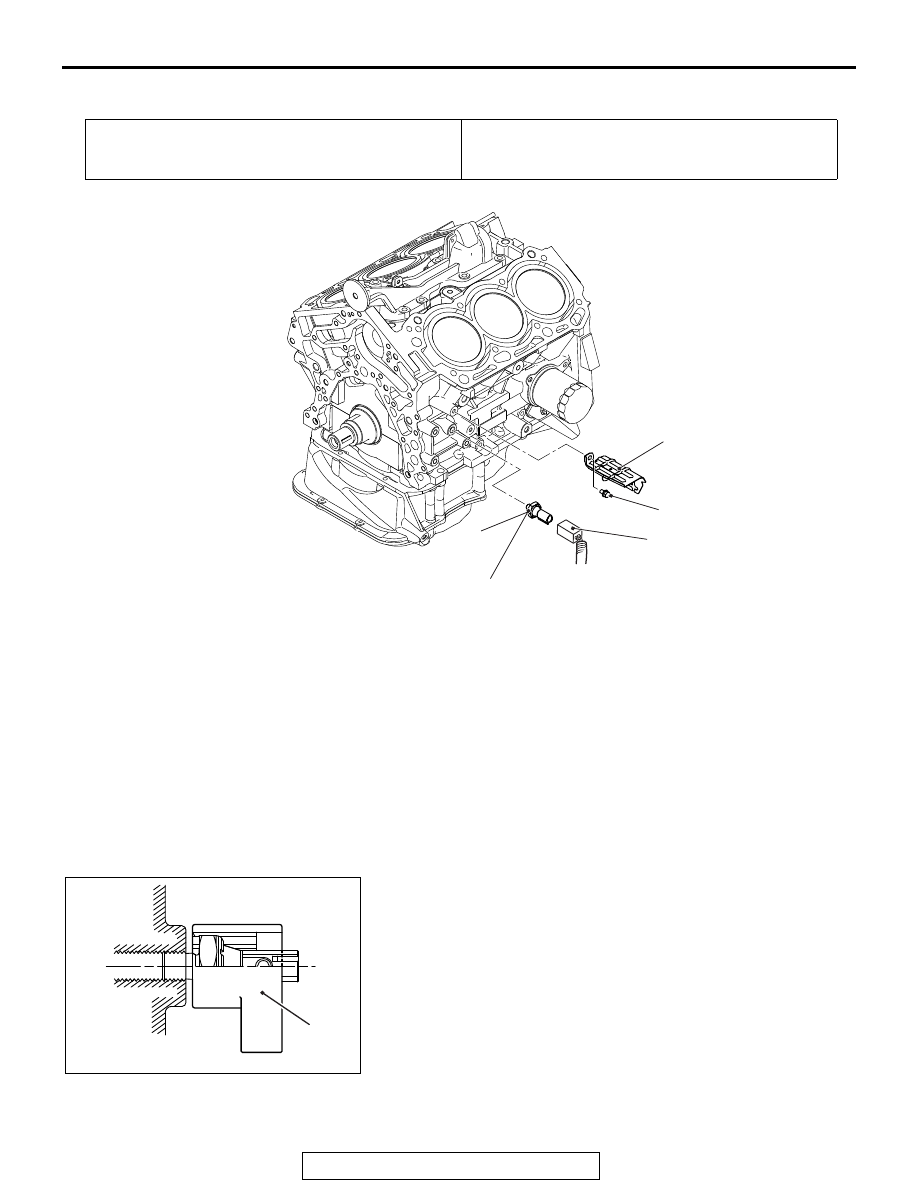

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1121002502056

Required Special Tool:

• MB992118: Oil Pressure Switch Wrench

REMOVAL SERVICE POINT

.

<<A>> ENGINE OIL PRESSURE SWITCH
REMOVAL

Use special tool MB992118 to remove the engine oil pressure
switch.

Pre-removal Operation
• Engine Room Under Cover Front Removal (Refer to

GROUP 51, Under Cover

P.51-23

).

Post-installation Operation
• Engine Room Under Cover Front Installation (Refer to

GROUP 51, Under Cove

P.51-23

).

AC705075 AE

2

3

1

10 ± 2 N·m
87 ± 17 in-lb

10 ± 2 N·m
87 ± 17 in-lb

Removal steps

1.

Engine oil pressure switch
connector connection

2.

Heat protector

<<

A

>> >>

A

<< 3.

Engine oil pressure switch

Removal steps (Continued)

AK502606 AD

MB992118

ENGINE OIL PRESSURE SWITCH

TSB Revision

ENGINE LUBRICATION

12-12

INSTALLATION SERVICE POINT

.

>>A<< ENGINE OIL PRESSURE SWITCH INSTAL-
LATION

1. Apply sealant to the engine oil pressure switch thread.

Specified sealant: ThreeBond 1141J or equivalent

NOTE: Install the engine oil pressure switch immediately
after applying sealant.

CAUTION

After the installation, until a sufficient period of time (one
hour or more) elapses, do not apply the oil or water to the
sealant application area or start the engine.

2. In the same manner as removal, use special tool MB992118

to tighten the engine oil pressure switch to the specified
torque.

Tightening torque: 10

± 2 Nm (87 ± 17 inlb)

AK402699

1 mm
(0.04 in)

5 mm
(0.2 in)

AD

AK502606 AD

MB992118
