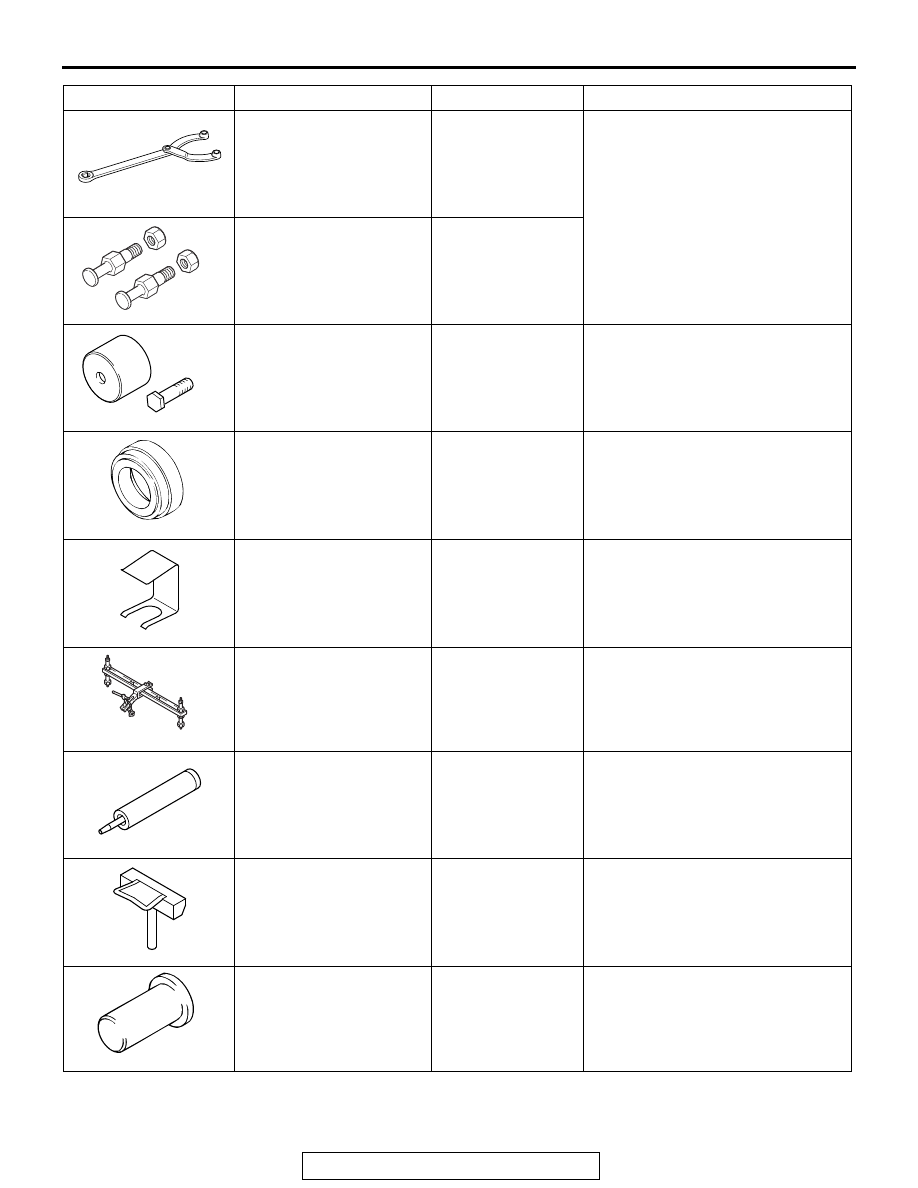

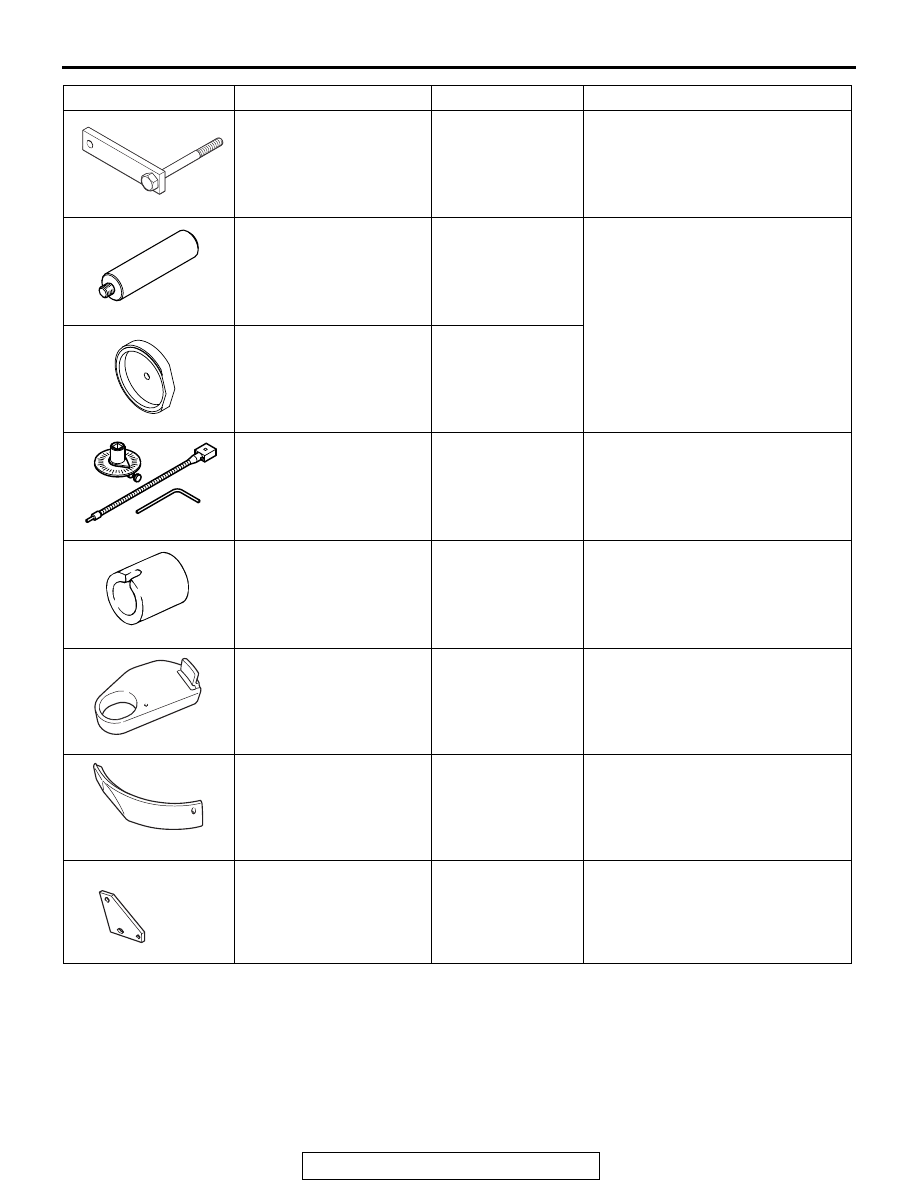

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-5

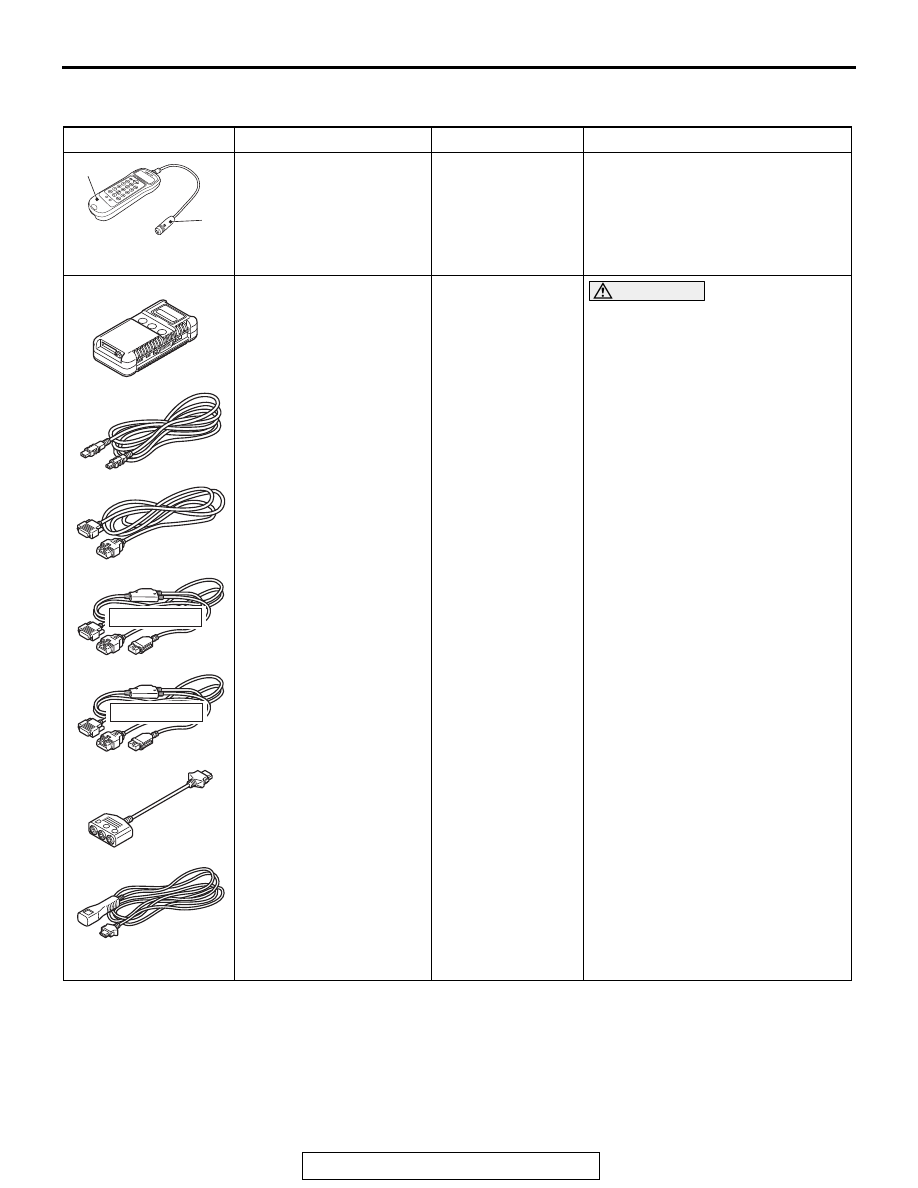

SPECIAL TOOLS

M1111000602755

Tool

Tool number and name Supersession

Application

MB992080
Belt tension meter set

a: MB9912081

Belt tension meter

b: MB992082

Microphone assembly

Tool not available

Drive belt tension (frequency)
measurement

MB991958
Scan tool (M.U.T.-III sub
assembly)

a: MB991824

Vehicle
communication
interface (V.C.I.)

b: MB991827

M.U.T.-III USB cable

c: MB991910

M.U.T.-III main
harness A (Vehicles
with CAN
communication
system)

d: MB991911

M.U.T.-III main
harness B (Vehicles
without CAN
communication
system)

e: MB991914

M.U.T.-III main
harness C (for
Chrysler models only)

f: MB991825

M.U.T.-III adapter
harness

g: MB991826

M.U.T.-III trigger
harness

MB991824-KIT
NOTE: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.

• Ignition timing check

• Curb idle speed check

• Idle mixture check

• Erasing the diagnostic trouble

code

B992080

a

b

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-6

MB990767
Front hub and flange
yoke holder

MB990767-01

Holding the crankshaft pulley and
camshaft sprocket

MD998719
Pin

MIT308239

MD998713
Camshaft oil seal installer

MD998713-01

Press-in of the camshaft oil seal

MD998777
Camshaft oil seal installer
adapter

−

Press-fitting the camshaft oil seal
(left bank)

MD998443
Auto-lash adjuster holder

MD998443-01

Holding the auto-lash adjuster

MD998772
Valve spring compressor

General service
tool

Compressing valve spring

MB992182
Valve stem seal installer

−

Valve stem seal installation

MD998727
Oil pan FIPG cutter

MD998727-01

Engine lower oil pan removal

MD998382
Crankshaft front oil seal
installer

MD998382-01

Press-in of the crankshaft front oil
seal

Tool

Tool number and name Supersession

Application

B990767

D998719

D998713

MD998777

D998443

MD998772

MB992182

D998727

D998382

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-7

MD998781
Flywheel stopper

General service
tool

Securing the drive plate

MB992075
Handle

−

Crankshaft rear oil seal installation

MB992183
Crankshaft rear oil seal
installer

−

MB991614
Angle gauge

−

Cylinder head bolt installation

MD998716
Crankshaft wrench

MD998716-01

Rotating the crankshaft when
installing the timing belt

MB992275
Drive belt installer

−

Power steering oil pump drive belt
installation

MB992276
Drive belt remover

−

Power steering oil pump drive belt
removal

MB992208
Engine hanger plate A

General Service
Tool

Supporting the engine assembly
during removal and installation of
the transaxle assembly

Tool

Tool number and name Supersession

Application

D998781

MB992183

MB991614

B992275

B992276

MB992208

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-8

ON-VEHICLE SERVICE

GENERATOR DRIVE BELT TENSION CHECK

M1111000900084

CAUTION

Check the drive belt tension after turning the crankshaft
clockwise one turn or more.
1. Make sure that the indicator mark is within the area marked

with A in the illustration.

2. If the mark is out of the area, replace the drive belt. (Refer to

P.11C-23

).

NOTE: The drive belt tension adjustment is not necessary,
as the engine is equipped with an auto-tensioner.

MB991454
Engine hanger balancer

MZ203827-01

When the engine hanger is used:
Supporting the engine assembly
during removal and installation of
the transaxle assembly
NOTE: Special tool MB991454 is a
part of engine hanger attachment
set MB991453.

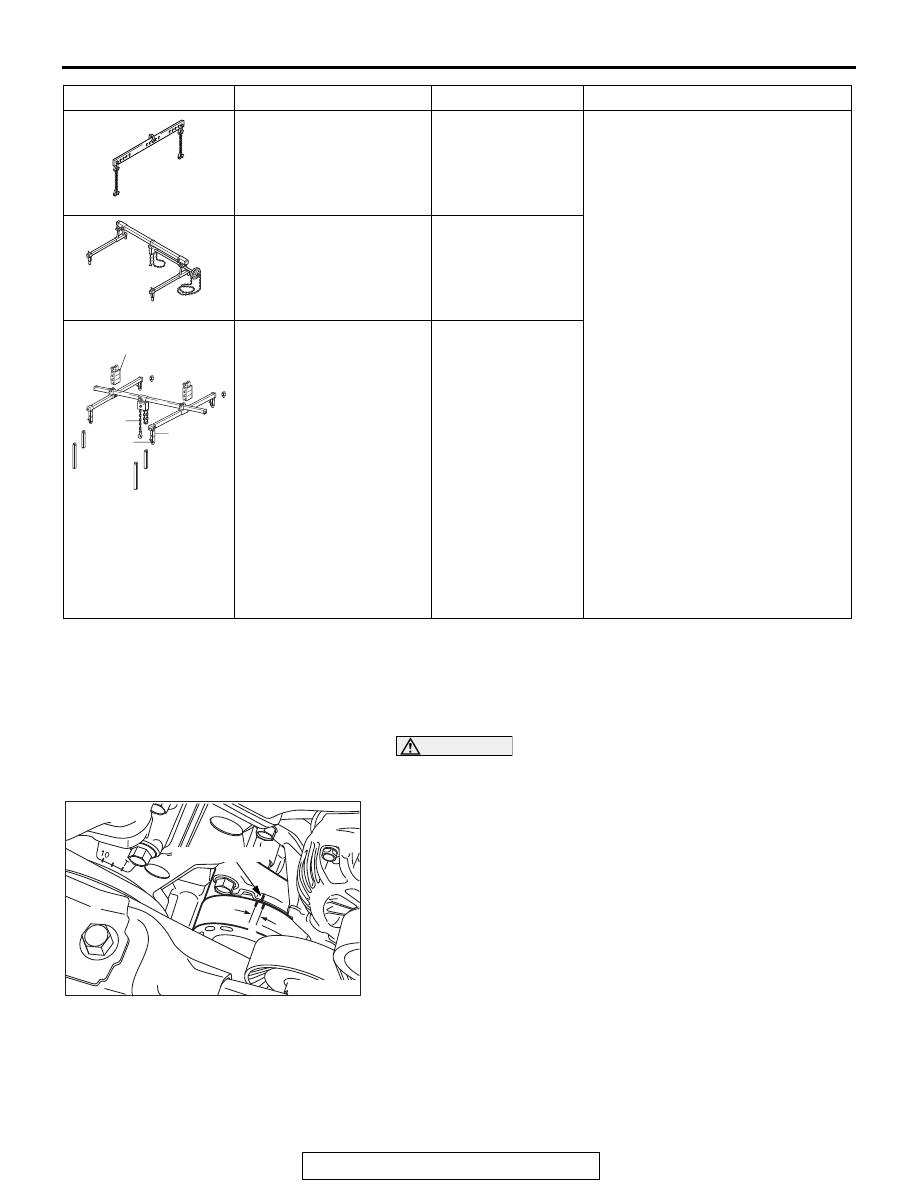

MB991895
Engine hanger

Tool not available

MB991928
Engine hanger

a: MB991929

Joint (50)

× 2

b: MB991930

Joint (90)

× 2

c: MB991931

Joint (140)

× 2

d: MB991932

Foot (standard)

× 4

e: MB991933

Foot (short)

× 2

f: MB991934

Chain and hook
assembly

Tool not available

Tool

Tool number and name Supersession

Application

B991454

MB991895

B991928

a

b

c

d

e

f

Slide bracket (HI)

AK700055 AB

Indicator mark

A
