ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-91

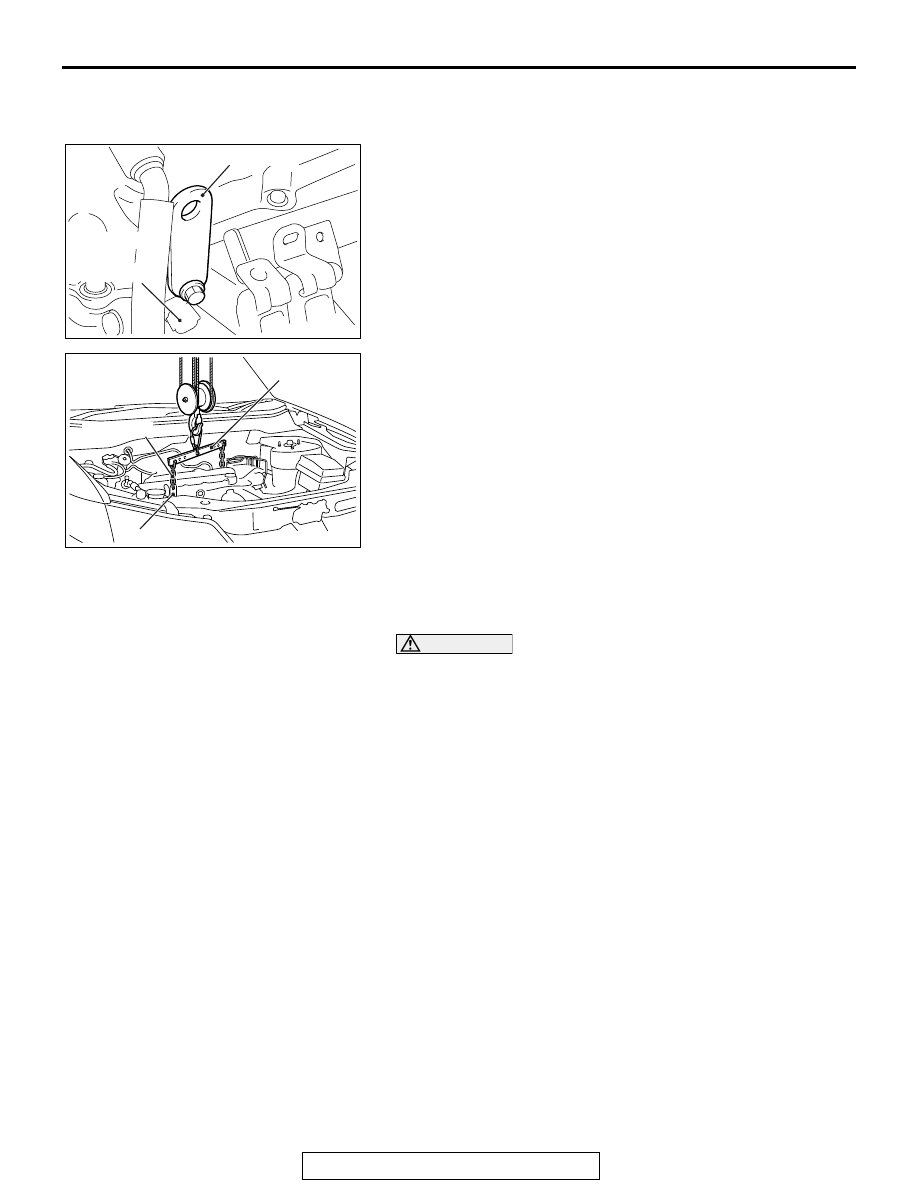

INSTALLATION SERVICE POINTS

.

>>A<< ENGINE ASSEMBLY INSTALLATION

1.  Install special tool MB991956 to the cylinder head, and set

special tool MB991527 and the chains of special tool
MB991454 to the engine assembly to hold the engine
assembly.

2. Install the engine assembly, being careful not to pinch the

cables, hoses, or wiring harness connectors.

.

>>B<< ENGINE MOUNTING BRACKET
INSTALLATION

CAUTION

When supporting the engine and transaxle assembly with
a garage jack, be careful not to deform the engine oil pan.
1. Place a garage jack against the engine oil pan with a piece

of wood in between, and install the engine mounting bracket
while adjusting the position of the engine.

AC600152AC

MB991956

Oil control
valve
(inlet side)

AC506787

MB991527

MB991454

AB

MB991956

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-92

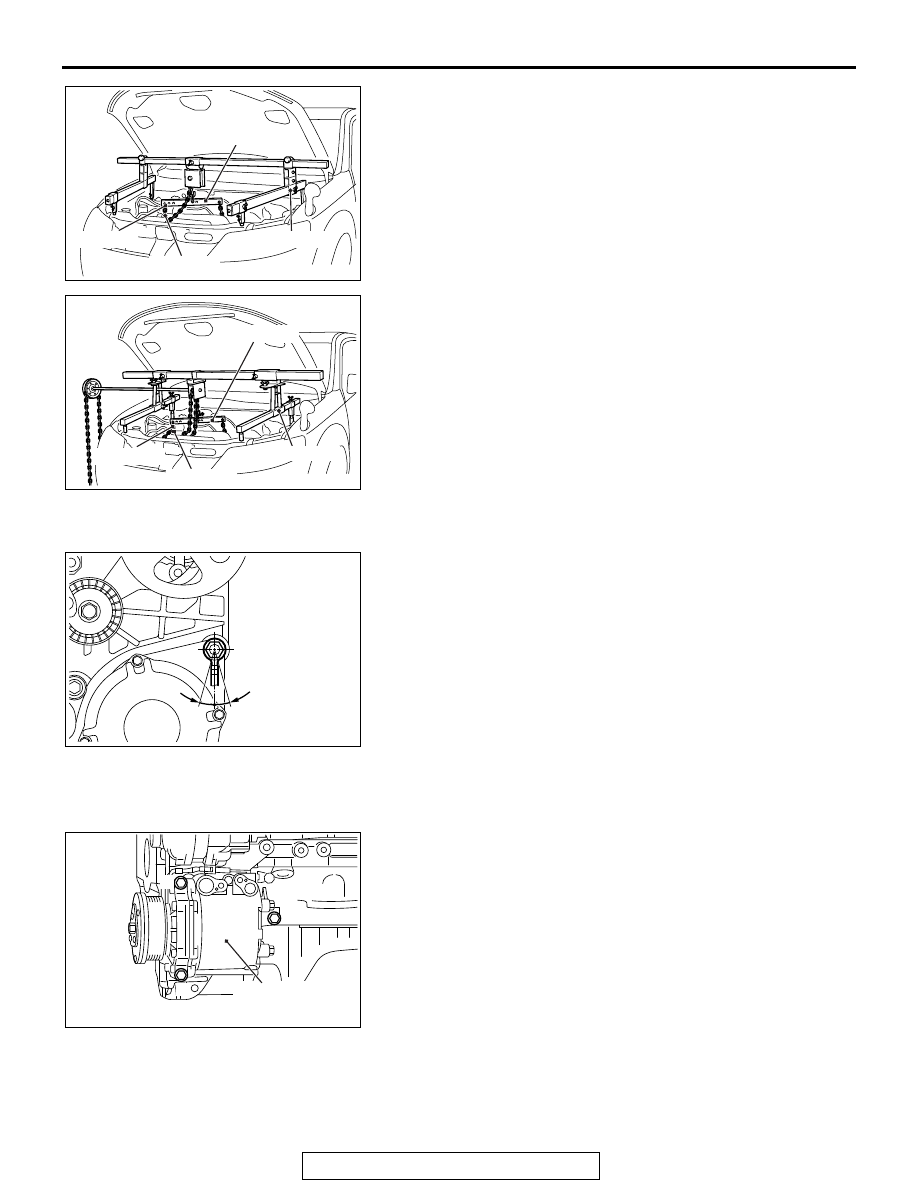

2. Install special tool engine hanger (MB991928 or MB991895)

which is used during installation of transaxle assembly to
hold the engine assembly (Refer to GROUP 23A, Transaxle
Assembly

P.23A-157

).

3. Remove the garage jack which supports the engine

assembly.

.

>>C<< GROUNDING CABLE CONNECTION

1. Install the grounding cable in the direction shown in the

illustration.

2. Tighten the generator mounting bolt to the specified torque.

Tightening torque: 44

± 10 N⋅m (33 ± 7 ft-lb)

.

>>D<< A/C COMPRESSOR AND CLUTCH
ASSEMBLY INSTALLATION

Tighten A/C compressor and clutch assembly mounting bolts to
the specified torque in the order of number shown in the illus-
tration.

Tightening torque: 23

± 6 N⋅m (17 ± 4 ft-lb)

.

AC506487

AE

MB991527

MB991454

MB991928

MB991956

AC506484

MB991527

AE

MB991454

MB991956

MB991895

AC606264

AB

15˚

15˚

AC506759

AE

1

2

3

A/C compressor
and clutch assembly

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-93

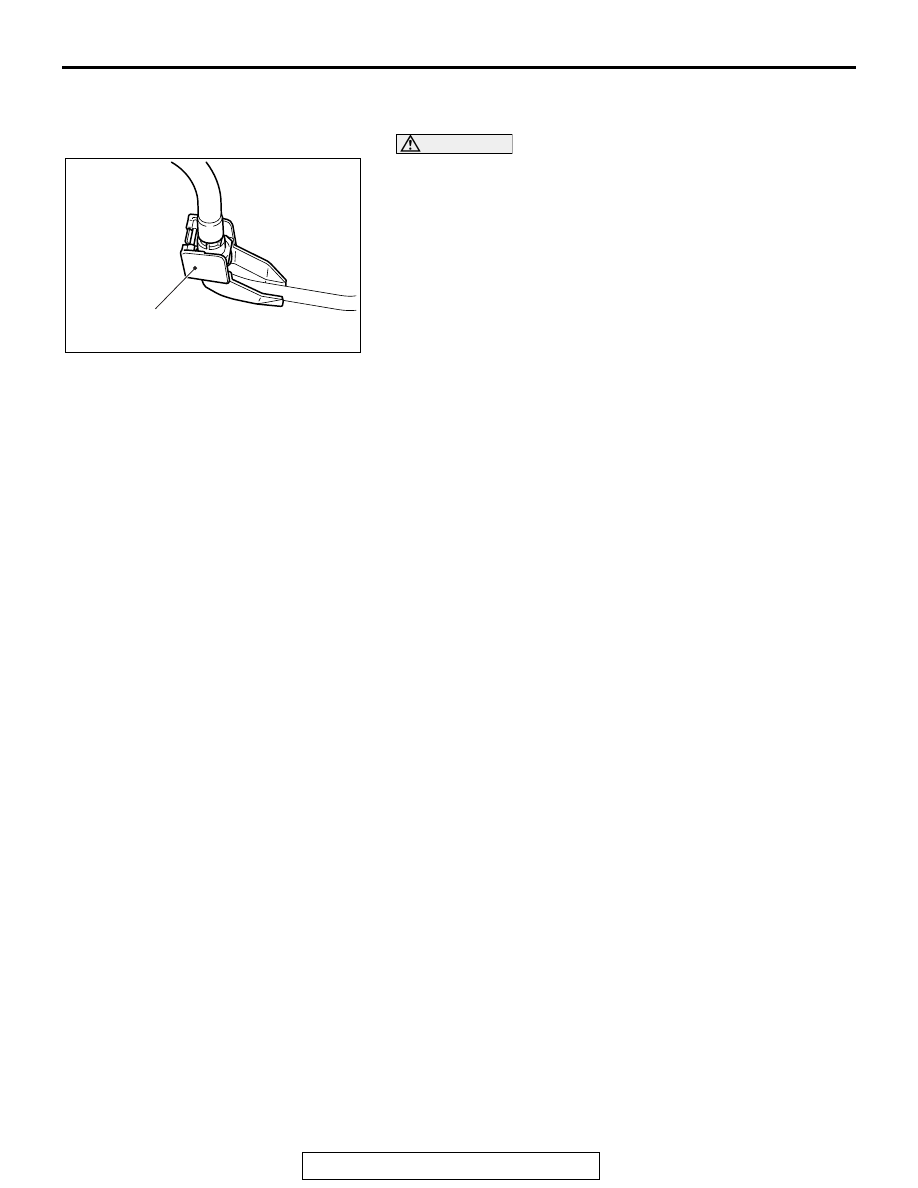

>>E<< FUEL HIGH-PRESSURE HOSE
INSTALLATION

CAUTION

After connecting the fuel high-pressure hose, slightly pull
it in the pull-out direction to check that it is installed firmly.
In addition, check that there is approximately 1 mm (0.04
inch) play. After the check, install the stopper securely.

AC703087

Stopper

AB
