BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL PUMP MODULE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-79

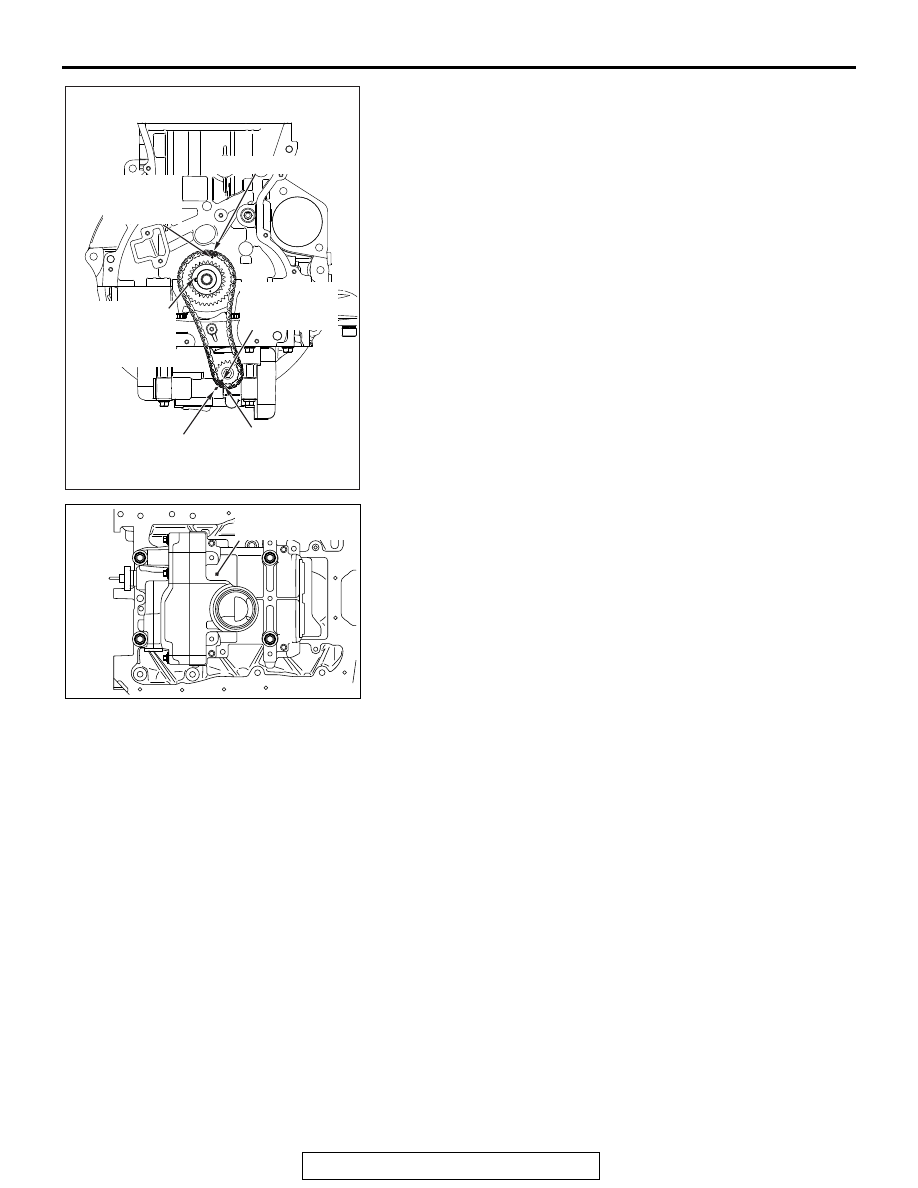

2. With the link marks (orange or blue) of balancer timing chain

aligned with the timing marks of balancer sprocket and
crankshaft sprocket, install the balancer shaft and oil pump
module together with the balancer timing chain and
crankshaft sprocket as one unit to the cylinder block. At this
time, securely bring the balancer shaft and oil pump module
into contact with the rudder frame mounting area.

3. Apply an adequate and minimum amount of engine oil to the

threads and bearing surfaces of the balancer shaft and oil
pump module bolts.

4. Tighten the balancer shaft and oil pump module bolts to the

specified torque of 20 N

⋅m (15 ft-lb) in the order of number

shown in the figure.

5. Retighten the balancer shaft and oil pump module bolts to

the specified torque of 44 N

⋅m (33 ft-lb) in the order of

number shown in the figure.

6. Loosen each balancer shaft and oil pump module bolt fully in

the reverse sequence to that shown.

7. Tighten the balancer shaft and oil pump module bolts to the

specified torque of 20 N

⋅m (15 ft-lb) in the order of number

shown in the figure.

AC506780

AE

Balancer shaft
sprocket
timing mark

Crankshaft
sprocket
timing mark
(key slot)

Crankshaft
sprocket
timing mark

Link plate (orange)

Link plate (blue)

Balancer shaft
housing
timing mark

AC506784

AB

1

2

3

4

Balancer shaft and
oil pump module

BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL PUMP MODULE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-80

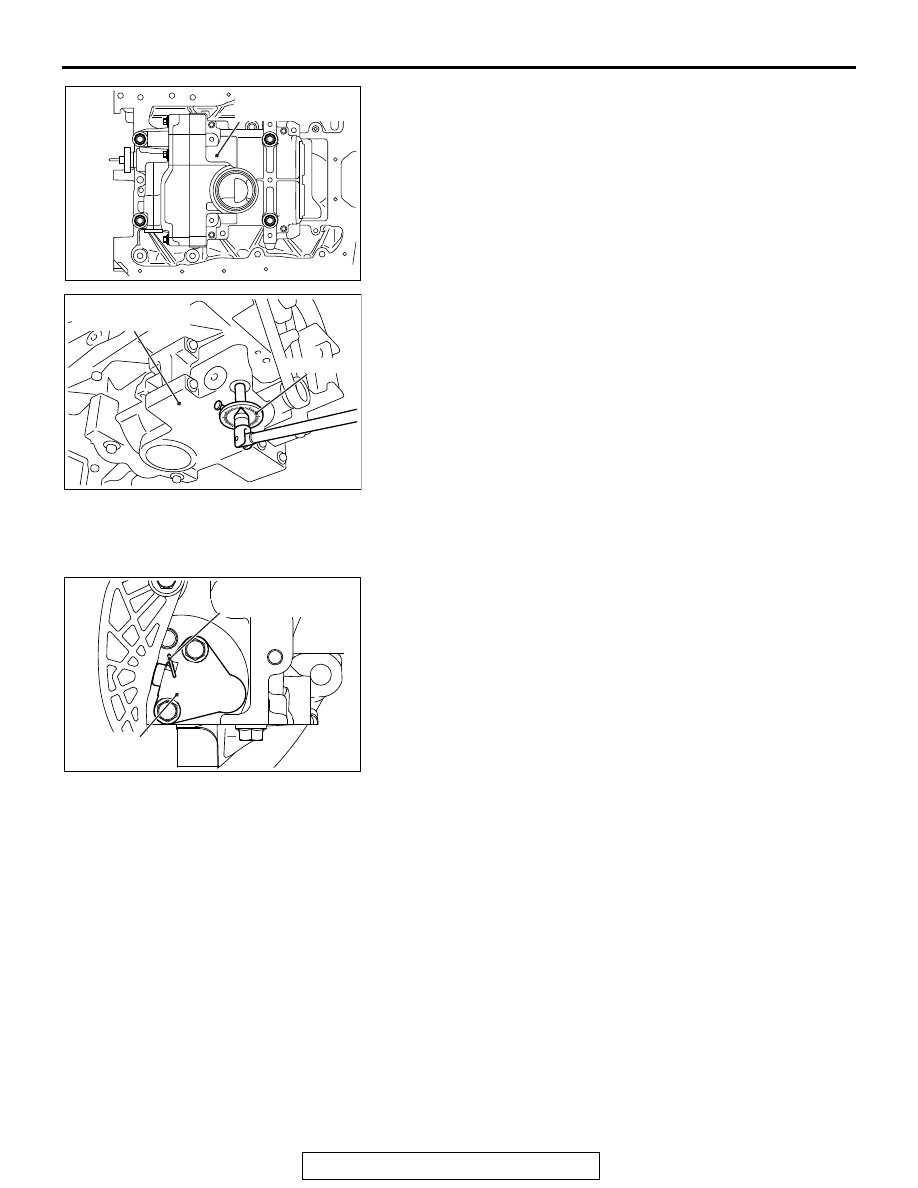

8. After tightening to the specified torque, tighten the balancer

shaft and oil pump module bolts to 135 degrees, using
special tool MB991614, in the order of number shown in the
figure.

.

>>B<< TIMING CHAIN TENSIONER
INSTALLATION

1. Install the timing chain tensioner to the cylinder block.
2. Remove the hard wire or L-shaped hexagon wrench fixing

the plunger of the timing chain tensioner to apply tension to
the balancer timing chain.

AC506784

AB

1

2

3

4

Balancer shaft and
oil pump module

AC506777

AB

MB991614

Balancer shaft and
oil pump module

AC506781

AB

Timing chain
tensioner

Hard wire or L-shaped
hexagon wrench

BALANCER SHAFT AND OIL PUMP MODULE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-81

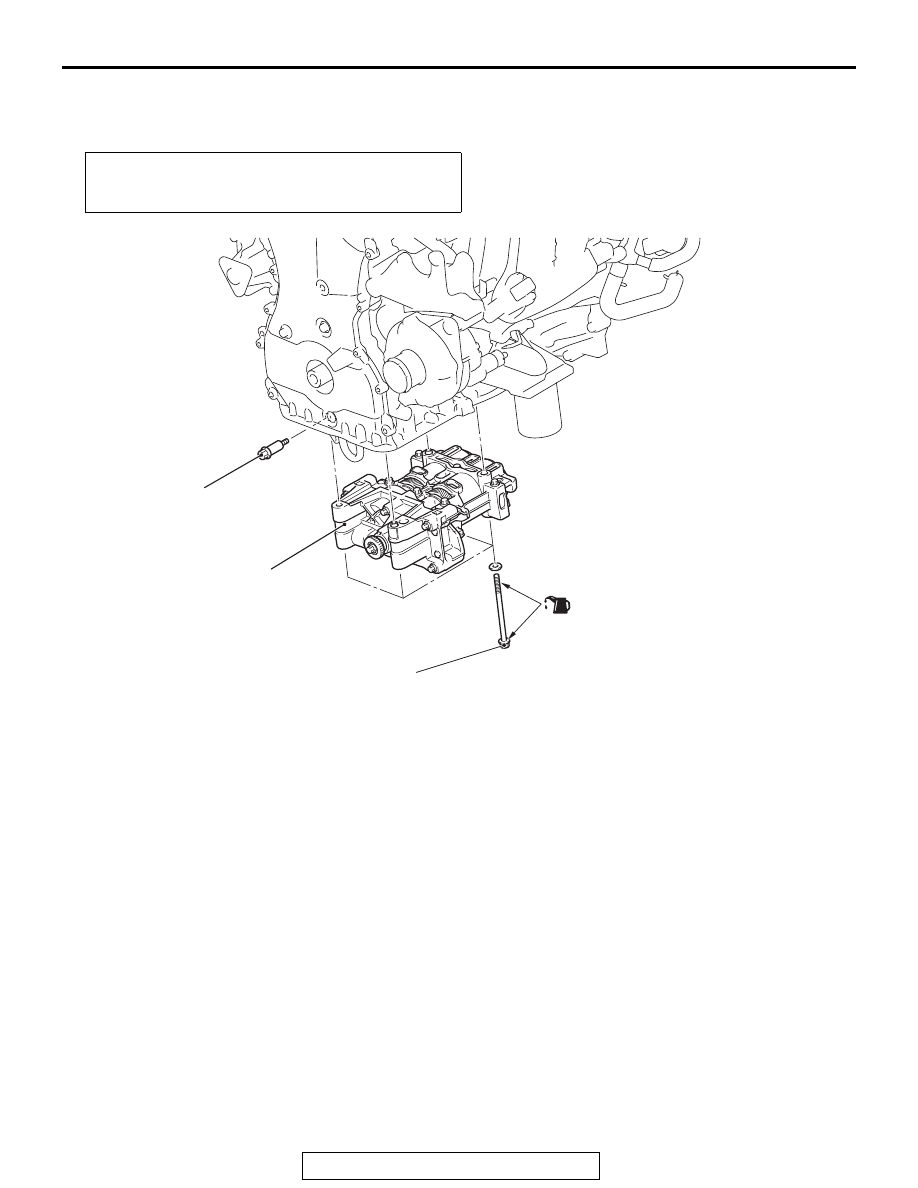

BALANCER SHAFT AND OIL PUMP MODULE

REMOVAL AND INSTALLATION

M1112008900166

Required Special Tool:

• MB991614: Angle Gauge

Pre-removal and Post-installation Operation
• Engine Oil Pan Removal and Installation (Refer to

P.11A-49

).

AC509274

20 N·m
15 ft-lb

44 N·m
33 ft-lb

to

0 N·m

to

to

20 N·m
15 ft-lb

to +135˚

1

(Engine oil)

10 ± 2 N·m
89 ± 17 in-lb

AD

Removal steps

<<

A

>>

>>

A

<<

1.

Balancer shaft and oil pump
module

BALANCER SHAFT AND OIL PUMP MODULE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-82

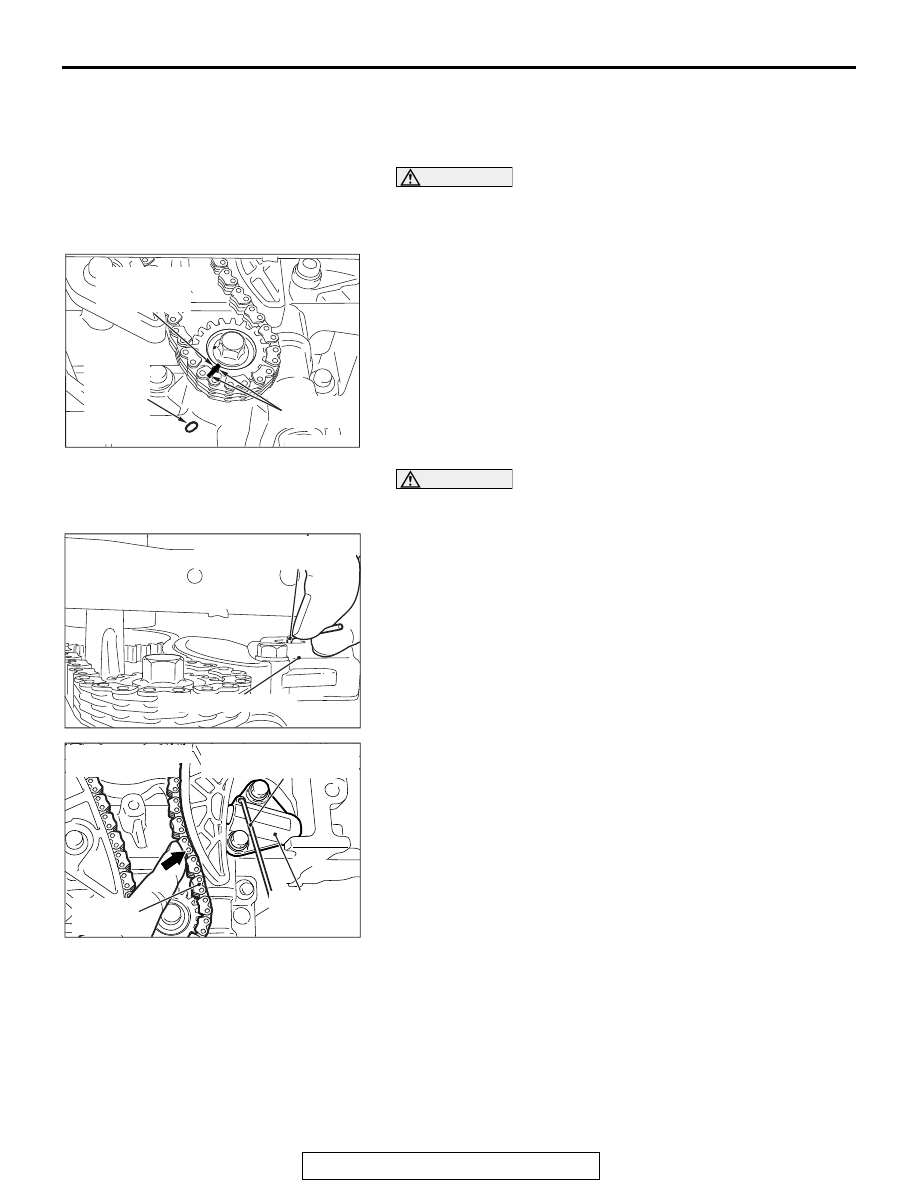

REMOVAL SERVICE POINT

.

<<A>> BALANCER SHAFT AND OIL PUMP MOD-
ULE REMOVAL

CAUTION

• Never turn the crankshaft counterclockwise.
• Never turn the crankshaft after the cylinder No.1 or No.4

is set to the top dead center of compression.

1. Turn the crankshaft clockwise to align the timing mark of the

balancer shaft sprocket with the timing mark of the balancer
shaft and oil pump module, and set the cylinder No.1 or
No.4 to the top dead center of compression.

2. Put paint marks on the balancer shaft sprocket timing mark

and balancer timing chain.

CAUTION

Securely install the plunger of the timing chain tensioner.
Otherwise, it may pop out.
3. Press the balancer timing chain against the timing chain

tensioner, compress the plunger of the timing chain
tensioner and insert L-shaped hard wire (piano wire, etc.) or
L-shaped hexagon wrench (1.5 mm [0.05 inch]) to the
plunger fixing hole of the timing chain tensioner from under
the timing chain case, and fix the plunger of the timing chain
tensioner.

AC509275AB

Balancer shaft
sprocket
timing mark

Paint
markings

Balancer
shaft and
oil pump
module
timing mark

AC509276AB

L-shaped hard wire or
L-shaped hexagon wrench

Timing chain tensioner

AC509277AB

L-shaped hard wire or
L-shaped hexagon wrench

Timing chain
tensioner

Balancer
timing chain

<Timing chain case
internal diagram>
