TIMING CHAIN

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-71

<<E>> TIMING CHAIN TENSIONER REMOVAL

1. Temporarily install the crankshaft pulley to the crankshaft.

CAUTION

Never turn the crankshaft counterclockwise.
2. Turn the crankshaft clockwise to align the sprocket timing

marks as shown in the figure and set the cylinder No.1 to the
top dead center of compression stroke.
NOTE: At this time, it is not necessary that the link plate
(orange or blue) of the timing chain always aligns with each
sprocket timing mark.

3. Remove the crankshaft pulley installed temporarily.

4. Using a flat-tipped precision screwdriver, release the ratchet

of timing chain tensioner.

5. Compress the plunger of timing chain tensioner and insert

hard wire (such as piano wire) or the L-shaped hexagon
wrench (1.5 mm[0.05 inch]) to fix the plunger of the timing
chain tensioner.

6. Remove the timing chain tensioner.

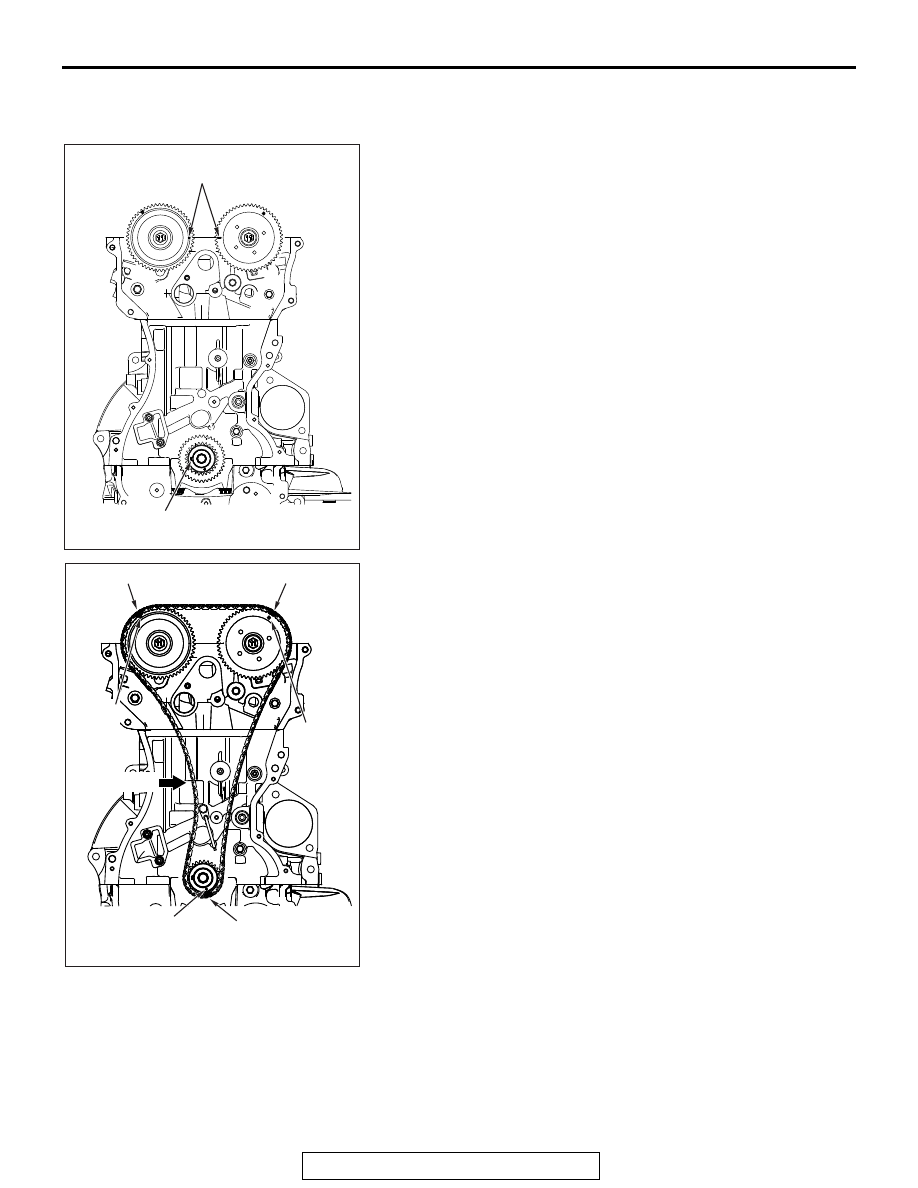

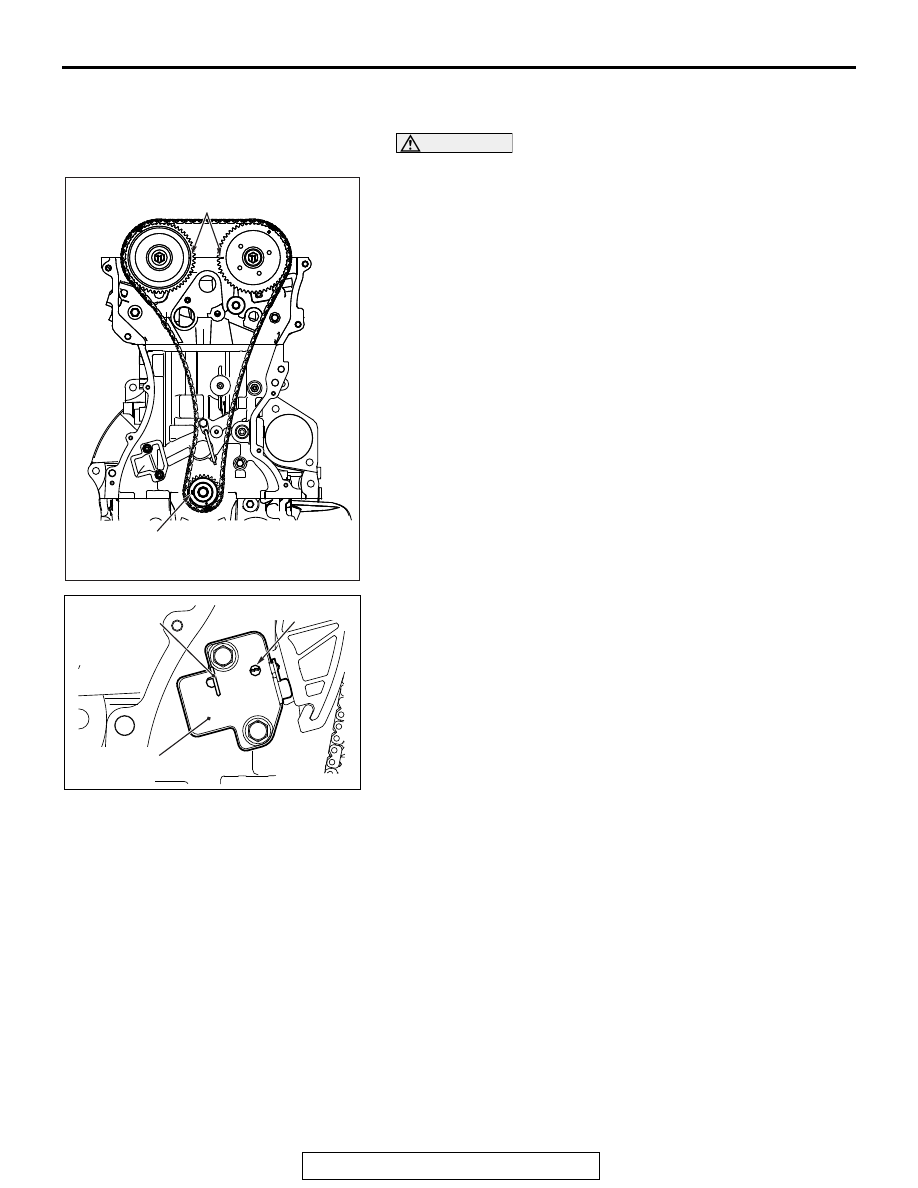

AC506772

AG

Camshaft sprocket
timing marks

Crankshaft sprocket
timing mark

AC506773

AD

Timing chain
tensioner

Ratchet release hole

Hard wire or
L-shaped
hexagon
wrench

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-72

INSTALLATION SERVICE POINTS

.

>>A<< TIMING CHAIN INSTALLATION

1. Set the timing marks of the camshaft sprockets and the

crankshaft sprocket as shown in the figure.

2. Align each sprocket timing chain mating mark with the link

plate (orange or blue) of timing chain to avoid slack of the
timing chain tension side, and install the timing chain to the
sprockets.

.

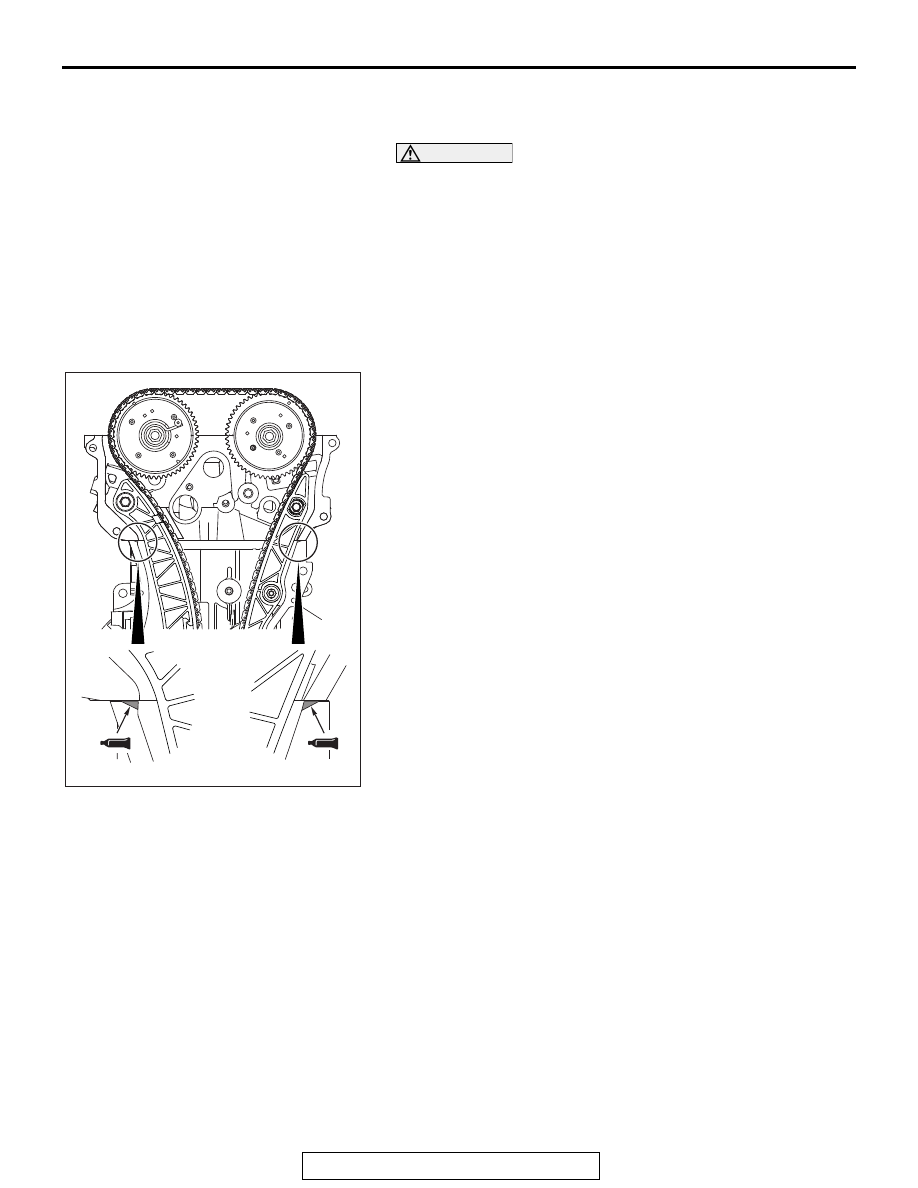

AC506774

AC

Camshaft sprocket
timing marks

Crankshaft sprocket
timing mark

AC506772

AR

Tension side

Link plates (orange)

Link plate (blue)

Mating
mark

Mating
mark

Mating mark

Link plate (blue)

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-73

>>B<< TIMING CHAIN TENSIONER
INSTALLATION

1. Check that the sprocket timing chain mating marks align

with the link plates (orange or blue) of the timing chain, and
install the timing chain tensioner to the cylinder block.

2. Remove the hard wire or L-shaped hexagon wrench fixing

the plunger of the timing chain tensioner to apply tension to
the timing chain.

.

>>C<< CRANKSHAFT FRONT OIL SEAL

INSTALLATION

1. Apply a small amount of engine oil to the entire inner

diameter of the crankshaft front oil seal lip.

CAUTION

When installing the crankshaft front oil seal, be careful to
avoid damage to the crankshaft front oil seal.
2. Using special tool MB991448, press in the crankshaft front

oil seal up to the chamfered surface of timing chain case.

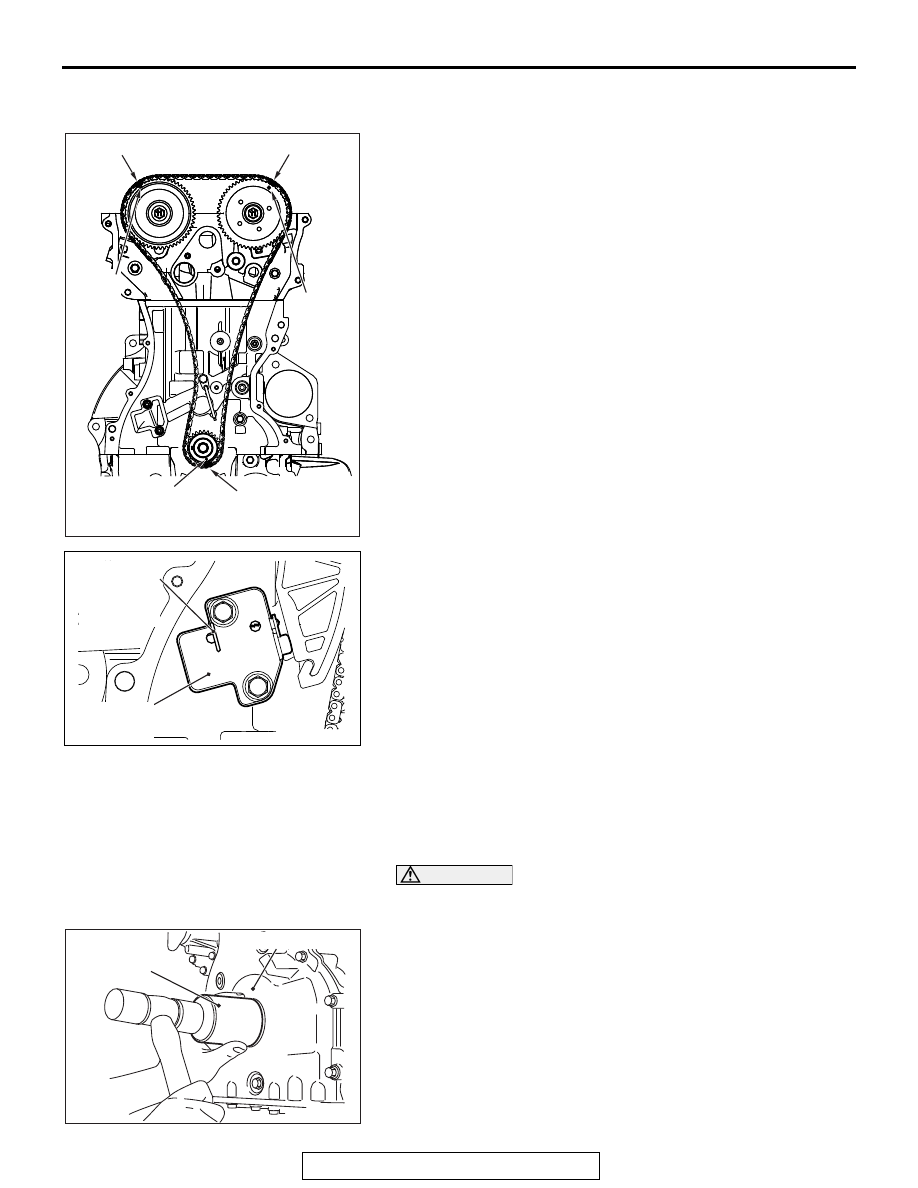

AC506772

AS

Link plates (orange)

Link plate (blue)

Mating
mark

Mating
mark

Mating mark

Link plate (blue)

AC506773

AE

Timing chain
tensioner

Hard wire or
L-shaped
hexagon
wrench

AC506763 AC

MB991448

Timing chain case

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-74

.

>>D<< TIMING CHAIN CASE ASSEMBLY
INSTALLATION

CAUTION

• Be sure to remove the sealant inside the mounting

holes and the O-ring grooves.

• After degreasing with white gasoline or the like, check

that there is no oil on the surface where the sealant is
applied.

• After degreasing with white gasoline or the like, never

touch the degreased area with fingers.

1. Completely remove the liquid gasket adhered to the timing

chain case assembly, cylinder block and cylinder head, and
then degrease using the volatile degreasing agent.

2. Remove all the sealant adhering to the gasket between the

cylinder head and cylinder block (three-surface aligned
part). Then, degrease the surfaces with the volatile
degreasing agent.

3. As for the three-surface aligned part above, the engine oil

oozes from the cylinder head gasket. Thus, quickly apply the
sealant to it after degreasing.

Specified sealant: ThreeBond 1217G or equivalent

AC904698AB
