ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-97

STEP 2. DTC recheck after resetting CAN bus lines
Q: Is DTC C1048 set?

YES : Go to Step 3.
NO :  The procedure is complete.

STEP 3. Using scan tool MB991958, check the DTC
Check that the DTCs C1020, C1027, C102A, or C1043 are also
set.
Q: Are DTC C1020, C1027, C102A, or C1043 also set?

YES : Carry out the diagnosis for the relevant DTCs.
NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check the data list
Check the following data list (Refer to

P.35B-179

).

• Item No.03: RL wheel speed sensor

Q: Is the check result normal?

YES : Go to Step 11.
NO :  Go to Step 5.

STEP 5. Connector check: A-01 ABS-ECU connector,
C-129 intermediate connector, D-114 rear wheel speed
sensor <LH> connector
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the defective connector. Then go to Step 13.

STEP 6. Wiring harness check between A-01 ABS-ECU
connector terminal No.24 and D-114 rear wheel speed
sensor <LH> connector terminal No.1, and between A-01
ABS-ECU connector terminal No.25 and D-114 rear wheel
speed sensor <LH> connector terminal No.2.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair the wiring harness. Then go to Step 13.

STEP 7. Check for wheel speed sensor <RL> installation
Check how the wheel speed sensor <RL> is installed (Discon-
nection of wheel speed sensor <RL>, loose mounting bolt,
etc.).
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Reinstall the wheel speed sensor <RL> correctly

(Refer to

P.35B-189

). Then go to Step 8.

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-98

STEP 8. Check for wheel speed sensor <RL> output
current
Refer to

P.35B-184

.

Q: Is the check result normal?

YES : Go to Step 9.
NO :  Replace the wheel speed sensor <RL> (Refer to

P.35B-189

). Then go to Step 12.

STEP 9. Check for wheel bearing looseness
NOTE:

.

Loose wheel bearing may increase the gap between the
wheel speed sensor<RL> and the wheel speed detection
magnet encoder.

Check the wheel bearing <RL> for looseness (Refer to
GROUP 27A

 On-vehicle Service

P.27A-6

).

Q: Is the check result normal?

YES : Go to Step 10.
NO :  Replace the rear wheel hub assembly <RL> (Refer to

GROUP 27A

− Rear Axle Hub Assembly

P.27A-8

).

Then go to Step 13.

STEP 10. Check of wheel speed detection encoder
Check the encoder for adhesion of foreign materials or defor-
mation.
Q: Is the check result normal?

YES : Go to Step 11.
NO (Adhesion of foreign materials) : Remove the foreign

materials and clean the encoder so as not to disturb
the magnetization pattern on it while taking care of the
magnet, magnetic substance, and magnetic
attraction. Then go to Step 13.

NO (Deformation) : Replace the rear wheel hub assembly

<RL> (Refer to GROUP 27A

− Rear Axle Hub

Assembly

P.27A-8

). Then go to Step 13.

STEP 11. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1048 set?

YES : Replace the wheel speed sensor <RL> (Refer to

P.35B-189

). Then go to Step 12.

NO :  Intermittent malfunction (Refer to GROUP 00

− How

to Use Troubleshooting/How to Cope with Intermittent
Malfunctions

P.00-15

).

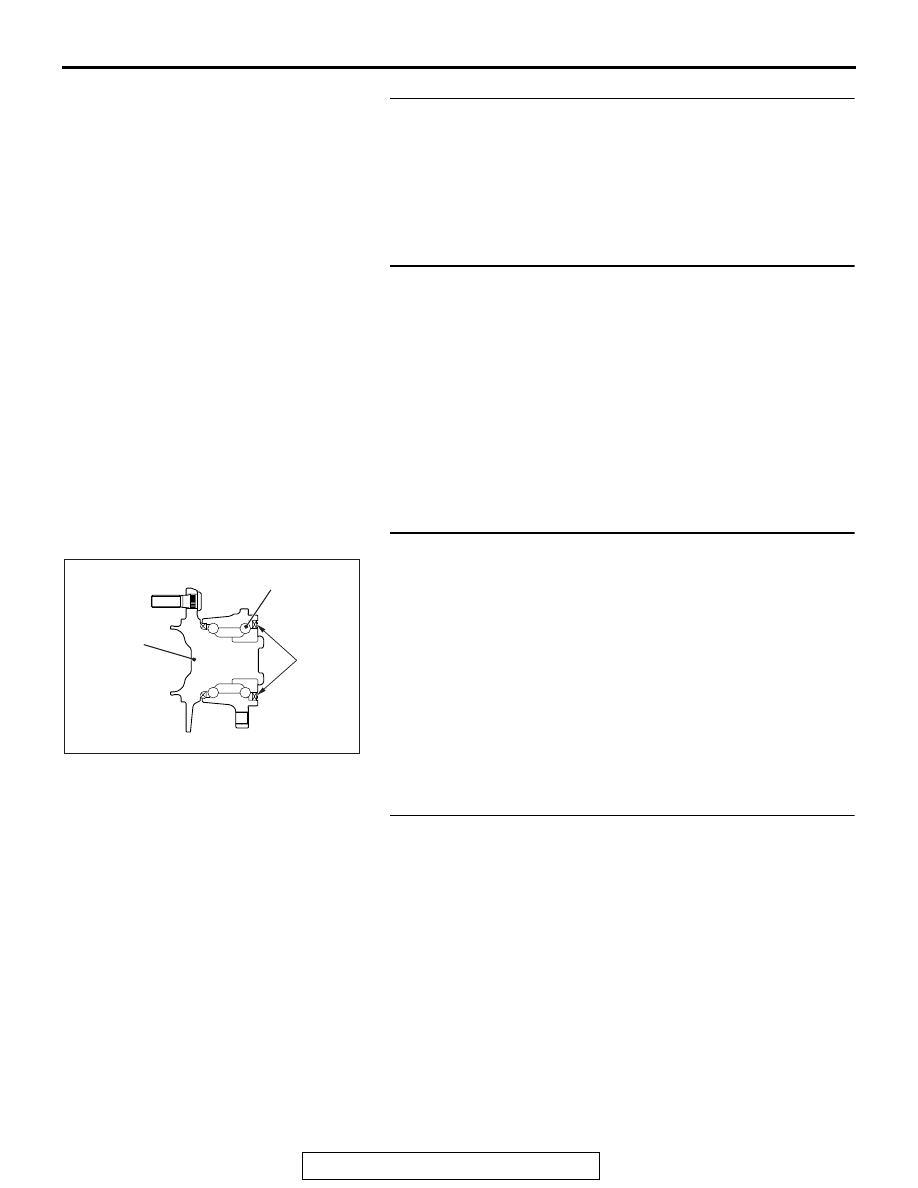

AC608763

Ball bearing

Rear hub
assembly

Magnetic
encoder

AB

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-99

STEP 12. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1048 set?

YES : Replace the hydraulic unit (integrated with ABS-ECU)

(Refer to

P.35B-188

). Then go to Step 13.

NO :  The procedure is complete.

STEP 13. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1048 set?

YES : Return to Step 1.
NO :  The procedure is complete.

DTC C1049: RR wheel speed sensor control phase time exceeded

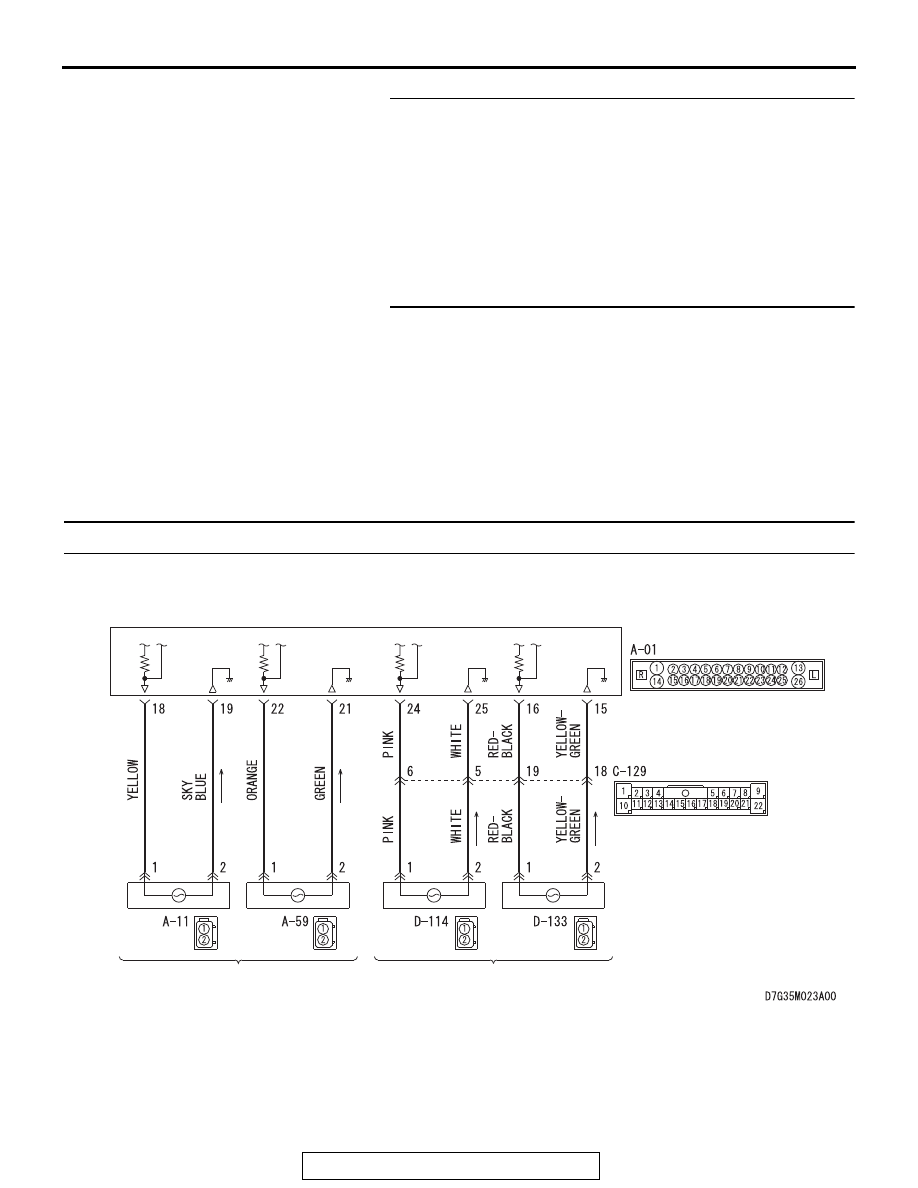

AC703729

Wheel Speed Sensor Circuit

ABS-ECU

(LH)

(LH)

(RH)

(RH)

REAR WHEEL SPEED SENSOR

AB

FRONT WHEEL SEED SENSOR

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-100

CAUTION

If there is any problem in the CAN bus lines, an incorrect
DTC may be set. Prior to this diagnosis, diagnose the CAN
bus lines (Refer to GROUP 54C

 CAN Bus Line Diagnostic

Flow

P.54C-10

).

.

CIRCUIT OPERATION

• The wheel speed sensor is a type of pulse generator. It con-

sists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the wheel speed which rotates at the same speed of the
wheels and wheel speed sensors. This sensor outputs fre-
quency pulse signals in proportion to the wheel speed.

• The pulse signals, which the wheel speed sensor creates,

are sent to ABS-ECU. ABS-ECU uses the frequency of the
pulse signals to determine the wheel speed.

.

DTC SET CONDITIONS

This DTC is set if any malfunction below is found:

• When the brake fluid pressure is decreased for a long time.

• When the brake fluid pressure is held for a long time.

.

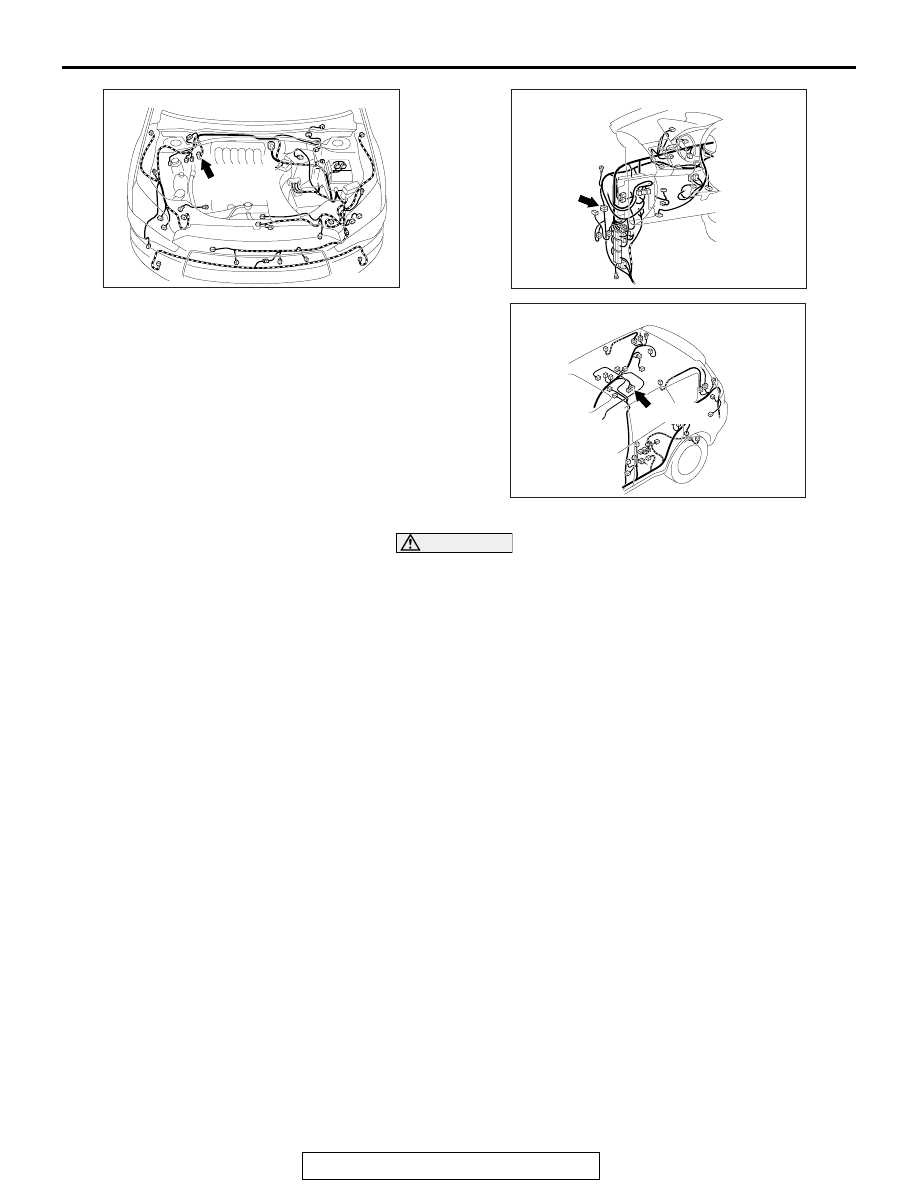

AC901112

Connector: A-01

A-01 (B)

AE

AC901075BC

Connector: C-129

AC901080AN

Connector: D-133

D-133 (B)
