GROUNDING

TSB Revision

COMPONENT LOCATIONS

70-23

GROUNDING

M1701000302078

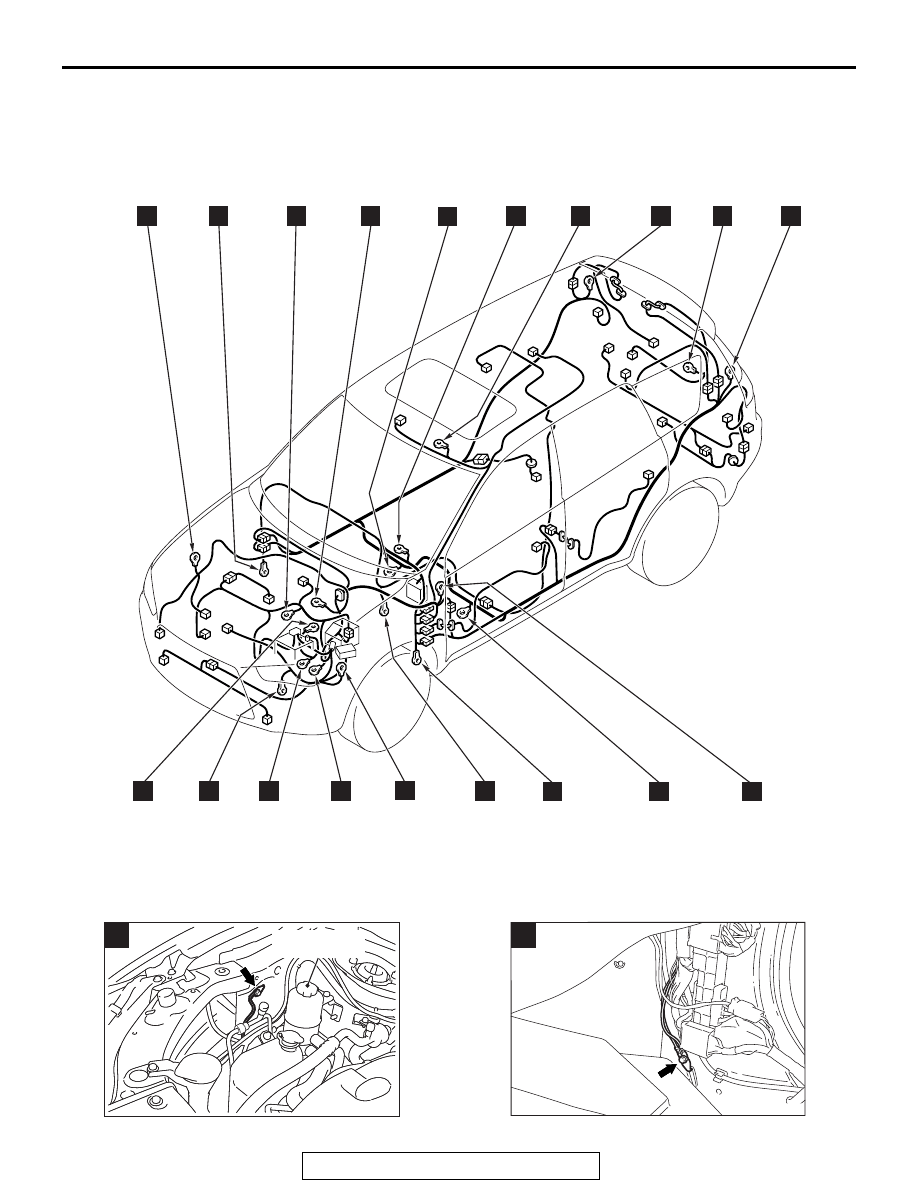

NOTE: 1 to 19 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

AC900249AE

12

13

14

15

1

4

3

2

11

16

17

18

10

9

8

19

5

6

7

AC900264

AC900264AC

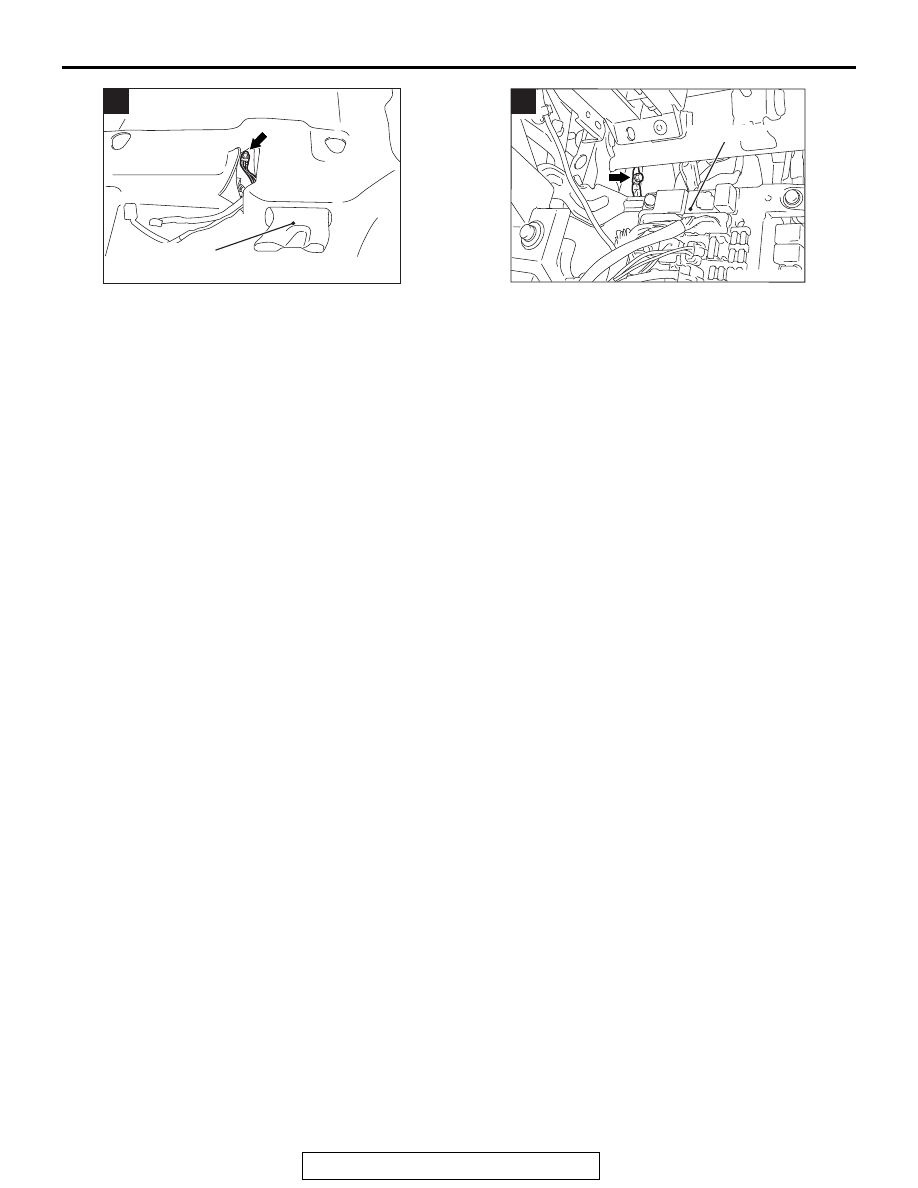

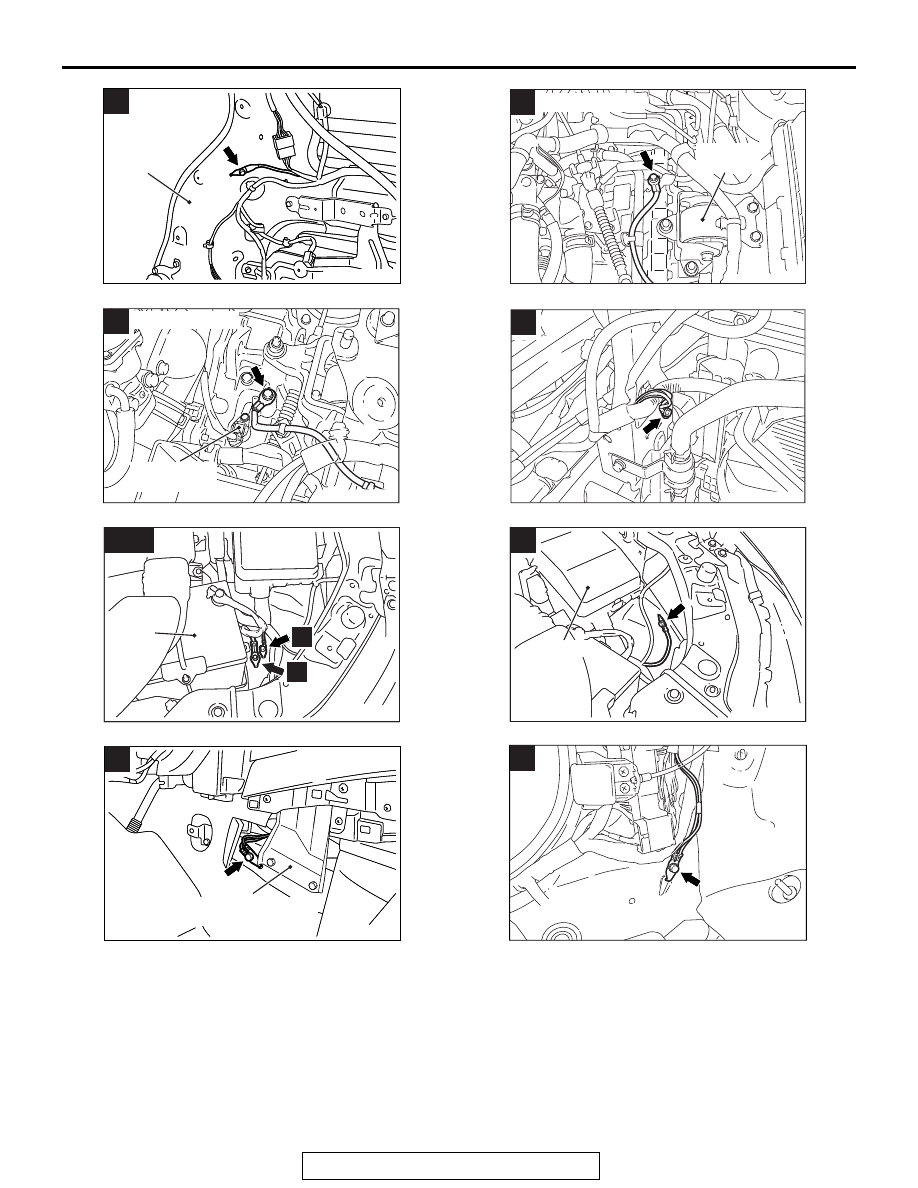

1

Power steering
reservoir tank

AC702529 AB

2

GROUNDING

TSB Revision

COMPONENT LOCATIONS

70-24

AC505396

AG

3

<2.4L Engine>

Radiator
upper hose

AC702526AC

3

Water inlet fitting

<3.0L Engine>

AC702566

AB

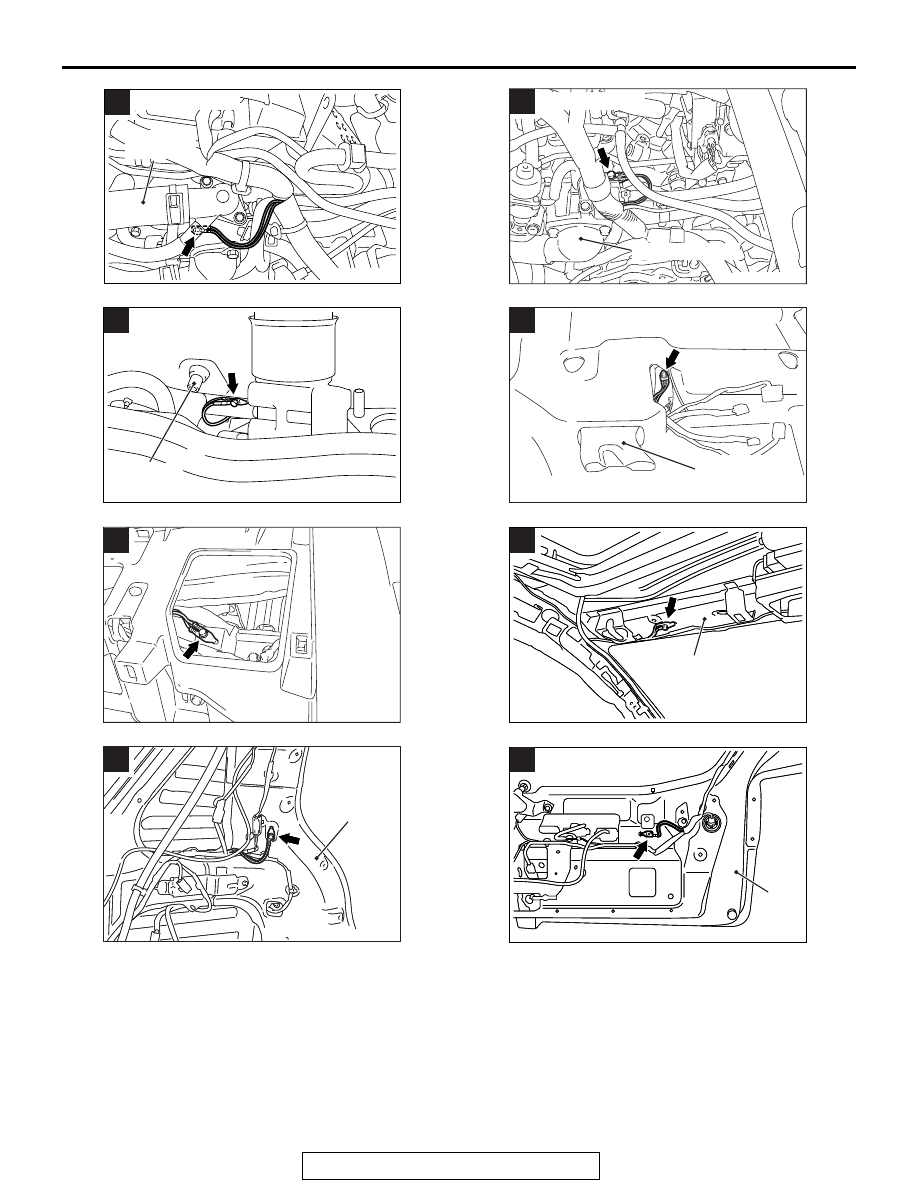

4

Drain hose

AC702579AB

5

Rear heater
duct (RH)

AC702531AB

6

AC702581

AC702581

AC

Roof front
rail lower

7

AC702576

AC702576AC

Quarter panel
inner (RH)

8

AC702577

AC702577

AC

Liftgate

9

GROUNDING

TSB Revision

COMPONENT LOCATIONS

70-25

AC702578

AC702578

AC

10

Quarter panel
inner (LH)

AC505381AF

Transaxle
mounting

<2.4L Engine>

11

AC702528AC

11

Input shaft
speed sensor

<3.0L Engine>

AC702525AB

12

AC900265

AC900265AC

Battery

14

13,

13

14

AC900266

AC900266AC

Relay box

15

AC505398

AC505398

AE

Center reinforcement
(LH)

16

AC702530 AB

17

GROUNDING

TSB Revision

COMPONENT LOCATIONS

70-26

AC702580AB

18

Rear heater
duct (LH)

AC702532 AB

19

ETACS-ECU
