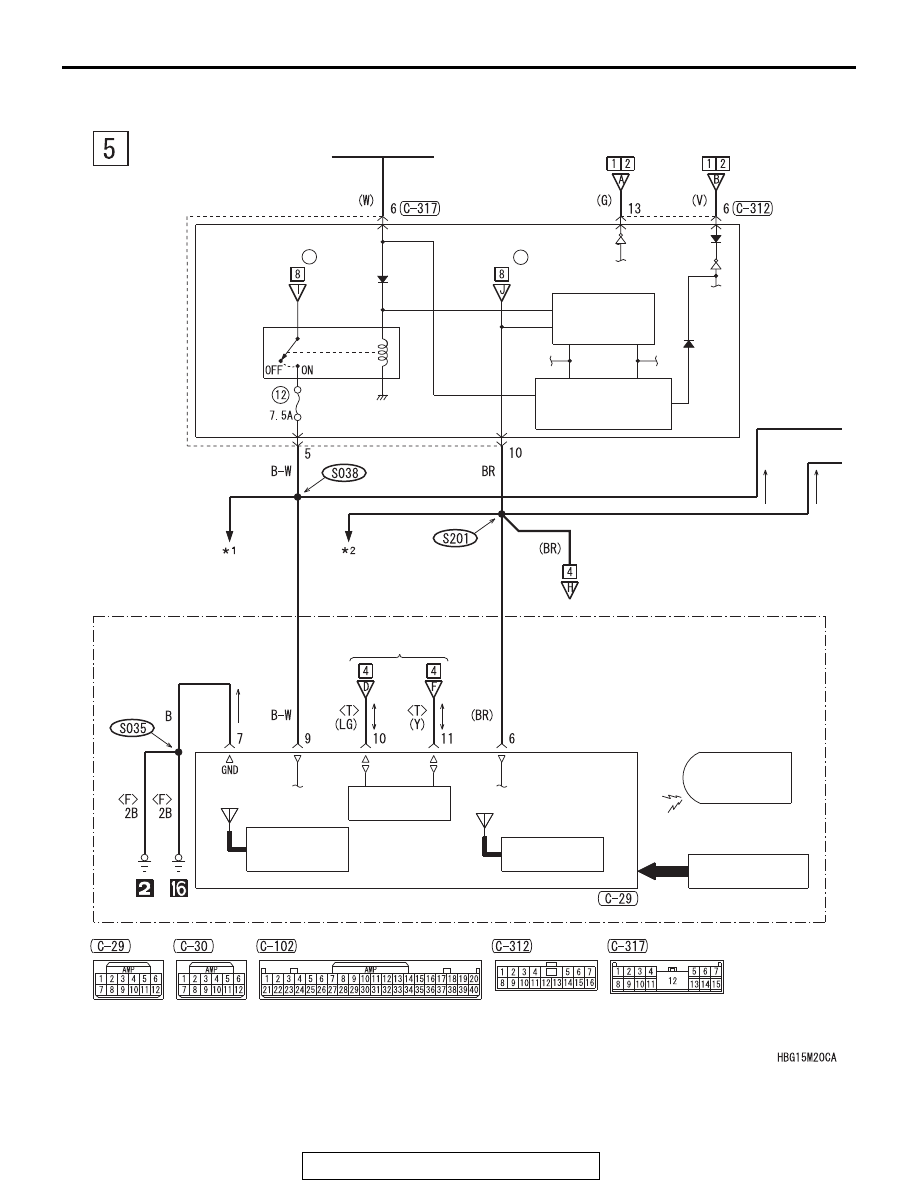

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR>

TSB Revision

CIRCUIT DIAGRAMS

90-397

CAN TRANSCEIVER
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION METER

CAN DRIVE
CIRCUIT

CPU

TONE ALARM

LCD (THEFT-ALARM INDICATOR)

HOOD LATCH
SWITCH

ETACS-ECU

(FUSE    )

RHEOSTAT

JOINT
CONNECTOR
(CAN1)

8

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR>

TSB Revision

CIRCUIT DIAGRAMS

90-398

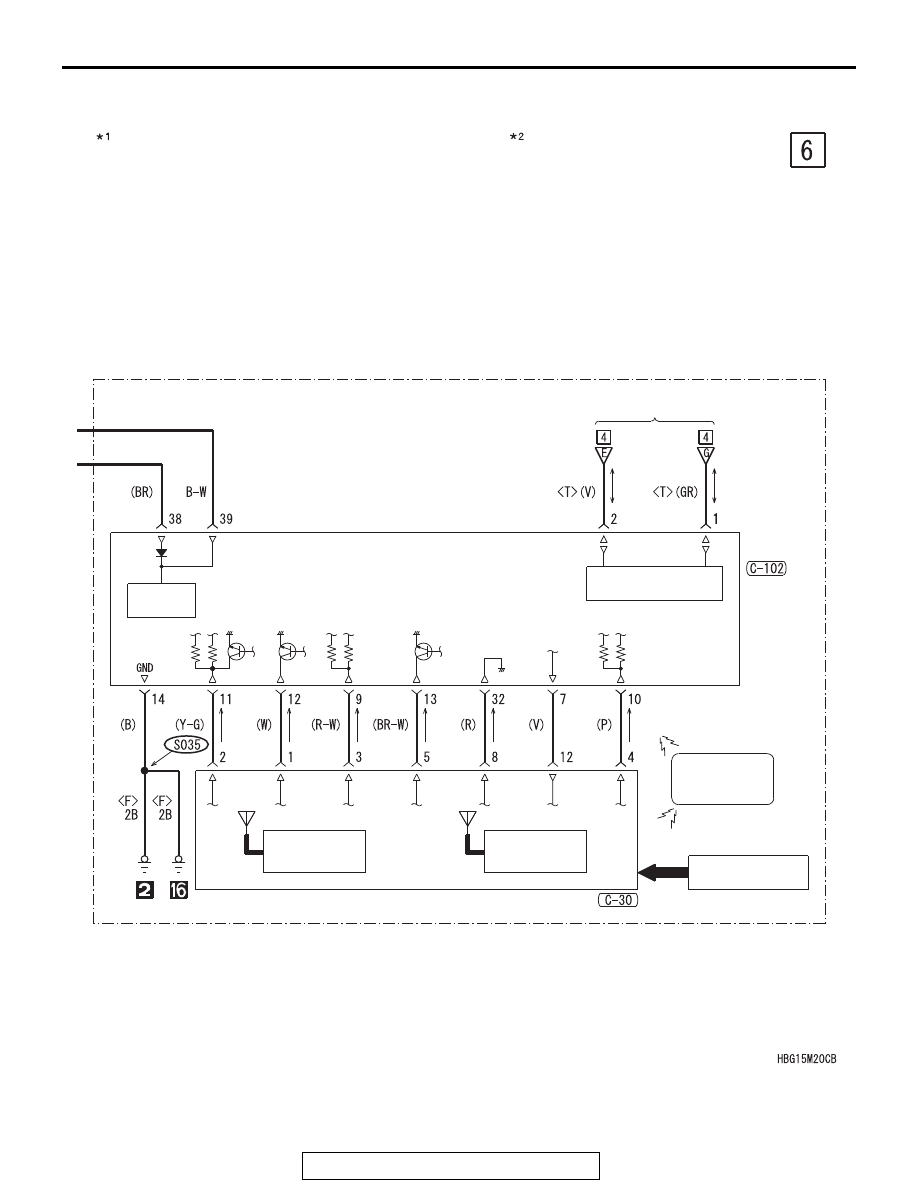

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR> (CONTINUED)

<VEHICLES WITHOUT KOS>

KEYLESS
ENTRY
RECEIVER

KEYLESS
ENTRY
TRANSMITTER

WIRELESS CONTROL MODULE

ID
CODE

ETACS-ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

HEADLIGHT
RELAY (HIGH)

HEADLIGHT
RELAY (LOW)

IG1
RELAY

FUSE

8

CAN DRIVE
CIRCUIT

IMMOBILIZER
ANTENNA

TRANSPONDER

JOINT CONNECTOR
(CAN1)

IGNITION
CONTROL
CIRCUIT

HEADLIGHT
BACKUP
CIRCUIT

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR>

TSB Revision

CIRCUIT DIAGRAMS

90-399

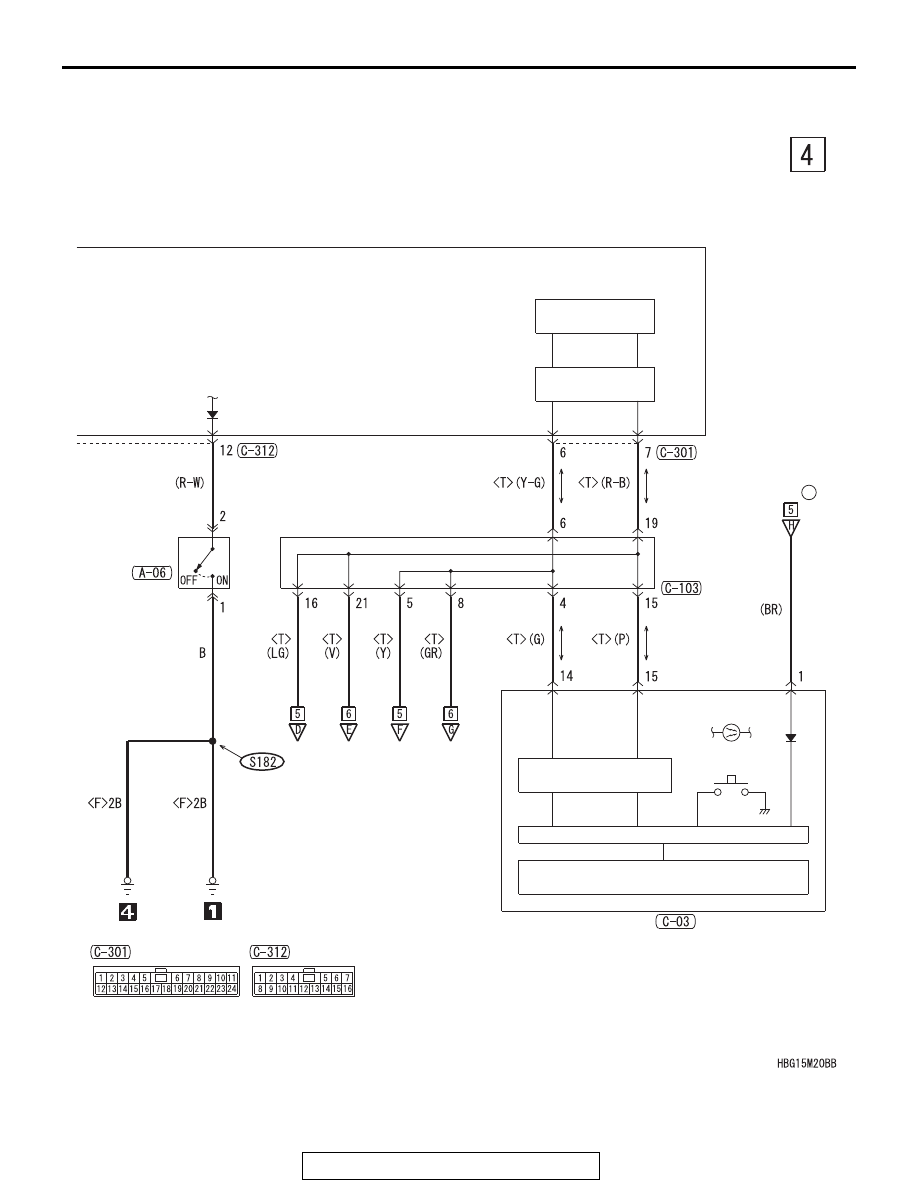

<VEHICLES WITH KOS>

KEYLESS
OPERATION
KEY

RECEIVER ANTENNA MODULE

KEYLESS
ENTRY
RECEIVER

IMMOBILIZER
ANTENNA

TRANSPONDER

ID
CODE

KOS-
ECU

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)

POWER
SUPPLY

: ·AIR CONDITIONING SYSTEM

·DAYTIME RUNNING LIGHT (DRL)
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE ALARM
 <VEHICLES WITH KOS>
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
 AND ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·BRAKE WARNING LIGHT,
 FUEL WARNING LIGHT AND
 OIL PRESSURE WARNING LIGHT
·CHARGING SYSTEM
·COOLING SYSTEM
·CRUISE CONTROL SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOOR AJAR WARNING TONE ALARM
·ELECTRONIC CONTROLLED AWD
·FOG LIGHT
·GLOVE BOX LIGHT
·HANDS-FREE INTERFACE SYSTEM
·HEADLIGHT
·HEATED DOOR MIRROR
·HEATED SEAT
·INVECS-II 6A/T
·INVECS-III CVT
·METER AND GAUGE

·MFI SYSTEM
·PARKING BRAKE REMINDER
 TONE ALARM
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·S-AWC
·SEAT BELT WARNING TONE
 ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT
 AND LIGHTING MONITOR
 TONE ALARM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TURN-SIGNAL LIGHT
 AND HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

:

NOTE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR>

TSB Revision

CIRCUIT DIAGRAMS

90-400

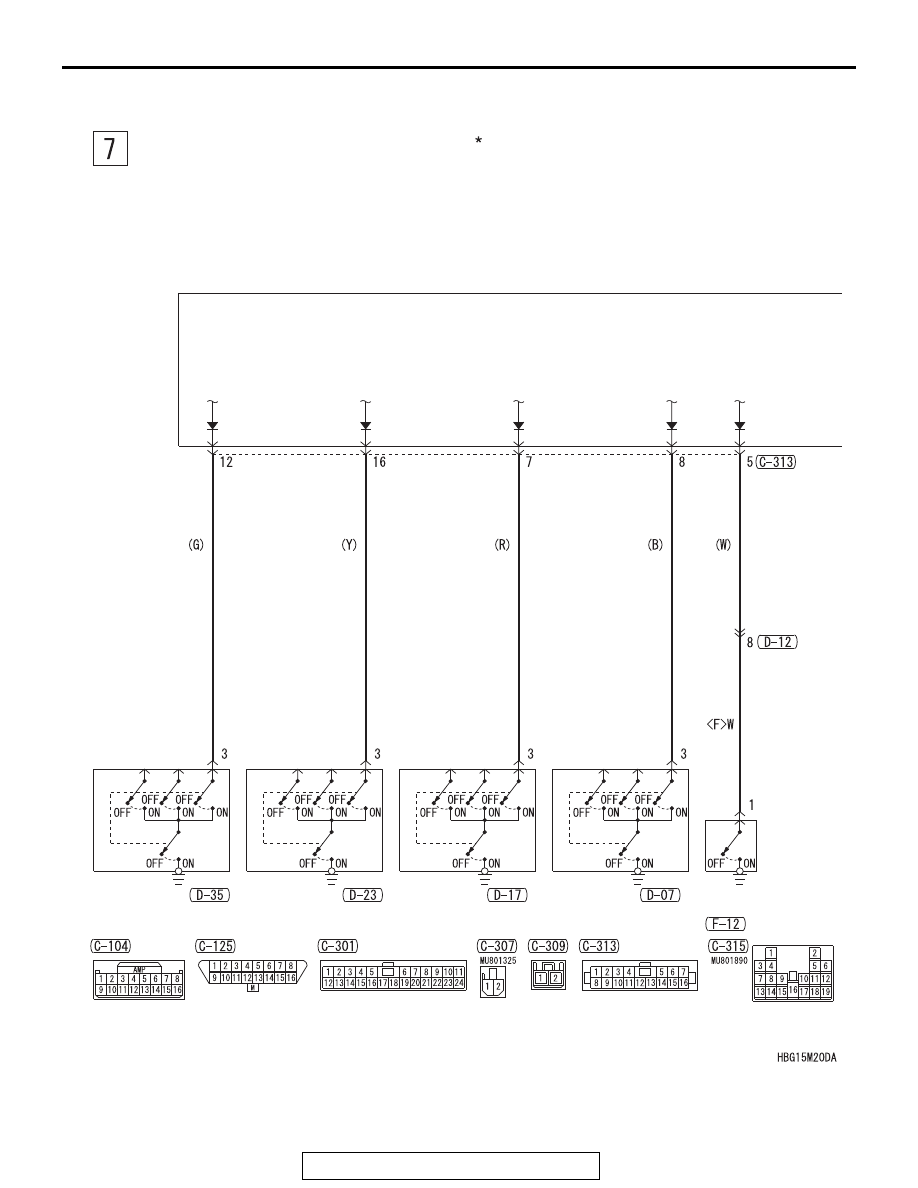

THEFT-ALARM SYSTEM <VEHICLES WITHOUT THEFT-ALARM SENSOR> (CONTINUED)

LIFTGATE
SWITCH

ETACS-
ECU

REAR DOOR
SWITCH (RH)

REAR DOOR
SWITCH (LH)

FRONT DOOR
SWITCH (LH)

FRONT DOOR
SWITCH (RH)

FRONT SIDE

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE STABILITY
 CONTROL SYSTEM (ASC)
·AUDIO SYSTEM
·CRUISE CONTROL
 SYSTEM
·ELECTRONIC CONTROLLED
 AWD
·HANDS-FREE INTERFACE
 SYSTEM
·HEADLIGHT MANUAL
 LEVELING SYSTEM

NOTE

:

·INVECS-II 6A/T
·INVECS-III CVT
·MITSUBISHI MULTI-
 COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT
 ENTERTAINMENT SYSTEM
·S-AWC
·SPARE CONNECTOR
 (FOR REAR DISPLAY)
·TURN-SIGNAL LIGHT
AND HAZARD WARNING LIGHT
·UNIVERSAL SERIAL BUS
 (USB) BOX
