AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-201

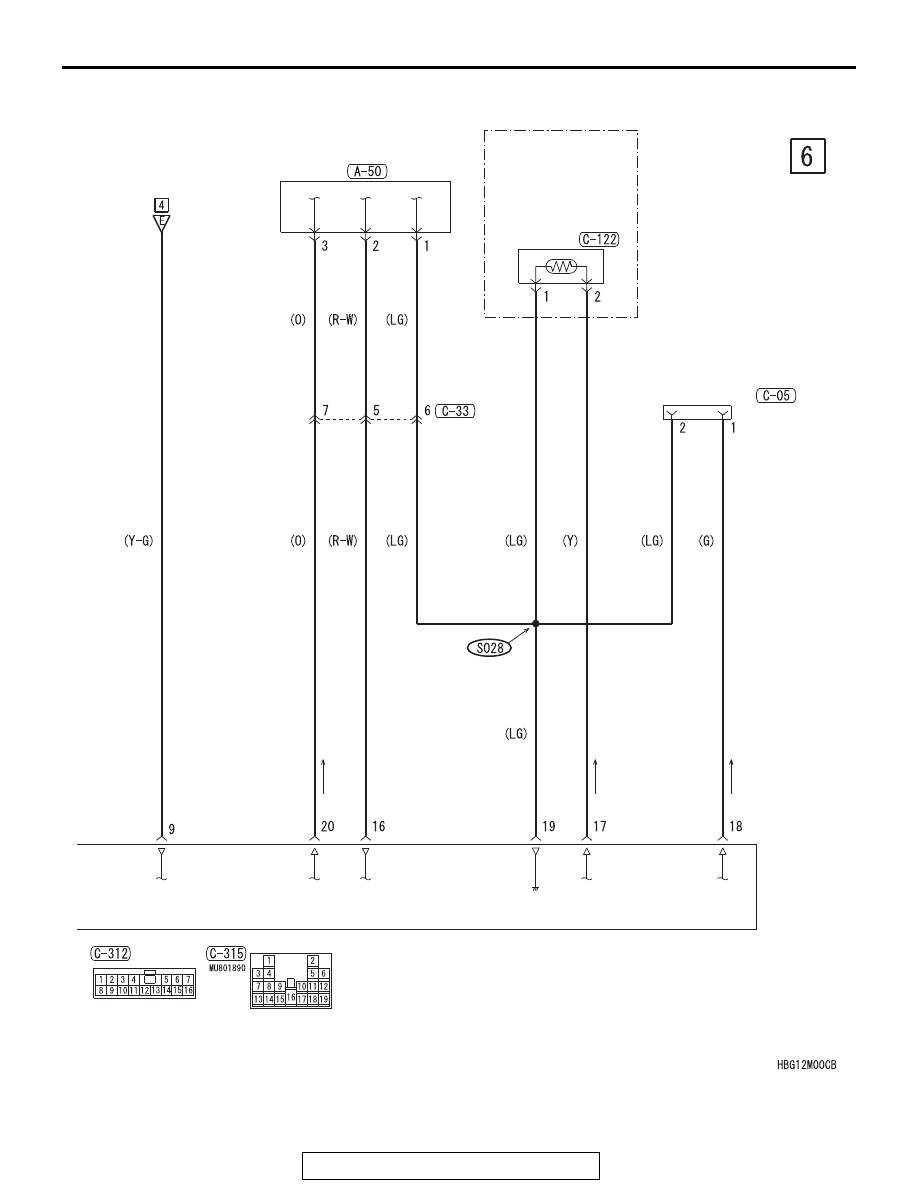

A/C
CONTROL PANEL

A/C PRESSURE
SENSOR

INTERIOR
TEMPERATURE
SENSOR

NO
CONNECTION

<VEHICLES WITH
AUTOMATIC
AIR CONDITIONING
SYSTEM>

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-202

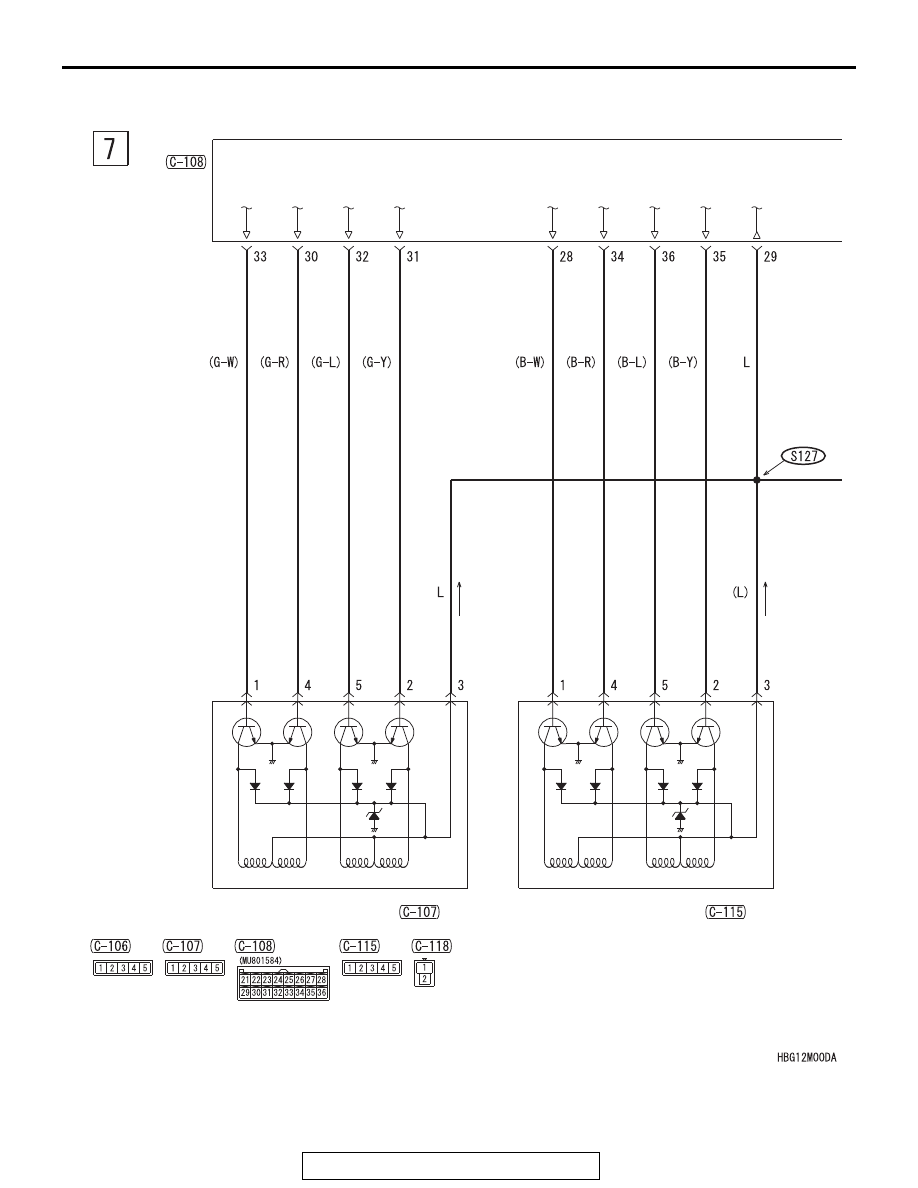

AIR CONDITIONING SYSTEM (CONTINUED)

MODE SELECTION
DAMPER CONTROL MOTOR

AIR MIXING
DAMPER CONTROL MOTOR

A/C-ECU

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-203

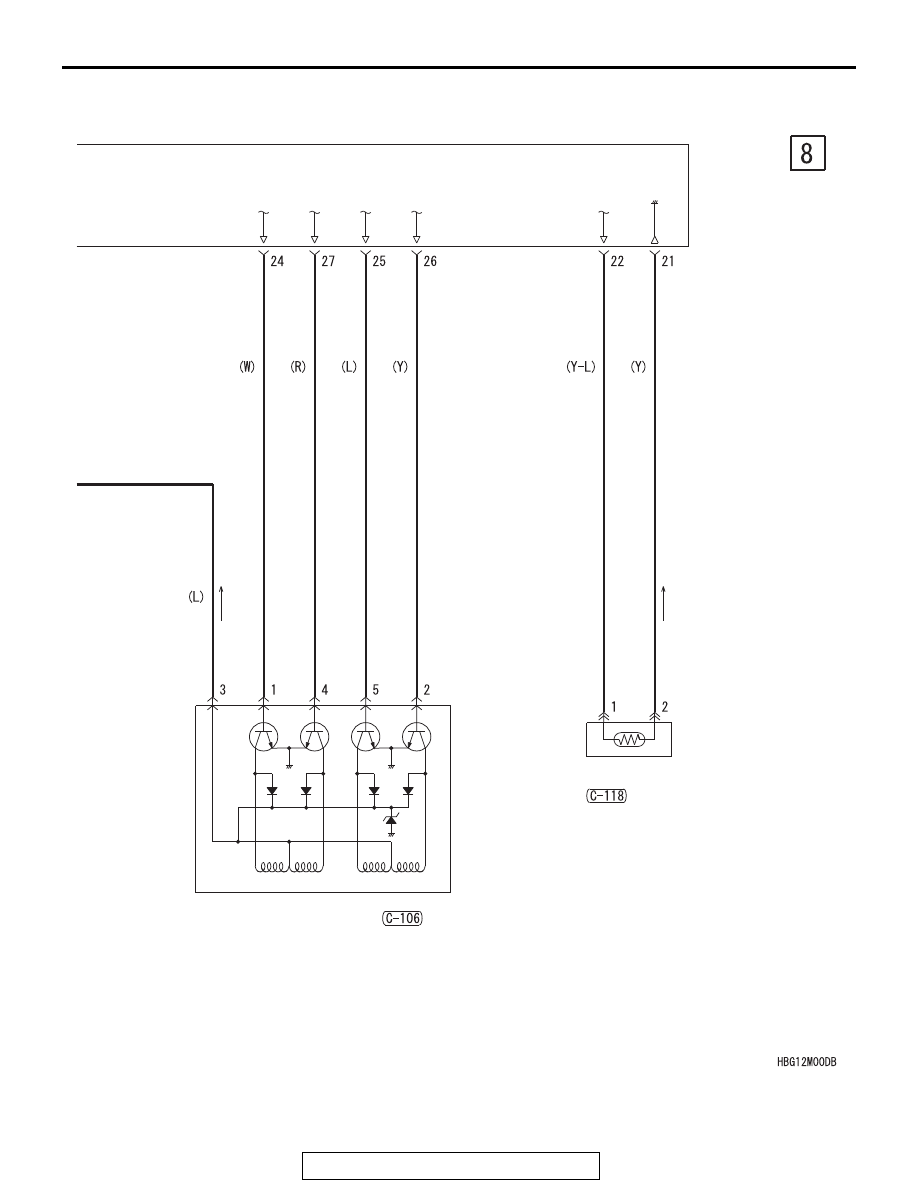

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

AIR THERMO
SENSOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-204

AIR CONDITIONING SYSTEM (CONTINUED)

INPUT SIGNAL

·CRANKSHAFT
 POSITION SENSOR
·ENGINE COOLANT
 TEMPERATURE
 SENSOR

A/C
COMPRESSOR
RELAY

ENGINE
CONTROL
MODULE

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

ANALOG
INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

CAN
DRIVE CIRCUIT

ABS-ECU

ASC-ECU

NOTE

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN3)
